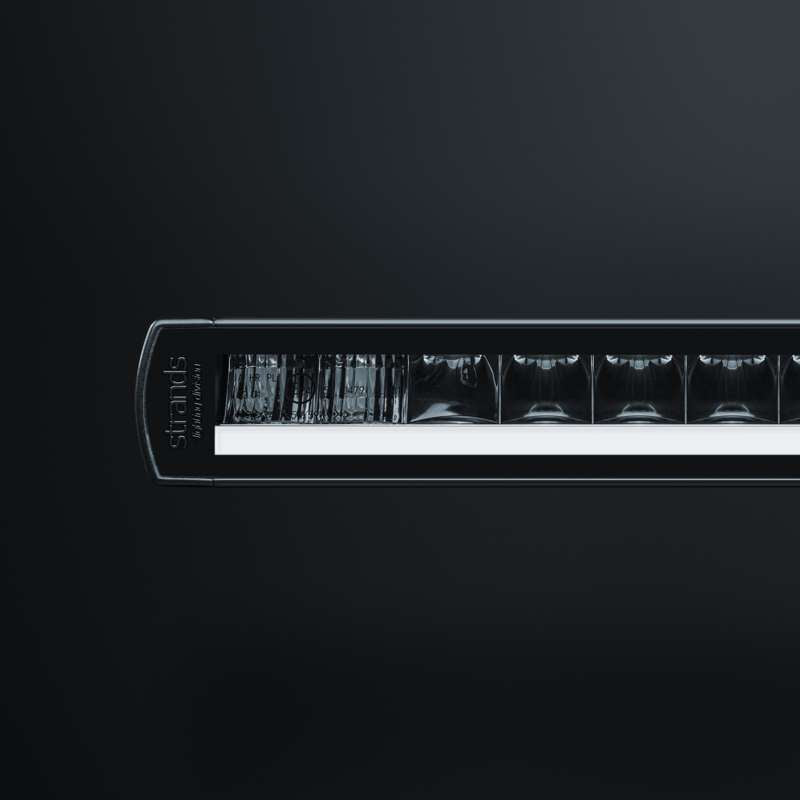

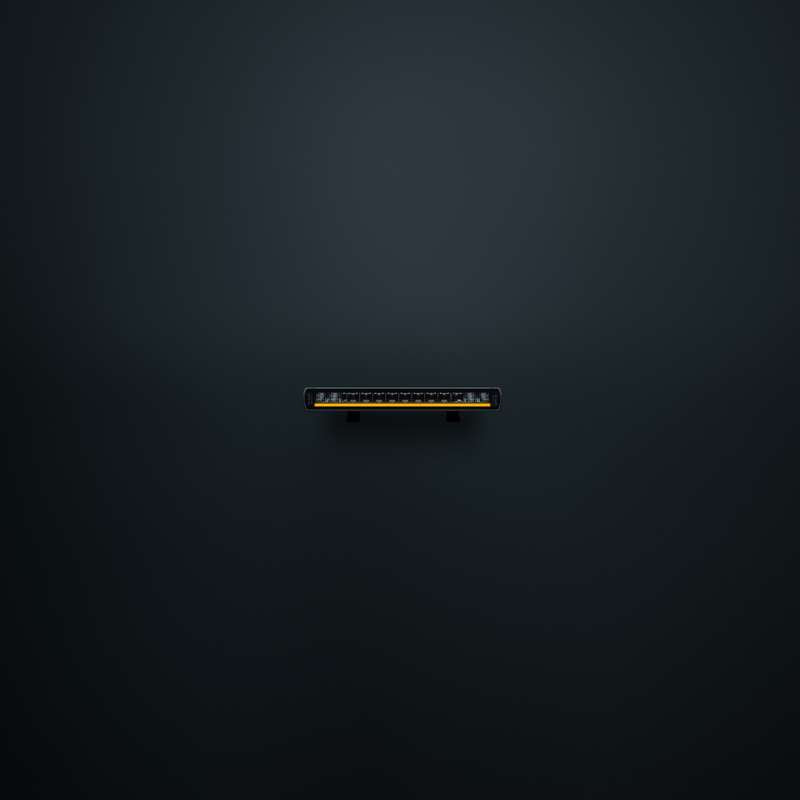

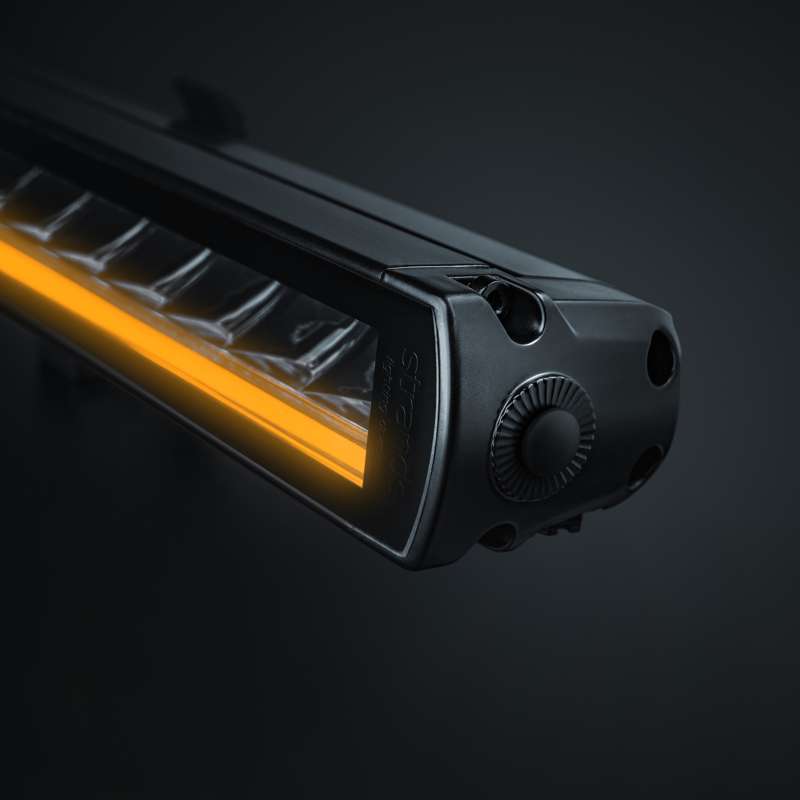

With more than 3600 actual lumens and over 450-meter range in Xperience mode, the Siberia XPA Single Row 12“ LED bar will light up the night with its optimized beam pattern. This means a 65% higher output than previous models and a balance of forward and sideways visibility. If you like the amber glow, the XPA LED bars also feature an amber and white position light. The durable materials and powder coating make this LED bar a long-lived addition to any vehicle. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. The installation is easy thanks to the DT-4 connector and 550 mm cable, saving you the hassle of connecting cables. The E-mode is E-approved ECE R149/148 with reference number 20. The XPA LED bars are covered by Strands Lighting Division’s 3-year function warranty.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 51,5W
Consumption = 50,0W
Functions = High beam, Amber and white position light
Consumption specific function = Xperience mode: 50W / E-mode: 25W / White pos. light: 5,1W / Amber pos. light: 5,1W
Theoretical lumen = 4000lm
Actual lumen = E-mode:1725lm / Xprience mode:3620lm

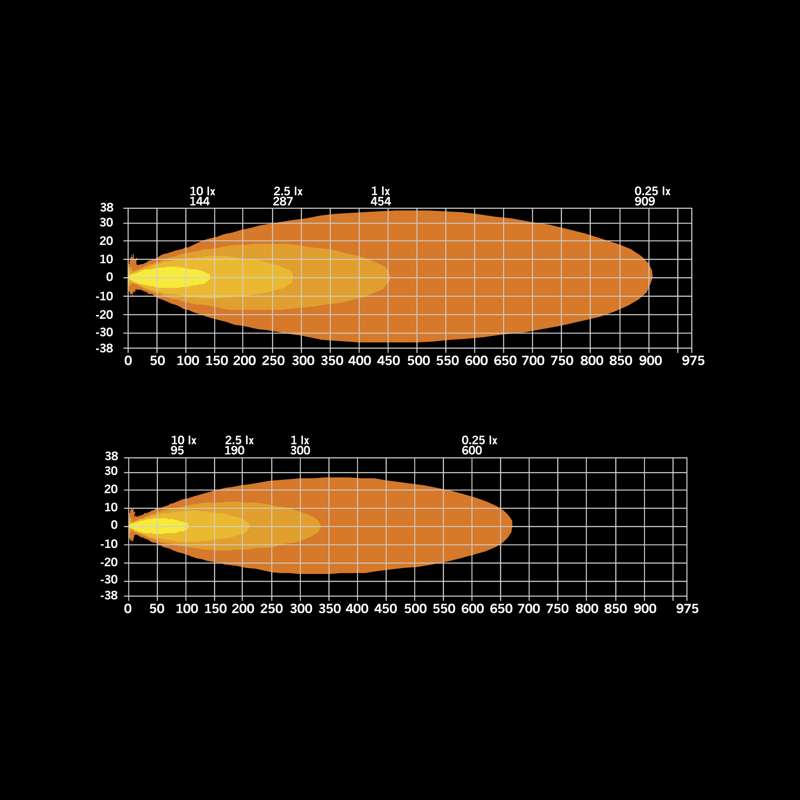

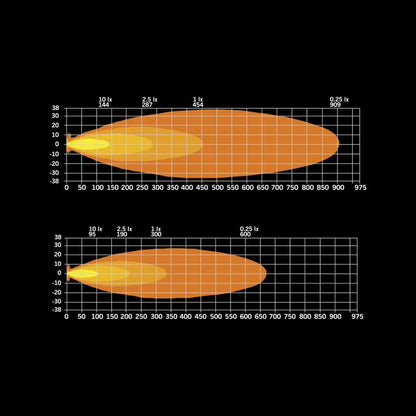

1 lux @ = E-mode:300m / Xperience mode:454m
Color temperature = 5700K
Beam pattern = Optimized beam
Beam angle = 12,6°
Connection = DT-4PIN
Cable length = 550mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber

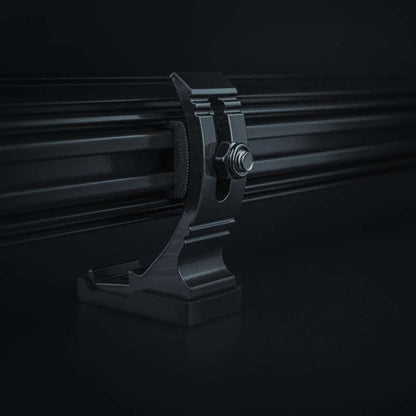

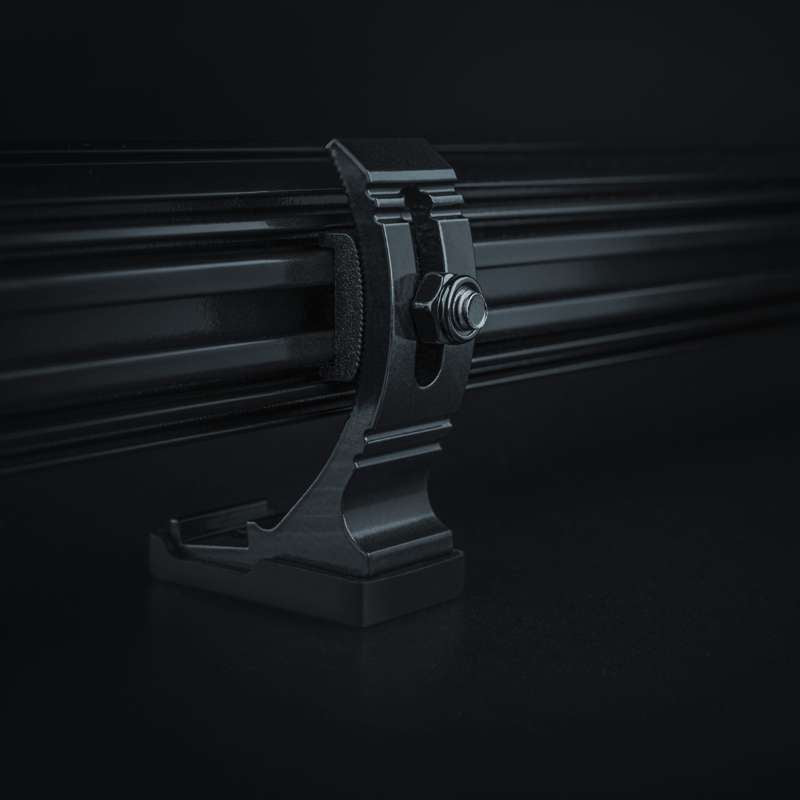

Material bracket = Aluminium alloy
Material housing/chassi = Aluminium
Material lens = Polycarbonate

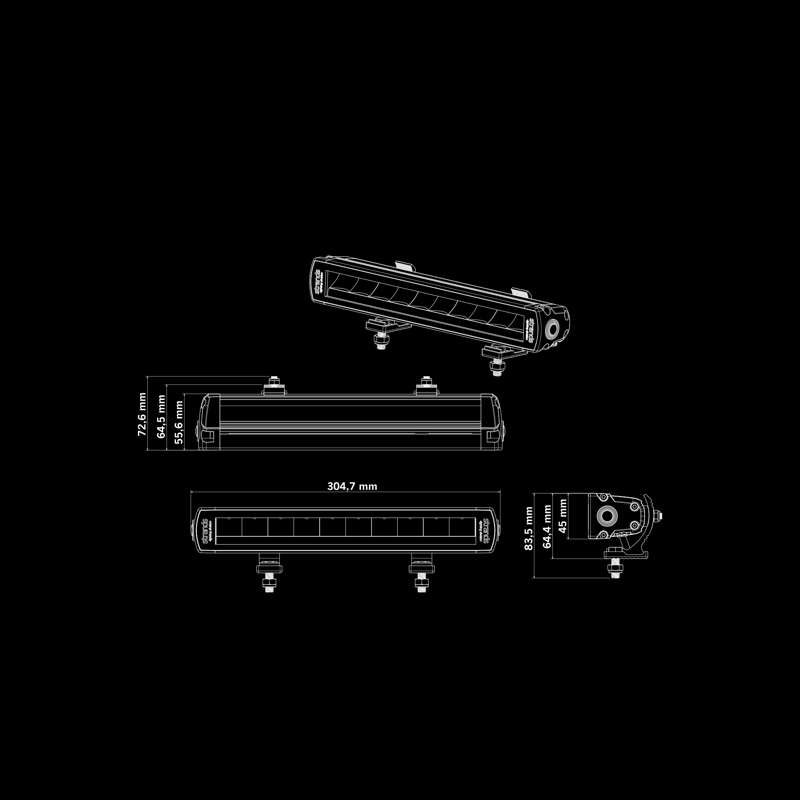

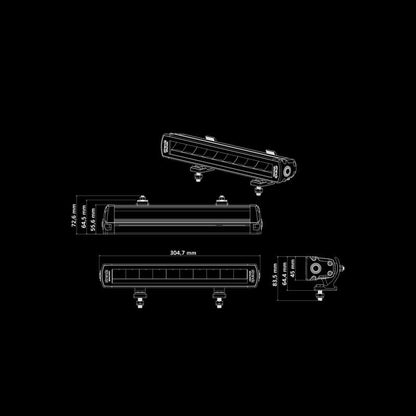

Length = 304,7mm
Depth = 55,5mm
Height = 45mm
Height including bracket = 64,5mm
Weight = 0,6kg
IP-class = IP68/69K
Operating temperature = -35 - +60°C
E-approved = Yes
According to regulation = ECE R148, R149
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Positive)
White cable = White Position light
Yellow cable = Amber Position light
Included in package = Rear hanging Bracktes, screws, washers, bolts, rubber pads, DT06 pig tail, No inbulit-relay
