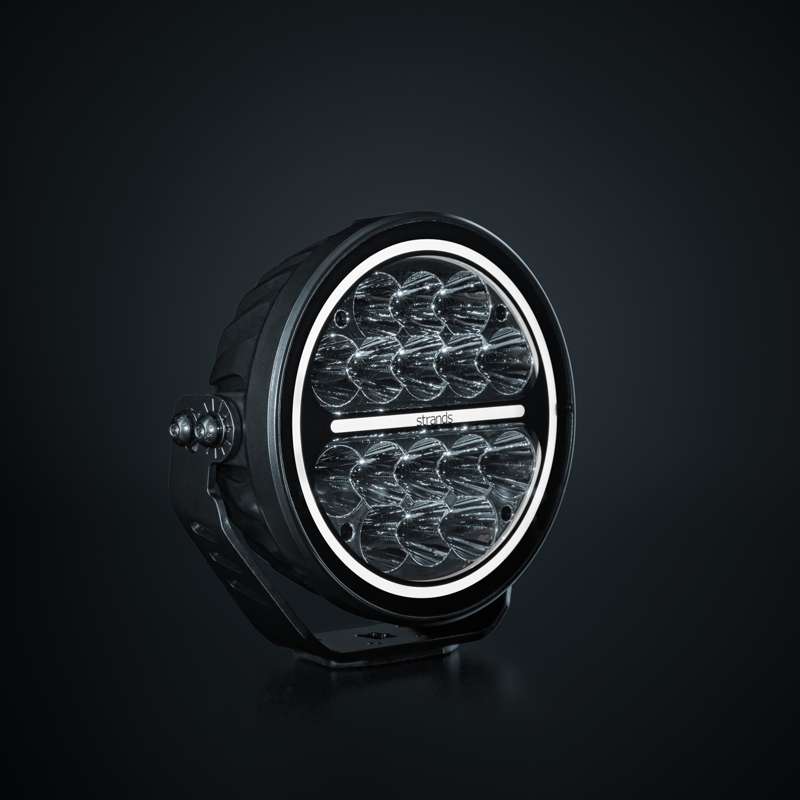

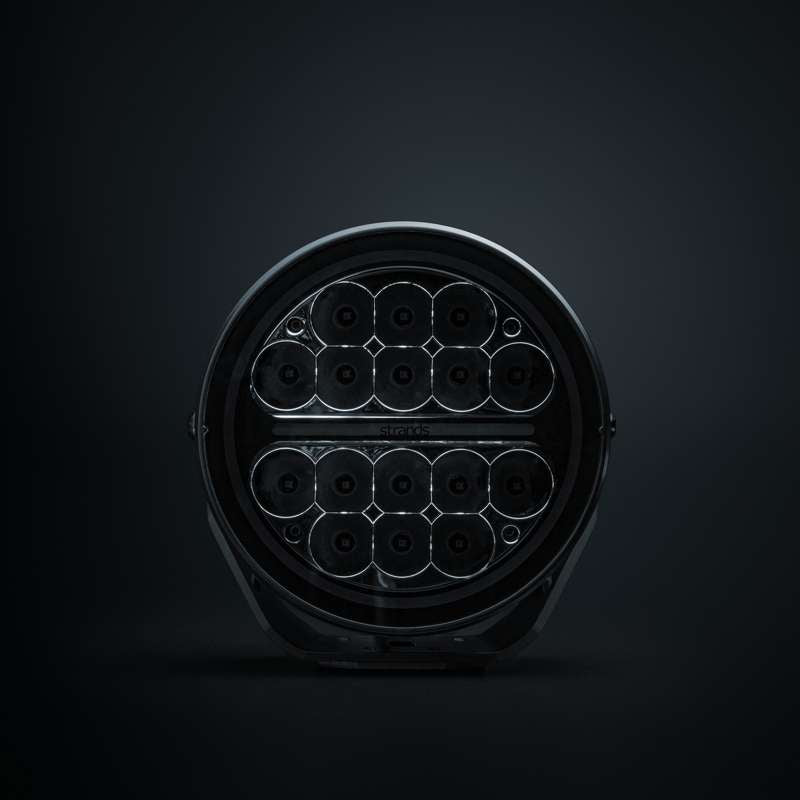

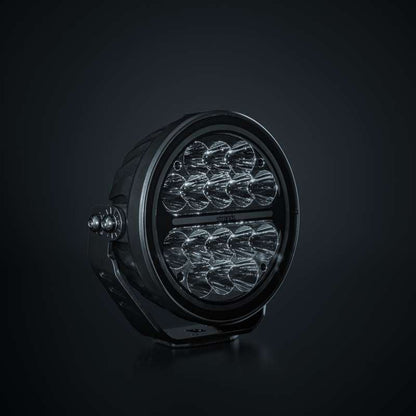

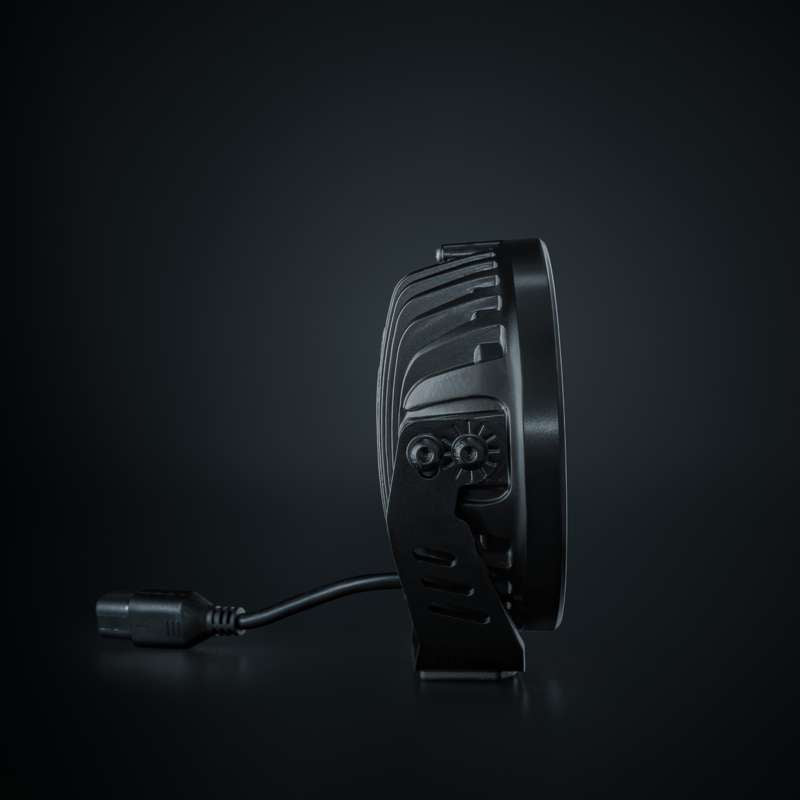

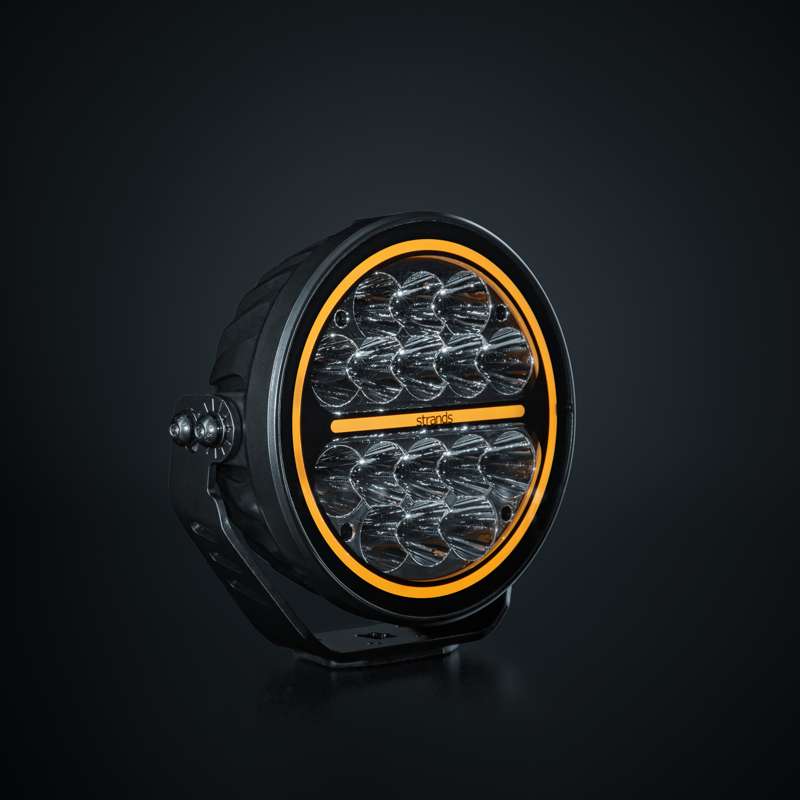

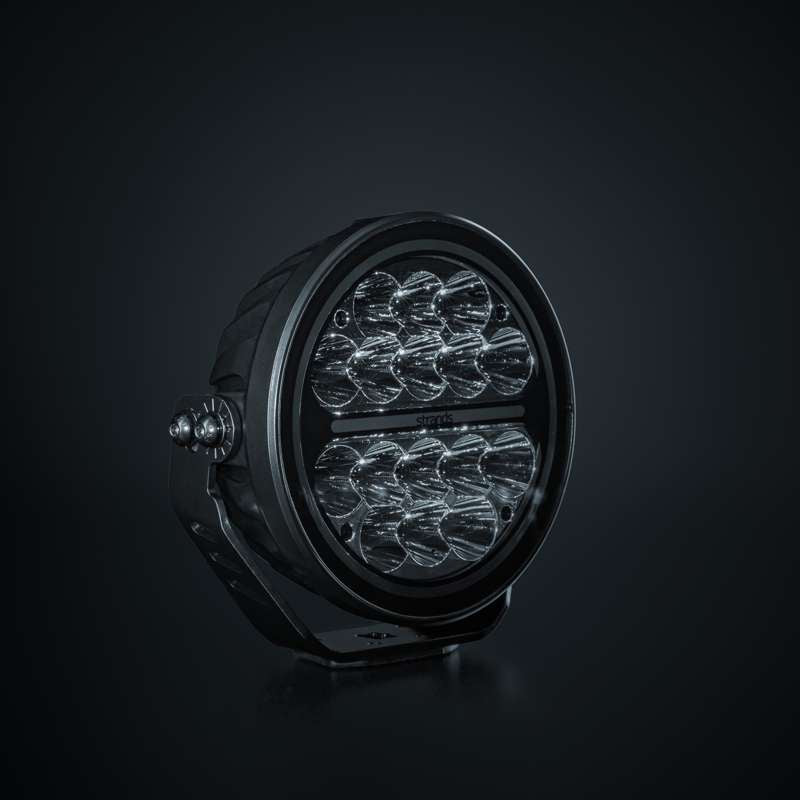

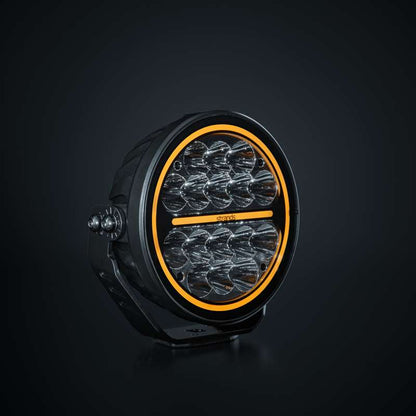

With more than 5700 incredible actual lumens and over 660-meter range in Xperience mode, the Siberia XPA 7” will light up the darkest night with its extended beam pattern. For the fans of the amber glow, the XPA 7” also has an amber and white position light. Like all XP products, it features the Hello function. With a quick double flash of your high beam, the position lights will signal a Hello to your fellow drivers. Its durable materials and new powder coating make this driving light a long-lived addition to any vehicle, and it has an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 550 mm cable, saving you the hassle of connecting cables. The E-mode is E-approved ECE R149/148 with reference number 20.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 80W
Consumption = 77,0W

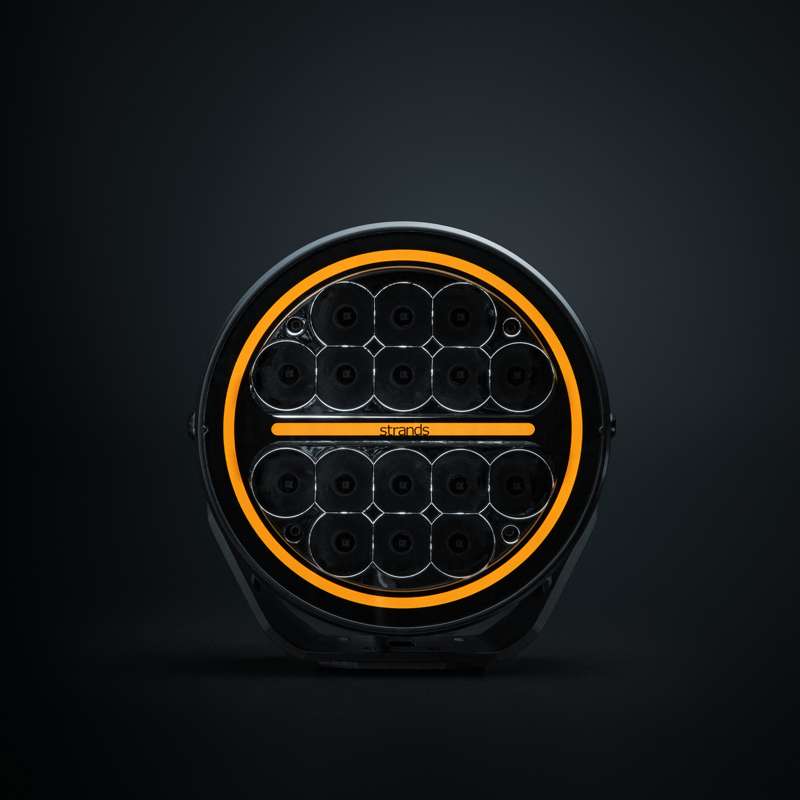

Functions = Driving light, White position light, Amber position light
Consumption specific function = Xperience mode: 77W / E-mode: 22W / White Pos. light: 5,2W / Amber pos. light: 5,2W
Theoretical lumen = 6720lm
Actual lumen = E-mode:1540lm / Xperience mode:5710lm

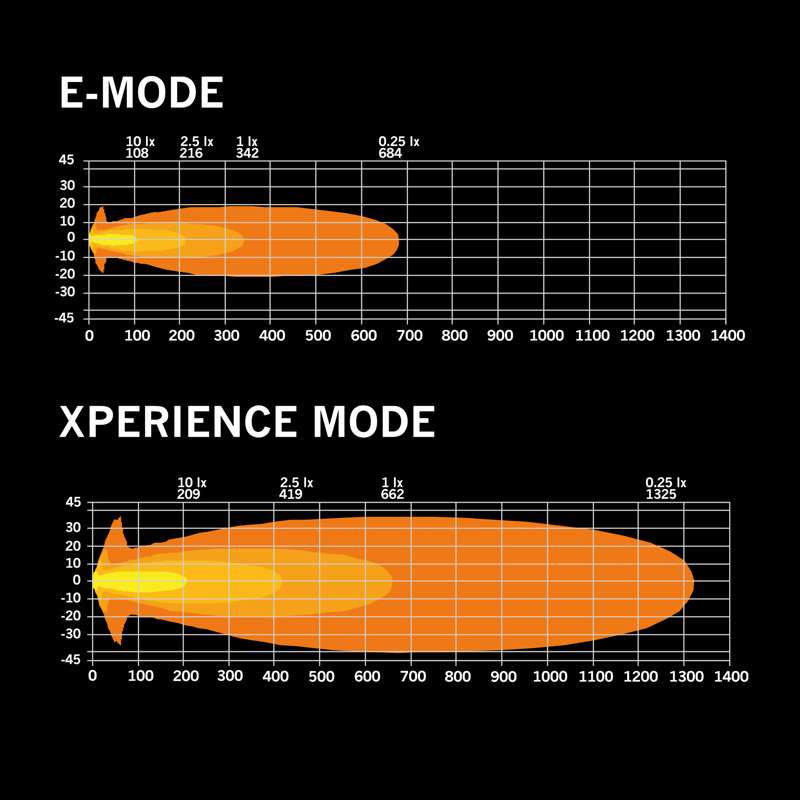

1 lux @ = E mode: 342m / Xperience mode: 662m
Color temperature = 5700K
Beam pattern = Extended beam
Beam angle = 9,9°

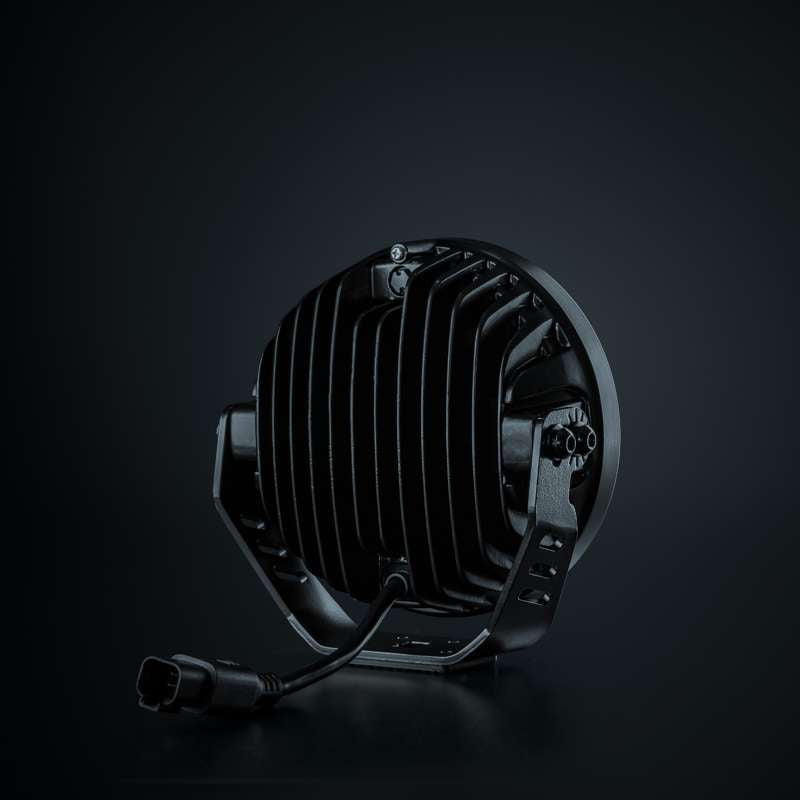

Connection = DT-4PIN
Cable length = 550mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

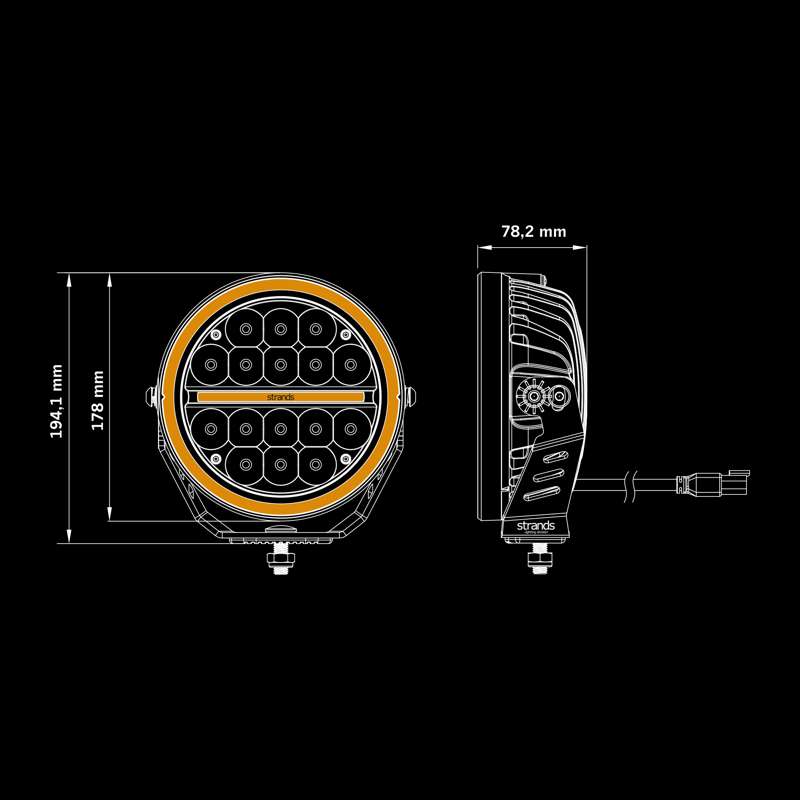

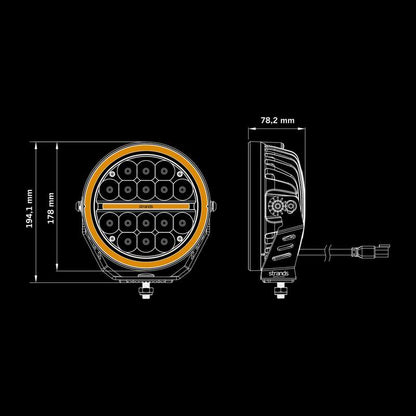

Length = 178mm
Depth = 78,2mm
Height = 178mm
Height including bracket = 194,1mm
Diameter = 178mm
Weight = 2,3kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148, R149
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Positive)
White cable = White Position light
Yellow cable = Amber Position light
Included in package = Brackets, screws, washers, bolts, rubber pad, pig tail, breather cover
