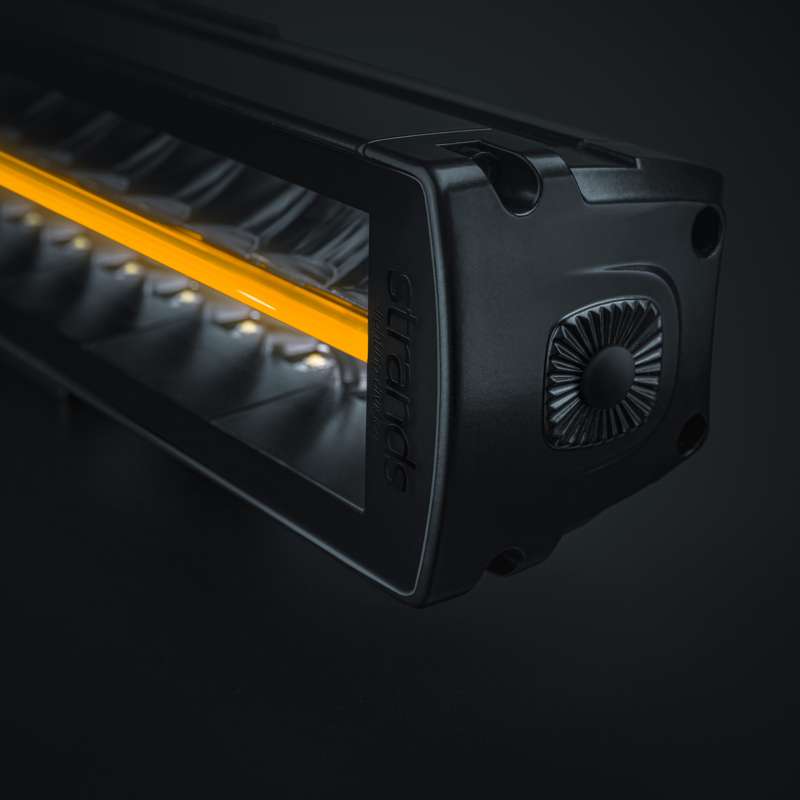

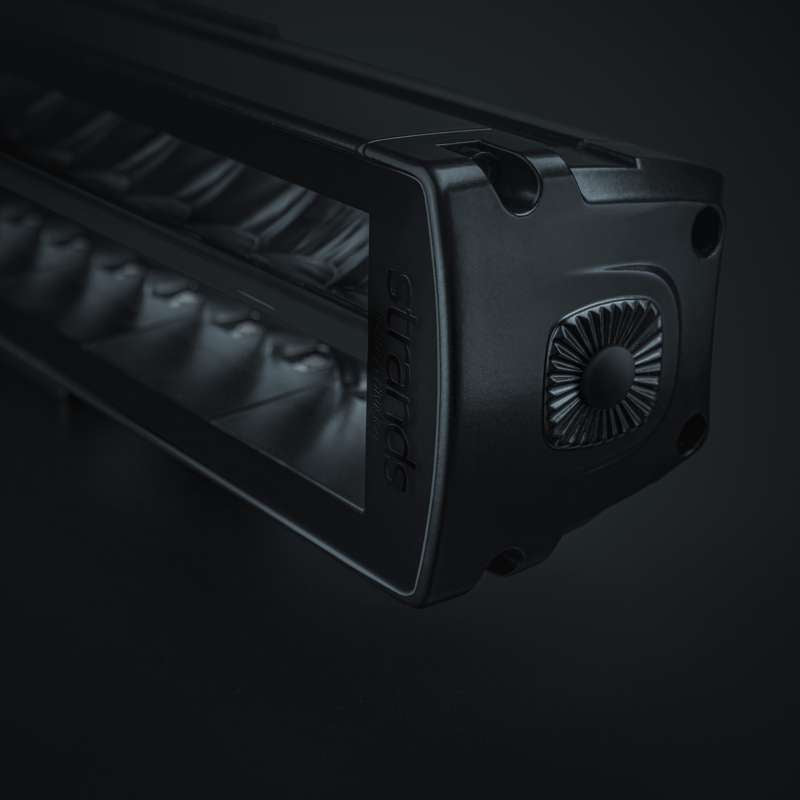

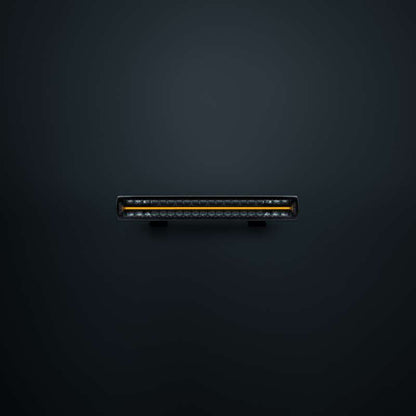

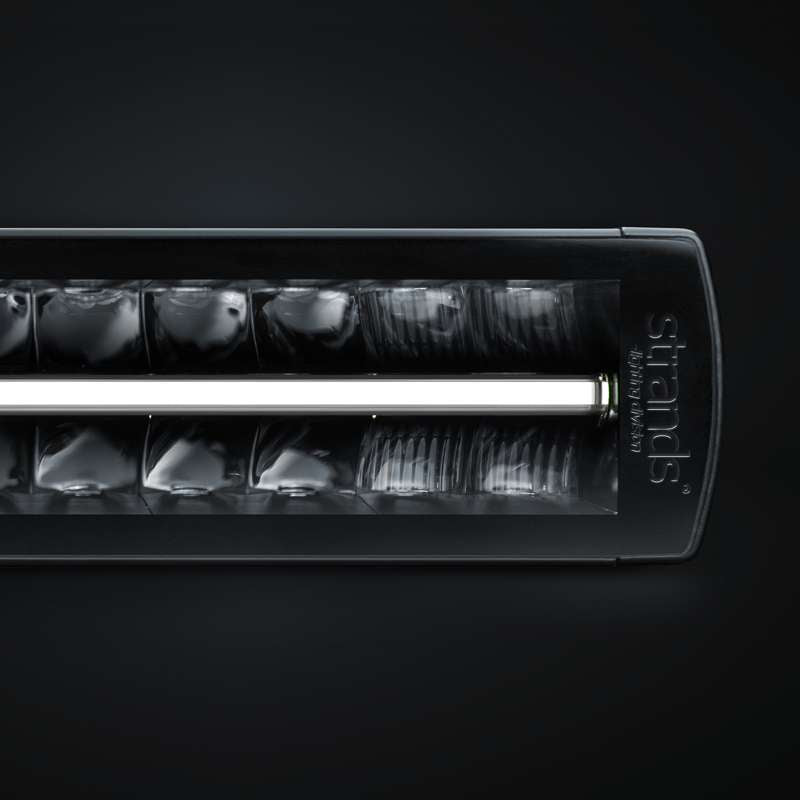

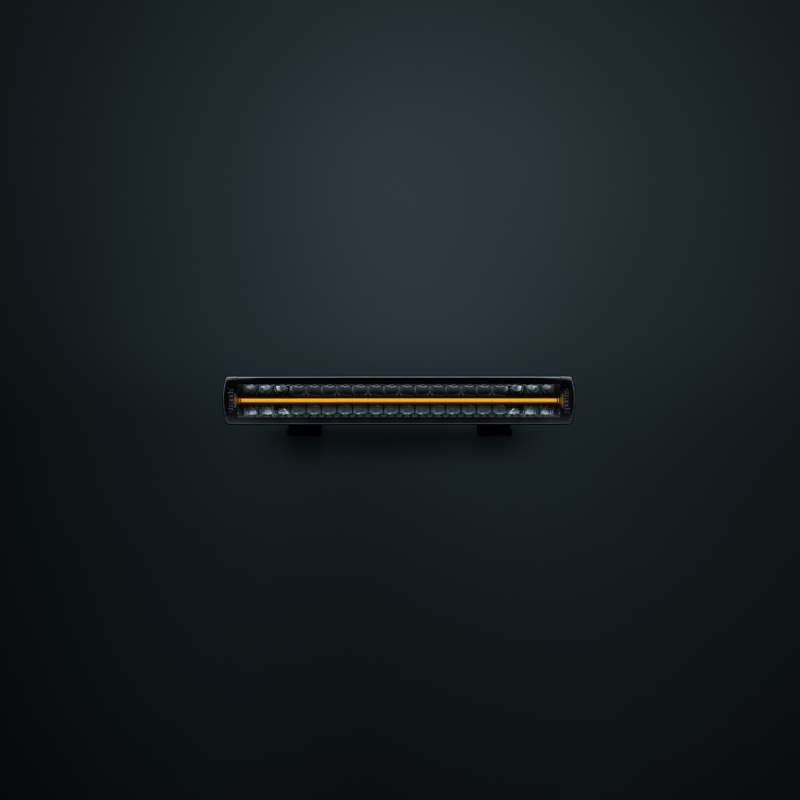

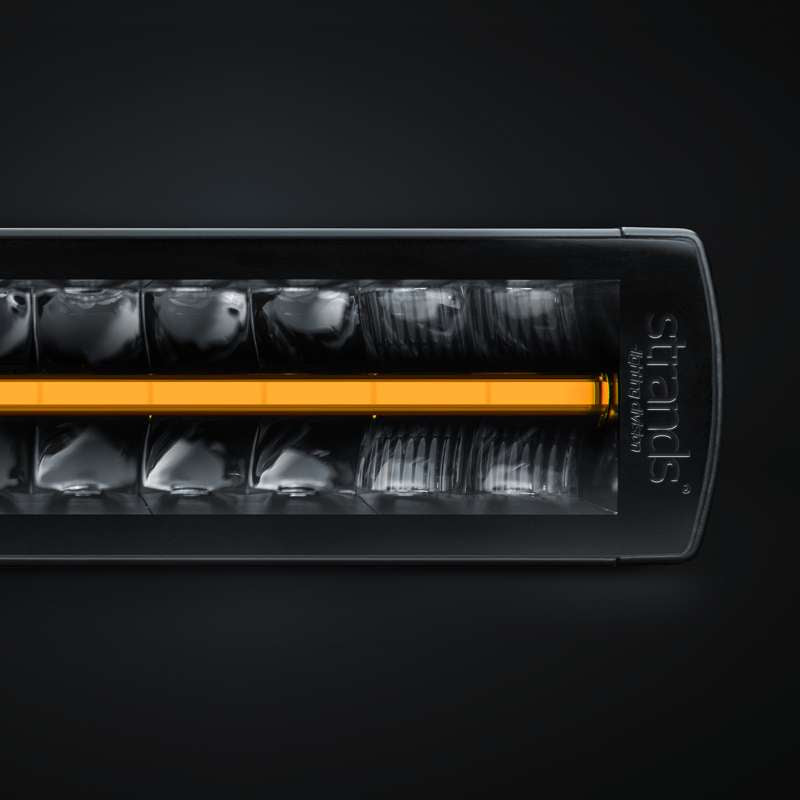

The Siberia XPA Double Row 32“ LED bar produces over 19100 actual lumens and a more than 940-meter range in Xperience mode. It’s an incredible lighting experience with a long-distance beam pattern. This means a 100% increase in output compared to previous models and massive forward visibility. If you’re a fan of the amber glow, the XPA LED bars have a new dual-color position light in amber and white. Like all XP products, it has the Hello function. With a quick double flash of your high beam, the position lights will signal a Hello to your fellow drivers. The Siberia XPA is a long-lasting product for any vehicle, thanks to the durable materials and strong powder coating. It’s IP-rated IP68/IP69K for high protection against dirt and water. The installation is easy thanks to a 2500 mm cable. The E-mode is E-approved R149/148 with reference number 20. The XPA DR LED bars are covered by Strands Lighting Division’s 3-year function warranty.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect= 300W
Consumption = 245,0W
Functions = High beam, white and amber position light, separate hello function for position light
Consumption specific function = Xperience mode: 245W / E-mode: 17W / White position light: 18W / Amber position light: 17,9W
Theoretical lumen = 20271lm
Actual lumen = E-mode: 1200lm / Xperience mode: 19150lm
1 lux @ = E-mode: 300m / Xperience mode: 942m
Color temperature = 5700K
Beam pattern = Long-distance beam
Beam angle = 13,7°
Connection = Cable
Cable length = 2500mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material bracket = Aluminium alloy
Material housing/chassi = Aluminium
Material lens = Polycarbonate
Length = 820,4mm
Depth = 71,6mm
Height = 76mm
Height including bracket = 96,6mm
Weight = 4,3kg
IP-class = IP68/69K
Operating temperature = -35 - +60°C
E-approved = Yes
According to regulation = ECE R148, R149
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Positive)
White cable = White Position light
Yellow cable = Amber Position light

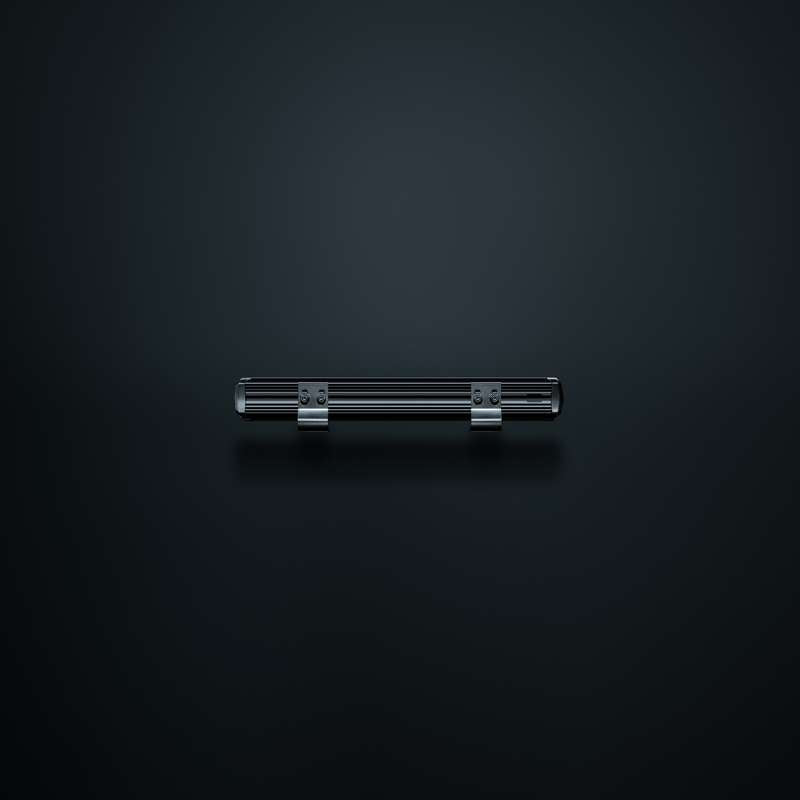

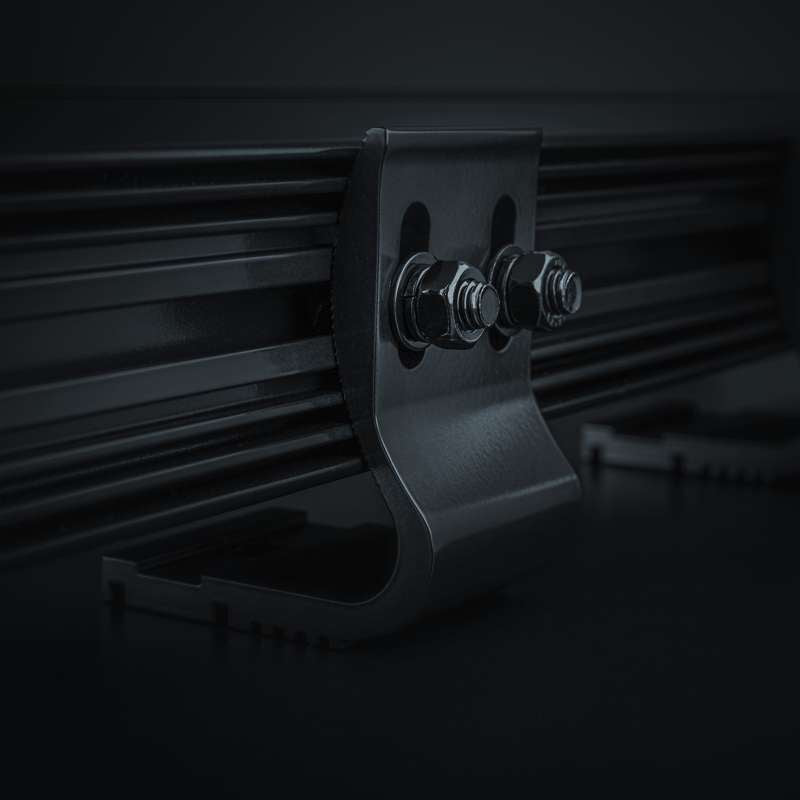

Included in package = Rear hanging Bracktes, screws, washers, bolts, rubber pads, No inbulit-relay
