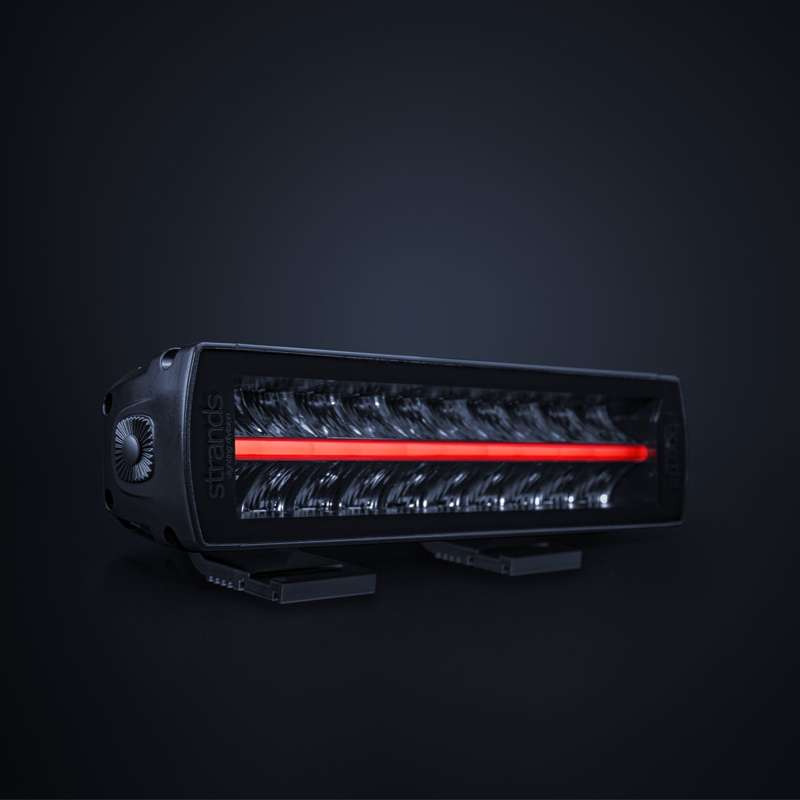

The updated XP Red Tiger is a long-distance work light with 6400 actual lumens output and a 248-meter range. It’s IP-rated IP68/69K and has a new coating to withstand tough environments wherever it’s installed. Every new detail and component is chosen with quality and durability foremost in mind. Try mounting it in places you don’t usually have a work light: above your tail lights, in the grill, or other narrow places. The long and wide output gives you a complete overview of large areas. It’s used with 10-40 V to fit many heavy-duty vehicles, such as trucks and excavators. The bold red and amber position lights are full of attitude and create a stunning effect. Xperience your next adventure and make your mark.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 100W
Consumption = 95,0W
Functions = Work light, Red position light, Amber position light
Consumption specific function = Red pos.: 6W, Amber pos.: 8W
Theoretical lumen = 7250lm
Actual lumen = 6400lm

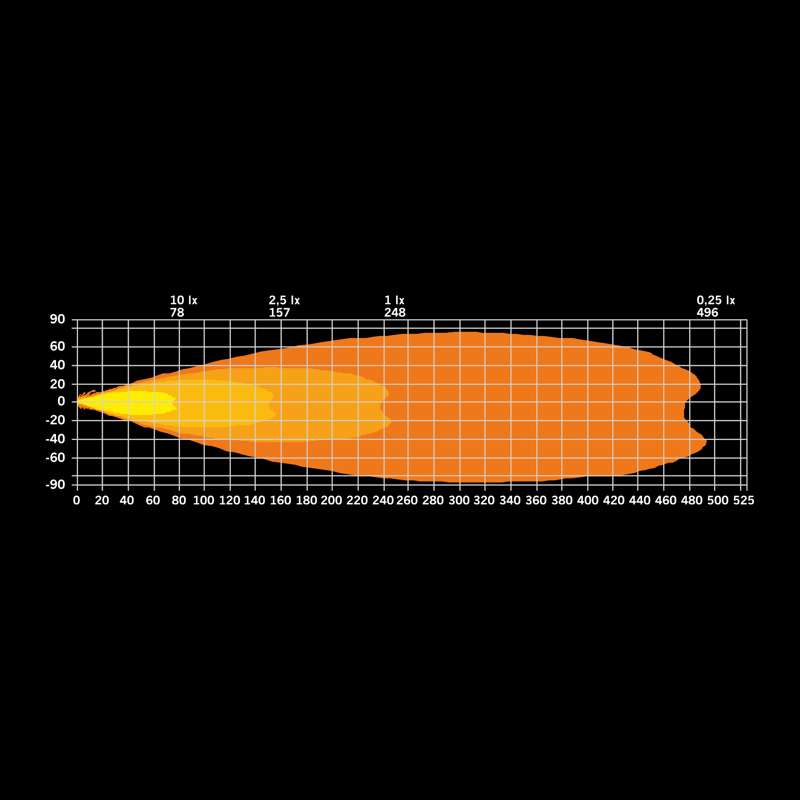

1 lux @ = 248m
Color temperature = 5700K
Beam pattern = Wide beam
Beam angle = 11,9°
Connection = DT-4PIN
Cable length200mm
Color housing = Black
Color lens = Clear
Color LED´s = White, Red and Amber

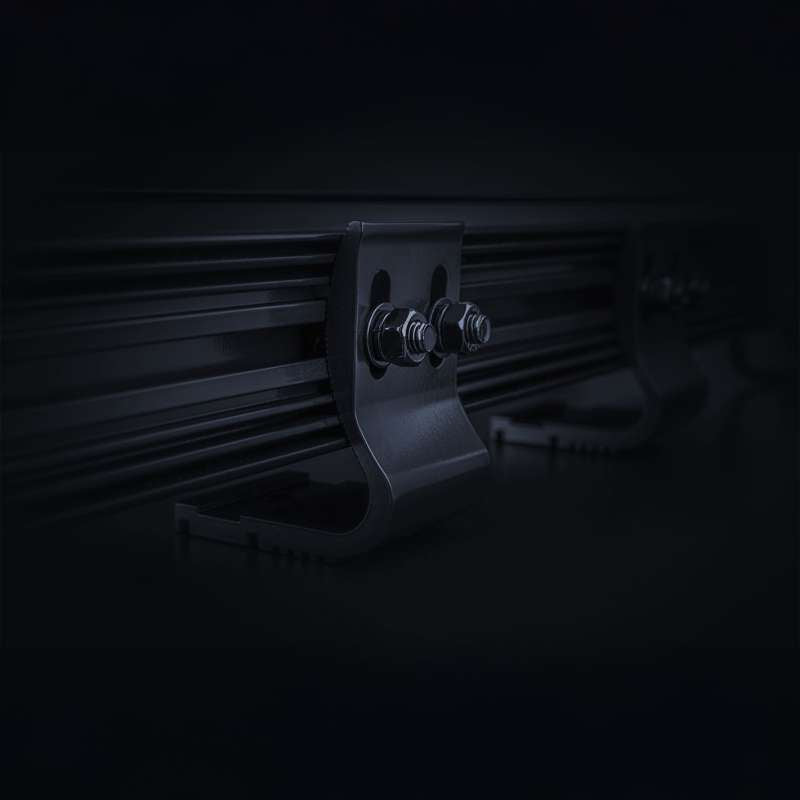

Material bracket = Stainless steel side brackets and aluminum bottom bracket
Material housing/chassi = Aluminium
Material lens = Polycarbonate

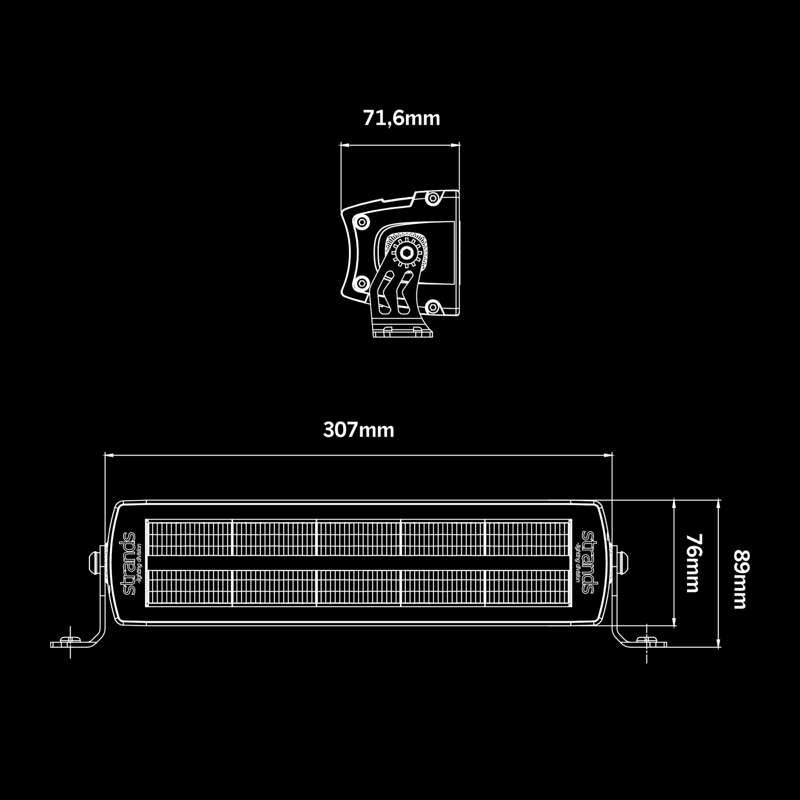

Length = 307mm
Depth = 71,6mm
Height = 76mm
Height including bracket = 89mm
Weight = 1,8kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = No
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Work light)
White cable = Red Position light
Yellow cable = Amber Position light
Included in package = Bracket, Screws, washers, bolts
