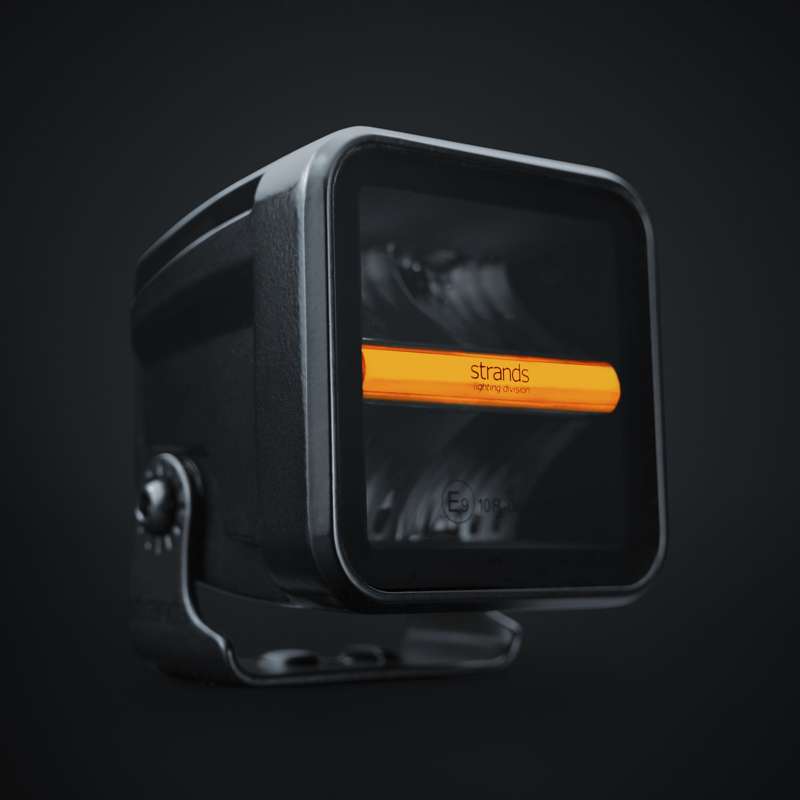

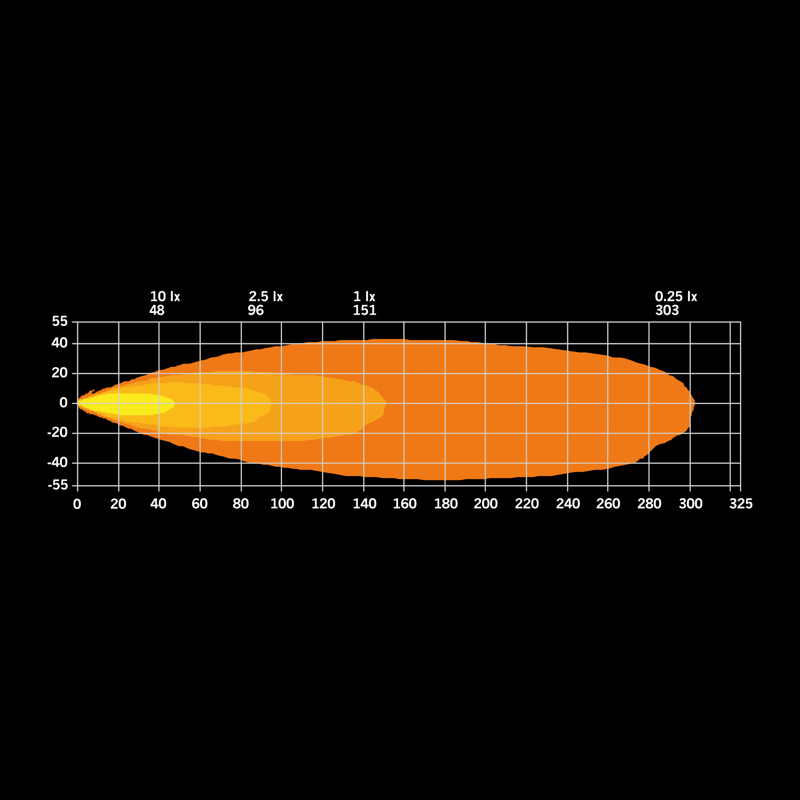

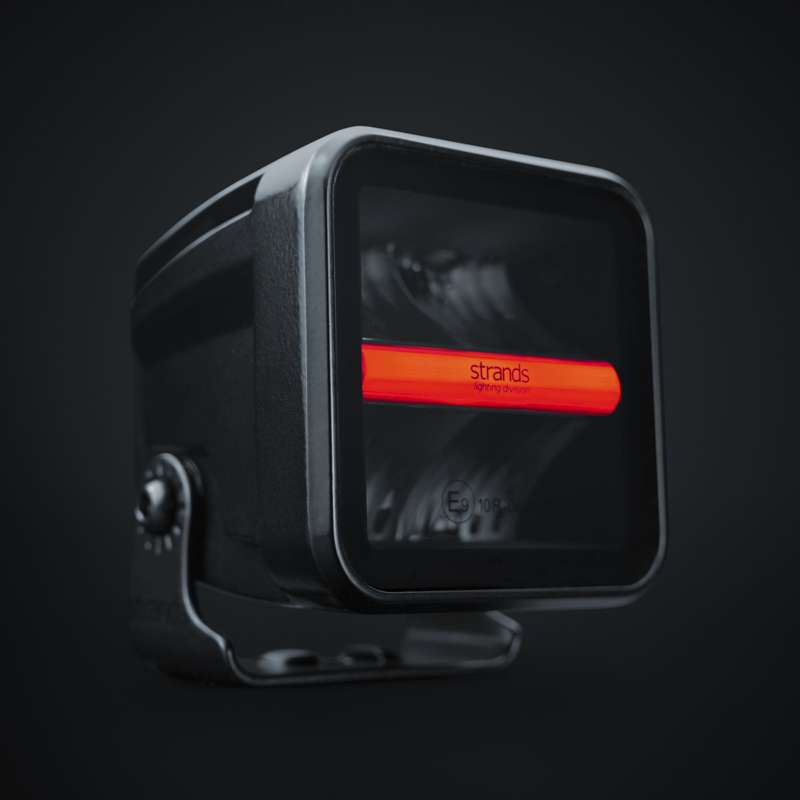

eet the Siberia XP Red Panda, a powerful new work light in the Xperience range. With a brightness of 3150 actual lumens and a 151 m range, this work light ensures perfect illumination across your workspace. The beam has a powerful output and can even be mounted as a driving light on smaller vehicles. The color temperature of 5700 kelvin creates a crisp and clear light, providing impeccable focus day and night. Choose between red and amber position lights to find your perfect style. The 9-32 V DC compatibility makes it a good fit for any vehicle.

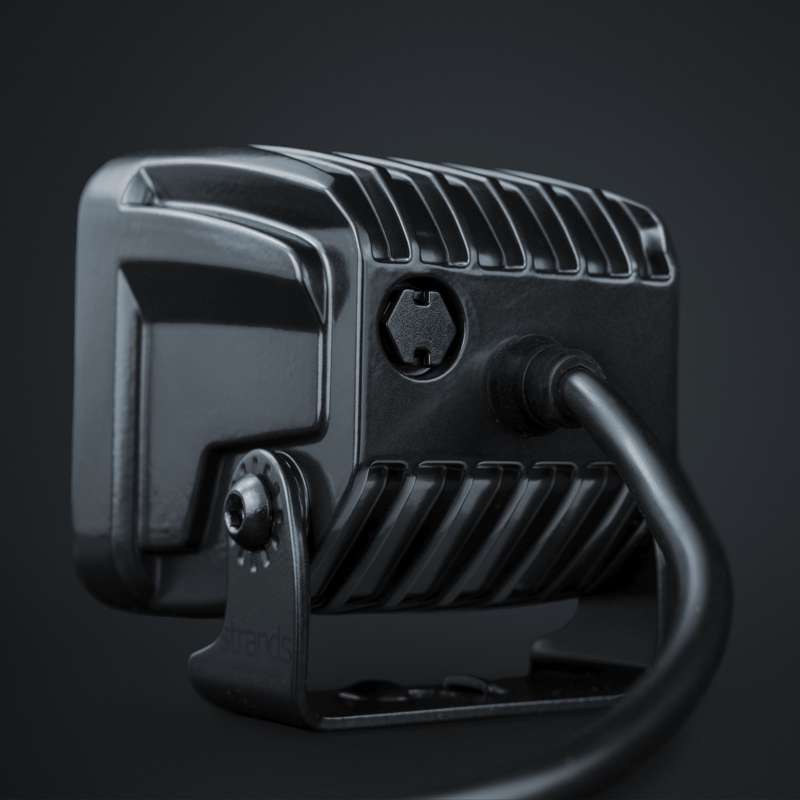

The Red Panda is easy to install thanks to a 150 mm cable with a DT-4 connector, saving you time and energy. It is designed to be highly durable, with a stainless steel bracket, aluminum housing, and a polycarbonate lens. IP rated IP69K, it has high protection against dust and water, guaranteeing reliable performance in any weather. The unique powder coating further ensures its ability to withstand rigorous use and hard work.
PRODUCT SPECIFICATIONS
Unit = pcs
Consumption = 38,0W

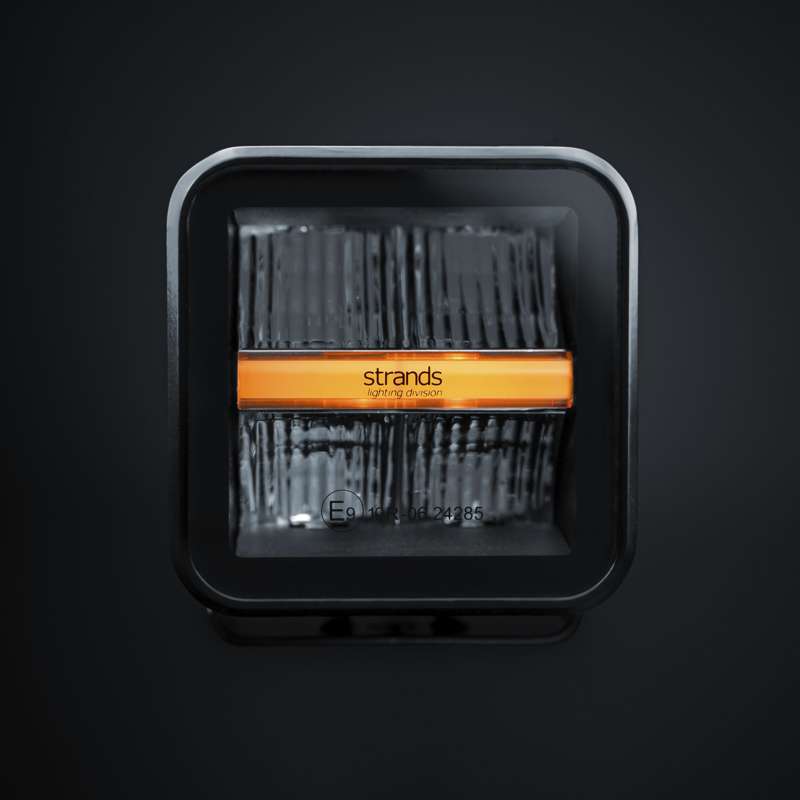

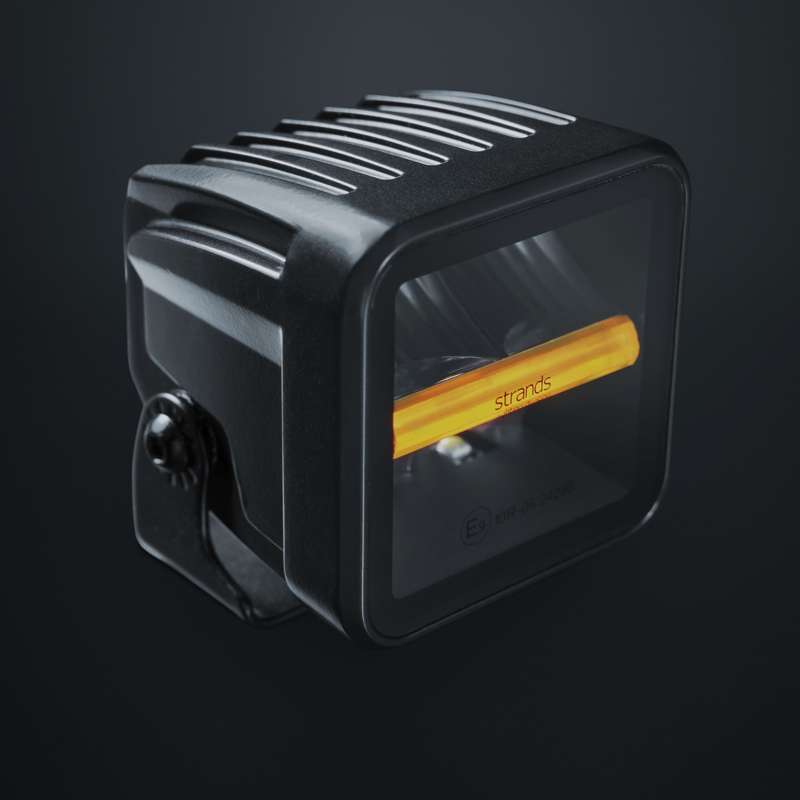

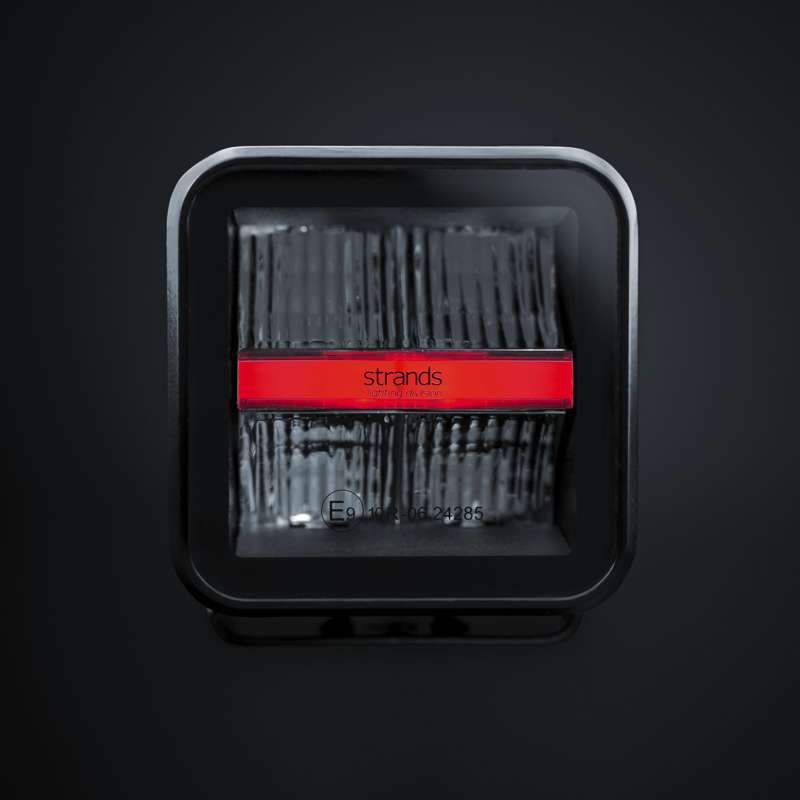

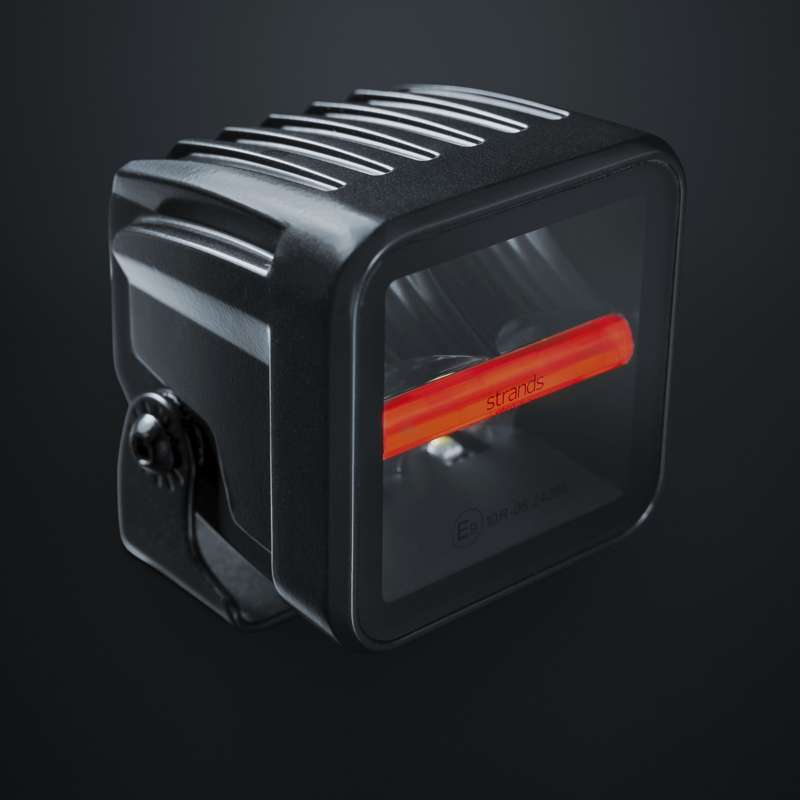

Consumption specific function = Red position light: 0,9W, Amber position light: 1W
Actual lumen = 3150lm
Color temperature = 5700K

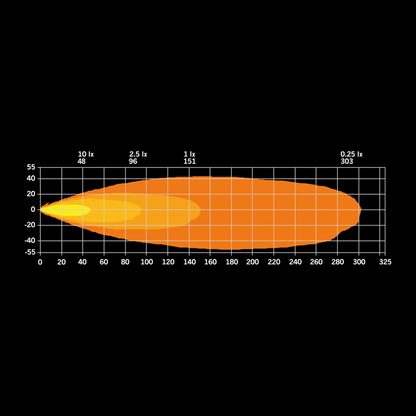

Beam pattern = Wide beam
Beam angle = 47,1°
Connection = DT-4PIN
Cable length = 150mm
Color housing = Black
Color lens = Clear
Color LED´s = Red/amber/white
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

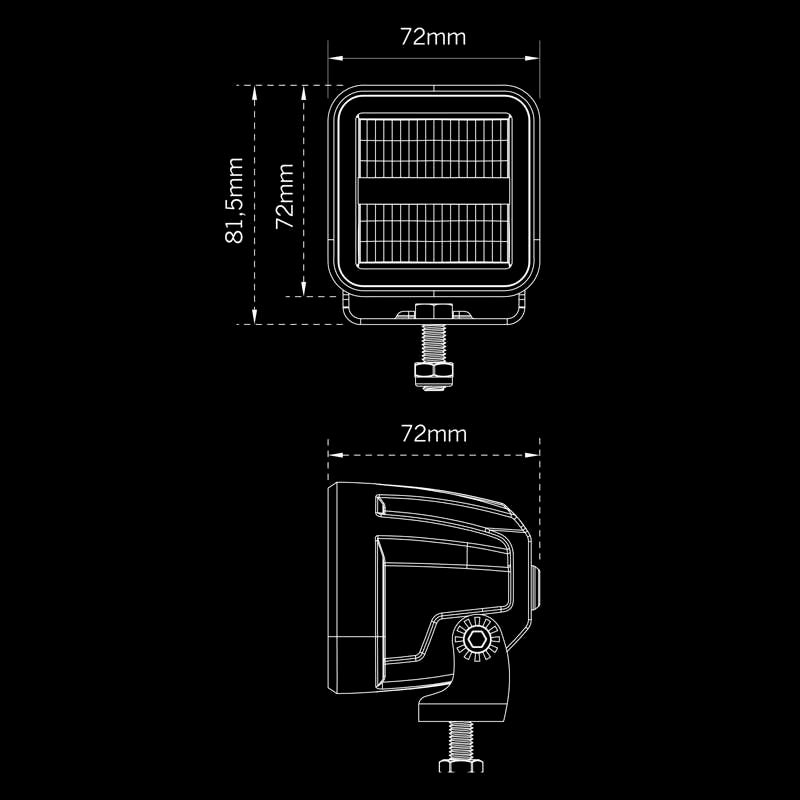

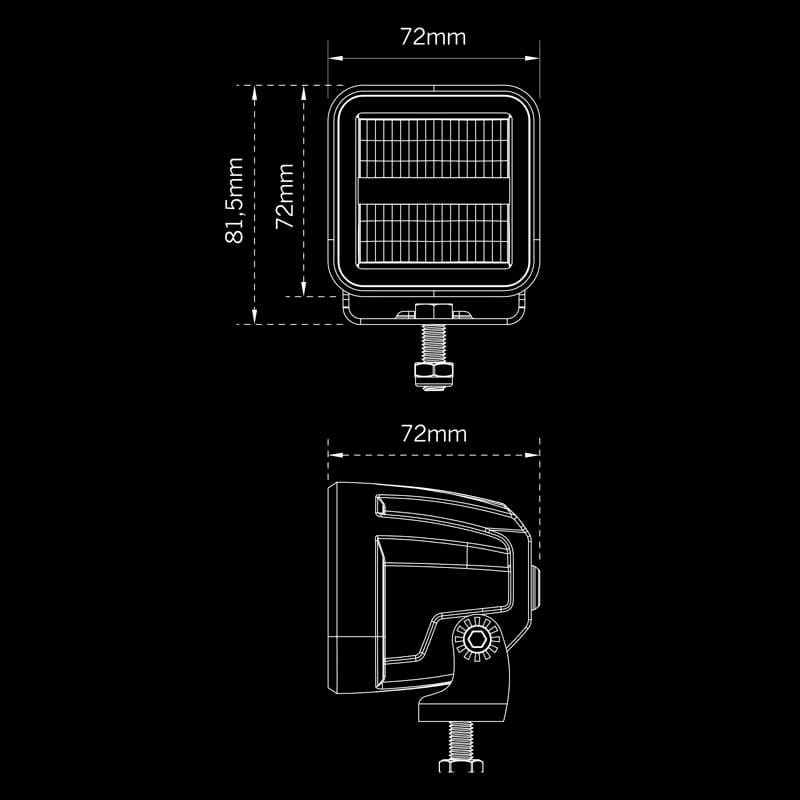

Length = 72mm
Depth = 72mm
Height = 72mm
Height including bracket = 81,5mm
Weight = 0,585kg
IP-class = IP69K
Operating temperature = -30 - +65°C
E-approved = No
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Positive) main white light
White cable = Red Position light
Yellow cable = Amber Position light
Included in package = Bracket, Screws, washers, bolts
