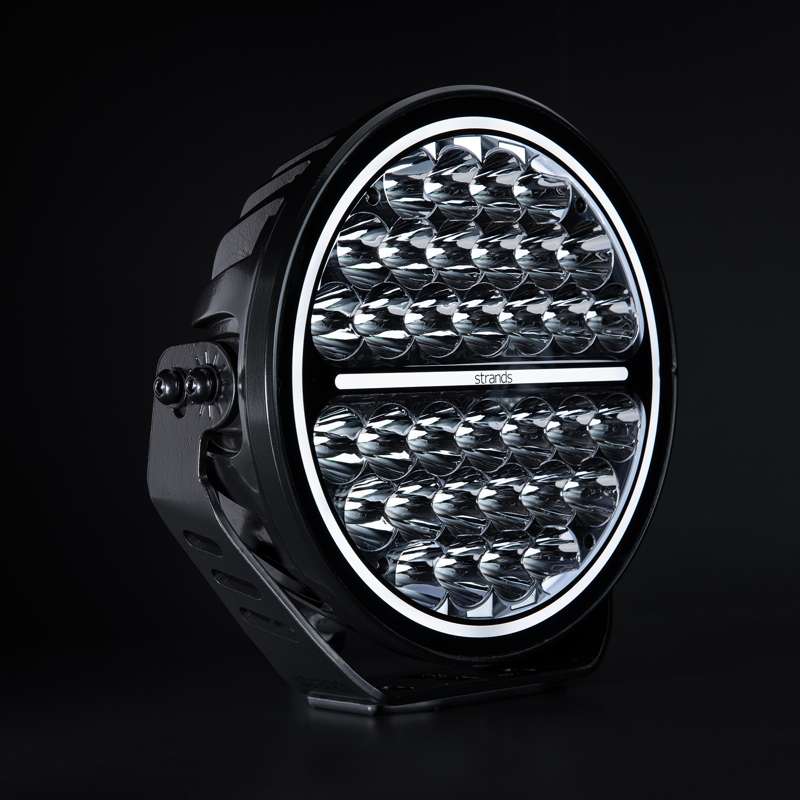

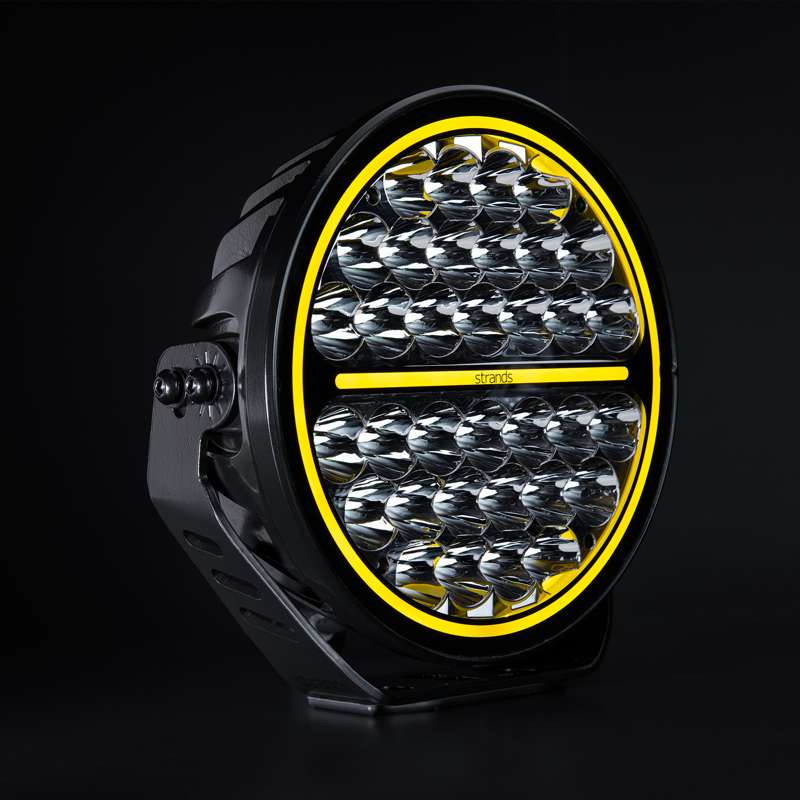

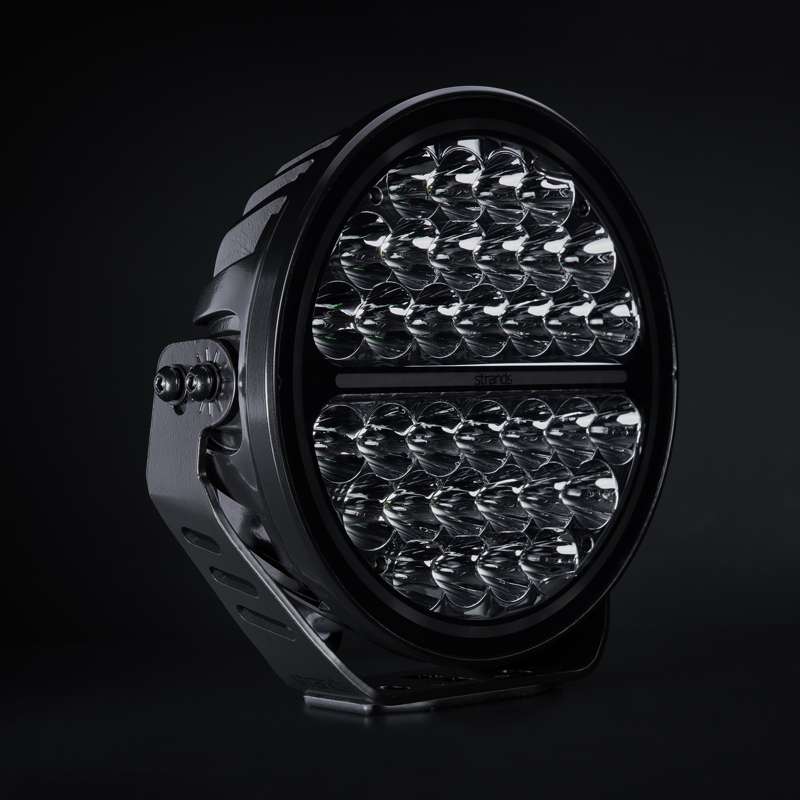

With its 3080/15030 incredible actual lumens, the Siberia XP 9” will light up the darkest night and most challenging roads. This updated driving light has a long-distance beam pattern with E-mode and Xperience-mode. This results in a range of 330/711 meters, ensuring very high forward visibility. Choose between two lens covers for a perfectly customized output: dark and yellow. The XP 9” also features a new yellow and white position light and Hello function. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the hassle of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 150W
Consumption = 145,0W
Functions = High beam, white and yellow position light, separate hello function for position light
Consumption specific function = Xperience mode: 144W / E-mode: 31W / White position light: 5,4W / Yellow position light: 5,4W
Theoretical lumen = 20000lm
Actual lumen = E-mode: 3080lm / Xperience mode: 15030lm

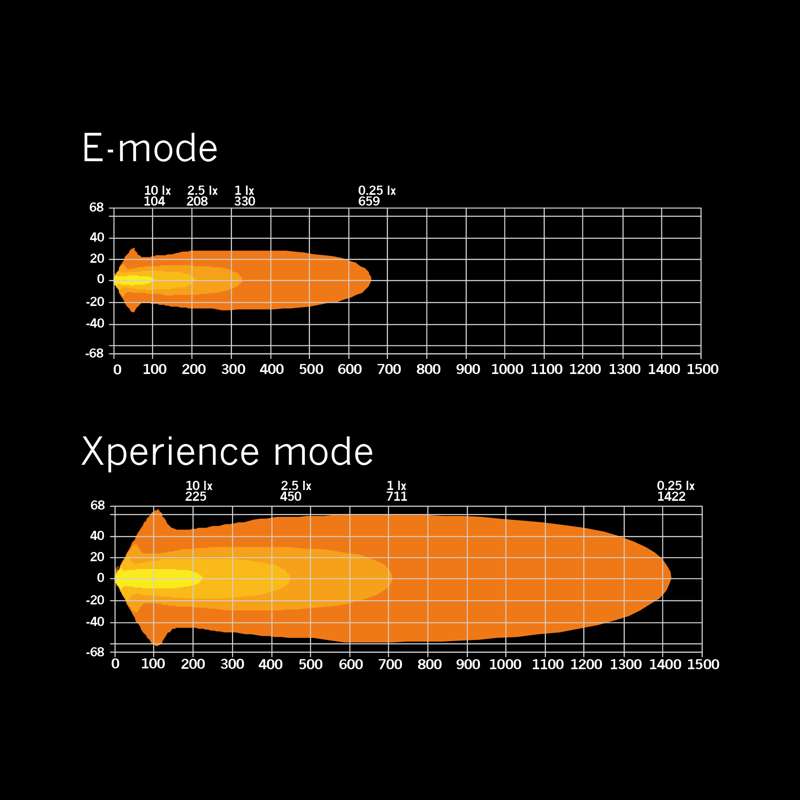

1 lux @ = E-mode: 330m / Xperience mode: 711m
Color temperature = 5700K
Beam pattern = Long-distance beam
Beam angle = 14,6°
Connection = DT-4PIN
Cable length = 150mm
Color housing = Black
Color lens = Clear
Color LED´s = White/yellow
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

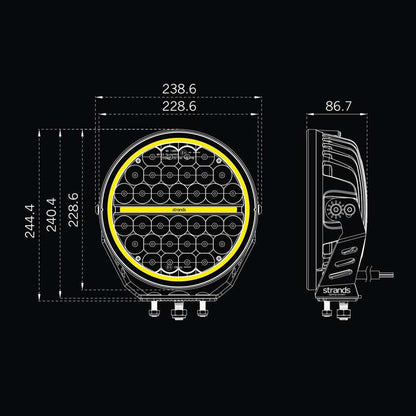

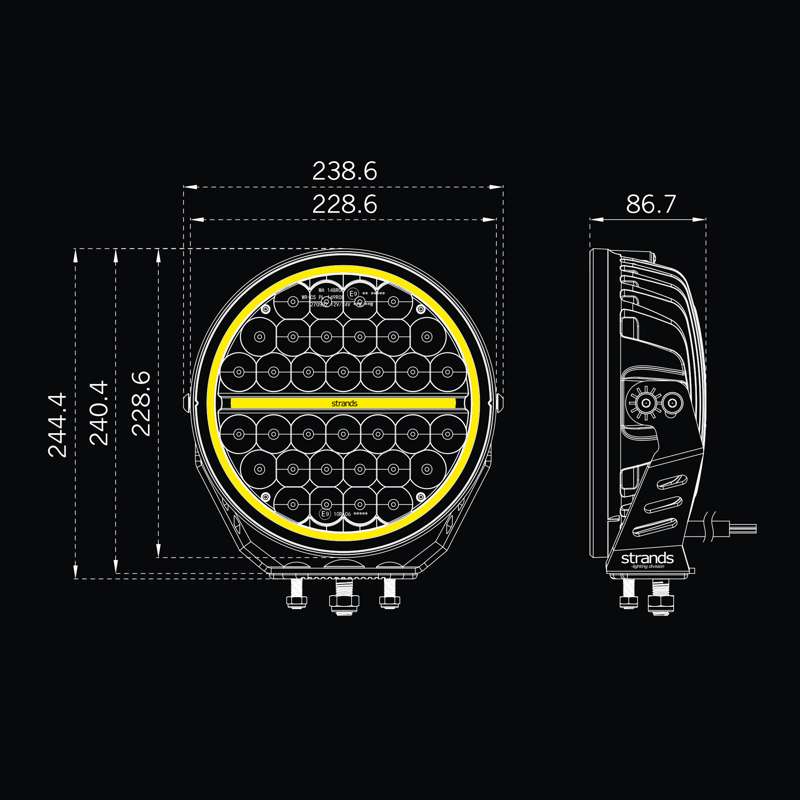

Length = 228,6mm
Depth = 86,7mm
Height = 228,6mm
Height including bracket = 244,4mm
Diameter = 228,6mm
Weight = 3,6kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable =+ White Position light(Positive)
Yellow cable = + Yellow position light(Positive)
Included in package = Bracket, screws, washers, bolt, rubber pad, breather cap cover
