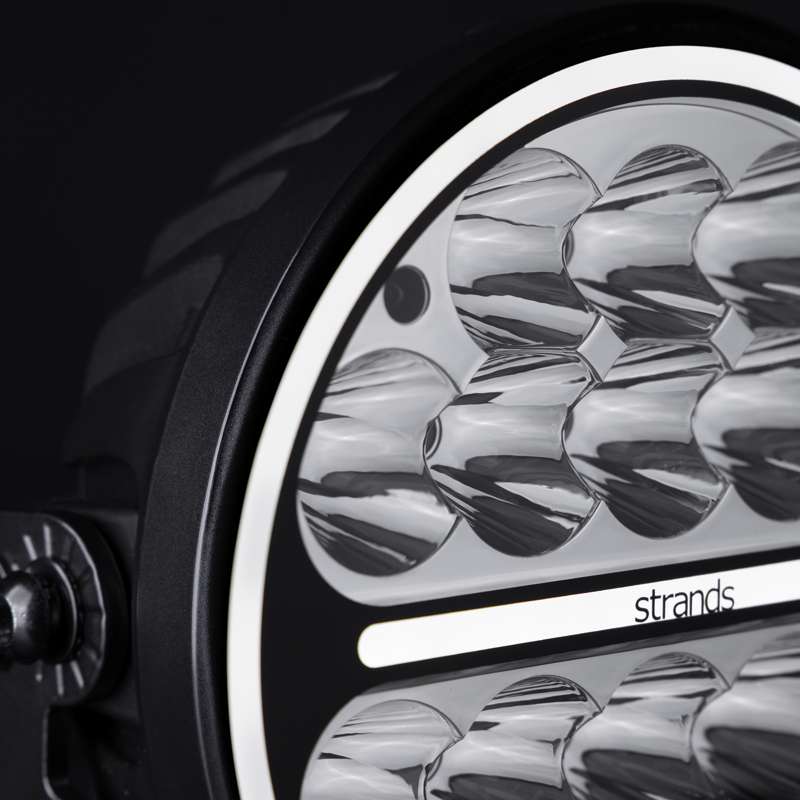

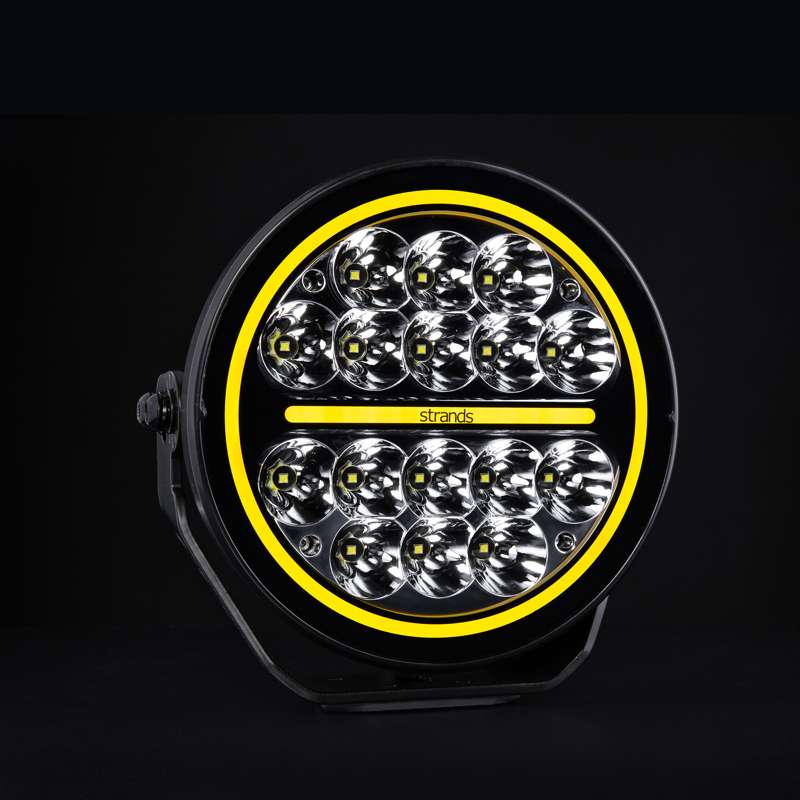

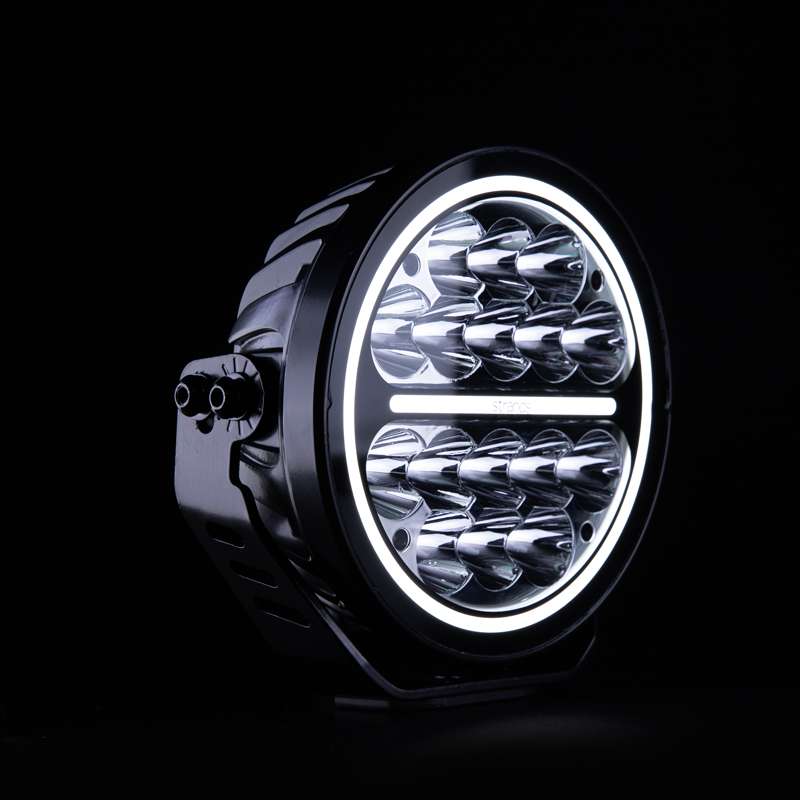

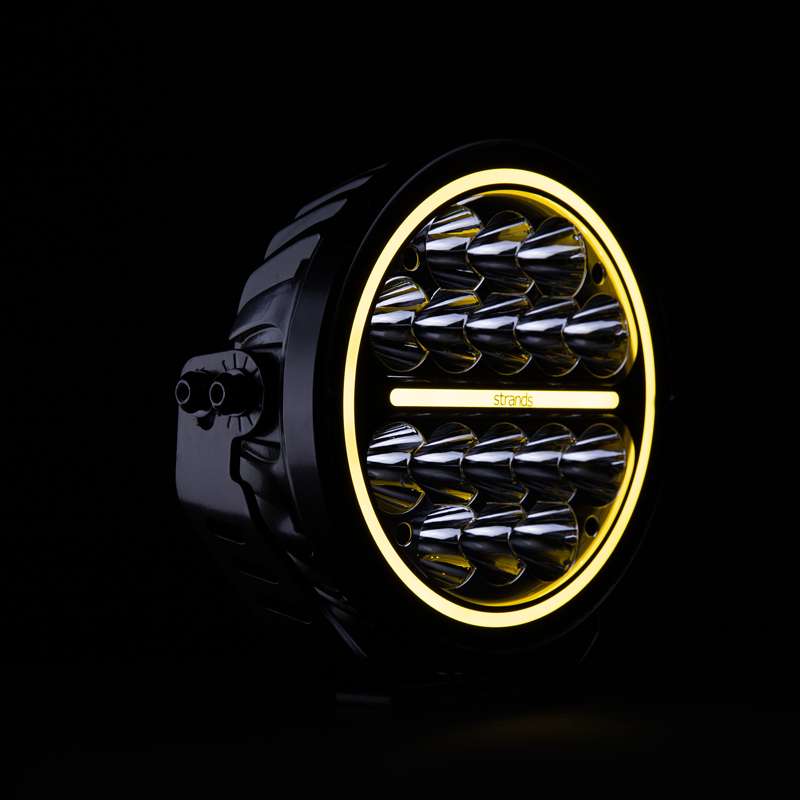

With its 1540/5710 incredible actual lumens, the Siberia XP 7” will light up the darkest night and most challenging roads. This updated driving light has an extended beam pattern with E-mode and Xperience-mode. This results in a range of 342/662 meters, ensuring high forward visibility. The XP 7” also features a new yellow and white position light and Hello function. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the hassle of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 80W
Consumption = 77,0W
Functions = High beam, white and yellow position light, separate hello function for position light
Consumption specific function = Xperience mode: 77W / E-mode: 22W / White position light: 5,2W / Yellow position light: 5,2W
Theoretical lumen6700lm
Actual lumen = E-mode: 1540lm / Xperience mode: 5710lm

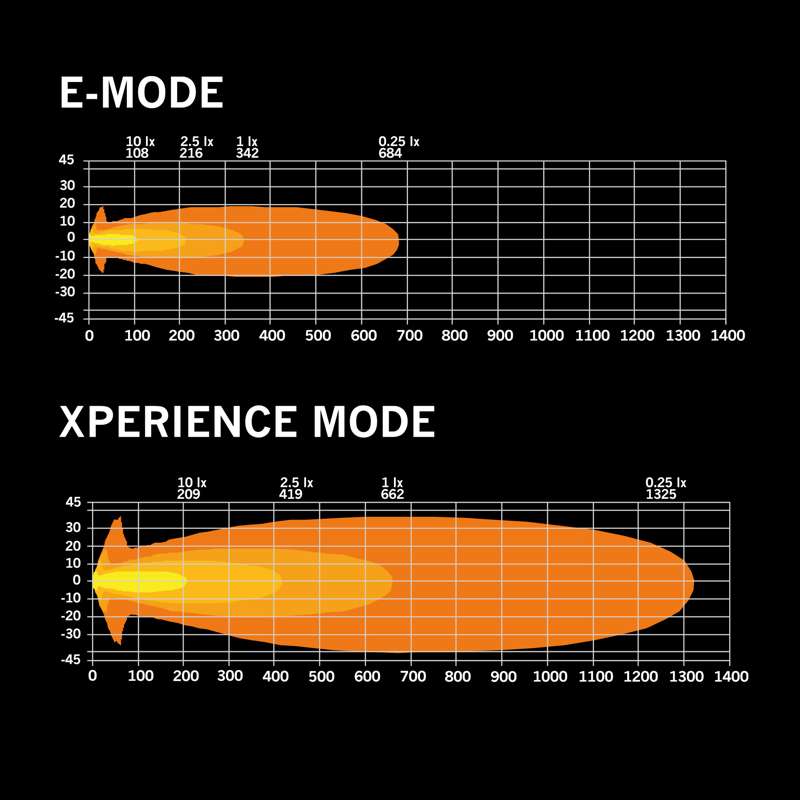

1 lux @E-mode: 342m / Xperience mode: 660m
Color temperature = 5700K
Beam pattern = Extended beam
Beam angle = 9,9°
Connection = DT-4PIN
Cable length = 150mm
Color housing = Black
Color lens = Clear
Color LED´s = White/yellow
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

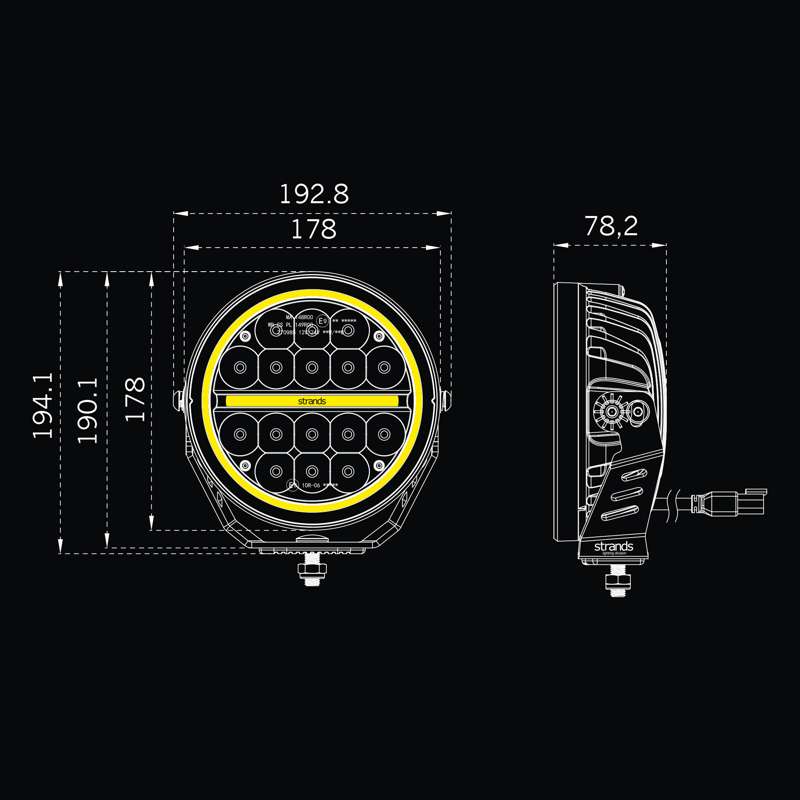

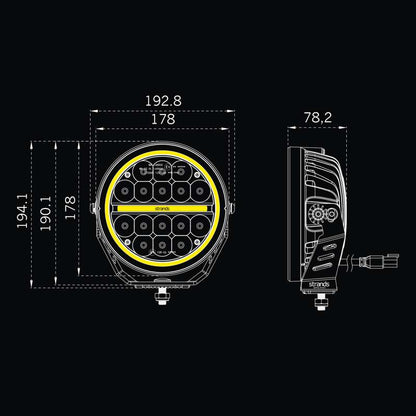

Length = 178mm
Depth = 78,2mm
Height = 178mm
Height including bracket = 194,1mm
Diameter = 178mm
Weight = 2,25kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Yellow position light(Positive)
Included in package = Bracket, screws, washers, bolt, rubber pad, breather cap cover
