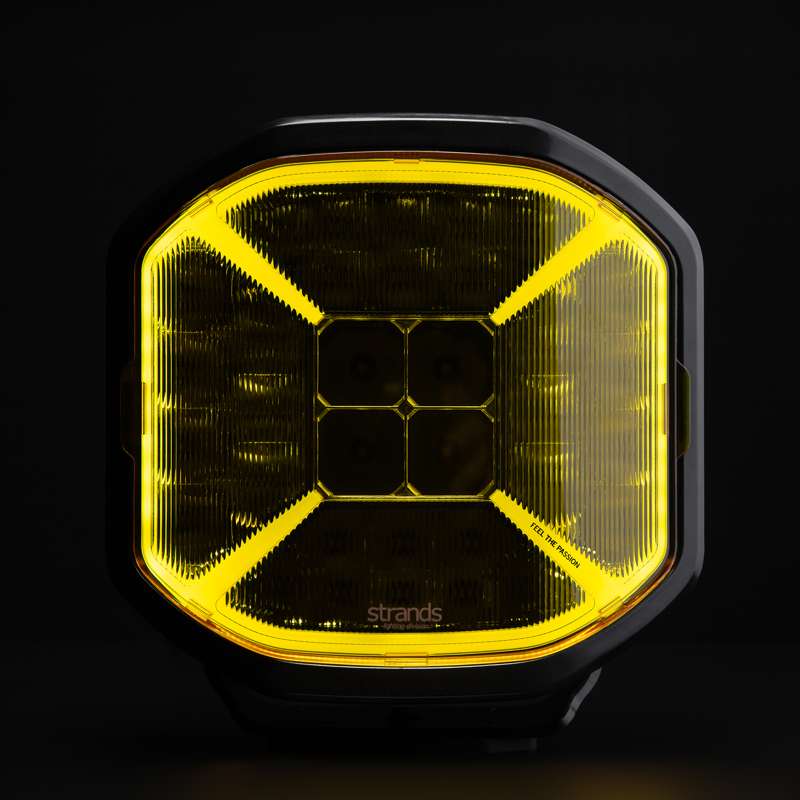

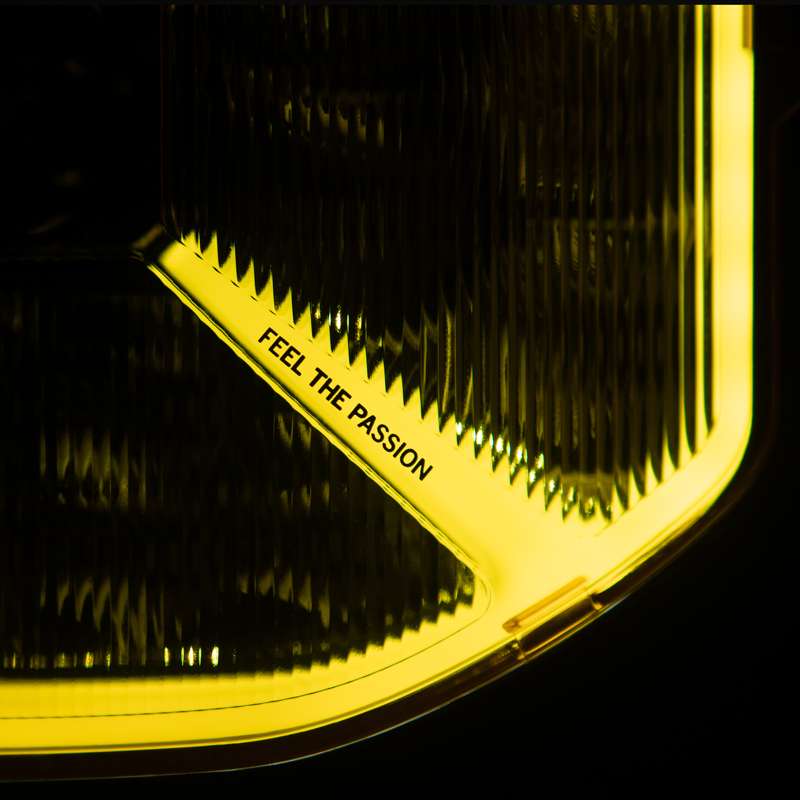

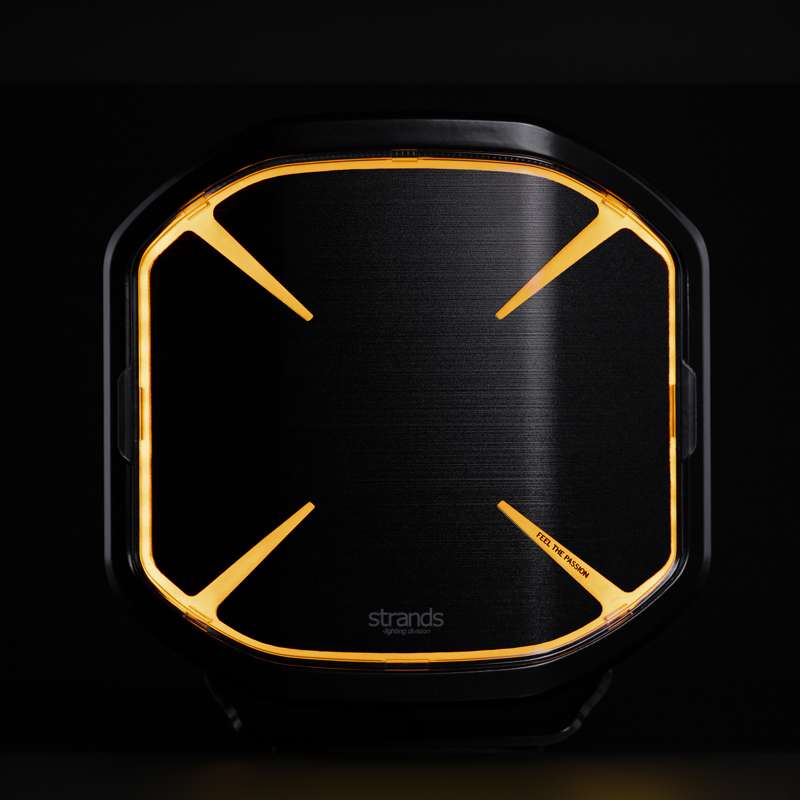

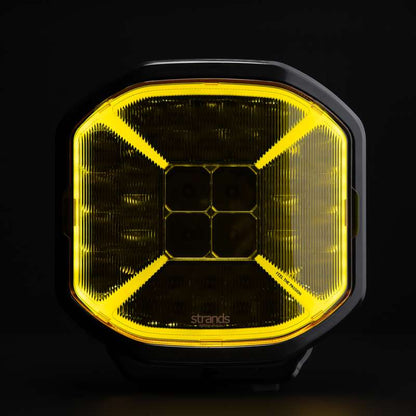

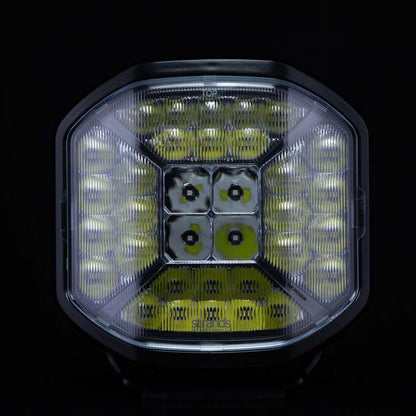

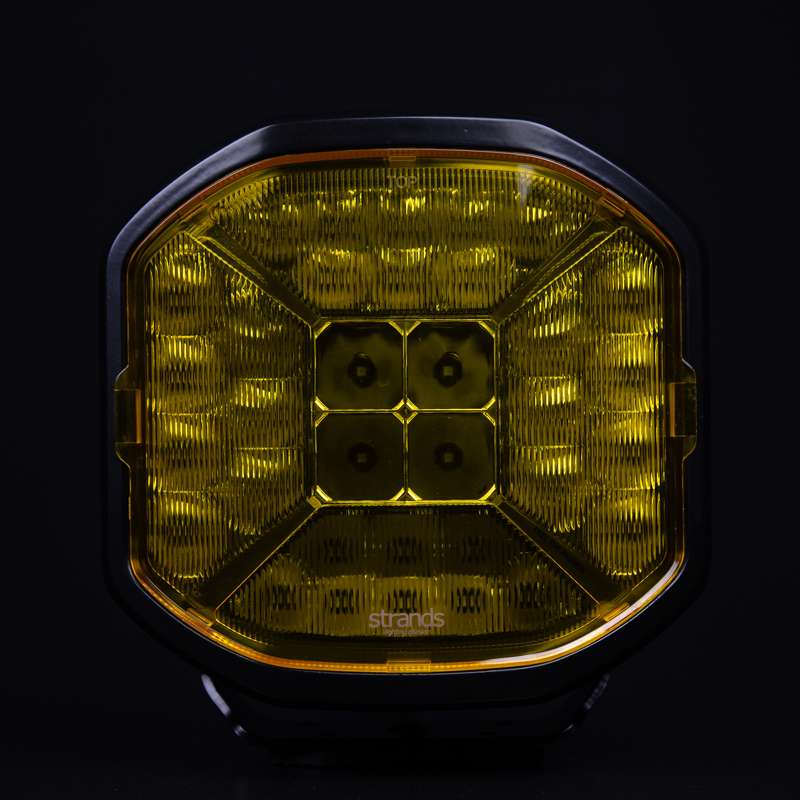

With 13350 incredible actual lumens and a range of over 880 meters in Xperience mode, the X 9” driving light will light up the darkest night. Making Siberia X a powerful companion on challenging roads. You can protect and modify the light with three lens covers: a black and yellow cover is included, and a clear flood cover is available separately. The X also features the Hello function. By flashing the high beam twice, the white and amber position light will light up with a dynamic Hello signal. Its durable materials, new powder coating, and IP68/IP69K IP rating make the X a long-lived addition to any vehicle. Installation is easy thanks to the DT-4 connector. It’s E-approved R149/R148 and EMC-certified R10, CISPR25 Class 3. The X is also available as a 4” (Part No. 270971) and 7” (Part No. 270960) driving light.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 190W
Consumption = 165,0W

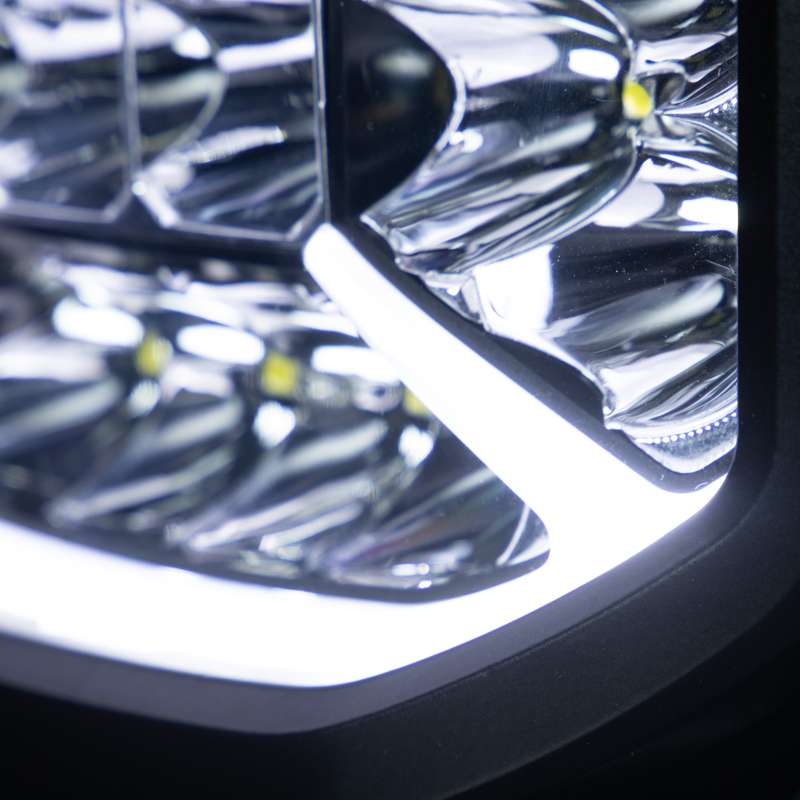

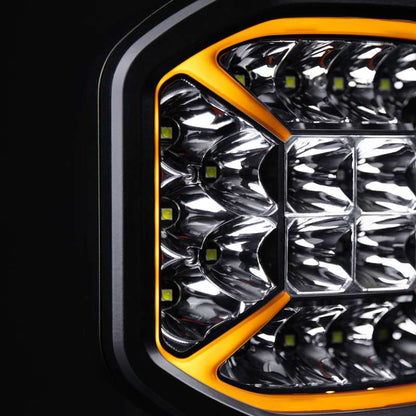

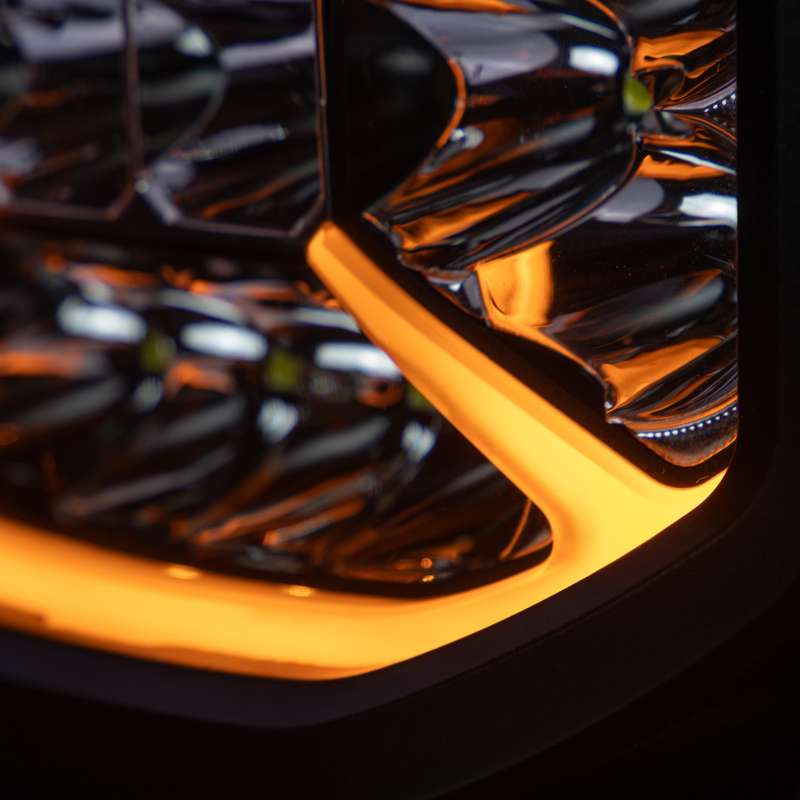

Functions = High beam, Amber and white position light, Separate Hello function for position light, logo light
Consumption specific function = Xperience mode: 164W / E-mode: 19W / White position light: 6,9W / Amber position light: 7,1W
Theoretical lumen = 18000lm

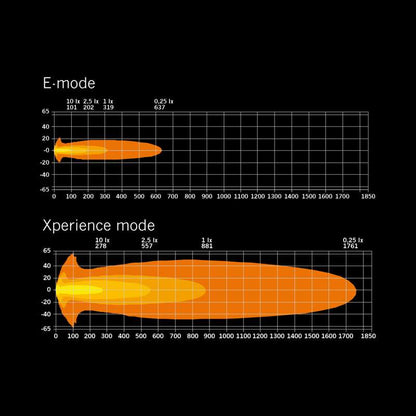

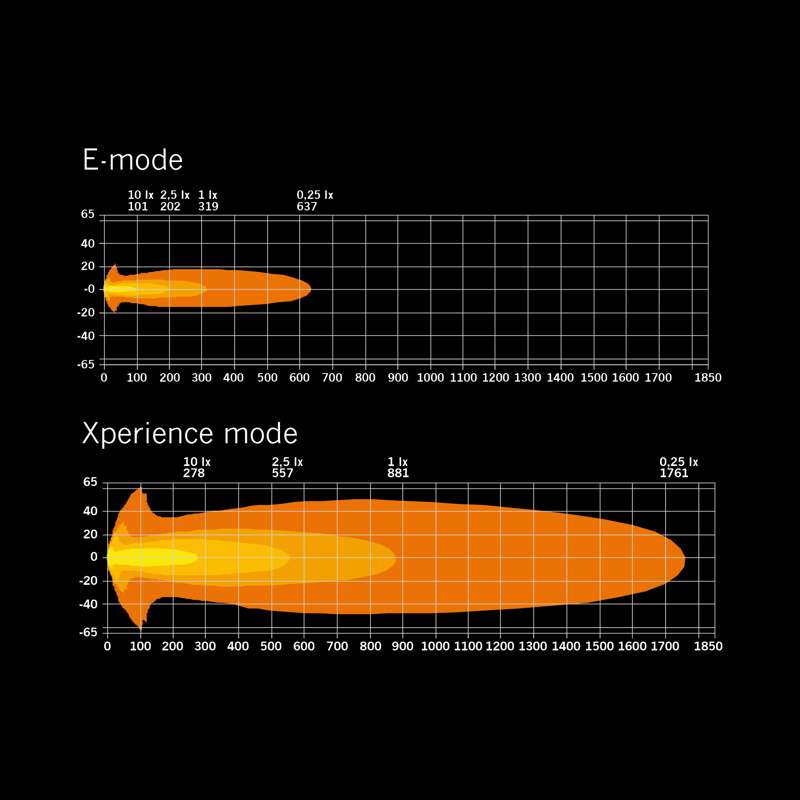

Actual lumen = E mode: 1430lm / Xperience mode: 13350lm
1 lux @ = E-mode: 319m / Xperience mode: 881m
Color temperature = 5700K
Beam pattern = Long-distance beam
Beam angle = 9,7°
Connection = DT-4PIN
Cable length = 150mm
Color housing = Black
Color lens = Main lens: clear, External lens cover: black and yellow flood versions
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

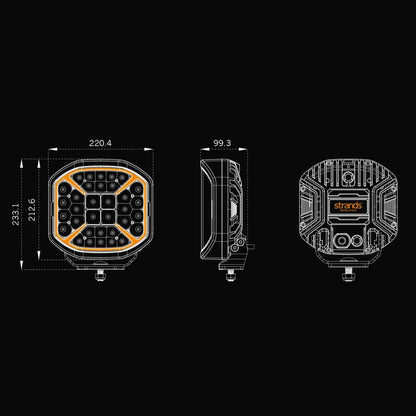

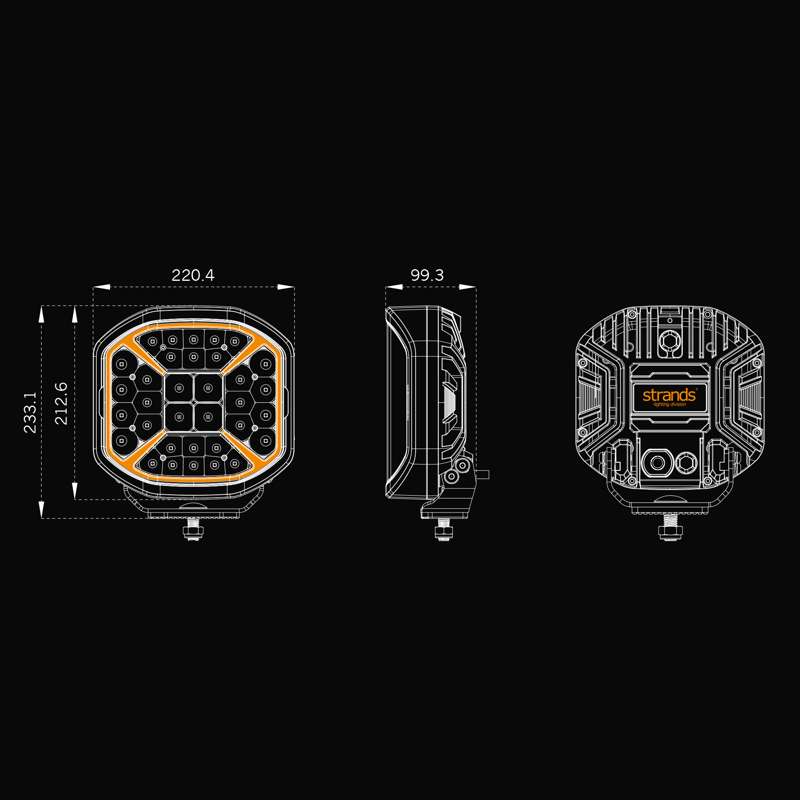

Length = 220,4mm
Depth = 99,3mm
Height = 212,6mm
Height including bracket = 233,1mm
Weight = 3,55kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 20
EMC = ECE R10, CISPR25 Class 3
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Black cover, yellow flood cover, brackes,Screws, washers, bolts,rubber pad,cover remover tool
