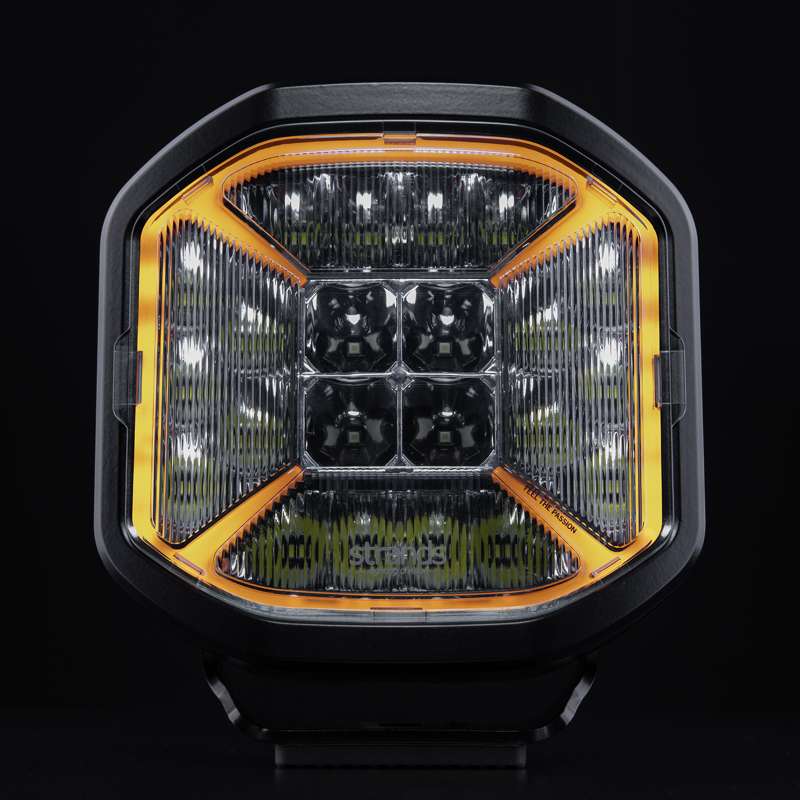

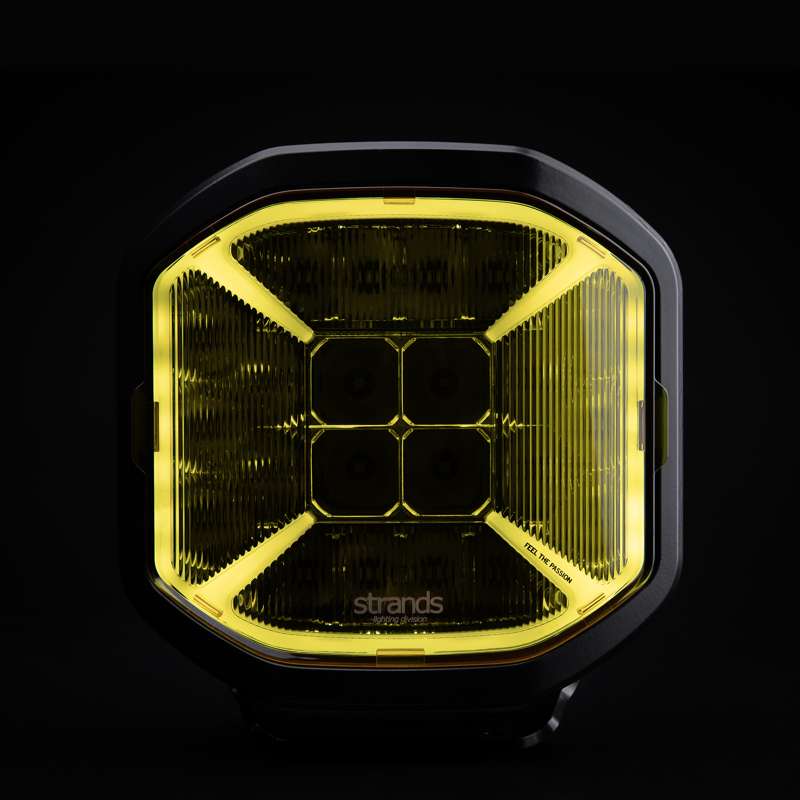

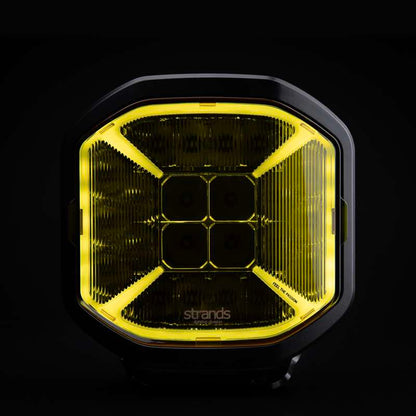

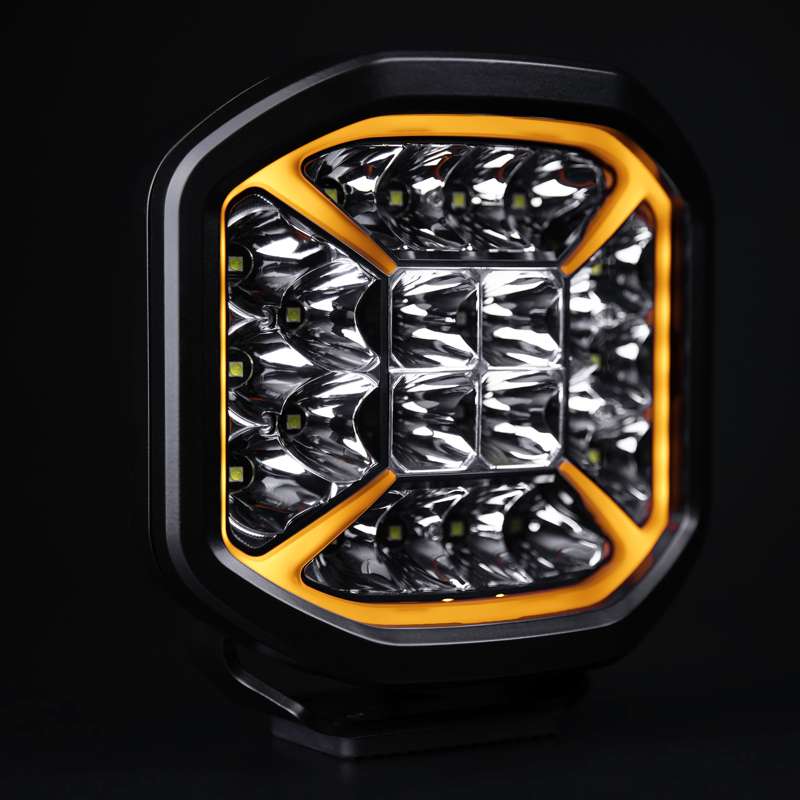

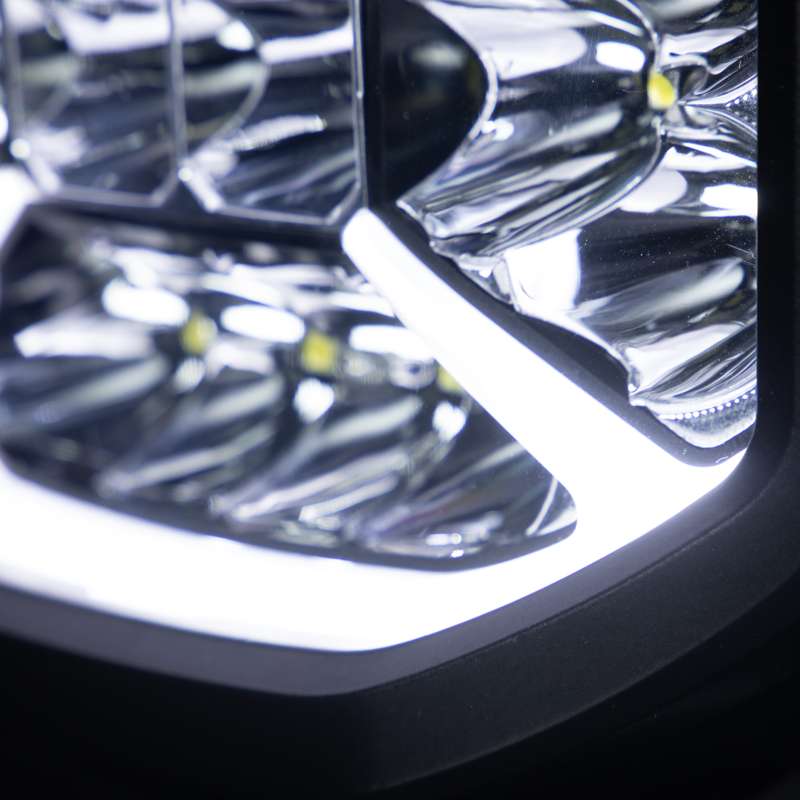

With 7430 actual lumens and a range of over 600 meters in Xperience mode, the X 7” driving light will light up the darkest roads. You can protect and modify your driving light with three lens covers: black and yellow covers are included. Clear flood cover is available separately. The Siberia X features the Hello function. By flashing the high beam twice, the white and amber position light will light up with a dynamic Hello signal. With durable materials, new powder coating, and an IP68/IP69K IP rating, the X is a long-lived product for any vehicle. It’s easy to install with a DT-4 connector. It’s E-approved R149/R148 and EMC-certified R10, CISPR25 Class 3. The X is also available as a 4” (Part No. 270971) and 9” (Part No. 270961) driving light.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 130W
Consumption = 96,0W
Functions = High beam, Amber and white position light, Separate Hello function for position light, logo light
Consumption specific function = Xperience mode: 96W / E-mode: 22W / White position light: 6W / Amber position light: 6,8W
Theoretical lumen = 10000lm
Actual lumen = E-mode: 1640lm / Xperience mode: 7430lm

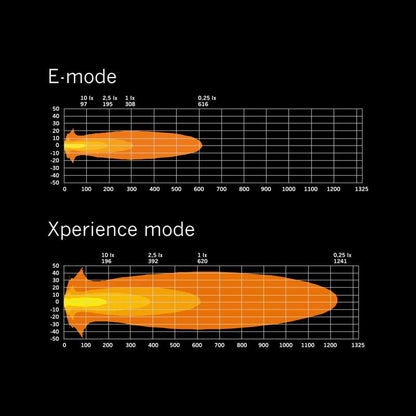

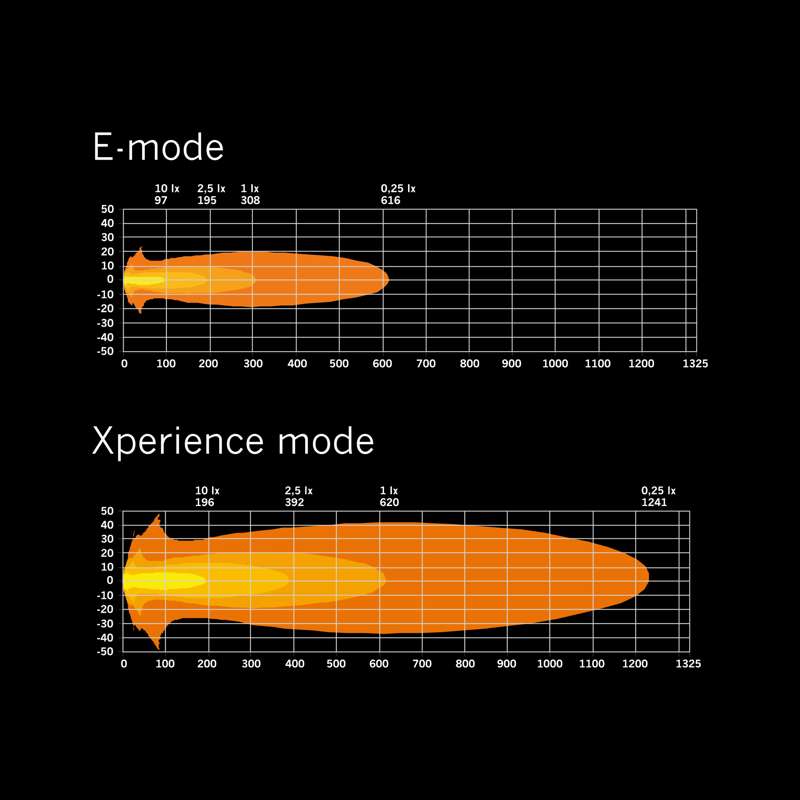

1 lux @ = E-mode: 308m / Xperience mode: 620m
Color temperature = 5700K
Beam pattern = Extended beam
Beam angle = 10,7°
Connection = DT-4PIN
Cable length = 150mm
Color housing = Black

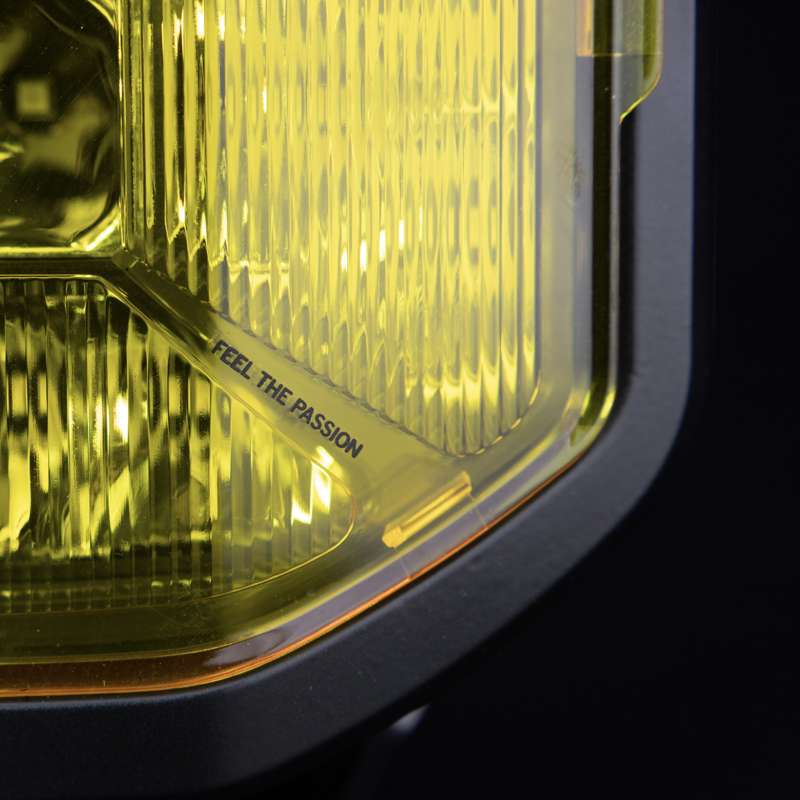

Color lens = Main lens: clear, External lens cover: black and yellow flood versions
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

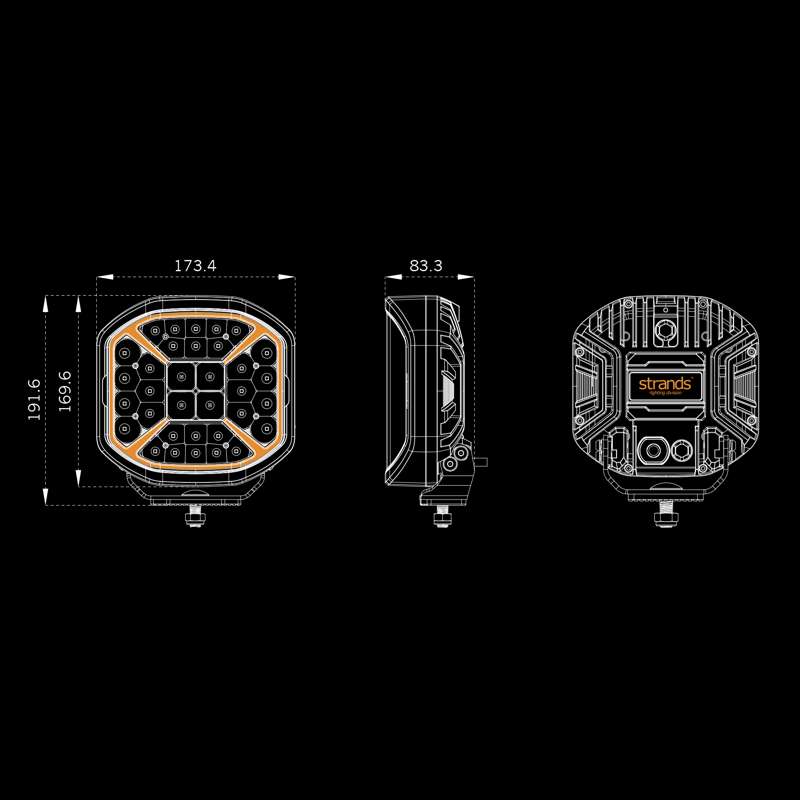

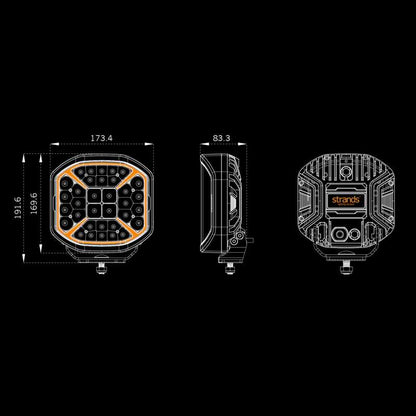

Length = 173,4mm
Depth = 83,3mm
Height = 169,9mm
Height including bracket = 191,6mm
Weight = 2,32kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 20
EMC = ECE R10, CISPR25 Class 3
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Black cover, yellow flood cover, brackes,Screws, washers, bolts,rubber pad,cover remover tool
