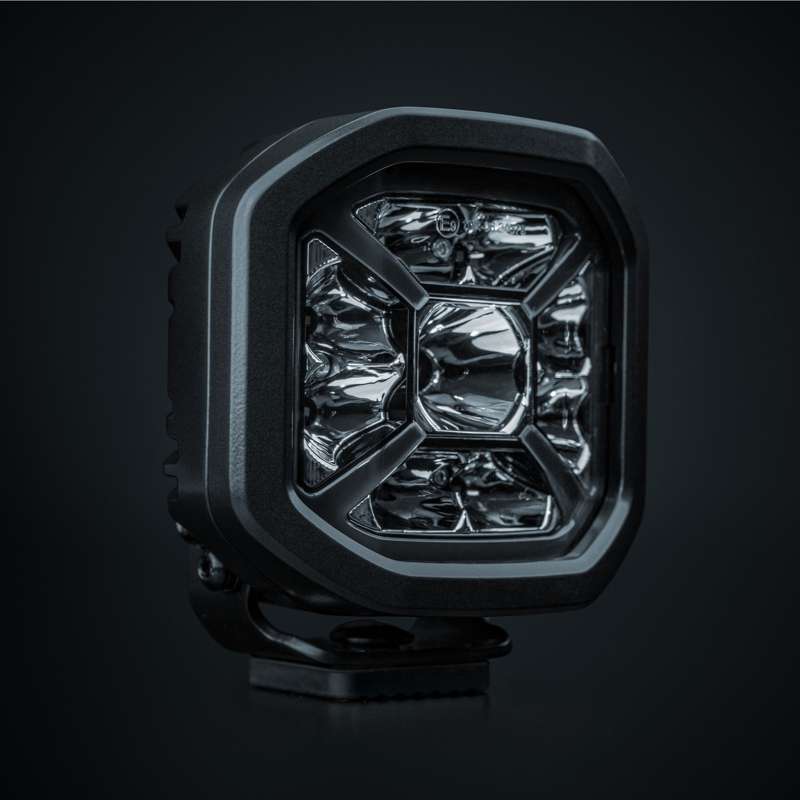

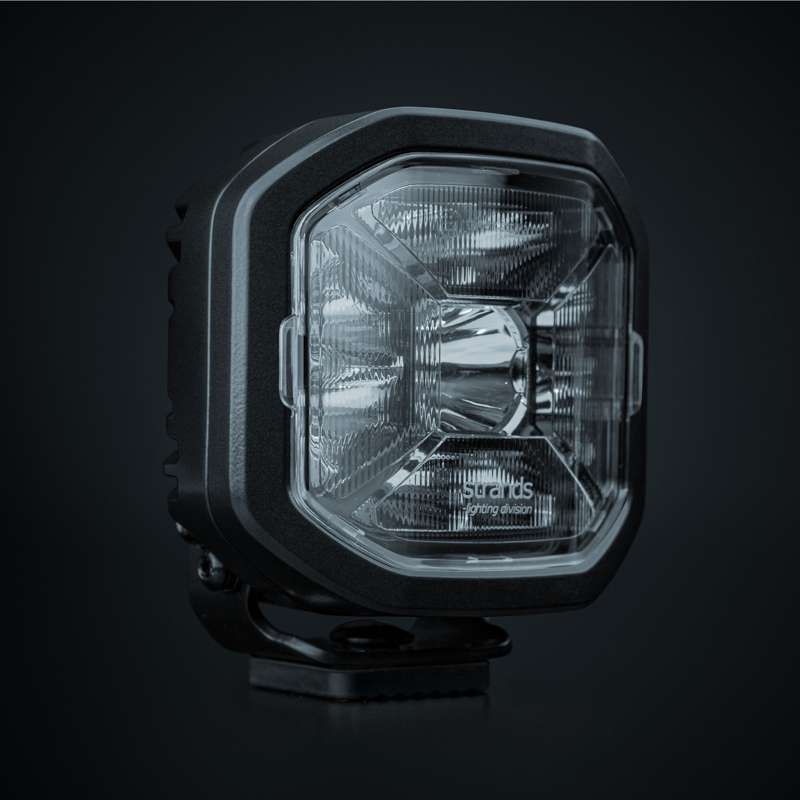

The Siberia X 4” driving light produces 4300 actual lumens, reaching 1 lux @ 350 m, a massive output for such a compact light. With its robust design, it’s perfect for demanding adventures, be it in snow, rain, or mud. The aluminum housing is highly durable, resistant to stone shots and vibrations, and suitable for challenging off-road driving. It will fit even hard-to-reach places thanks to its compact size, with a height of 11 cm without the bracket. You can adapt the output and color temperature to any environment thanks to the choice of three lens covers. Black and yellow covers are included. It uses 10-32 V and has a 60 W power consumption. If you need even more power, the Siberia X is also available as a 70W work light (Part No. 270978), a 7” (Part No. 270960), and a 9” (Part No. 270961) driving light. You can customize your setup and keep a consistent look for your vehicle.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 61W
Consumption = 60,0W

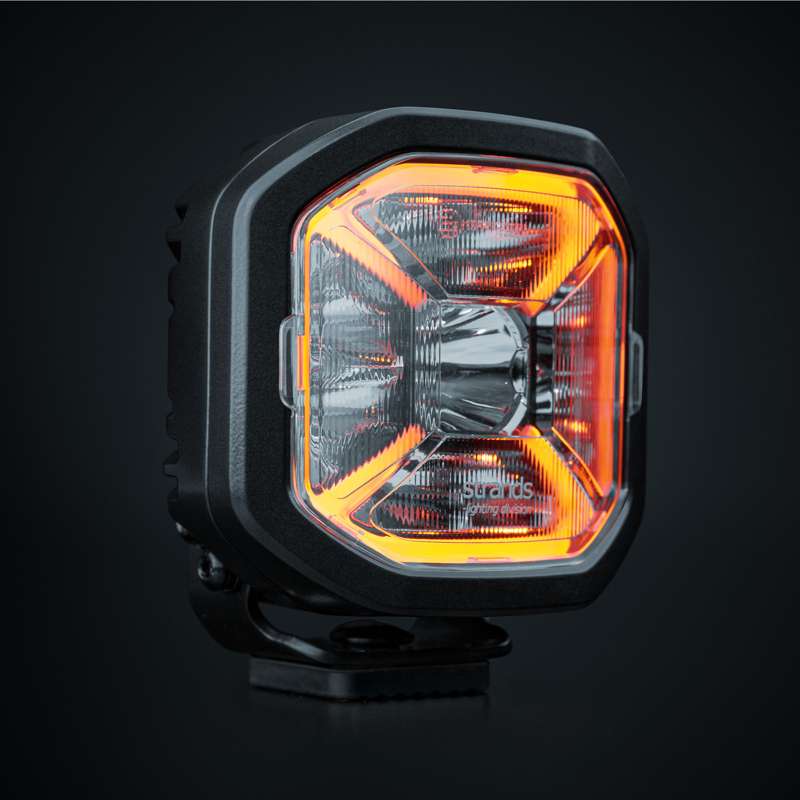

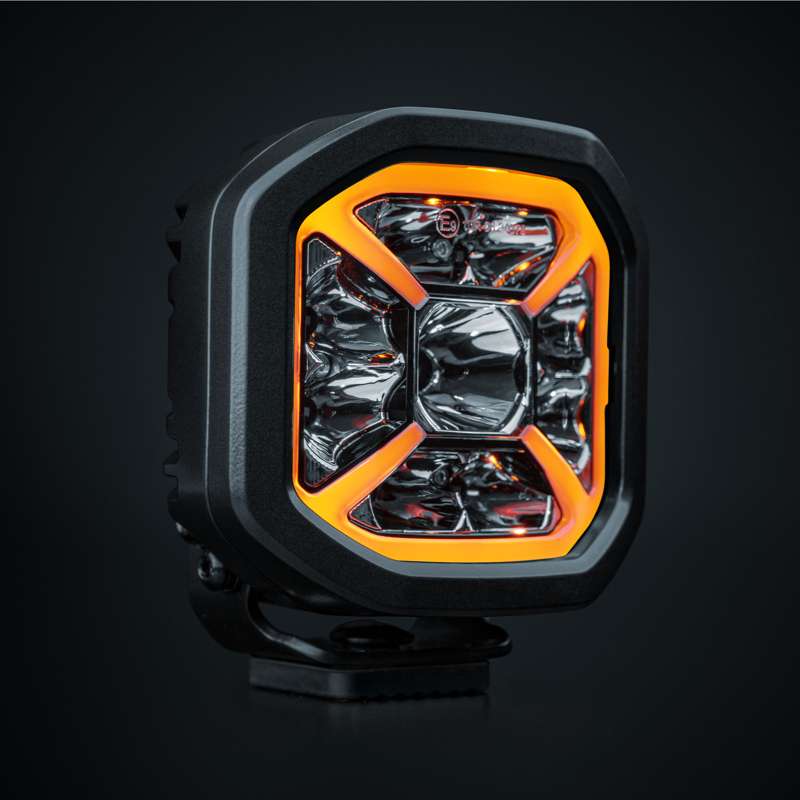

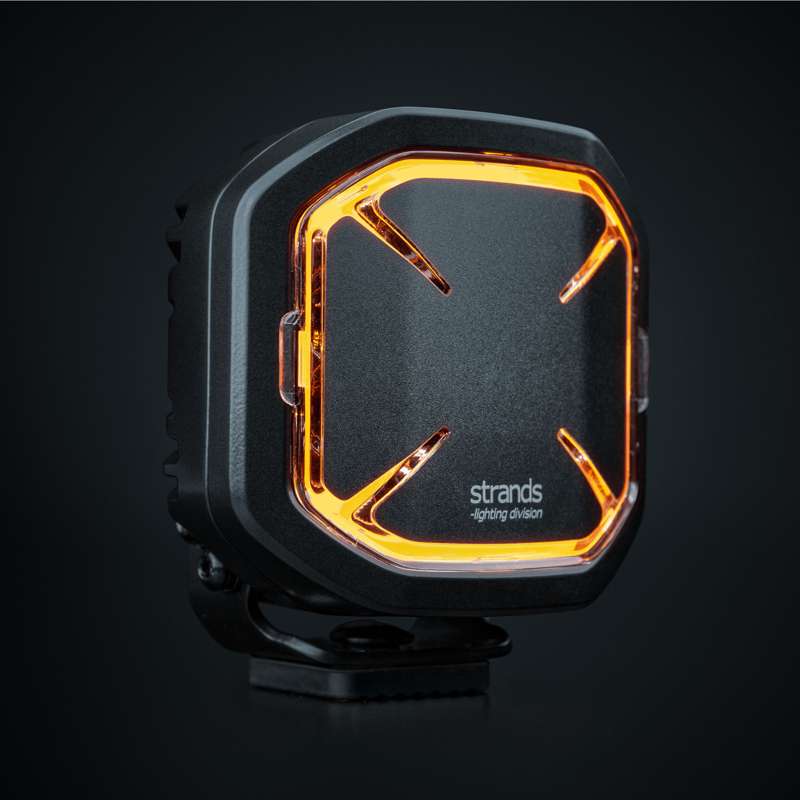

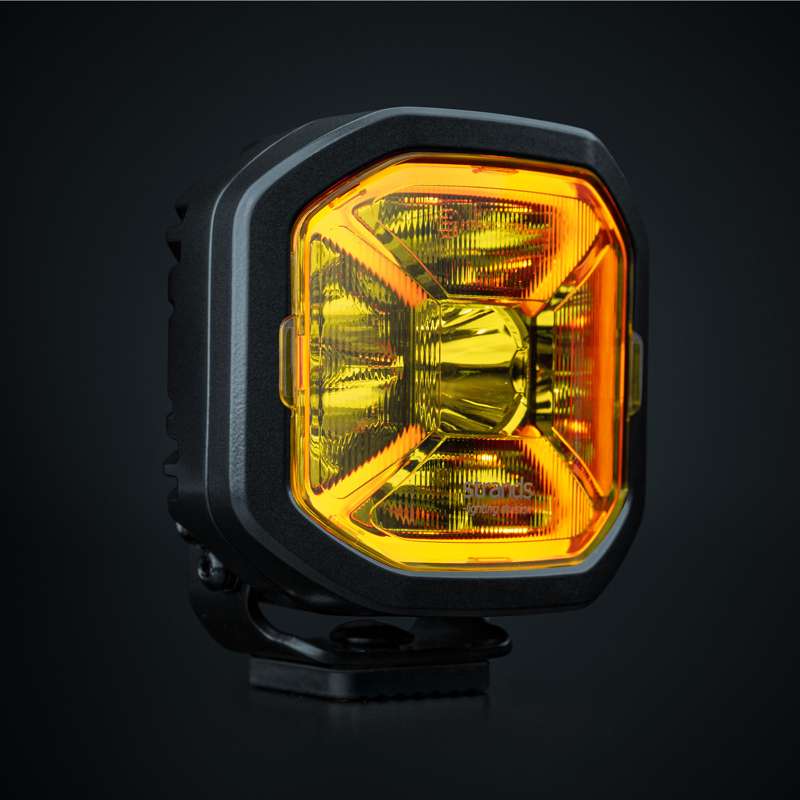

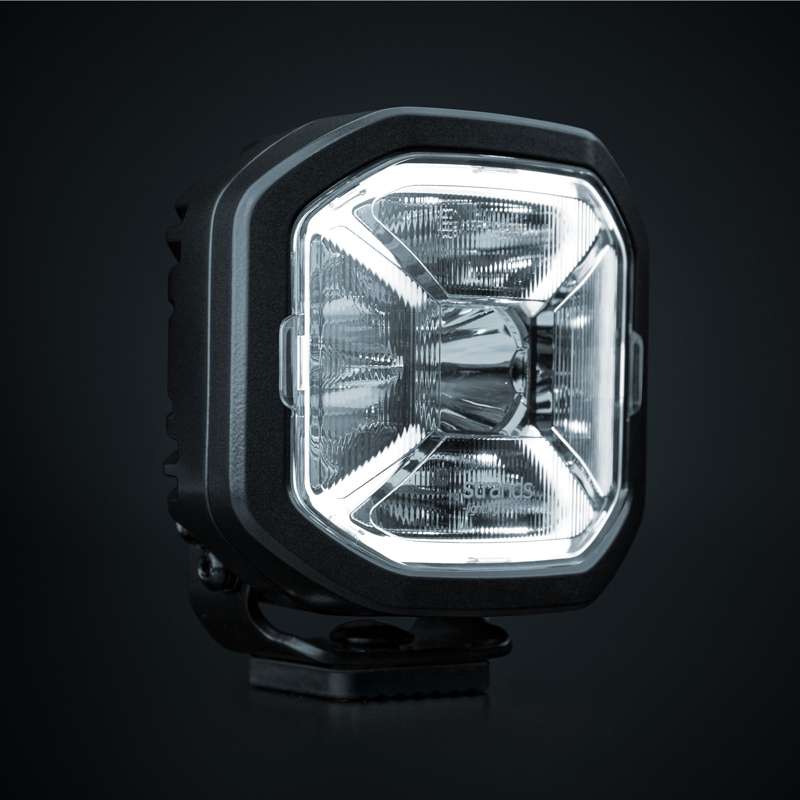

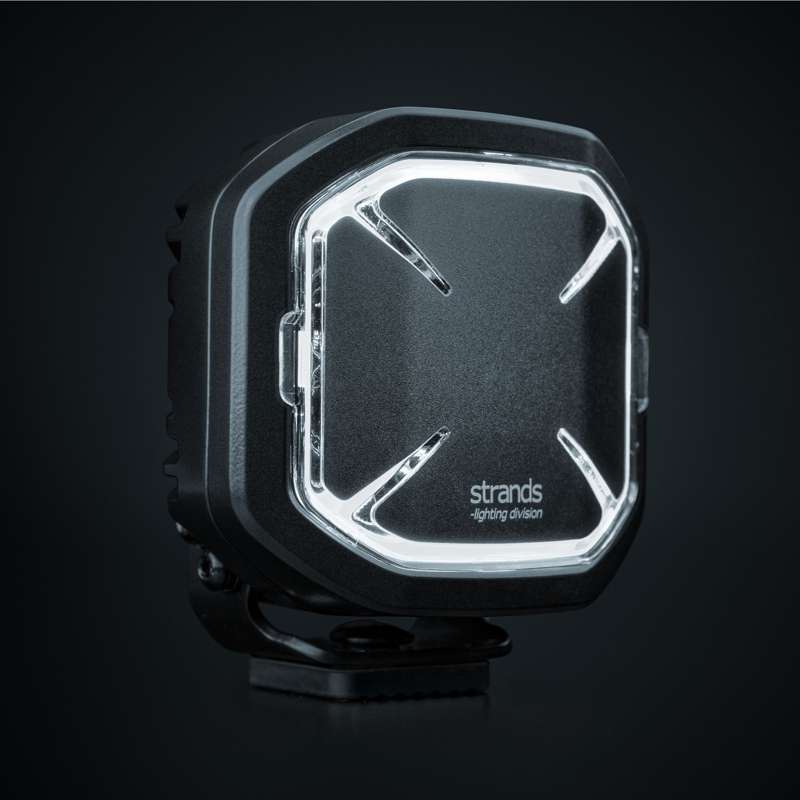

Functions = High beam, Amber and white position light, Separate Hello function for position light, logo light

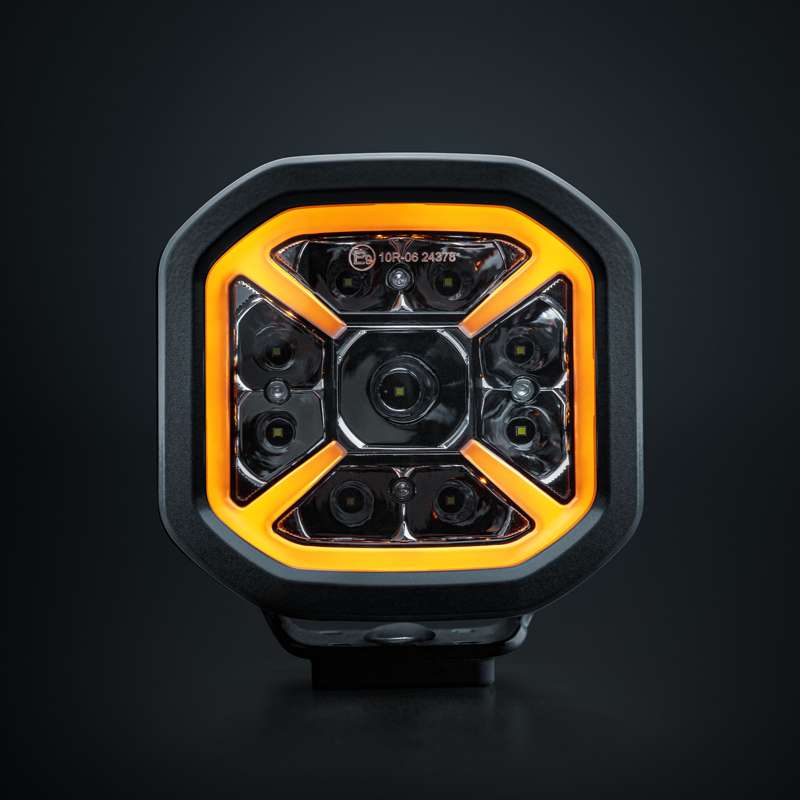

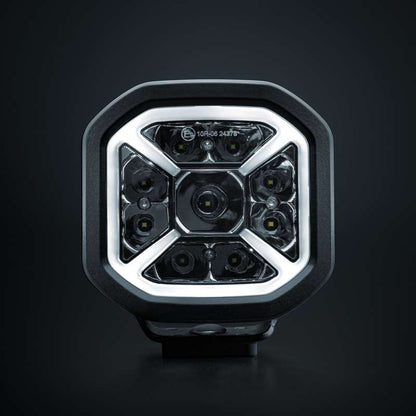

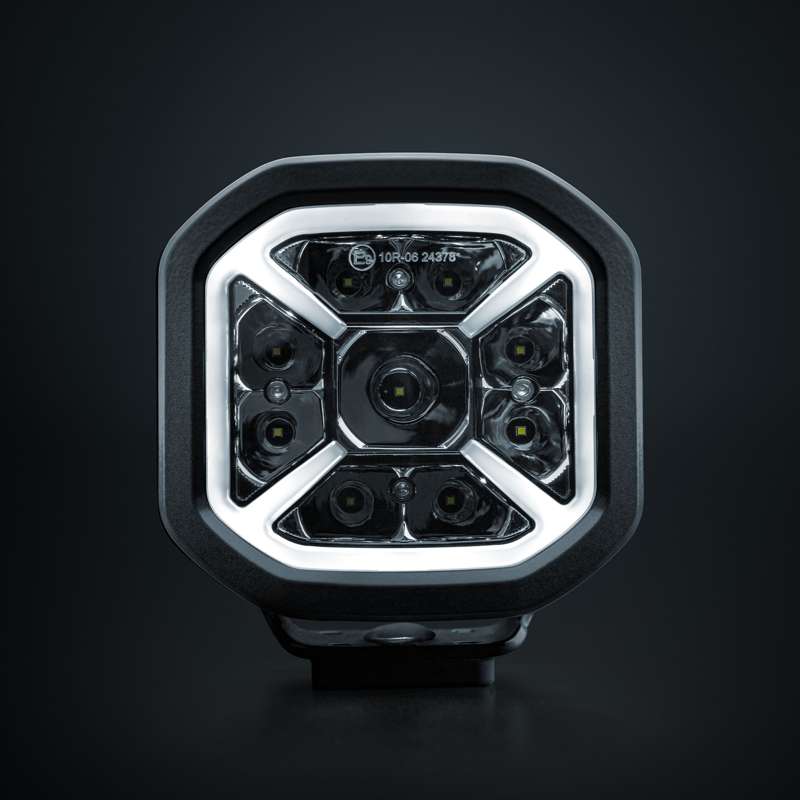

Consumption specific function = White position light: 5,3W, Amber position light: 5,3W
Theoretical lumen = 4950lm
Actual lumen = 3950lm

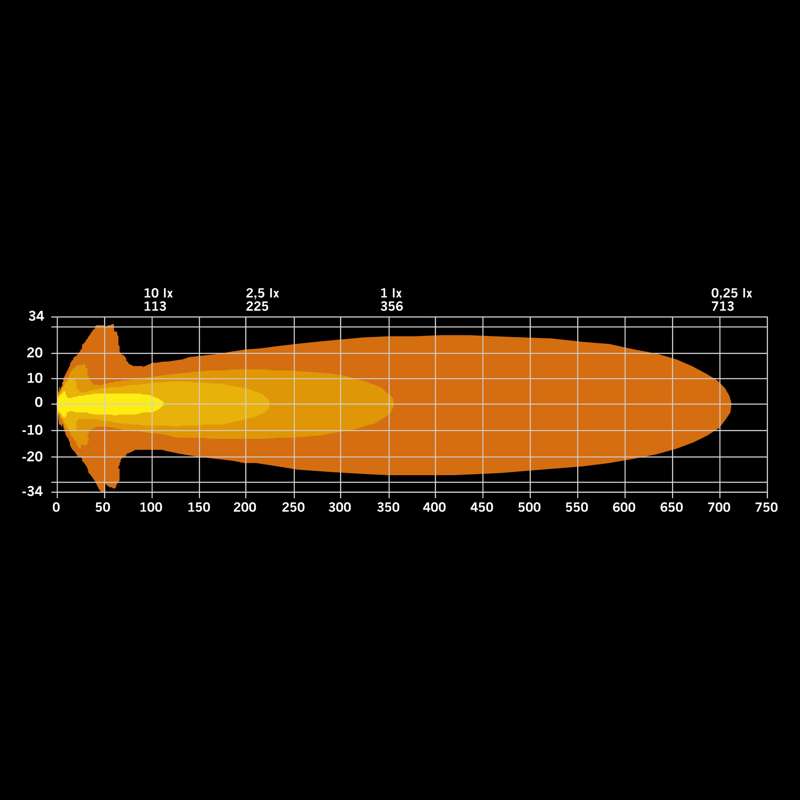

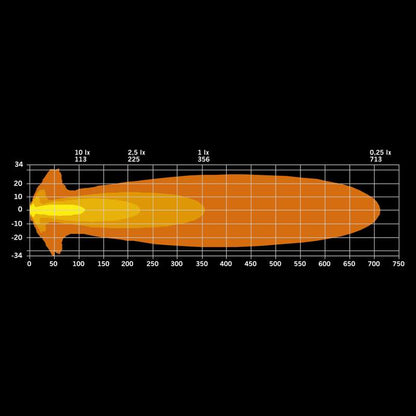

1 lux @ = 356m
Color temperature = 5700K
Beam pattern = Optimized beam
Beam angle = 10,5°
Connection = DT-4PIN
Cable length = 150mm
Color housing = Black
Color lens = Clear
Color LED´s = White
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

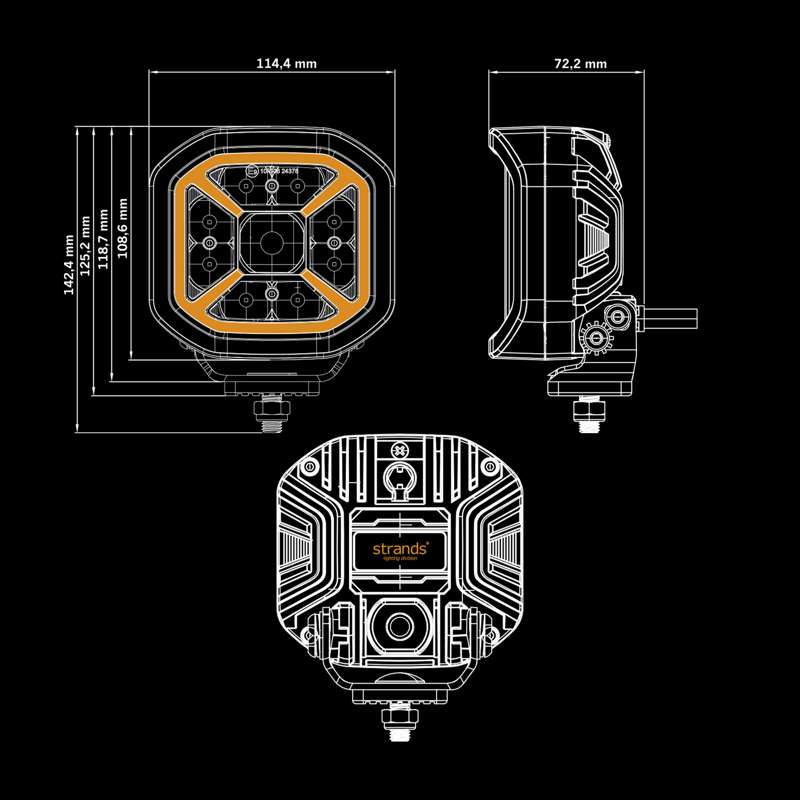

Length = 114,4mm
Depth = 72,2mm
Height = 108,6mm
Height including bracket = 125,2mm
Weight = 0,94kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = No
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Positive)
White cable = White Position light
Yellow cable = Amber Position light

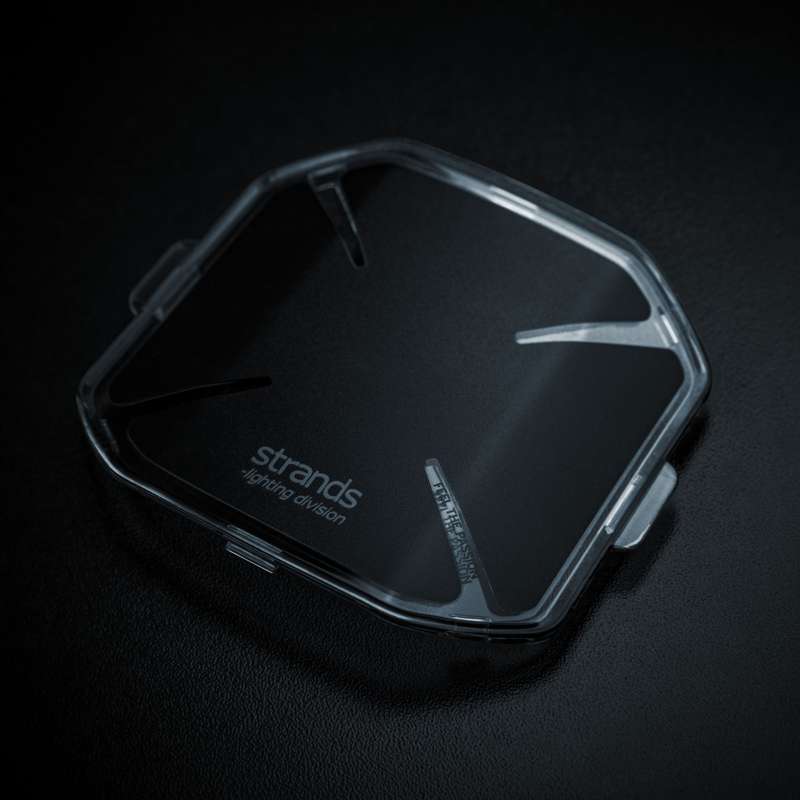

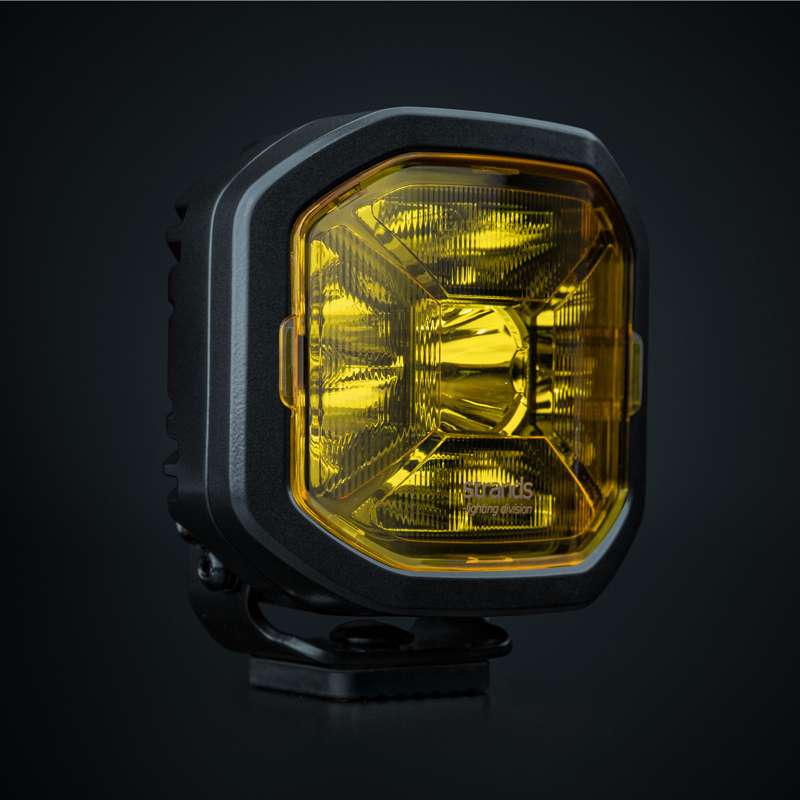

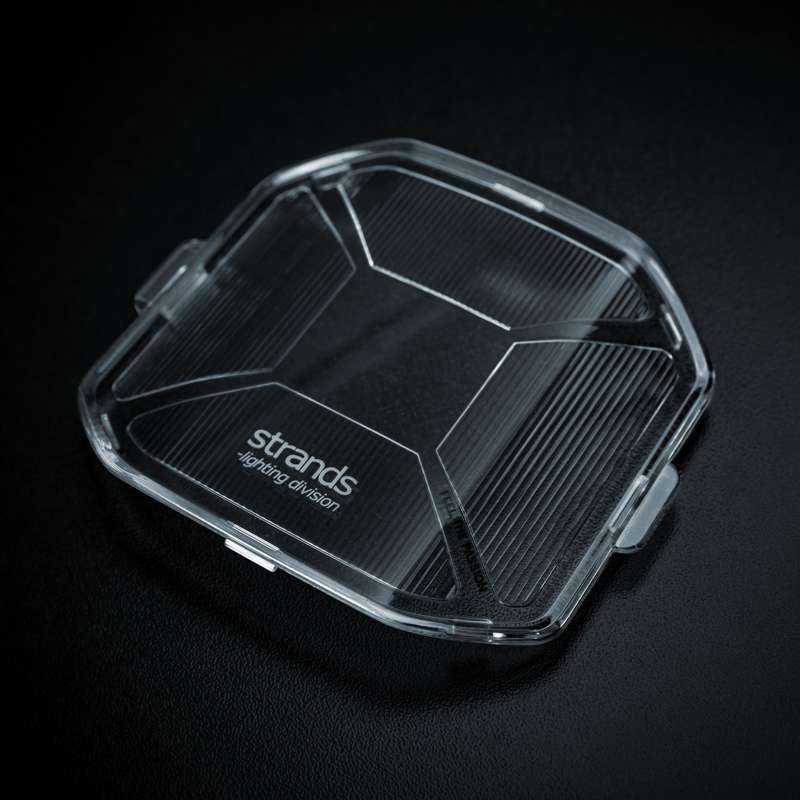

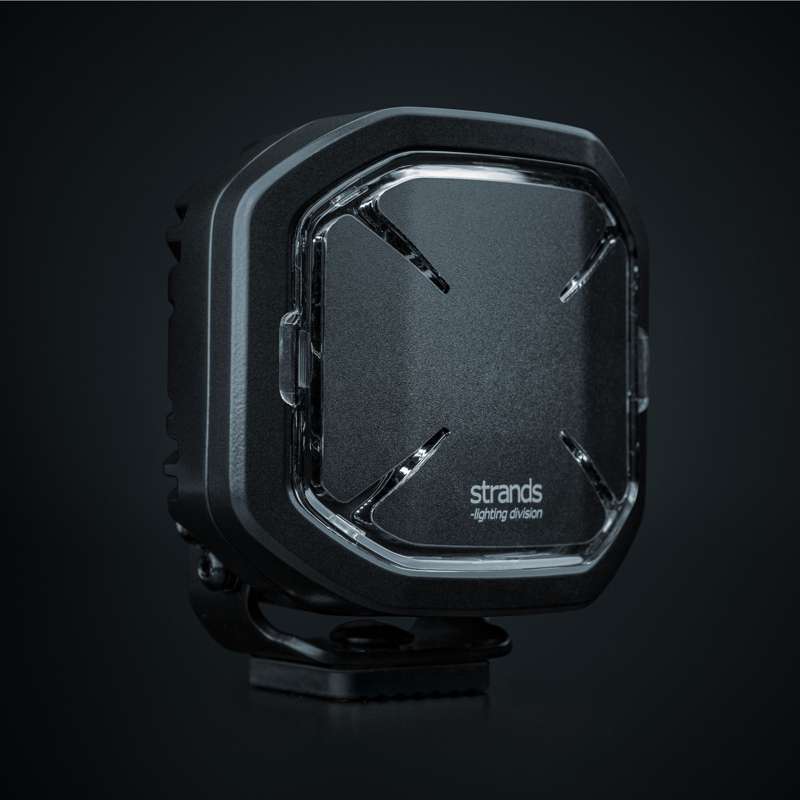

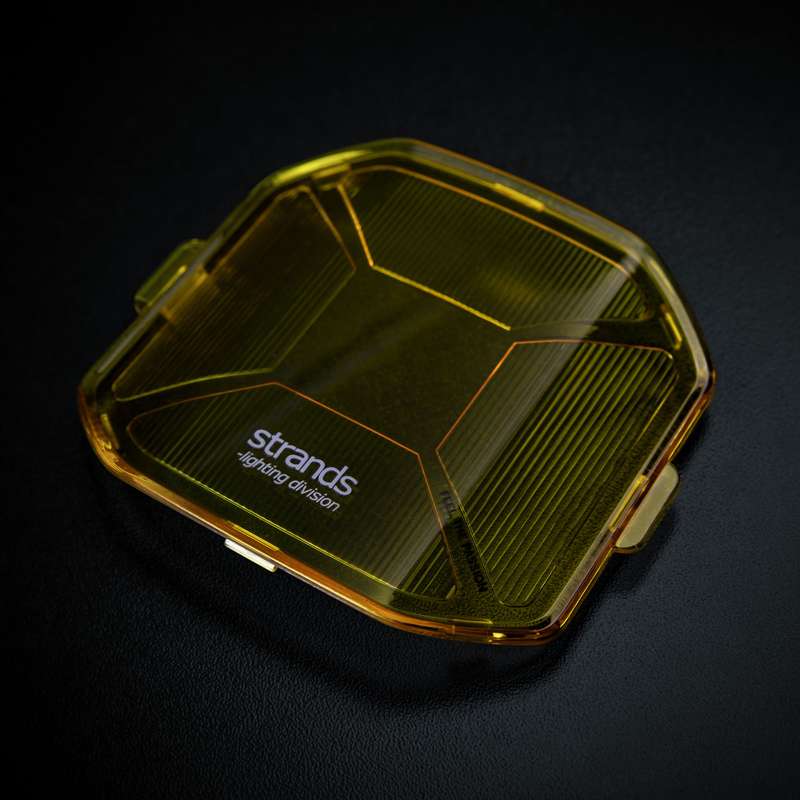

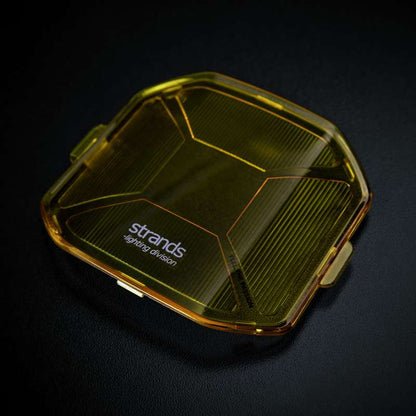

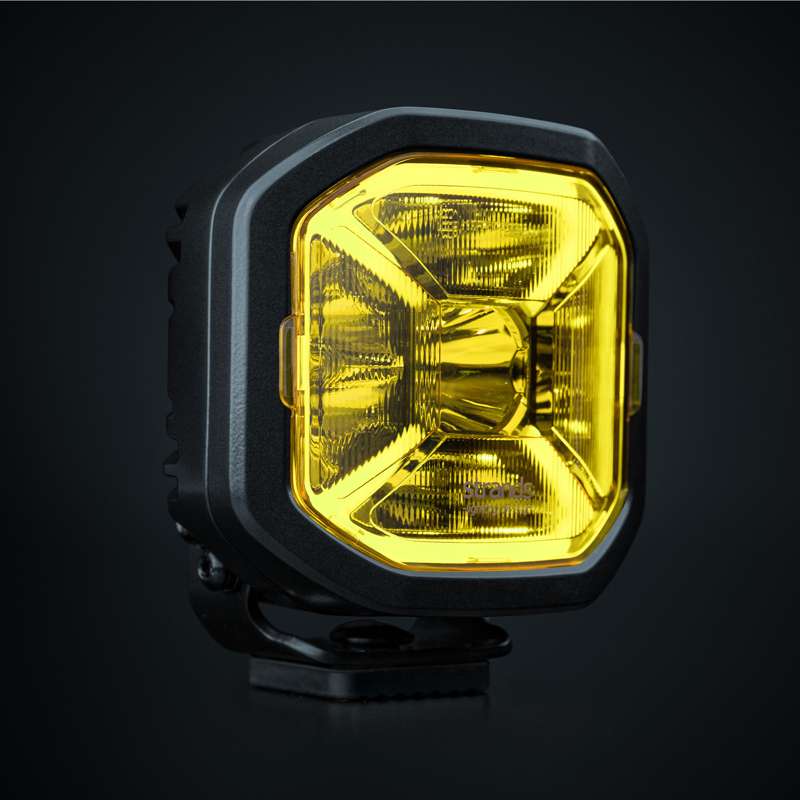

Included in package = Black cover, yellow flood cover, bracket, screws, washers, bolts, rubber pad, cover remover tool
