Siberia Skylord is a true masterpiece of engineering and design. Built to withstand even the harshest conditions. Ready to stand out from the crowd and capture the attention of anyone who sees it.
One of the unique features of Siberia Skylord is its mysterious aura. The exclusive and slim design makes it fit all vehicles and enhances the appearance of your vehicle. The light is incredibly powerful, almost like it is not of this world. It creates a fantastic effect that leaves the driver curious and wanting more.
Siberia Skylord’s high-performance LEDs can light up even the darkest roads, ensuring the driver can see everything in its path. The beam pattern maximizes both length and width. Choose between two modes, an E-approved mode, and an Xperience mode, with a great view of 768 meters. The Siberia dual-position light also gives you an outstanding light and design effect, perfectly positioned in a circle around the LEDs.
What sets Siberia Skylord apart from other driving lights is its durability. It´s built to withstand even the harshest conditions, whether driving in the pouring rain or through rough terrain. Skylord has reinforced protection to withstand vibrations and shocks and a reinforced coating against external influences. It also comes with CISPR25 class 3 to give you excellent EMC protection.

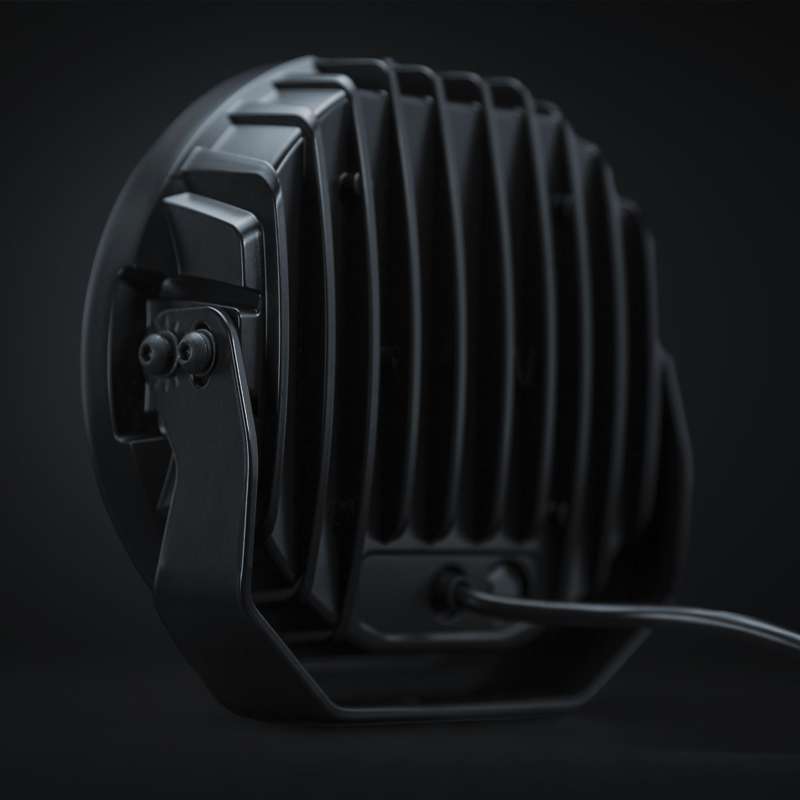

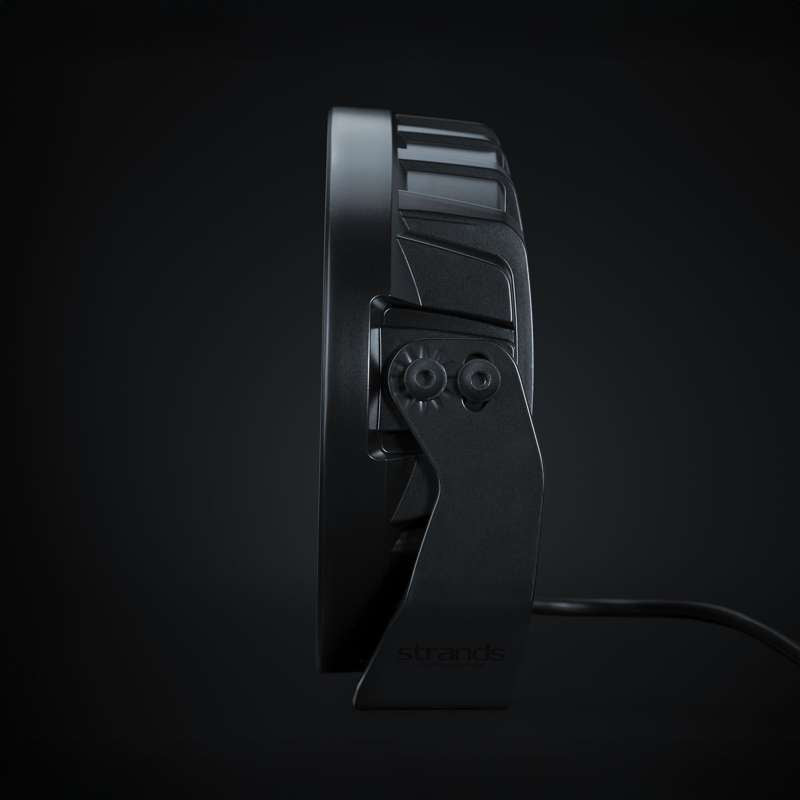

In addition to its durability, Siberia Skylord is also incredibly easy to install. It comes with everything you need to get it up and running in no time. Mount with the included mounting bracket, screws, and the 0.5-meter cable. Connect it easily with the DT-4 contact included in the package. With Skylord mounted, you will get a seamless montage on your vehicle and be safe driving on the roads and look good while doing it.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 144W
Consumption = 125,0W
Consumption specific function = Xperience mode: 121W / E-mode: 20,6W / White position light: 7W / Amber position light: 7,5W
Theoretical lumen = 11000lm
Actual lumen = E-mode: 1213lm / Xperience mode: 7025lm

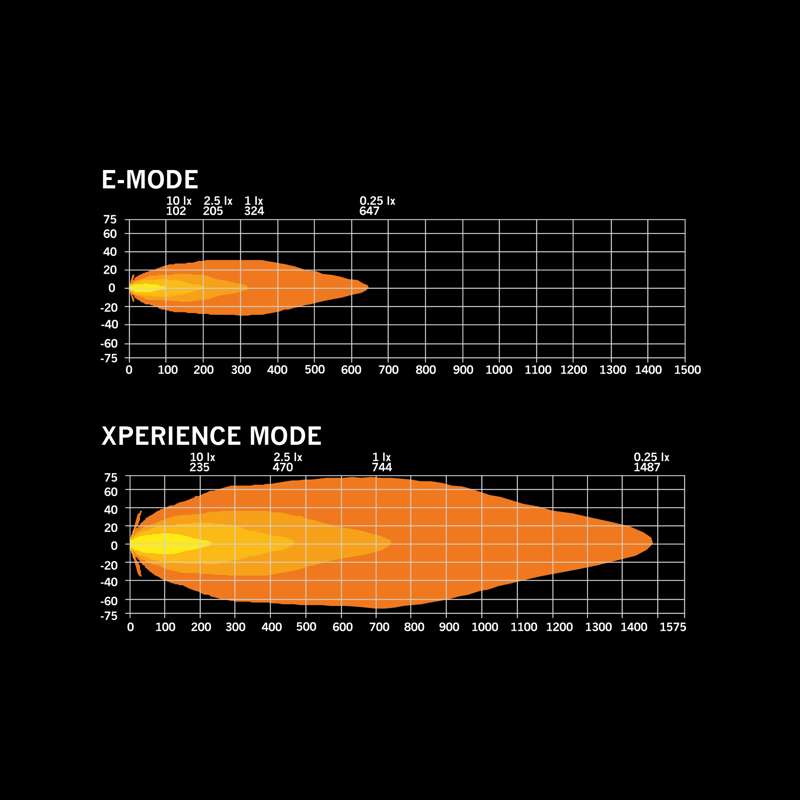

1 lux @ = E-mode: 324m / Xperience mode: 744m
Color temperature = 5700K
Beam pattern = Long-distance beam
Beam angle = 16,6°

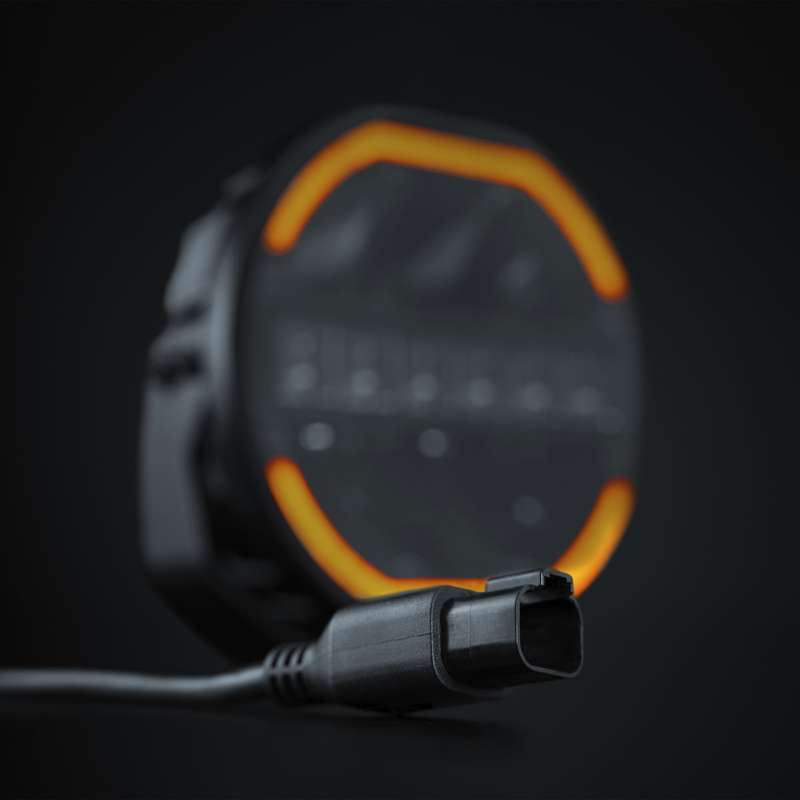

Connection = DT-4PIN
Cable length = 500mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

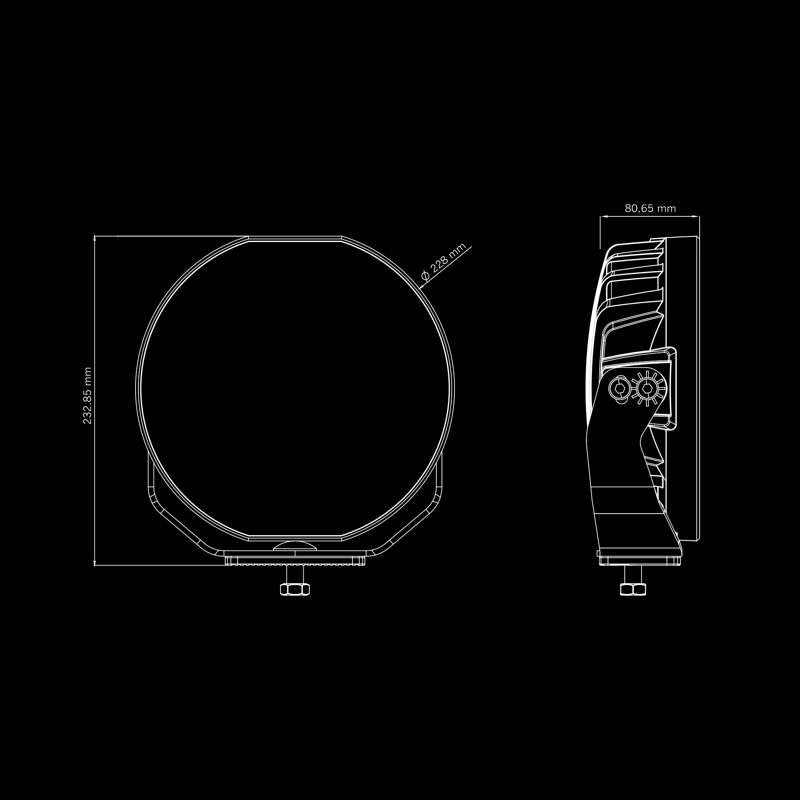

Length = 228mm
Depth = 80,65mm
Height = 217,93mm
Height including bracket = 232,85mm
Diameter = 228mm
Weight = 3,55kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 25
EMC = ECE R10, CISPR25 Class 3
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Bracket, screws, washers, bolt, rubber pad, breather cap cover
