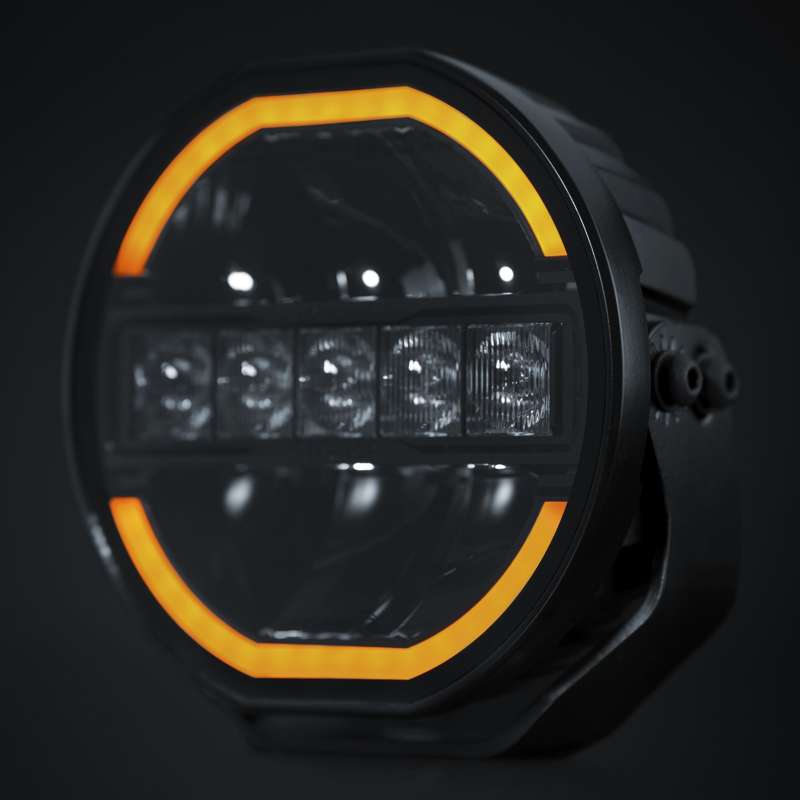

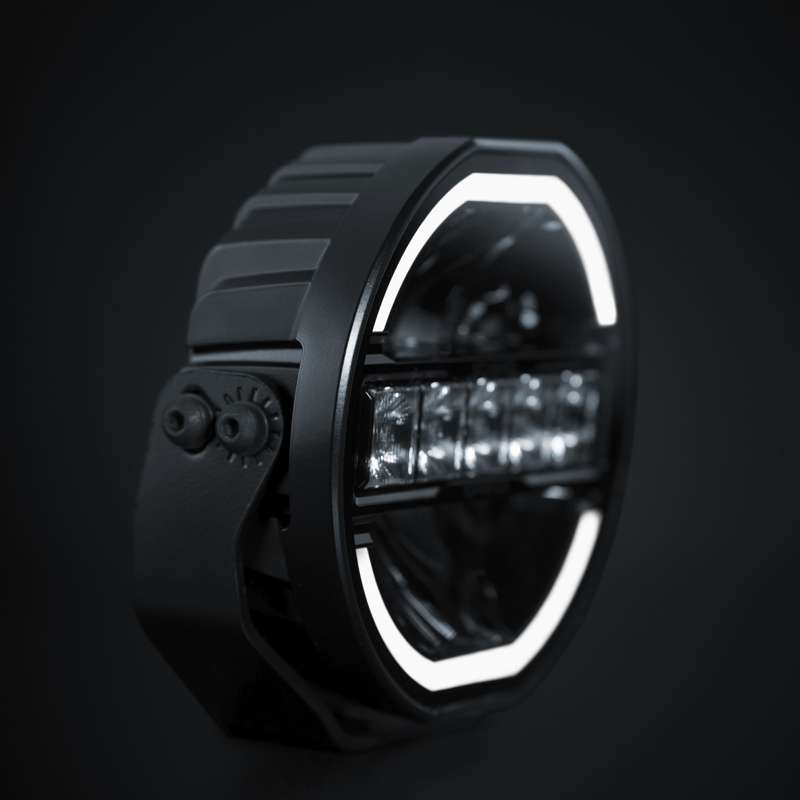

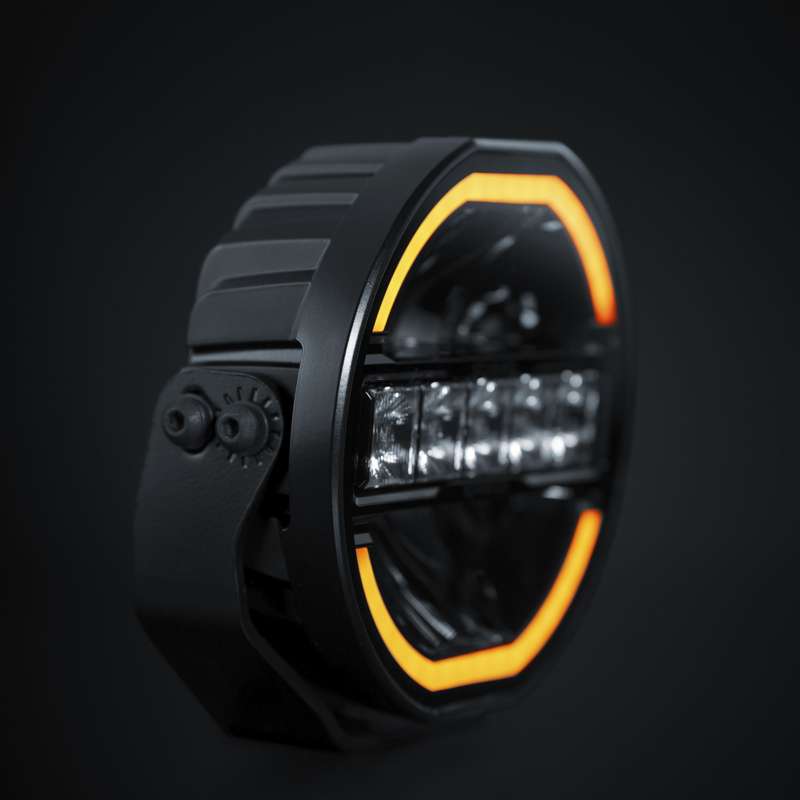

Siberia Skylord 7″ is a true masterpiece of engineering and design. Built to withstand even the harshest conditions. Ready to stand out from the crowd and capture the attention of anyone who sees it.
The presence of Siberia Skylord 7″ is truly captivating. The exclusive and slim design makes it fit all vehicles and enhances the appearance of your vehicle. The light is incredibly powerful, almost like it is not of this world.
Siberia Skylord 7″ can light up even the darkest roads, ensuring the driver can see literally everything in its path. The extended beam maximizes both length and width and outperforms other 7″ lights. Choose between two modes, an E-approved mode, and an Xperience mode, with a great view at 628 meters.
What sets Siberia Skylord 7″ apart from other driving lights is its durability. It´s built to withstand even the harshest conditions, whether driving in the pouring rain or through rough terrain. Skylord has reinforced protection to withstand vibrations and shocks and a reinforced coating against external influences. It also comes with CISPR25 class 3 to give you excellent EMC protection.
In addition to its durability, the Siberia Skylord 7″ is also incredibly easy to install due to its size. It comes with everything you need to get it up and running in no time. Mount with the included mounting bracket, screws, and the 0.5-meter cable. Connect it easily with the DT-4 contact included in the package. With Skylord mounted, you will be safe driving on the roads and look good while doing it.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 108W
Consumption = 79,0W
Consumption specific function = Xperience mode: 79W / E-mode: 20,5W / White position light: 5,9W / Amber position light: 4,6W
Theoretical lumen = 8250lm
Actual lumen = E-mode: 1500lm / Xperience mode: 5850lm

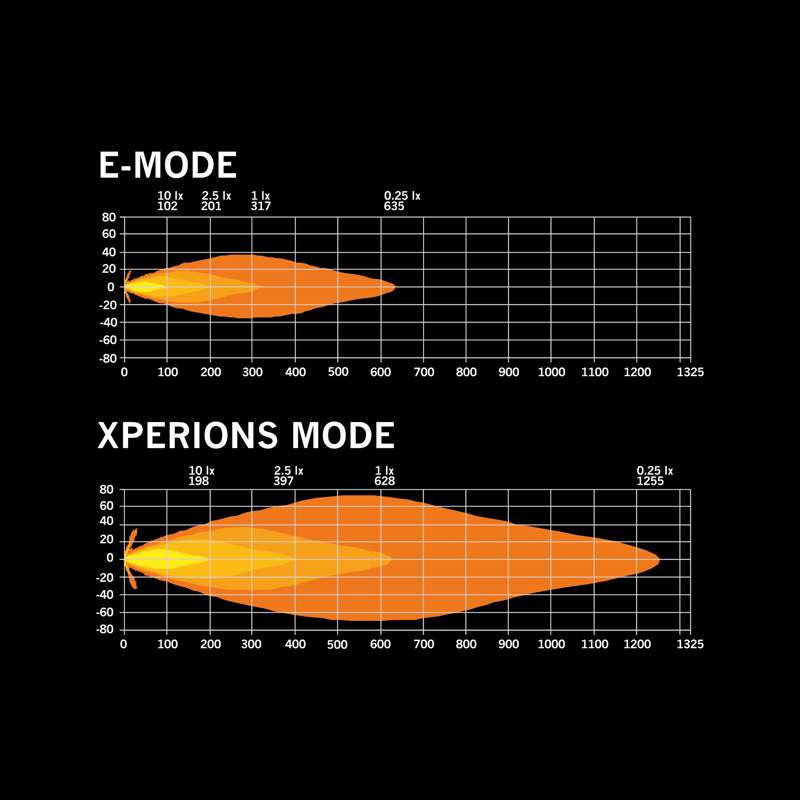

1 lux @ = E-mode: 317m / Xperience mode: 628m
Color temperature = 5700K
Beam pattern = Extended beam
Beam angle = 18,4°

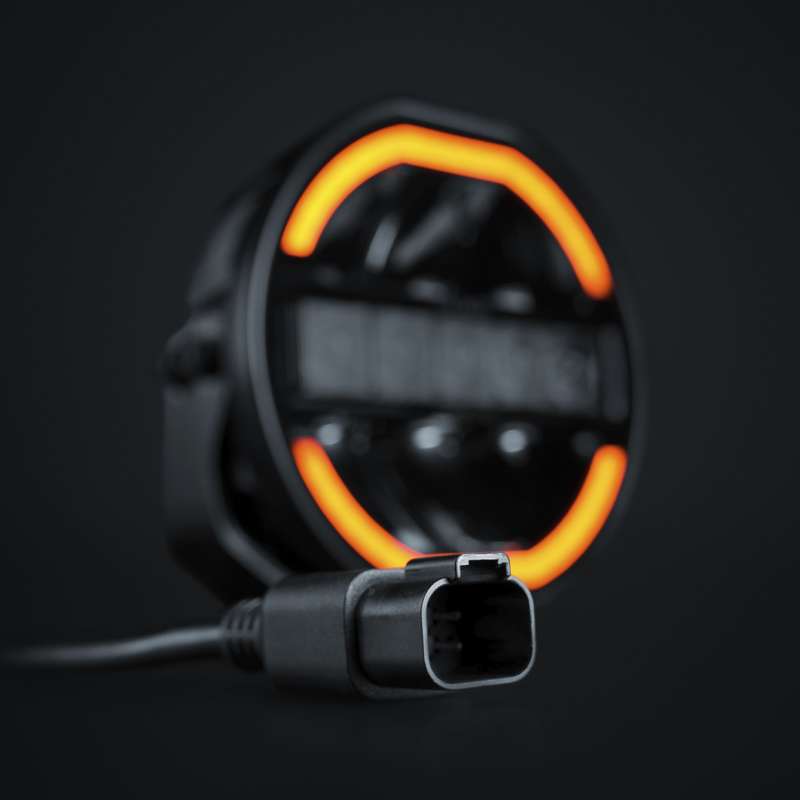

Connection = DT-4PIN
Cable length = 500mm
Color housing = Black
Color lens = Clear

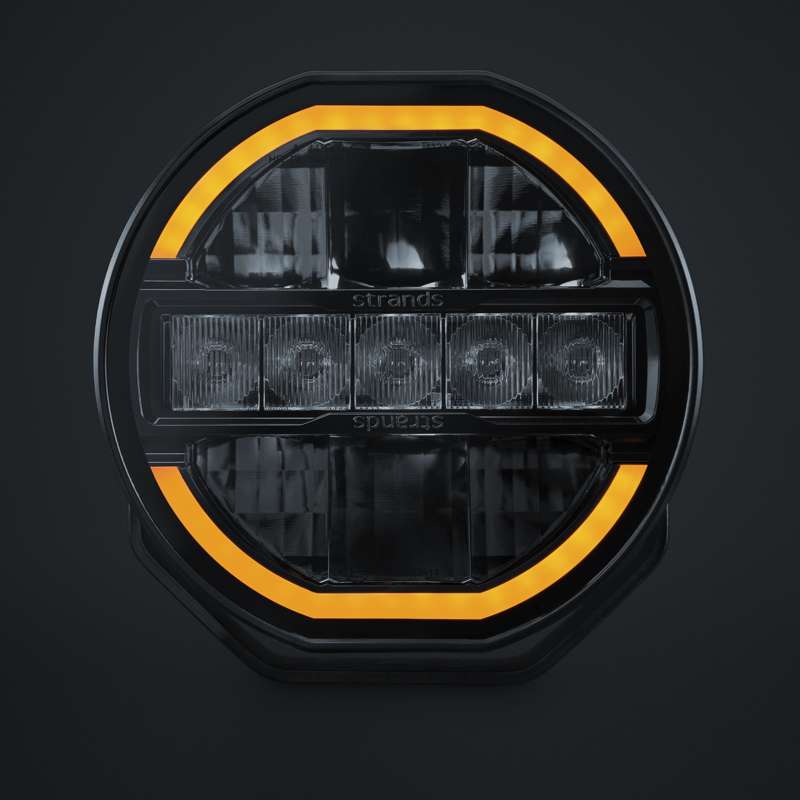

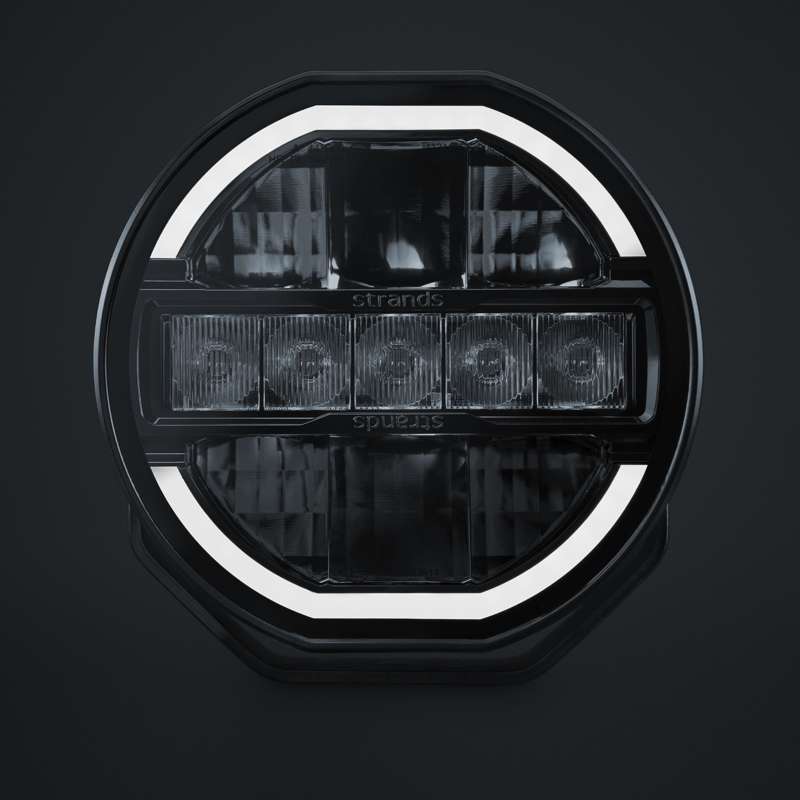

Color LED´s = White/amber

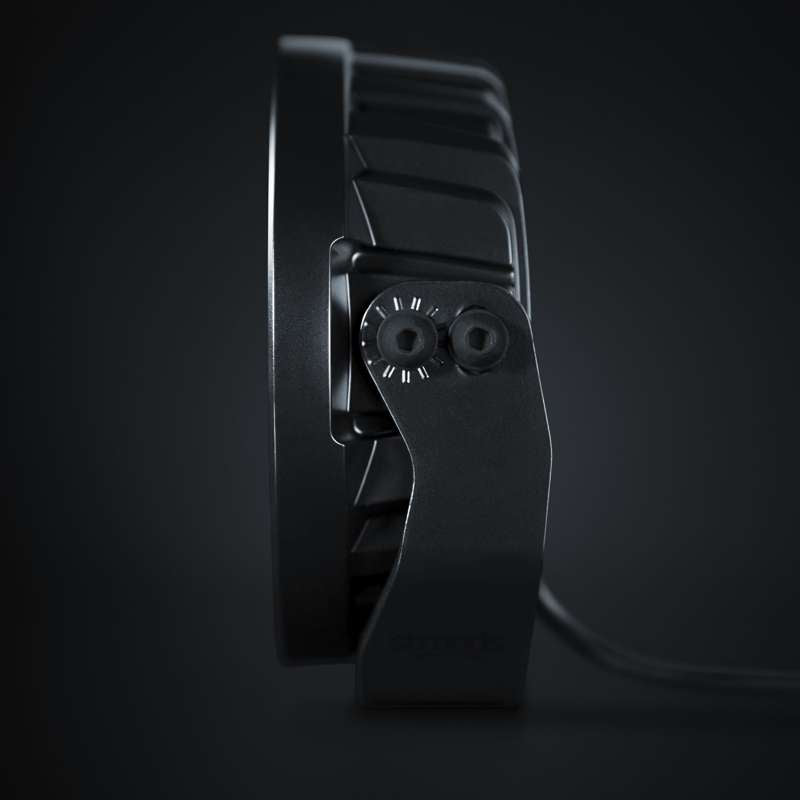

Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

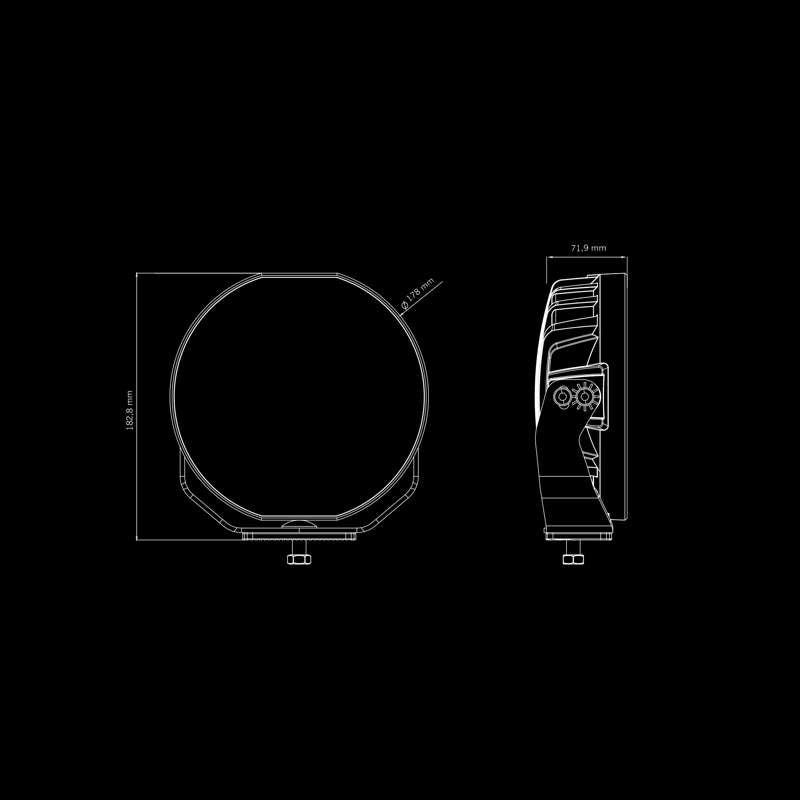

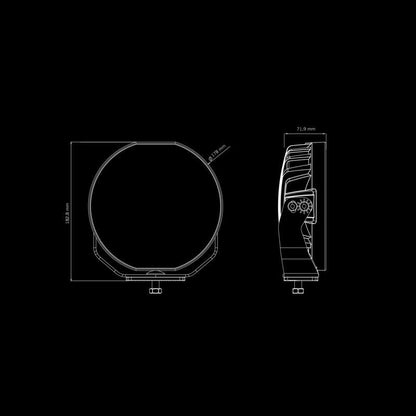

Length = 178mm
Depth = 71,9mm
Height = 170,3mm
Height including bracket = 182,8mm
Diameter = 178mm
Weight = 1,98kg
IP-class = IP68/69K
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 25
EMC = ECE R10, CISPR25 Class 3
INSTALLATION SPECIFICATION
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Bracket, screws, washers, bolt, rubber pad, breather cap cover
