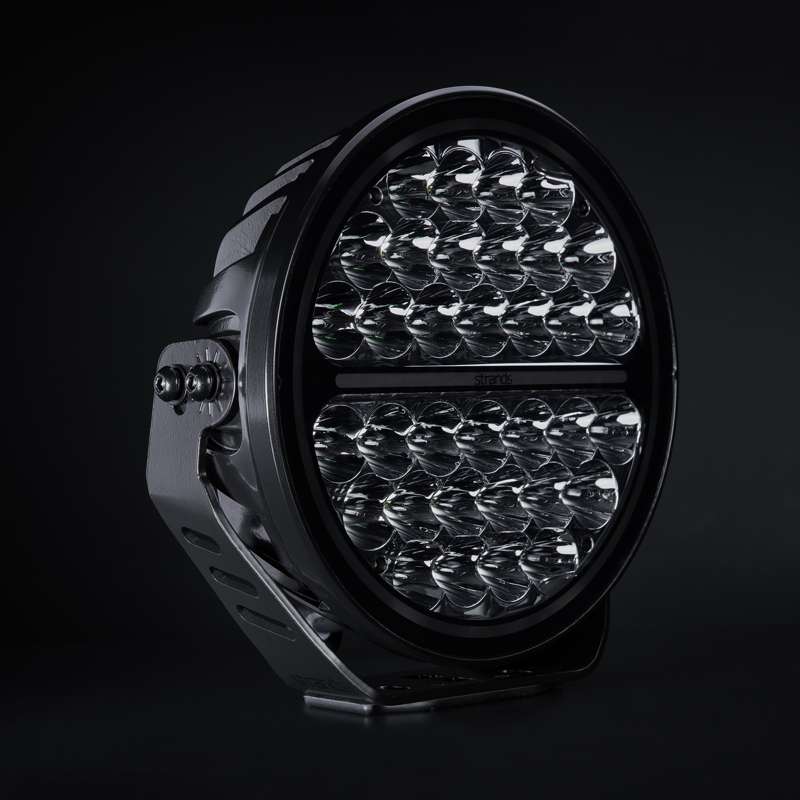

Welcome to the future. To the ultimate presentation of Strands Lighting Division’s signature. Siberia Night Ranger. The driving light provides a driving experience that doesn´t leave the driver untouched.
With Siberia Night Ranger, you get it all. An impressive light beam. Maximum performance. Legendary light output. Siberia NR gives you efficiency at completely new levels on all roads and in all conditions. The power of the LEDs gives you a perfect balance between length and width. Ready to show you the way forward.

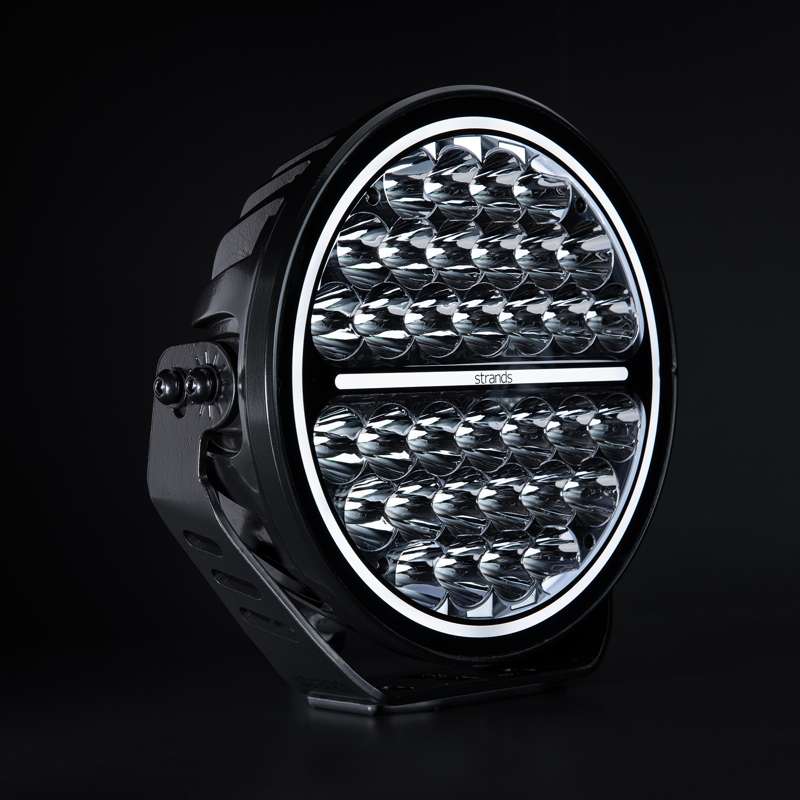

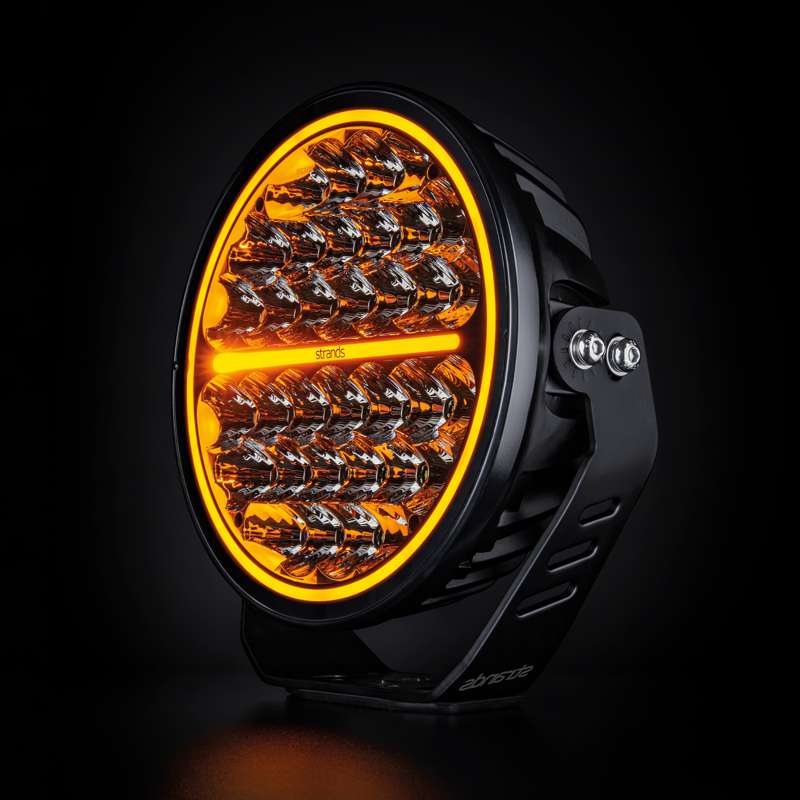

Amber or white? Siberia NR comes with Siberia’s dual-position lights to give you an outstanding light and design effect, perfectly placed in a circle around the LEDs with a line in the middle. Which color shows your style and personality the most?

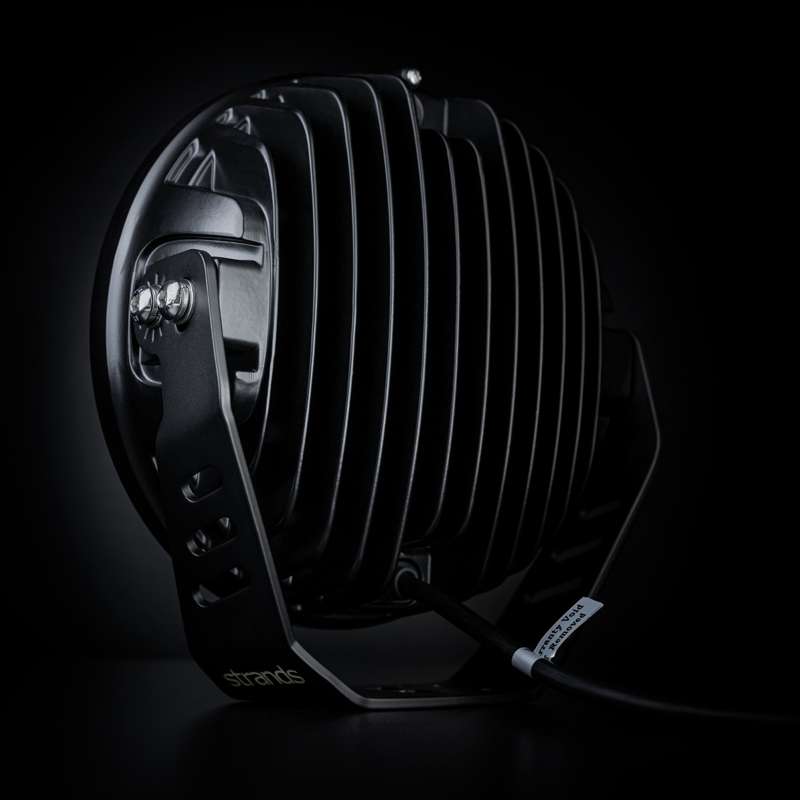

Siberia NR is built from durable materials. The lens is made of transparent PC (polycarbonate), which makes it basically unbreakable and protects the diodes from scratches and weather conditions. The durable aluminum housing also withstands salt and other stresses from the harsh climate.

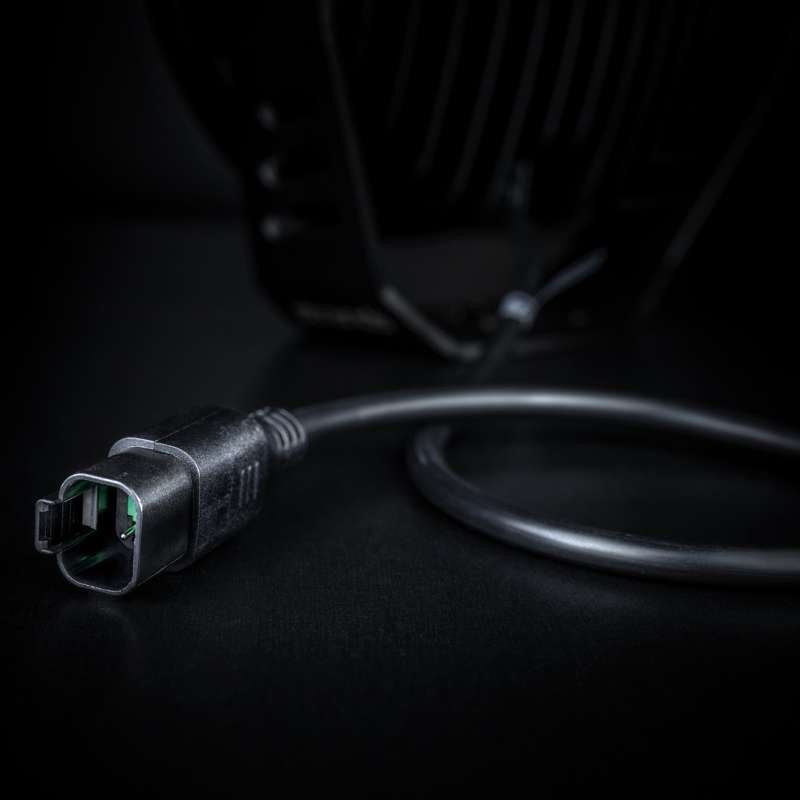

In addition to its durability, the Siberia Night Ranger is easy to install. Mount with the included mounting bracket, screws, and 0.5-meter cable. Connect easily with the DT-4 connector included in the package. Perfect for cars, trucks, and heavier vehicles. With the Siberia Night Ranger mounted, you get innovation, design, and performance like nothing you’ve experienced before.
Available in two models – Night Ranger (clear lens) with flood or spot beam pattern and Bush Ranger (yellow lens). Each model is available in 7″ and 9″.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 170W
Consumption = 145,0W
Consumption specific function = White position light: 6W, Amber position light: 6W
Theoretical lumen = 20400lm
Actual lumen = 13377lm

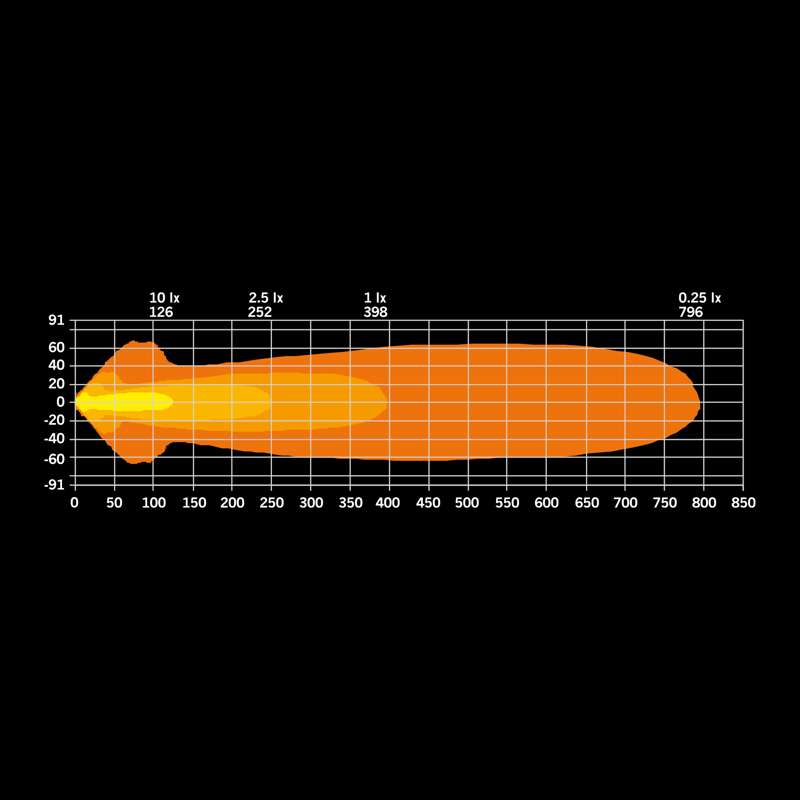

1 lux @ = 398m
Color temperature = 5700K
Beam pattern = Optimized beam
Beam angle = 24,1°
Connection = DT-4PIN
Cable length = 500mm
Color housing = Black
Color lens = Clear
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

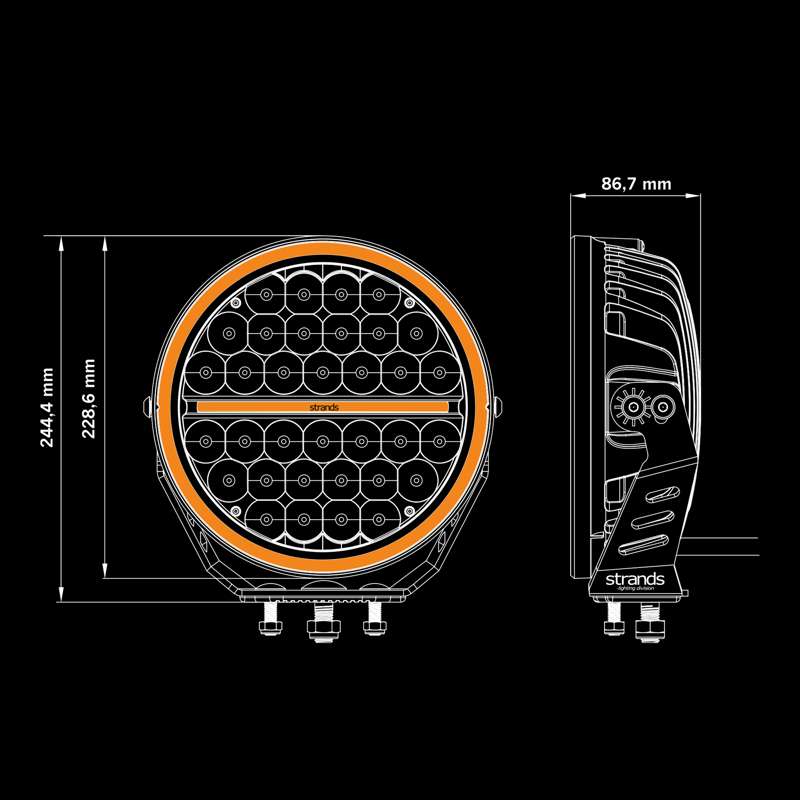

Length = 228,6mm
Depth = 86,7mm
Height = 228,6mm
Height including bracket = 249,3mm
Diameter = 228,6mm
Weight = 3,6kg
IP-class = IP67/69K
Operating temperature = -20 - +45°C
E-approved = Yes
According to regulation = ECE R7, R112
Reference number = 30
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Bracket, Screws, washers, bolts
