SIBERIA HI-LO PLOW LIGHT WITH HEATED LENS LEFT
SIBERIA HI-LO PLOW LIGHT WITH HEATED LENS LEFT
White/Amber Pos. | High-Low Beam | Heat Function || SKU: 270717
Couldn't load pickup availability
PRODUCT DESCRIPTION
on for extreme weather. HI-LO is a snow plow driving light with a built-in heated lens – designed for maximum visibility and developed for the most demanding environments.
Modern, slim design, in combination with high technology, make HI-LO the perfect choice for maximum visibility regardless of weather and road conditions. The feature of the heated lens is automatic, starts at 5 °C, and keeps snow and ice away from the lens – without any handling by the driver.
The light comes in left and right models. Delivering several smart functions, including a fantastic high beam and low beam, an indicator, and an appealing dual-position light in amber and white that adds another dimension to the overall impression. The indicator function is also visible behind the lamp, making it easier for the driver to see when the function is in use. Perfect for heavier vehicles like plow trucks, tractors, loaders, and other equipment machinery. Especially useful on plow trucks where the plow blade usually covers the standard main headlight.

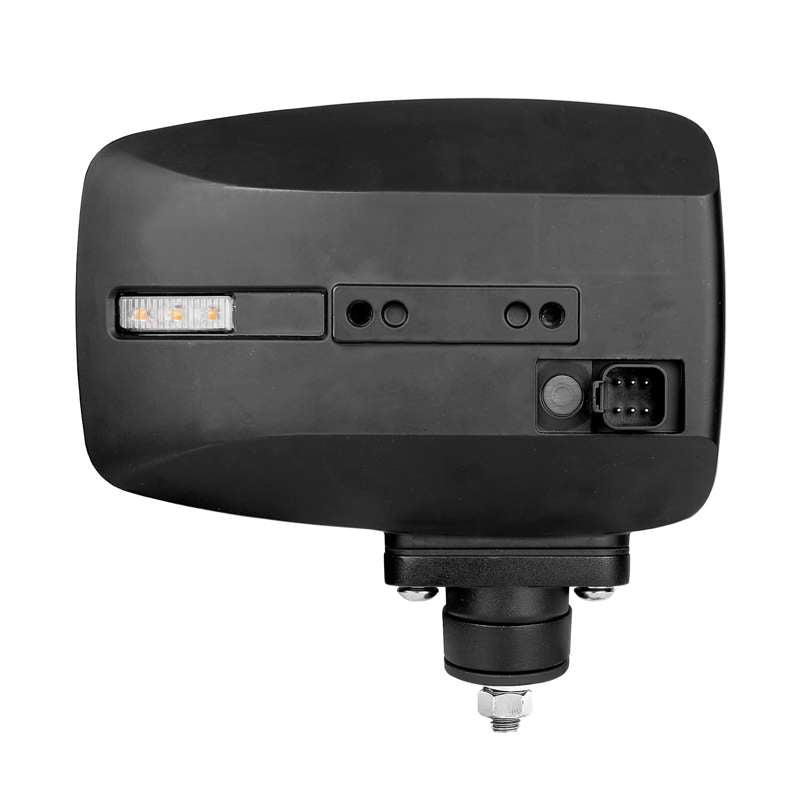

The included bracket can be mounted in the back or at the bottom of the lamp, creating more mounting possibilities and facilitating the installation. The DT connector is also built into the housing, making it even easier to perform the installation. The lens is UV-protecting and made of tempered glass. The lamp is fully E-approved, and the high beam reference number is 17,5. Standing behind our market-leading three-year function warranty.
– AUTOMATIC HEATED LENS

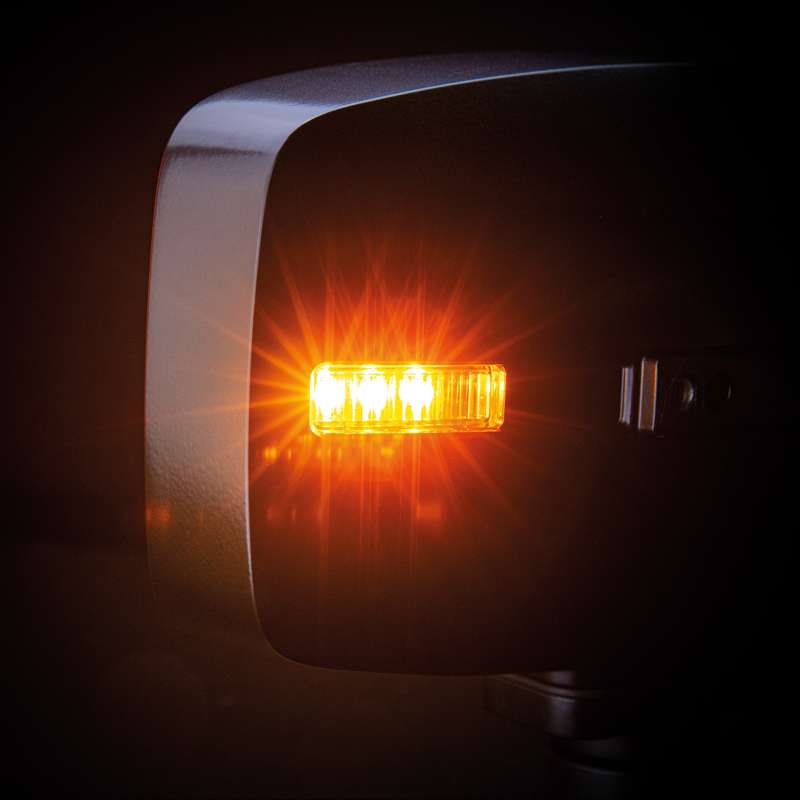

– INDICATOR IN THE FRONT AND BACK
– SEVERAL SMART FUNCTIONS
– LEFT AND RIGHT MODEL
PRODUCT SPECIFICATIONS
- Unit = pcs
- Voltage = 10-32V DC
- Theoretical effect = Low Beam 30 / High Beam 60W
- Consumption = 85,0W
- Functions = High beam, low beam, white position light, amber position light, indicator
- Consumption specific function = High beam: 41W, Low beam: 24W, White position light: 2W, Amber position light: 4W, Front direction indicator: 6W, Side direction indicator: 6W
- Theoretical lumen = 5000lm
- Actual lumen = Low beam: 876 / High-beam: 2273lm

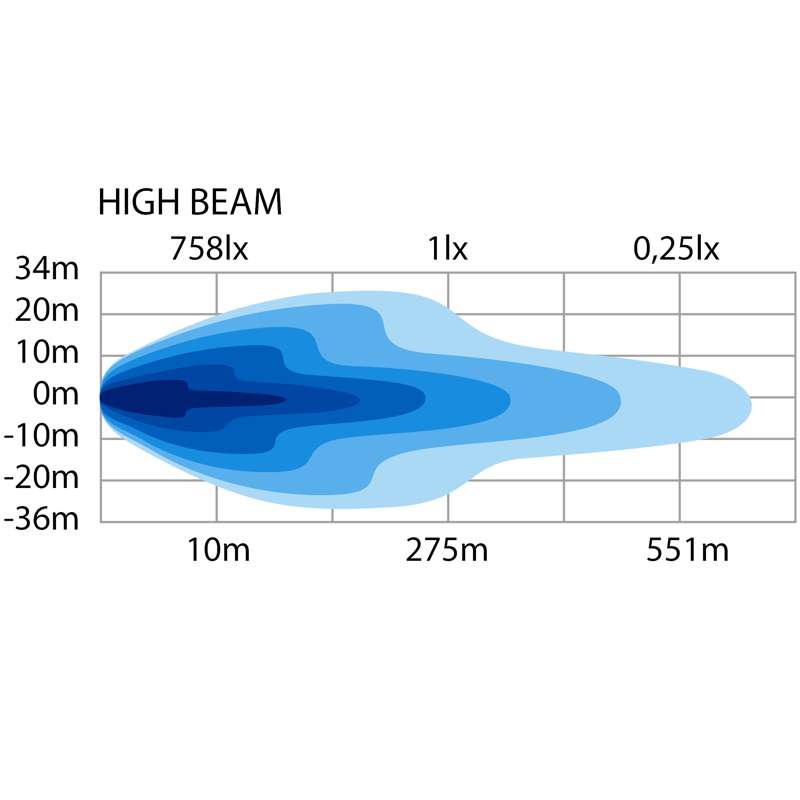

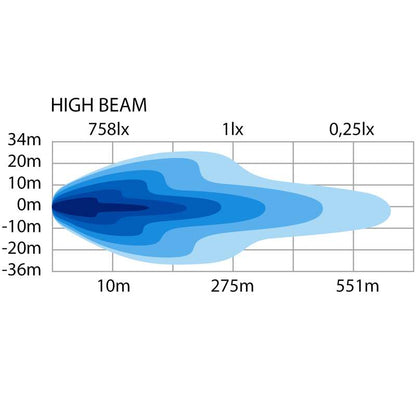

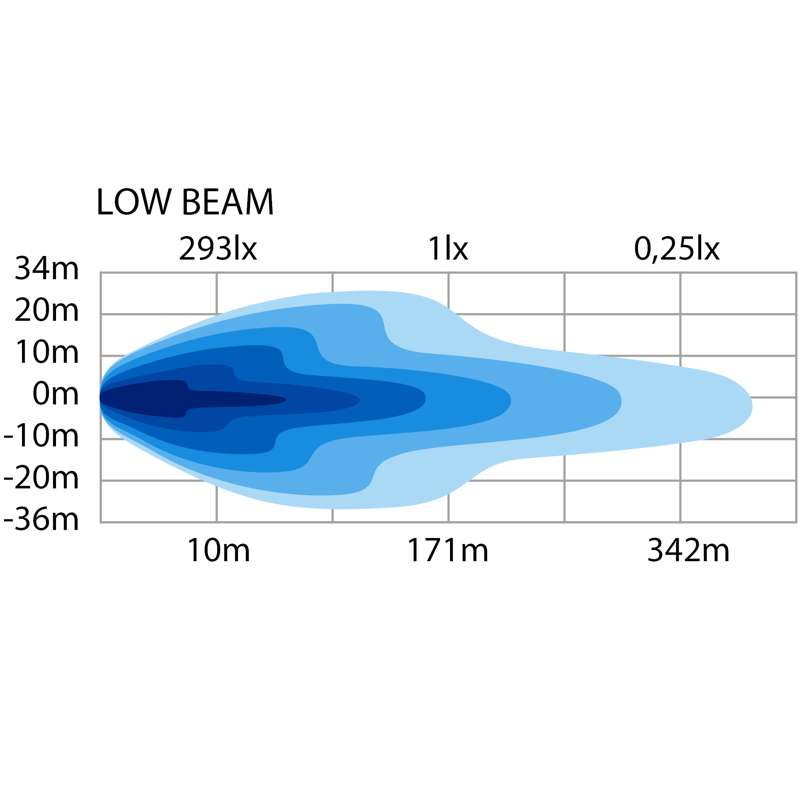

- 1 lux @ = Low beam: 171m / High beam: 275m
- Color temperature = 6000K
- Beam pattern = Optimized beam
- Connection = DT-6PIN (Built-in)
- Color housing = Black
- Color lens = Clear
- Color LED´s = White/amber
- Material bracket = Die Cast Aluminium
- Material housing/chassi = Aluminium
- Material lens = Tempered glass
- Length = 220mm
- Depth = 80,5mm
- Height = 152mm
- Height including bracket = 197,2mm
- Weight = 1,98kg
- IP-class = IP67,68,69K
- Operating temperature = -30 - +65°C
- E-approved = Yes
- According to regulation = ECE R148(R7),R149(R112)
- Reference number = 17,5
- EMC = ECE R10
INSTALLATION SPECIFICATIONS
- Black cable = - (Negative)
- Red cable = + (High-beam)
- White cable = + Amber position light(Positive)
- Yellow cable = + (Low-beam)
- Green cable = + Indicator
- Grey cable = + White position light(Positive)
- Included in package = Screws, washers, bolts
