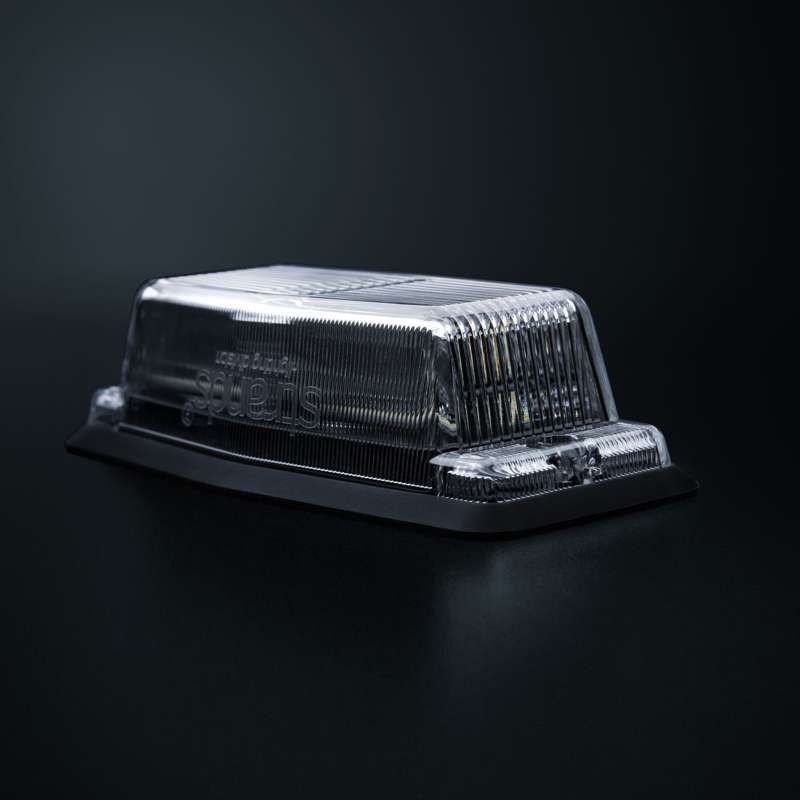

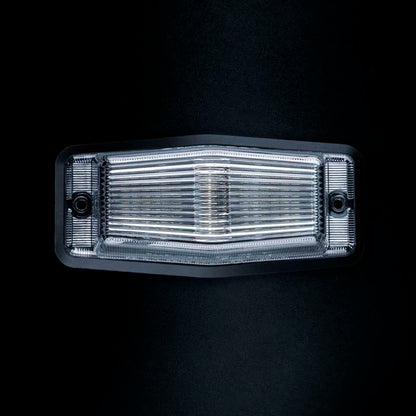

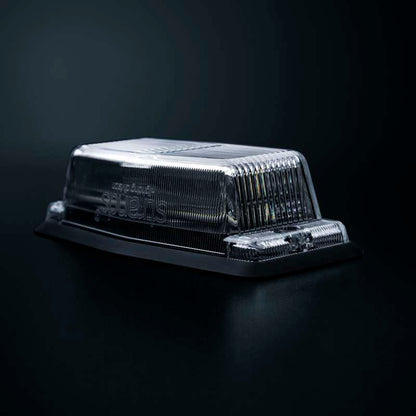

You want it old-school, we make it pro. White and amber position light, built-in warning light with 21 patterns, clear lens, and lasting quality make this light a perfect companion for years to come. Strands’ 3-year function warranty guarantees the quality. Made from corrosion-free polycarbonate and IP-rated IP69K, you can be sure this light will tackle heavy rain, dirt, and extreme temperatures with flying colors. So you don’t need to miss out on either old-school style or cutting-edge quality. The IZE LED Silver Arrow is E-approved for front position light and side marker (R148 (R7, R91)), and EMC-certified ECE R10. It is sturdy and compact, measuring 125x52x32 mm and 109 mm CC, with a 1000 mm cable.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 10W
Consumption = 8,5W

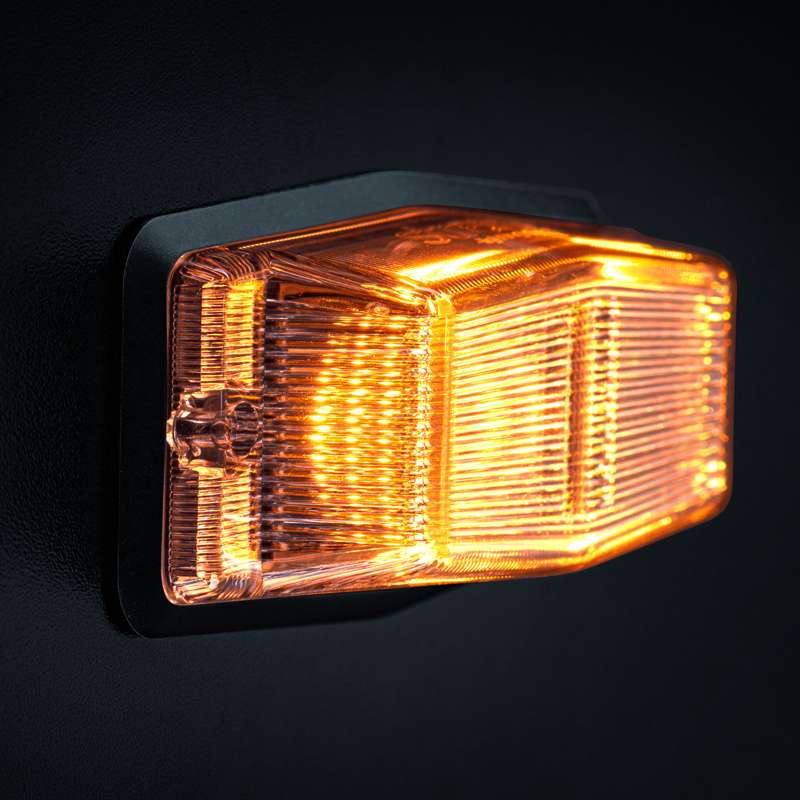

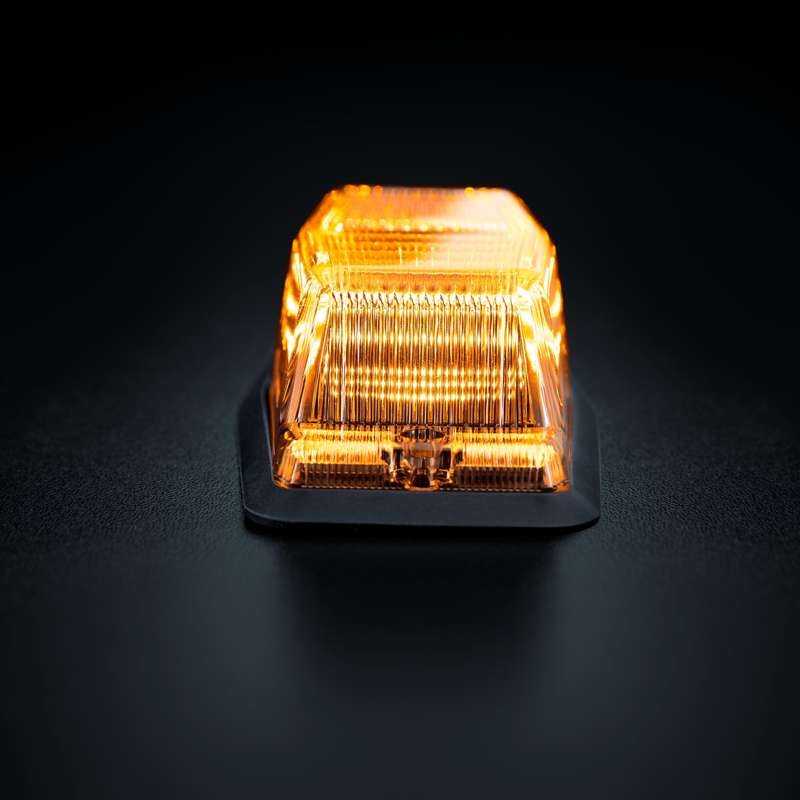

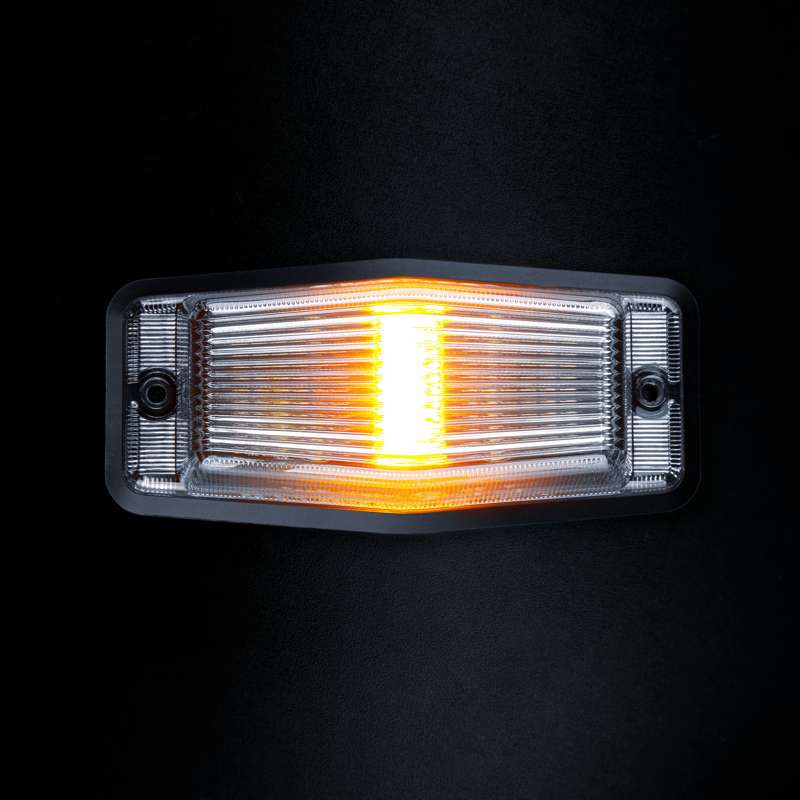

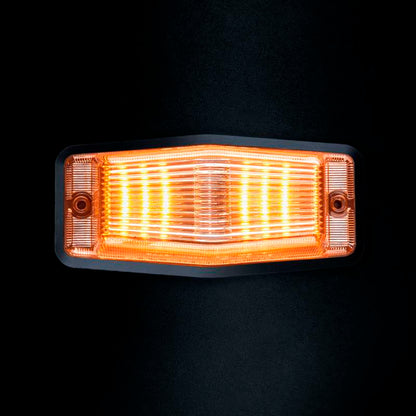

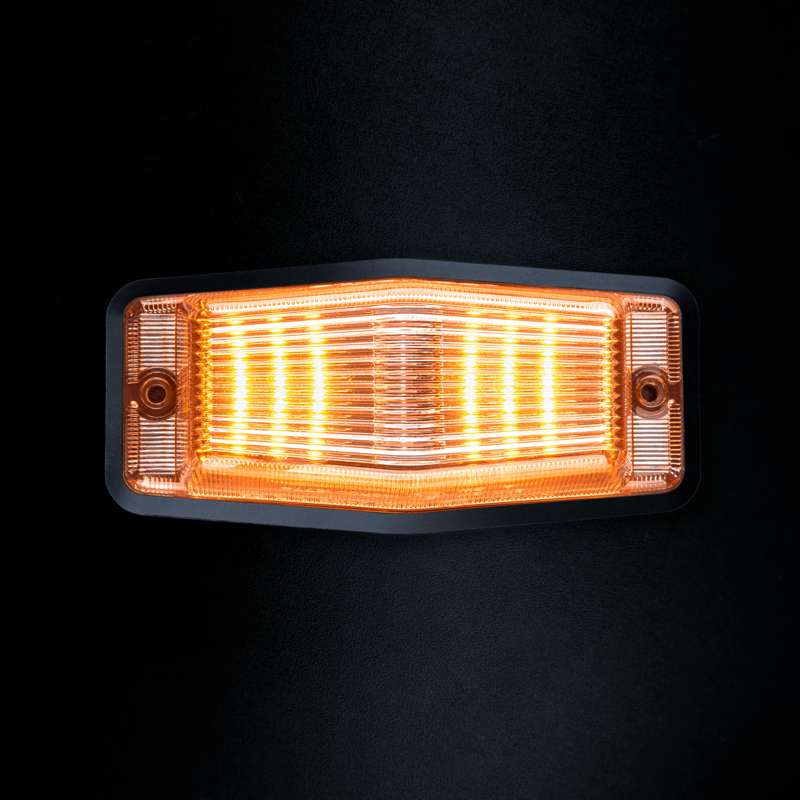

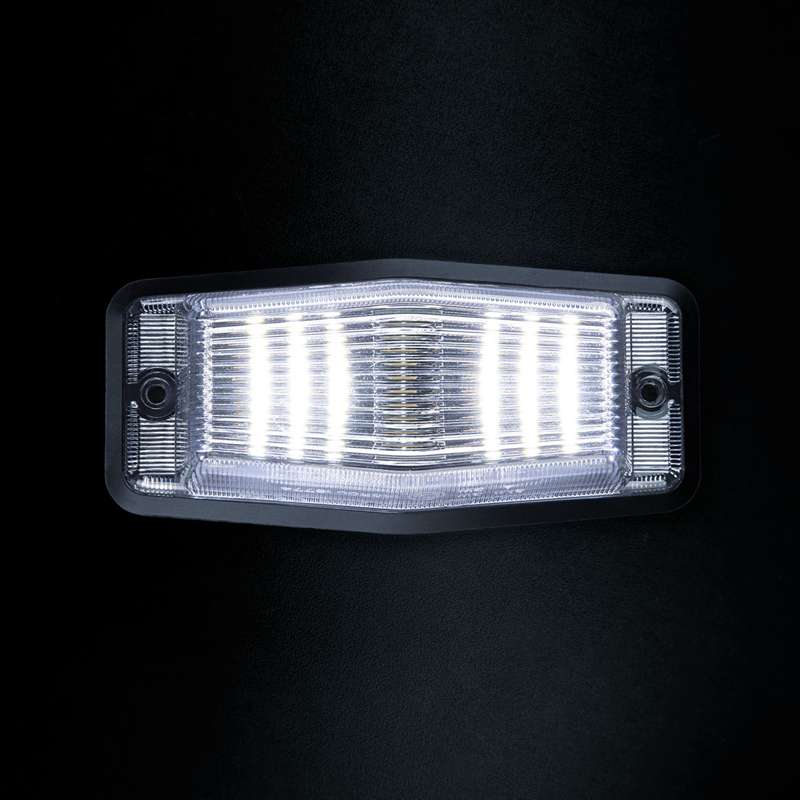

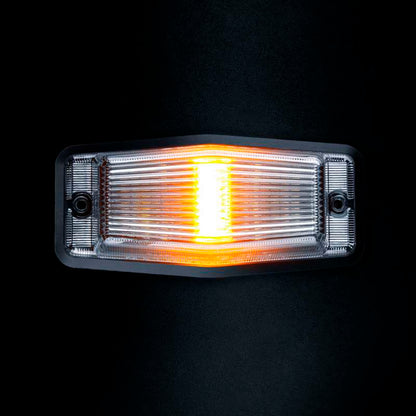

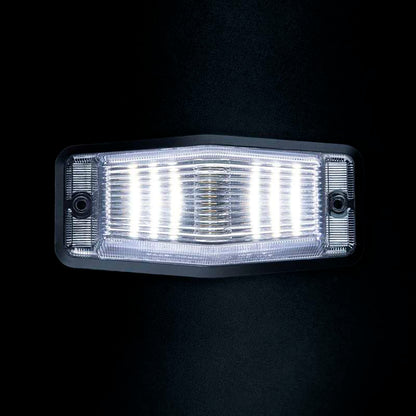

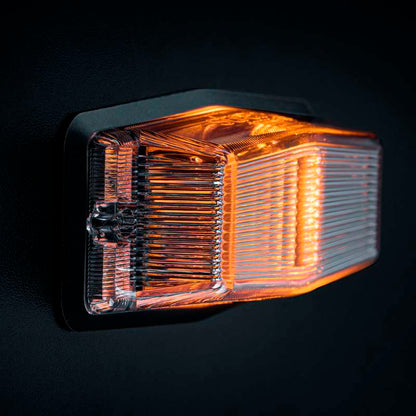

Functions = Front position white, Amber position light, Warning light middle part
Consumption specific function = White position light: 3W, Amber position light: 3W, Warning light: 2,5W
Patterns = 21
Connection = Cable
Cable length = 1000mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material housing/chassi = Polycarbonate
Material lens = Polycarbonate

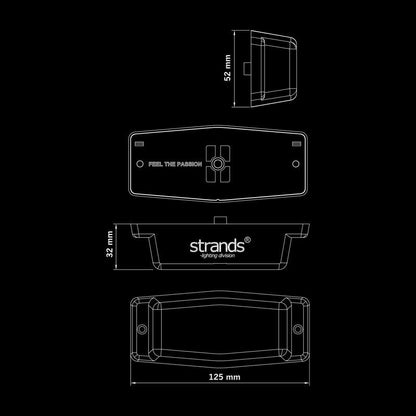

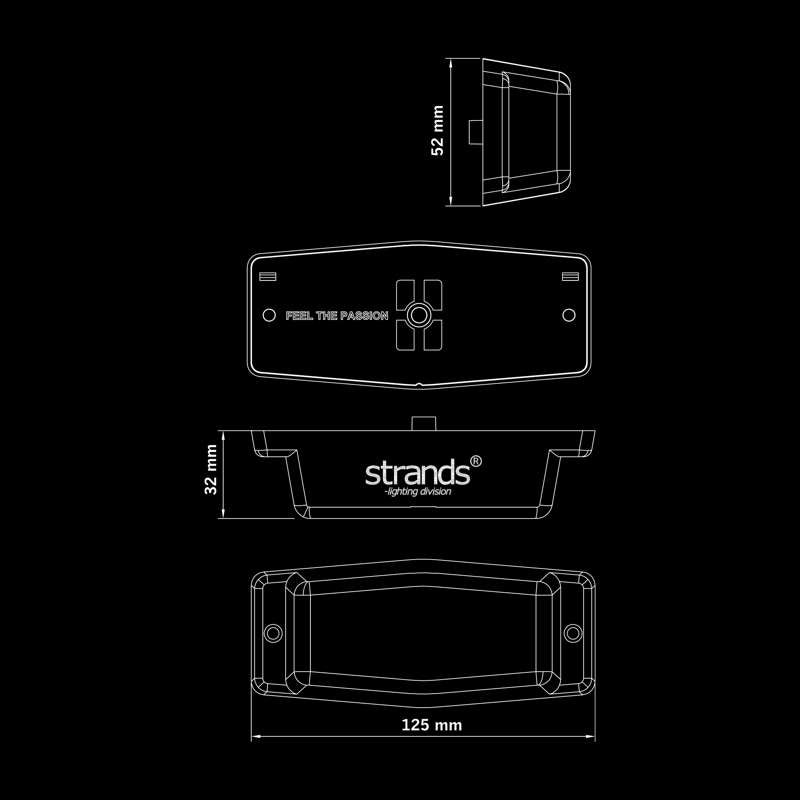

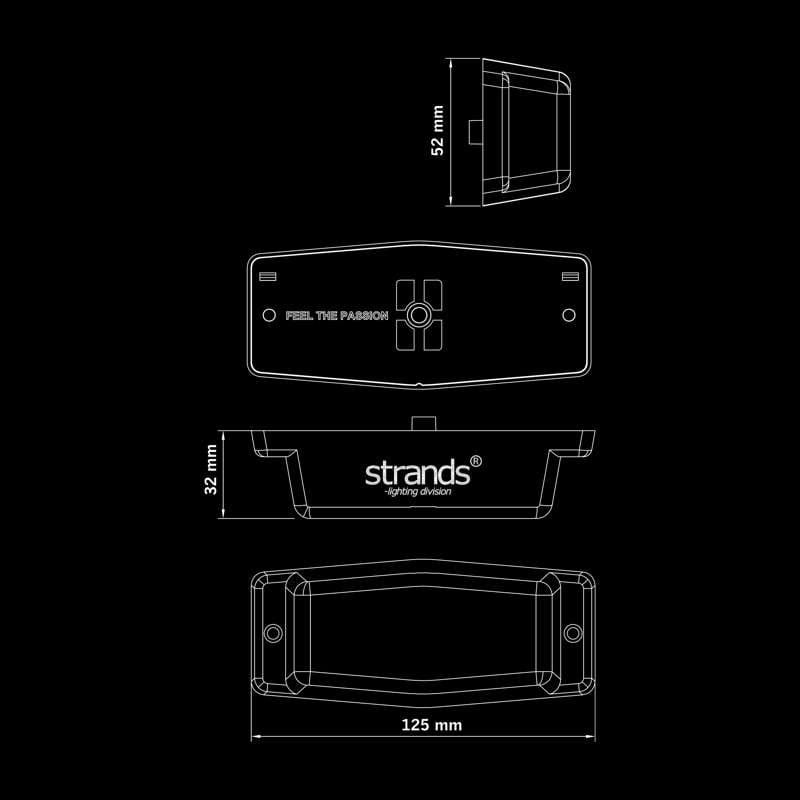

Length = 125mm
Depth = 32mm
Height = 52mm
CC = 109mm
Weight = 0,096kg
IP-class = IP69K
Operating temperature = -30 - +61°C
E-approved = Yes
ADR-approved = No
According to regulation = ECE R148 (R7,R91)
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (Positive for warning light middle part only)
White cable = + White Position light(Positive)
Yellow cable = Pattern selection,Synchronization
Grey cable = + Amber position light(Positive)

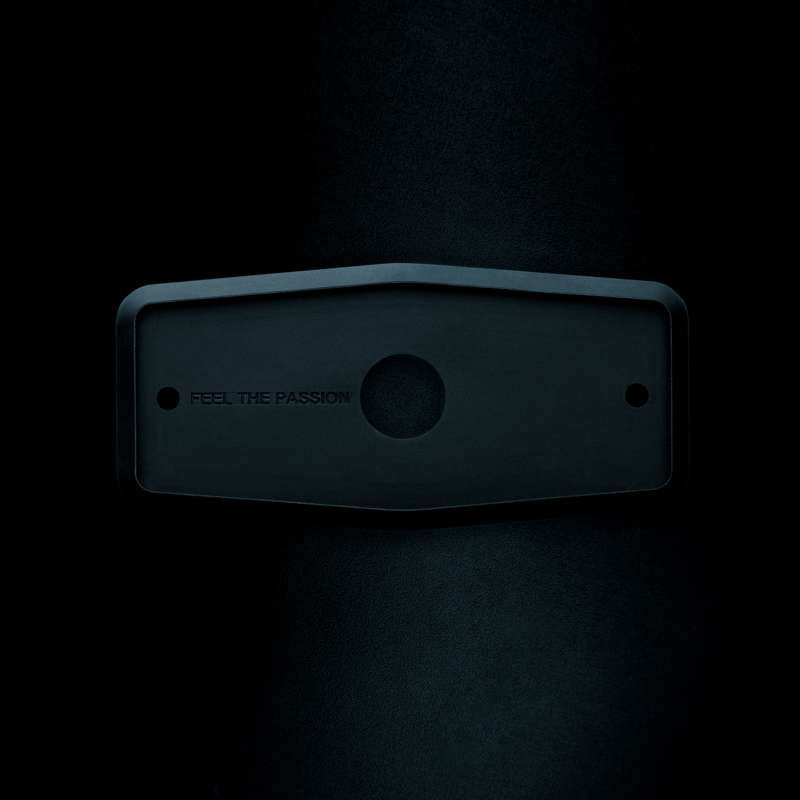

Included in package = Silicon pad, screws , washers , bolts
