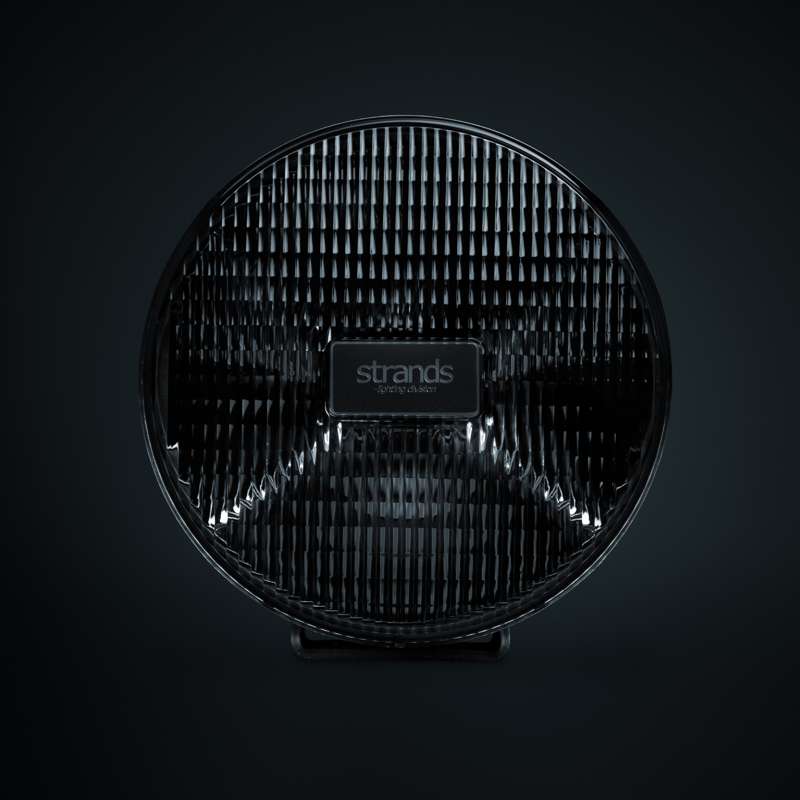

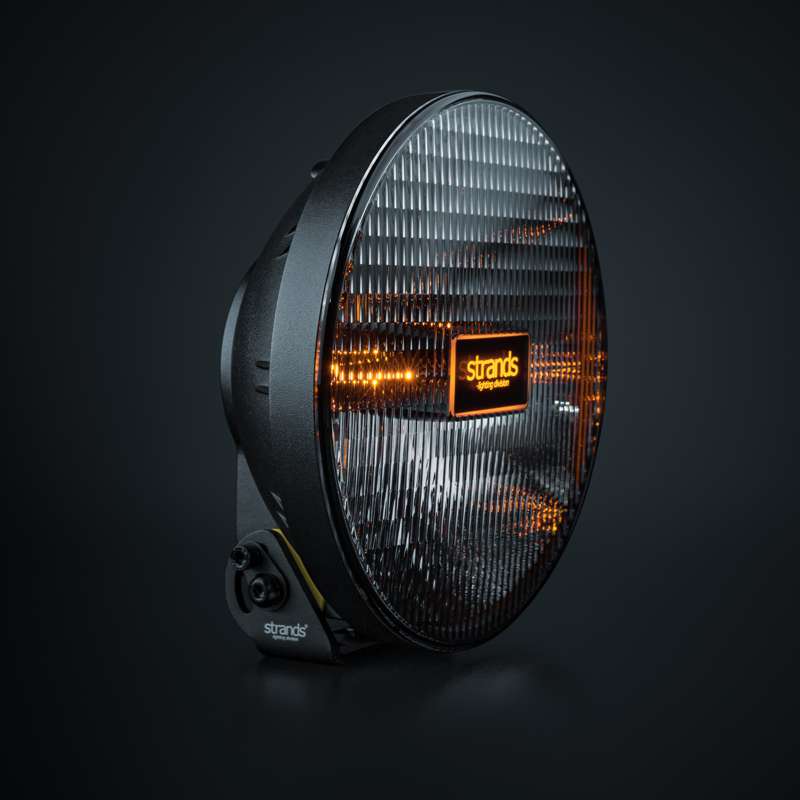

Modern power and old-school style. The IZE LED OG provides top-notch illumination with 12000 actual lumens and a 500-meter range in Xperience mode. The E-mode is E-approved R148/149 with reference number 20. It’s suitable for European roads and poor weather conditions, as it lessens glare from snow and rain. The extended beam pattern has a color temperature of 4500 K. A dual-color position light in white and amber creates a stunning old-school glow, just like in old times. The position light diodes are invisible when not used, so that you can enjoy the old-school design and expression of the lens. It’s inspired by the classic glass lenses but made from durable polycarbonate for modern quality. Thanks to the IP rating of IP68/69K, it can withstand both dirt and water. It’s covered by Strands’ 3-year warranty to guarantee a long lifespan.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 12-36V DC
Theoretical effect = 180W
Functions = High beam, Amber and white position light
Consumption specific function = Xperience mode: 172W / E-mode: 30W / White pos. light: 1W / Amber pos. light: 1W
Theoretical lumen = 13500lm
Actual lumen = E-mode: 3220lm / Xperience mode: 12000lm

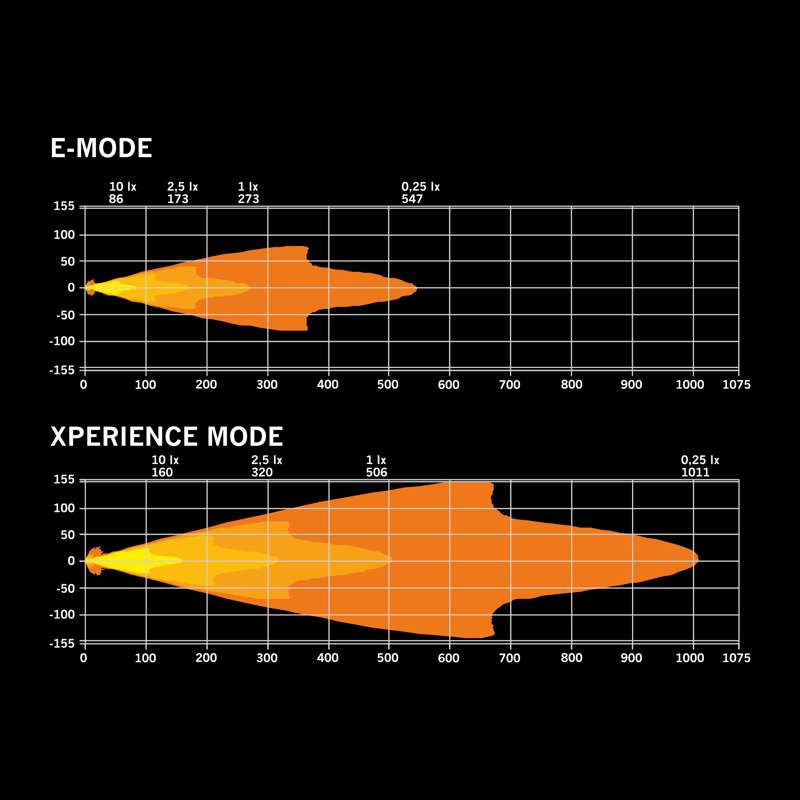

1 lux @ = E-mode: 273m / Xperience mode: 506m
Color temperature = 4500K
Beam pattern = Extended beam
Beam angle = 33,2°
Connection = Cable
Cable length = 2500mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber

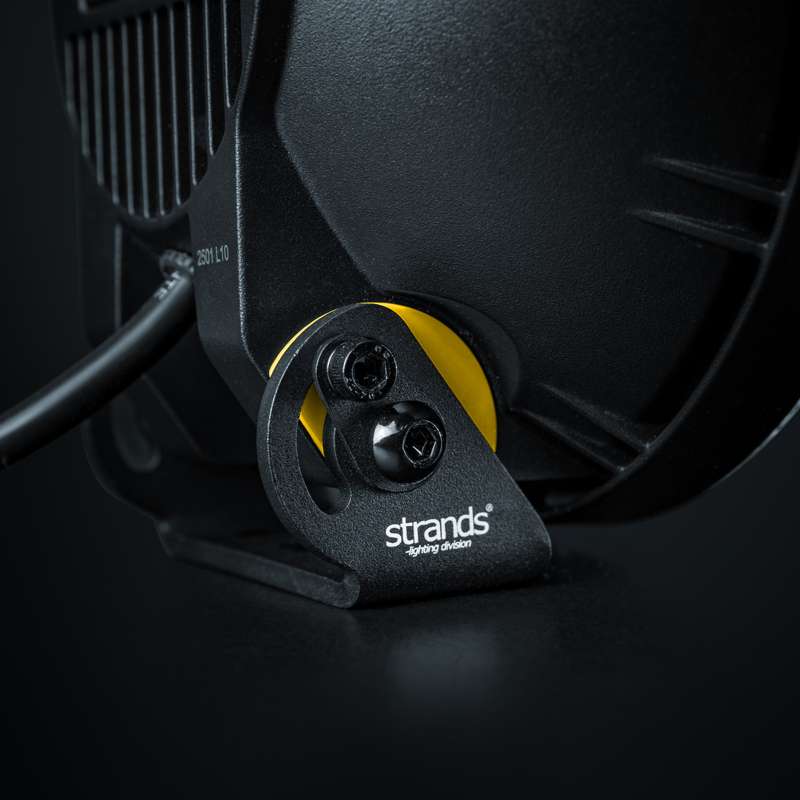

Material bracket = Stainless steel
Material housing/chassi = Aluminium

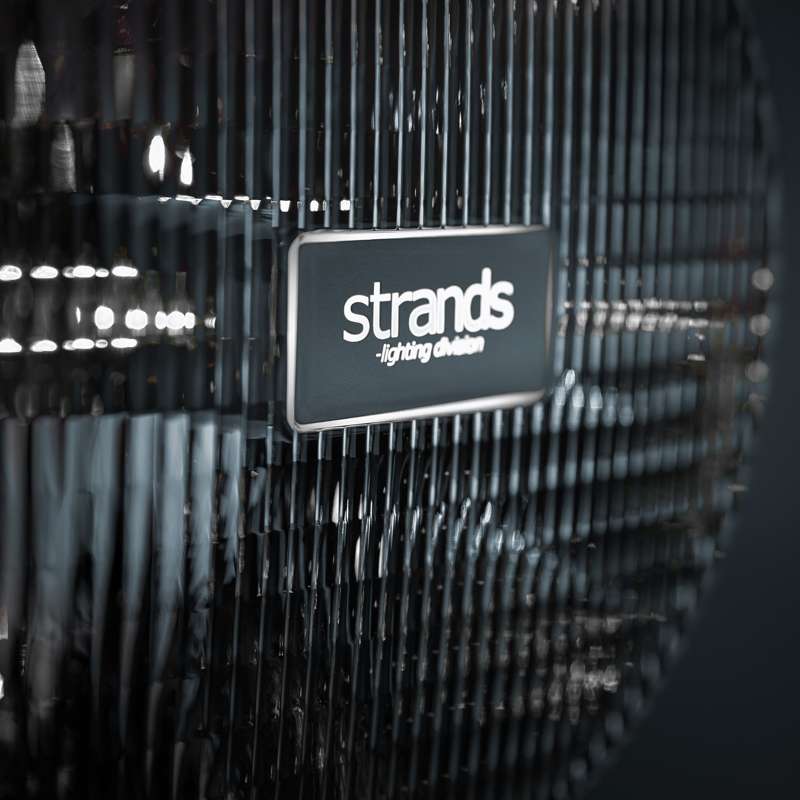

Material lens = Polycarbonate

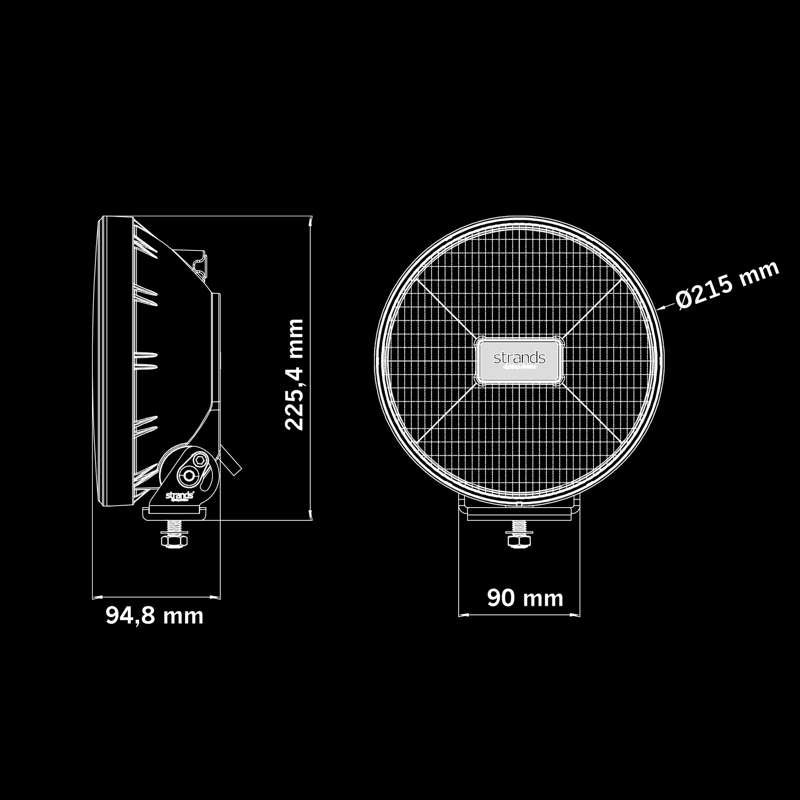

Depth = 94,8mm
Height including bracket = 225,4mm
Diameter = 215mm
Weight = 2,0kg
IP-class = IP68/69K
Operating temperature = -40 - +60°C
E-approved = Yes
ADR-approved = No
According to regulation = ECE R148, R149
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATION
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = White Position light
Yellow cable = Amber Position light
Included in package = Bracket, screws, bolts, nuts, washers, silicon pads
