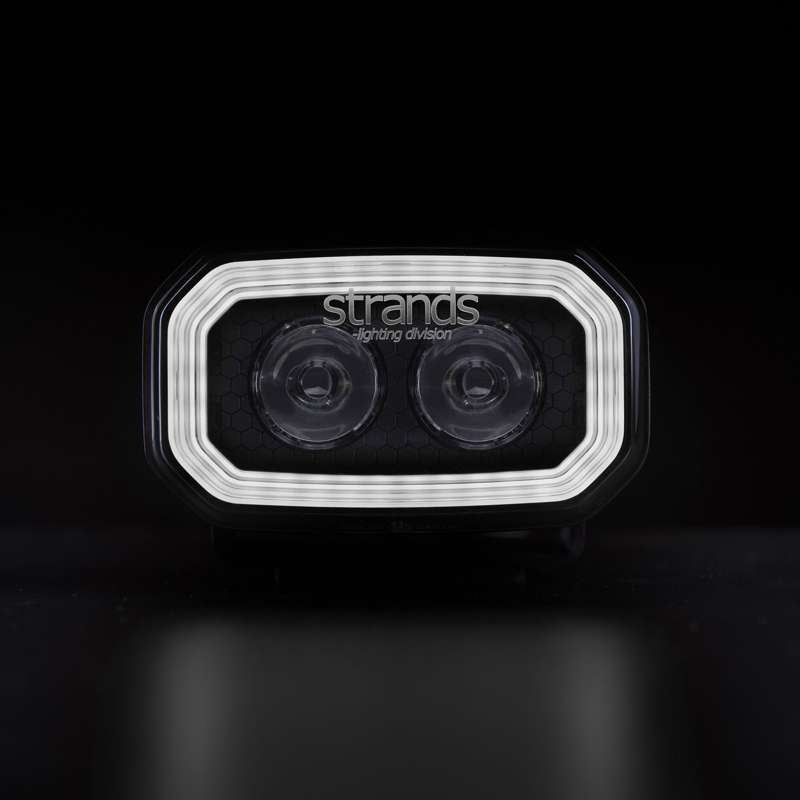

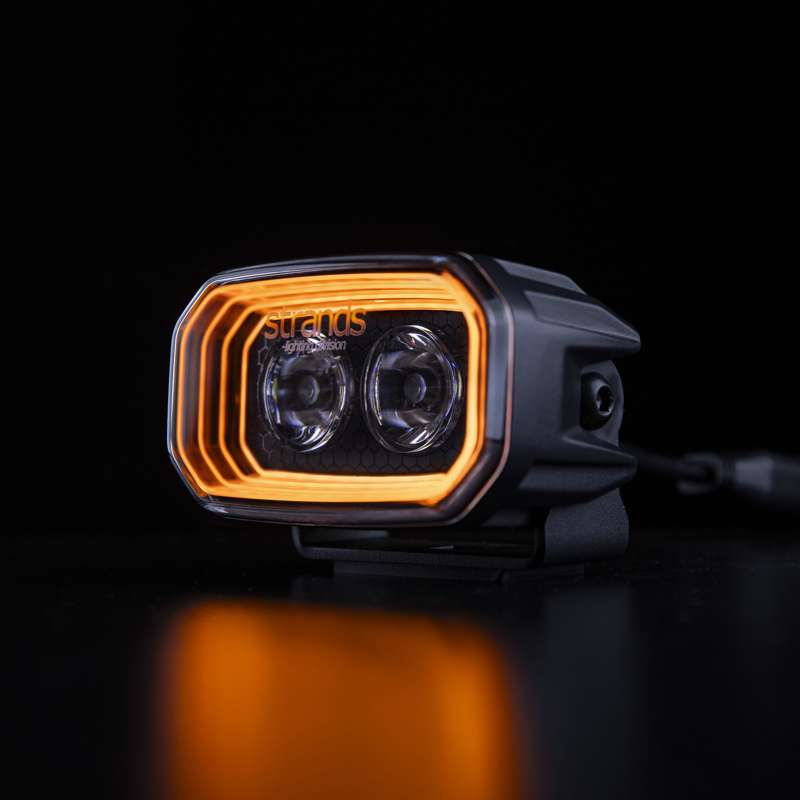

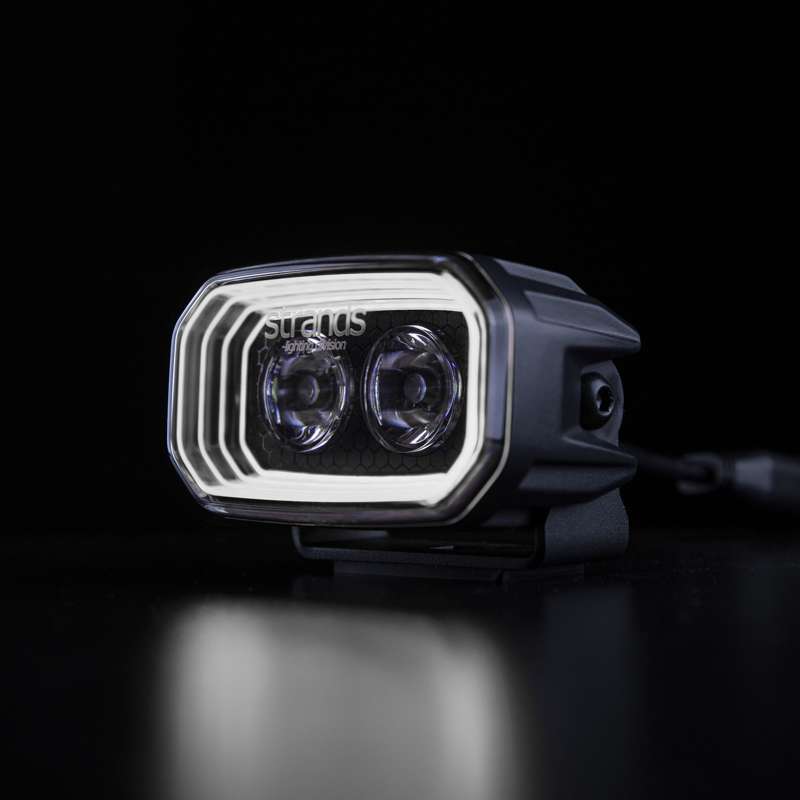

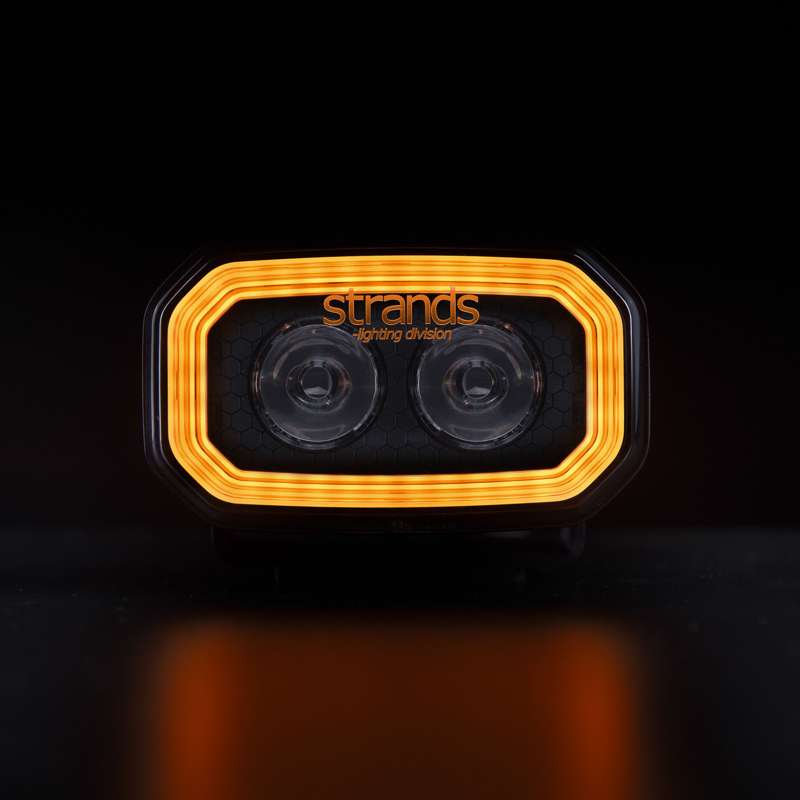

Explore the night with the brightness of the FOR9T 4” light pod. Measuring only 108x70x65 mm, excluding the bracket, this powerful light pod is perfect as a small driving light. Its focused beam produces 5700 K and 2600 actual lumens with a range of 164 m while consuming only 30 W. The white and amber position lights have the FOR9T signature look with dynamic lines, creating a unique and eye-catching style. Get a complete look around your vehicle with the wide range of FOR9T products. No matter what your next adventure is, its durable materials and IP69K IP rating ensure this light pod will be your perfect companion. Thanks to a 150 mm cable with a DT-4 connector, it’s easy to install. It can be used with 10-48 V and fits different types of vehicles.
Unit = pcs
Voltage = 10-48V DC
Theoretical effect = 40W
Consumption = 30,0W
Functions = Driving light, White position light, Amber position light
Theoretical lumen = 4500lm
Actual lumen = 2600lm

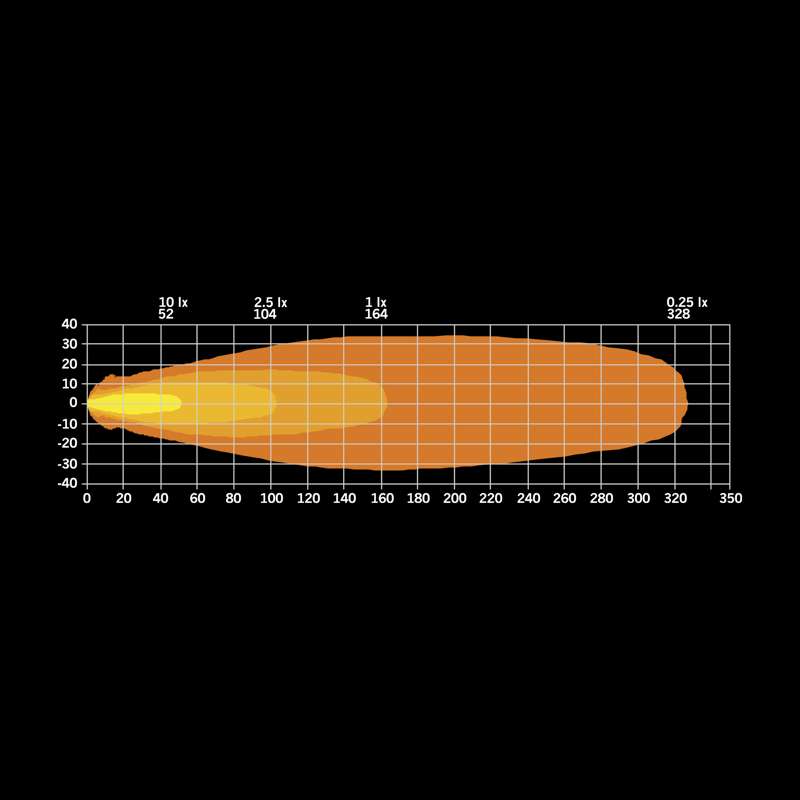

1 lux @ = 164mm
Color temperature = 5700K
Beam pattern = Optimized beam
Connection = Cable
Cable length = 150mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

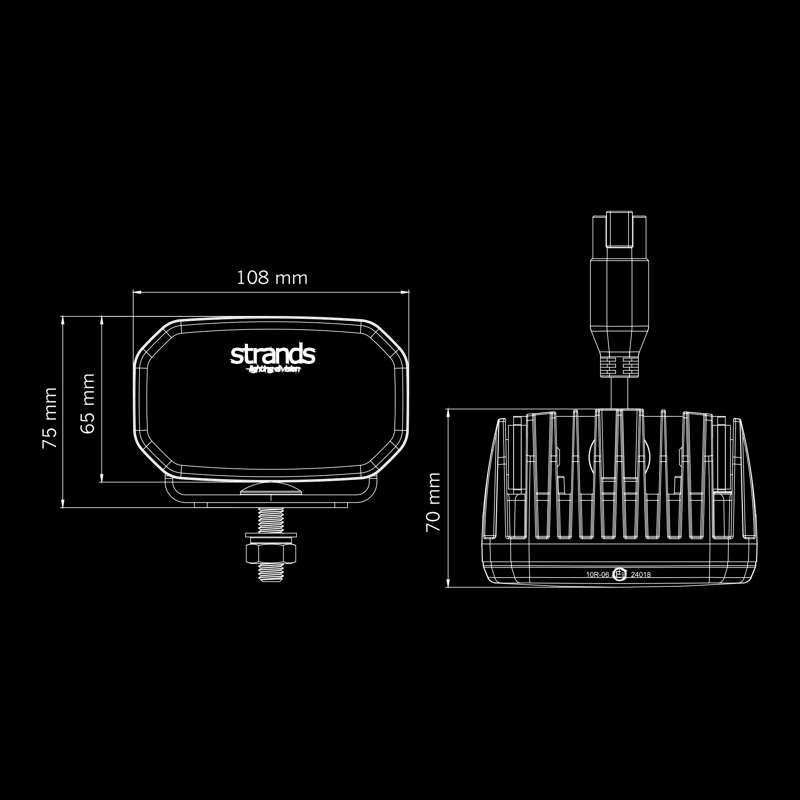

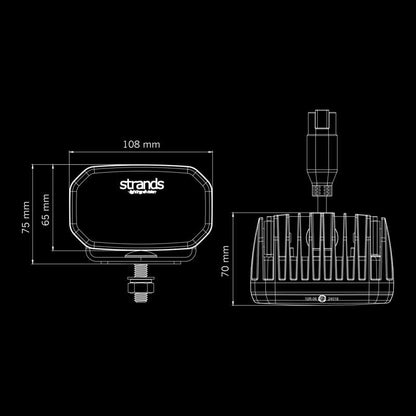

Length = 108mm
Depth = 70mm
Height = 65mm
Height including bracket = 73mm
Weight = 0,55kg
IP-class = IP69K
Operating temperature = -40 - +65°C
E-approved = No
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Bracket, Screws, washers, bolts
