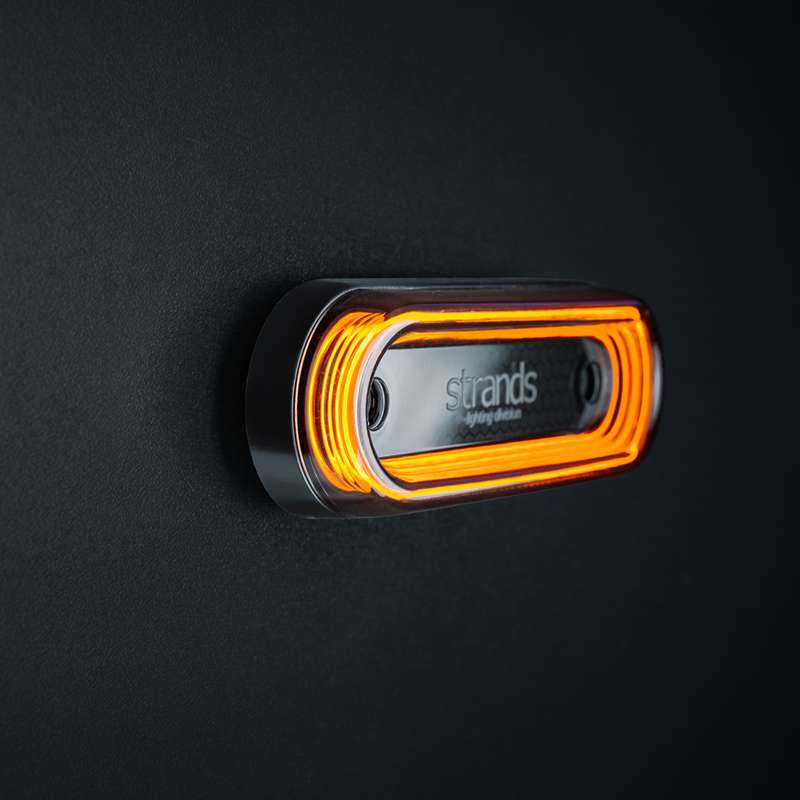

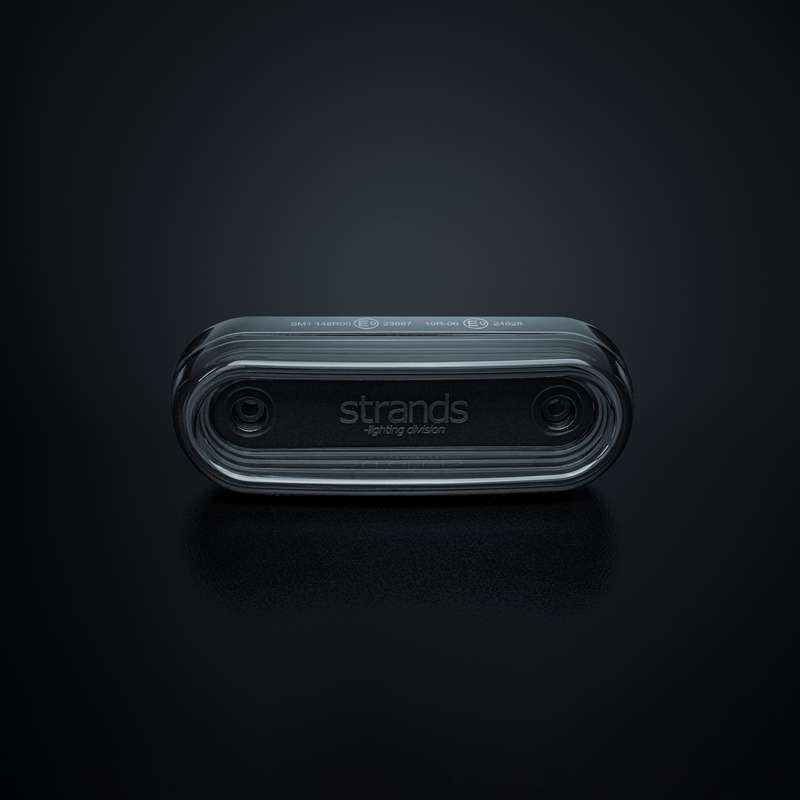

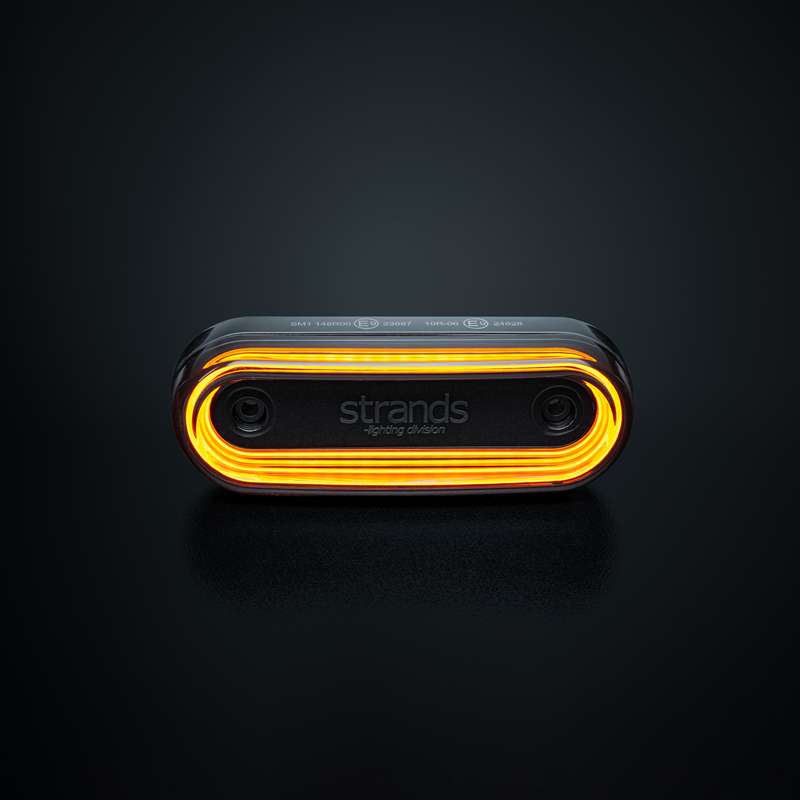

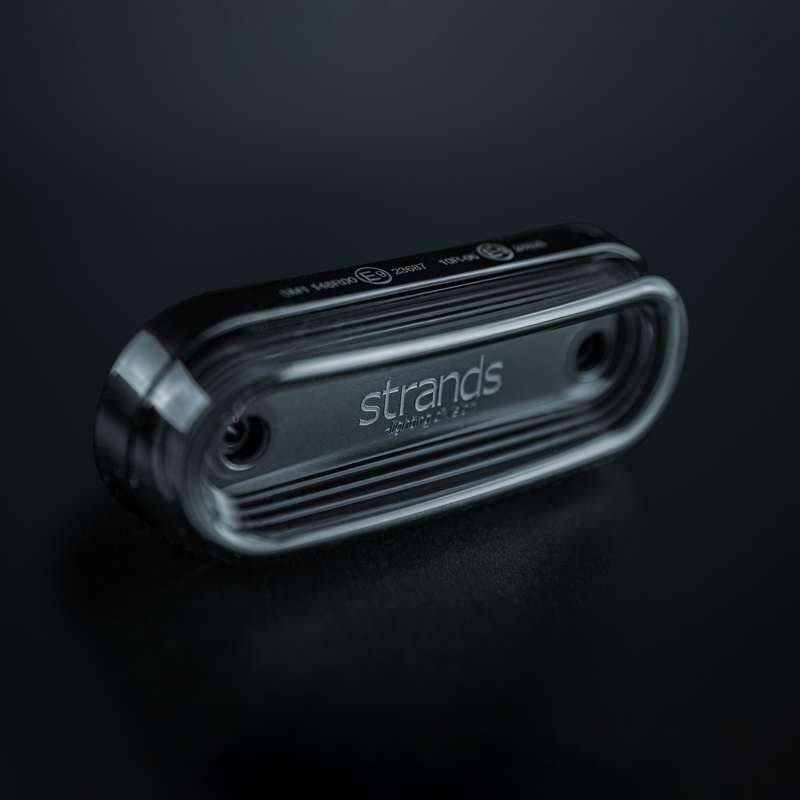

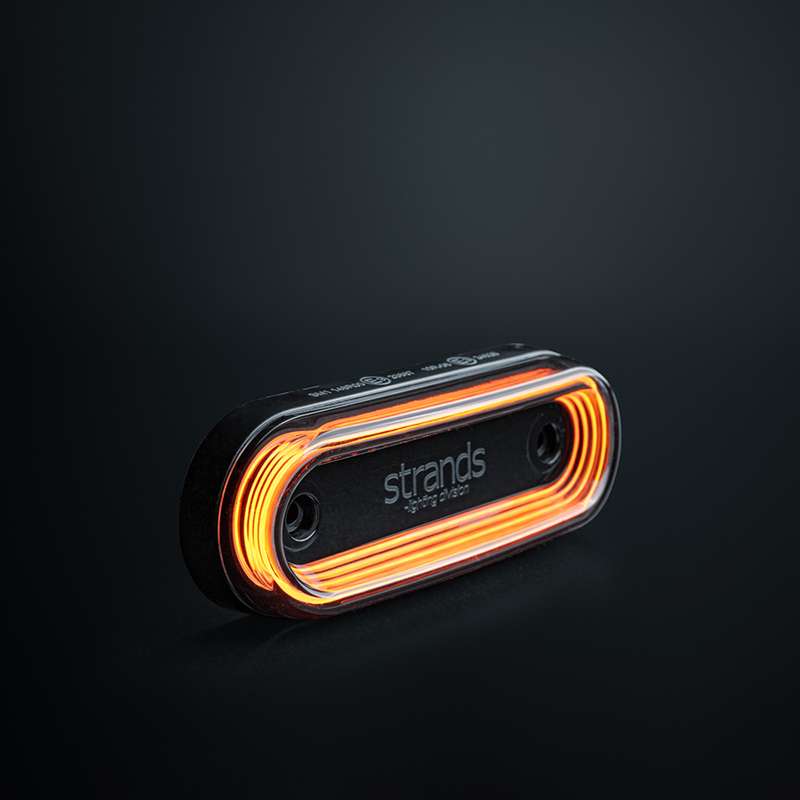

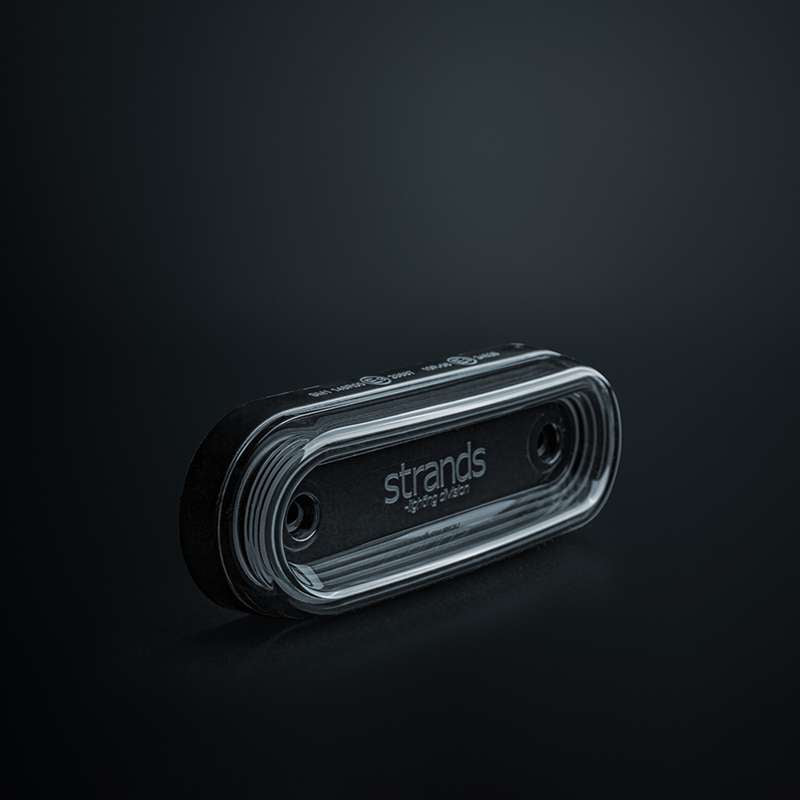

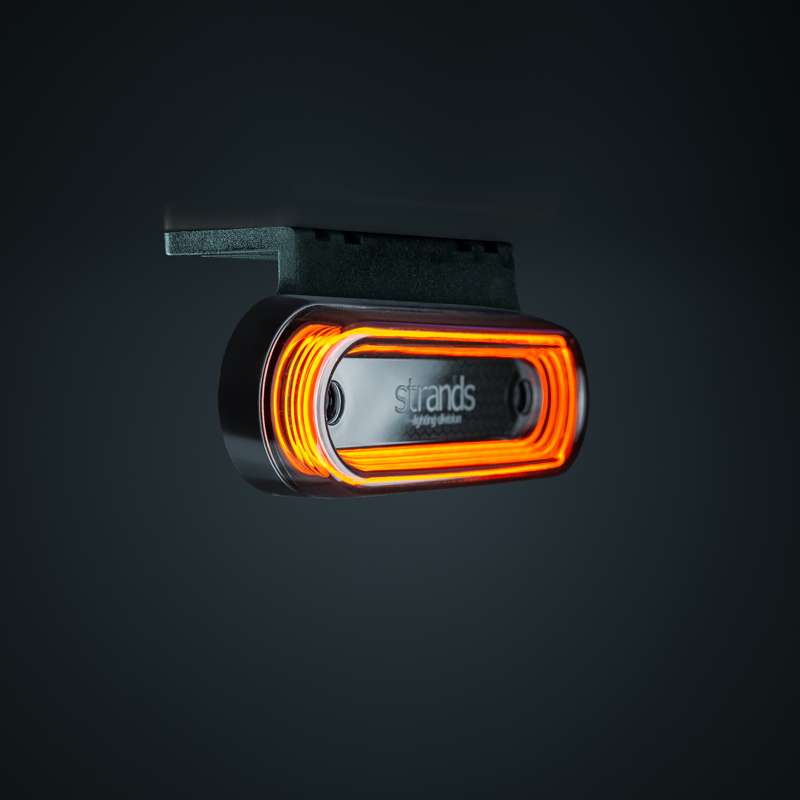

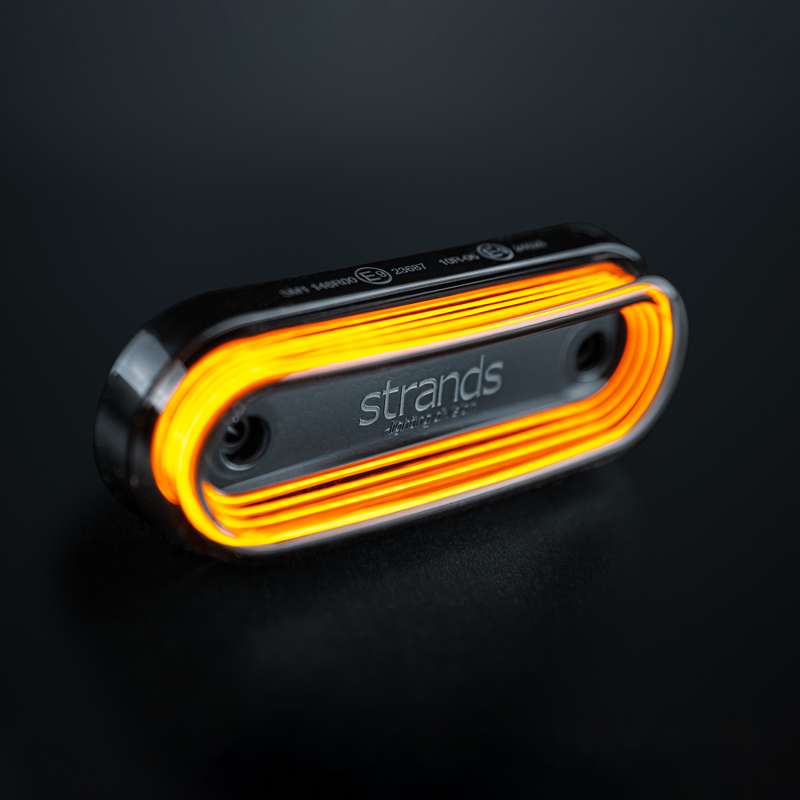

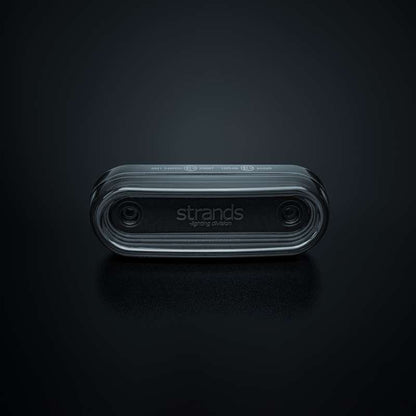

The FOR9T Gravity (Part No. 850456) is a unique new position light and side marker. It has an oval shape and a distinctive style. It’s made from durable materials and guaranteed to be a long-lived, corrosion-free product. It’s IP-rated IP67 to resist dirt, water, and salt, and is covered by Strands’ 3-year function warranty. The Gravity is used with 10-40 V DC, and consumes only 2,5 W. Thanks to the 2,5 m cable, you’ll have plenty of reach during installation. It measures 11,5 cm long, 4 cm deep, with 75 mm CC. Gravity can also be installed using a hanging bracket (Part No. 850450). To suit all drivers, it’s E-approved according to R148. The Gravity is available in white, red, and amber, perfectly matching all lights in the FOR9T range. The FOR9T series combines functionality and technology with an unexpected design, resulting in a unique look that offers a new, captivating appearance.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-40V DC
Theoretical effect = 3,5W
Consumption = 2,5W
Functions = Side marker

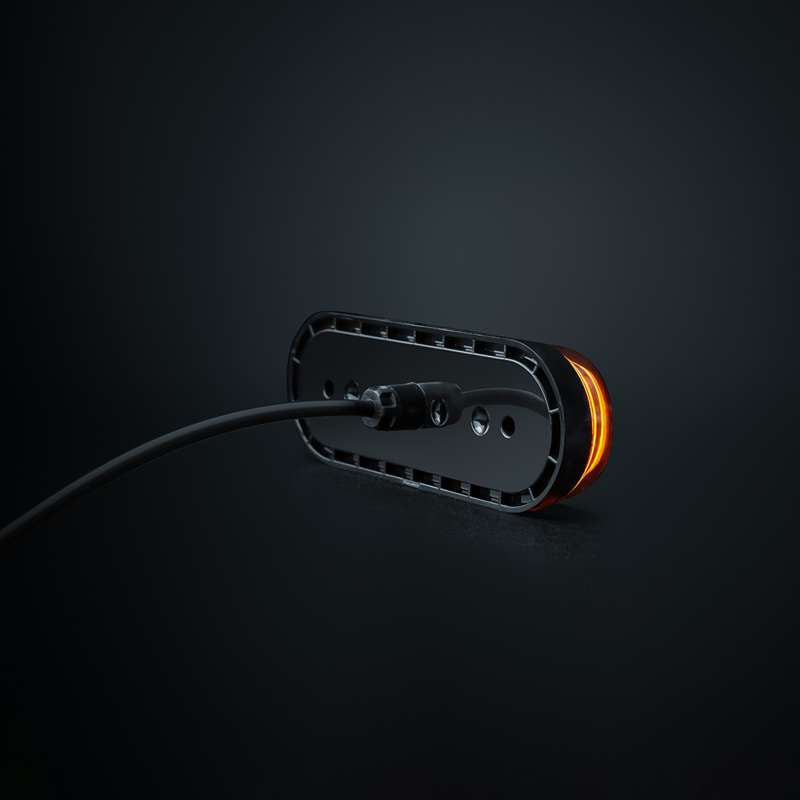

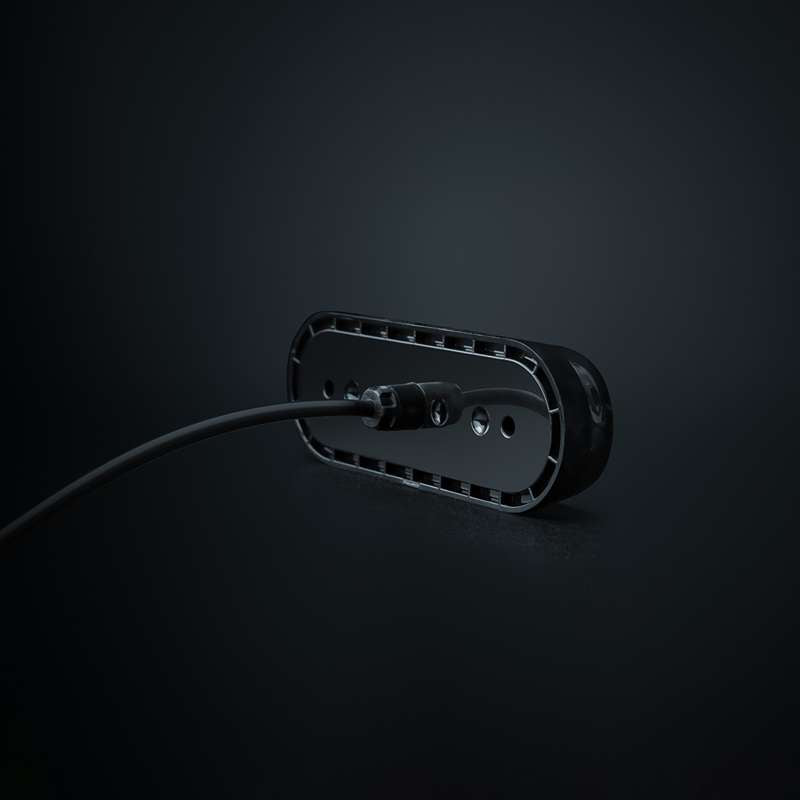

Connection = Cable
Cable length = 2500mm
Color housing = Black
Color lens = Dark
Color LED´s = Amber
Material housing/chassi = ABS
Material lens = PMMA

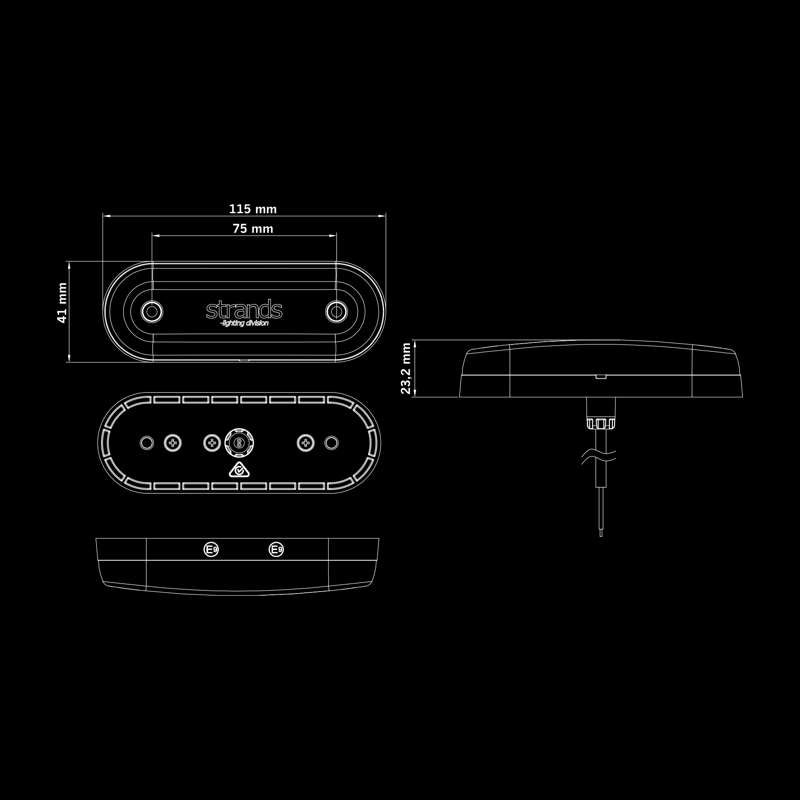

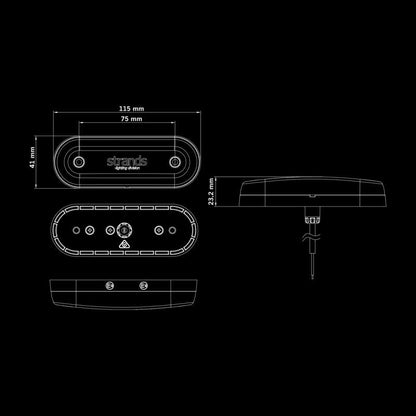

Length = 115mm
Depth = 23,2mm
Height = 41mm
CC = 75mm
Weight = 0,135kg
IP-class = IP67
Operating temperature = -30 - +65°C
E-approved = Yes
According to regulation = ECE R148
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = No polarization
Included in package = Bracket, Screws, Washers, Eva pad
