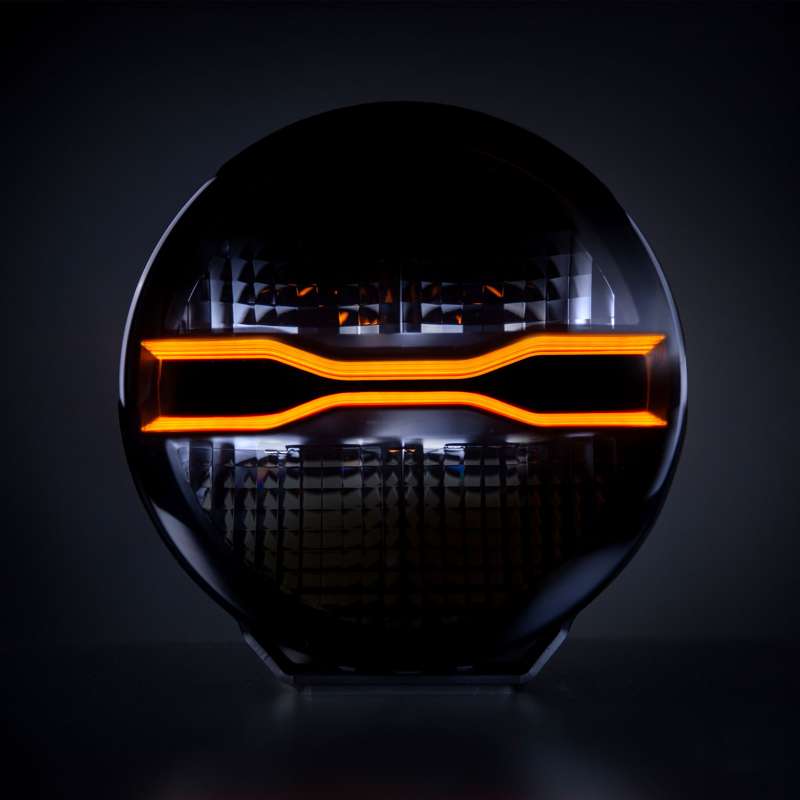

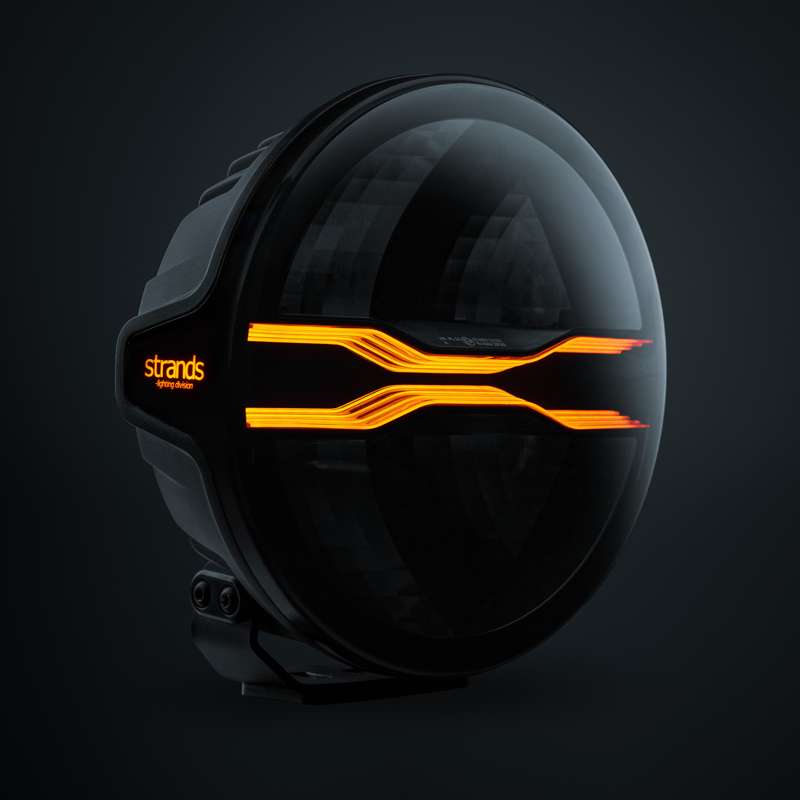

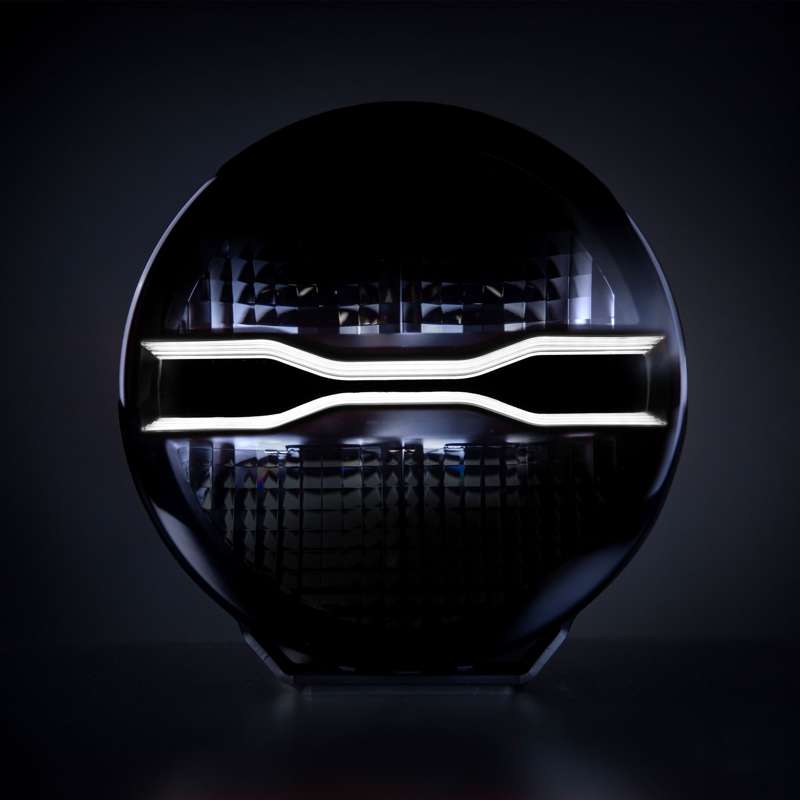

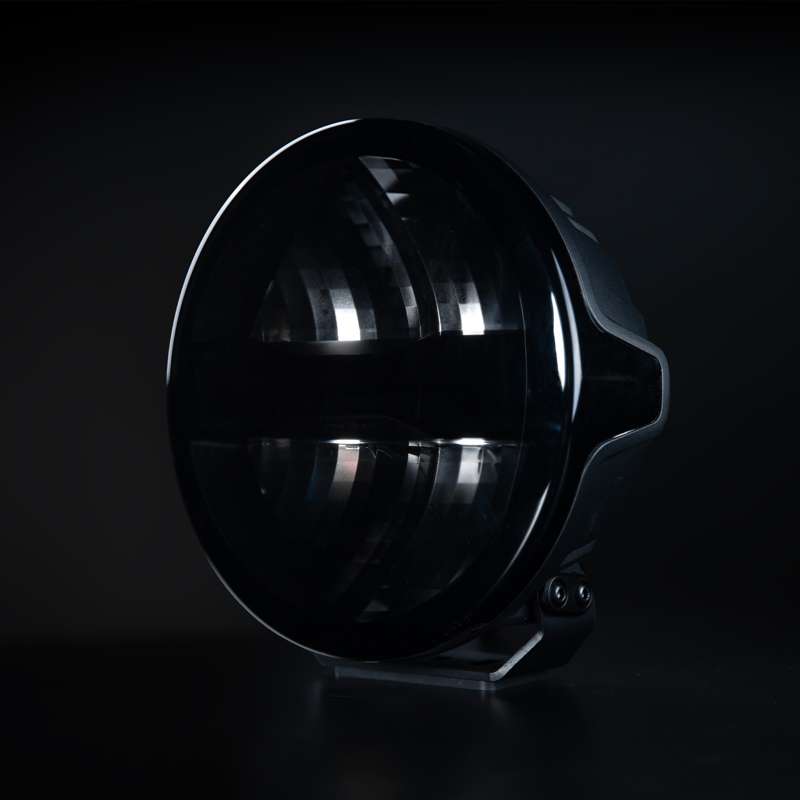

The new E-approved Dragon Drive has been updated with E-mode and Xperience mode, so you can get a perfectly adapted illumination. With Xperience mode, you’ll get an output of 9300 actual lumens and a range of 600 meters. The E-mode is E-approved R148/149 with reference number 20. This is required in many European countries, but also perfect when driving in poor weather conditions. The adapted output lessens glare from rain, snow, or fog. Changing modes ensures optimal illumination anywhere. The FOR9T dual-color position lights in white and amber offer a fresh look and superior performance, with flowing lines making you the center of attention. When not in use, the position lights are dark and invisible against the lens. With high-quality aluminum, polycarbonate, and IP-rating IP67, you can be sure it will be a lasting addition to your vehicle. It’s easy to install with a DT-4 connector and is covered by Strands Lighting Divisions’ market-leading 3-year function warranty.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-48V DC
Theoretical effect = 145W
Consumption = 135,0W
Functions = High-beam, white position light , amber position light, logo light
Consumption specific function = Xperience mode: 135W / E-mode: 30W / White pos: 4,9W / Amber pos: 5W
Theoretical lumen = 14000lm
Actual lumen = E-mode: 3000lm / Xperience mode: 9300lm

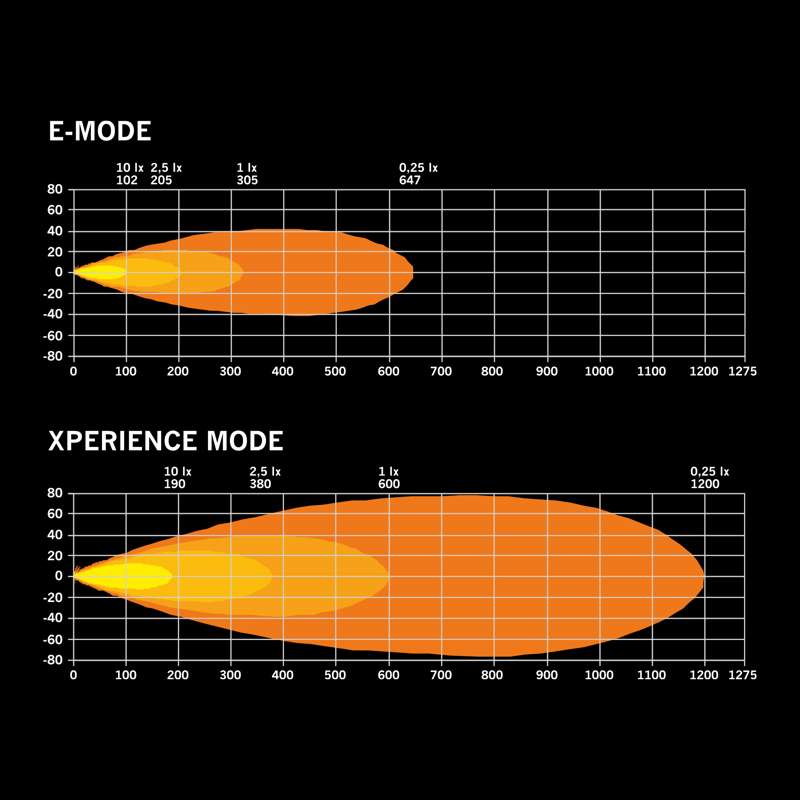

1 lux @ = E-mode: 305m / Xperience mode: 600m
Color temperature = 6500K
Beam pattern = Extended beam
Beam angle = 17,4°

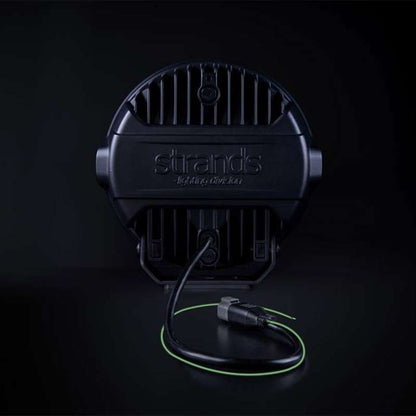

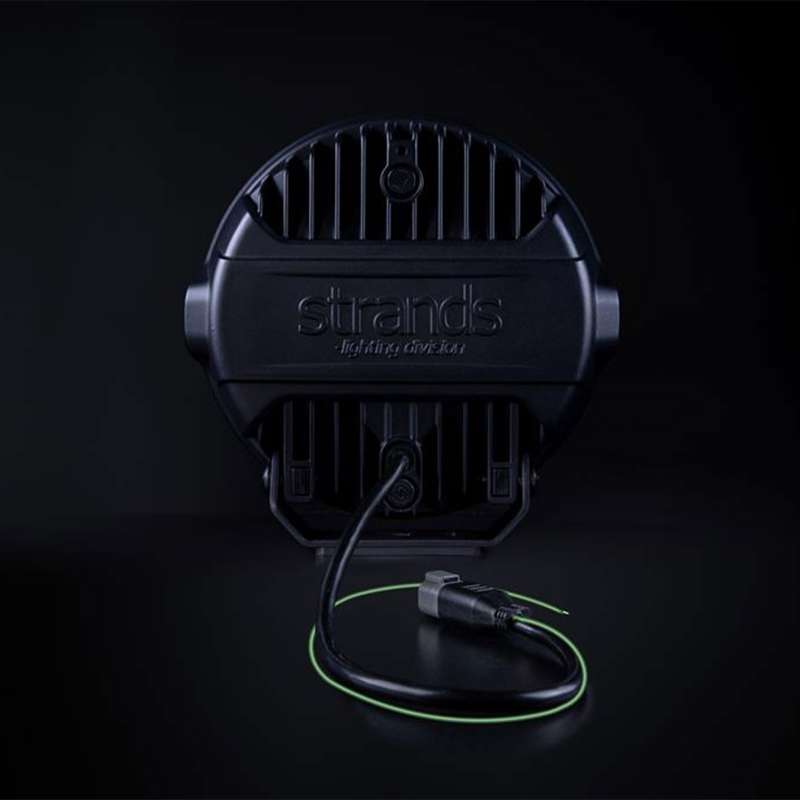

Connection = DT-4PIN
Cable length = 550mm
Color housing = Black
Color lens = Clear/Dark
Color LED´s = White and amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

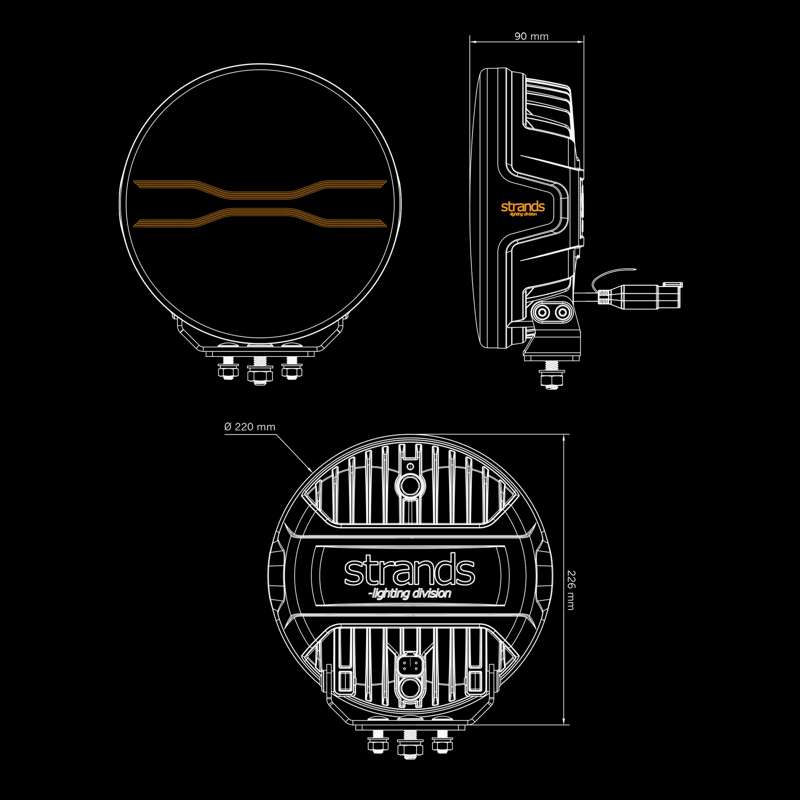

Length = 220mm
Depth = 90mm
Height = 220mm
Height including bracket = 226mm
Diameter = 220mm
Weight = 2,3kg
IP-class = IP67
Operating temperature = -40 - +65°C
E-approved = Yes
According to regulation = ECE R148, R149
Reference number = 20
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Green cable = + E-mode ( Loose cable)
Included in package = Bracket, Screws, washers, bolts
