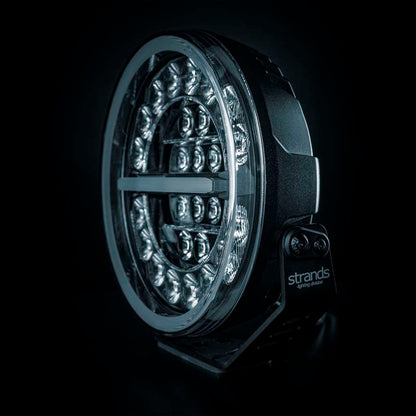

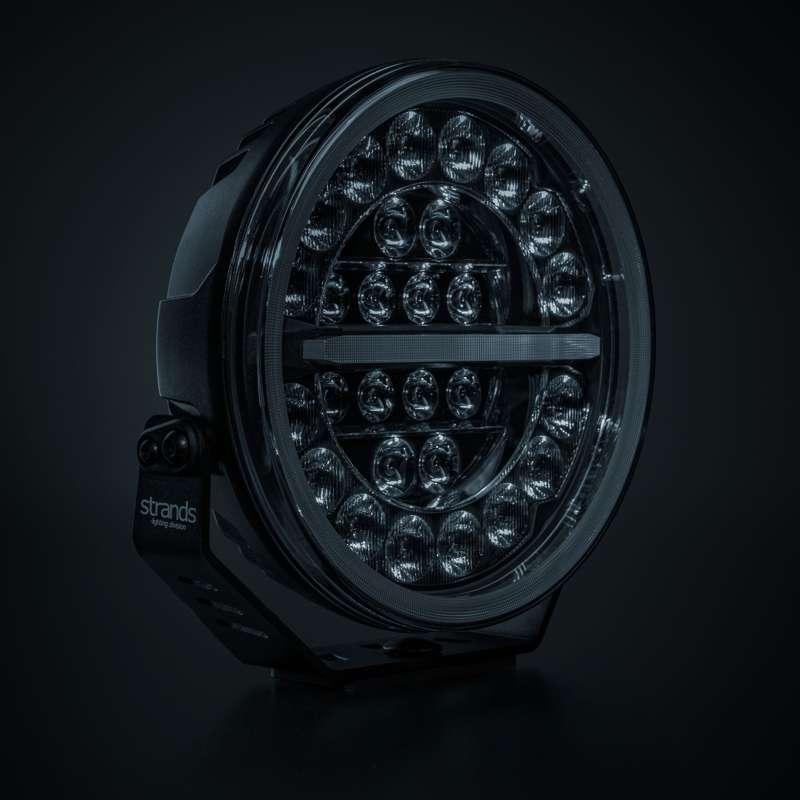

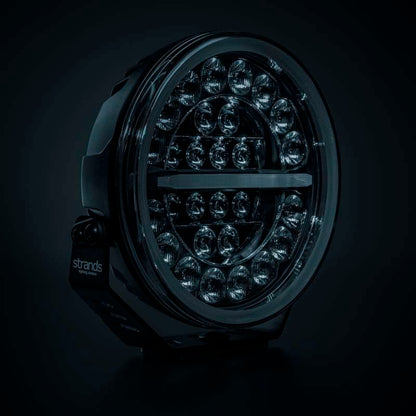

Firefly Professional Black is built to stand out by blending in. A result of cutting-edge engineering and our attention to detail. Here to set new standards.

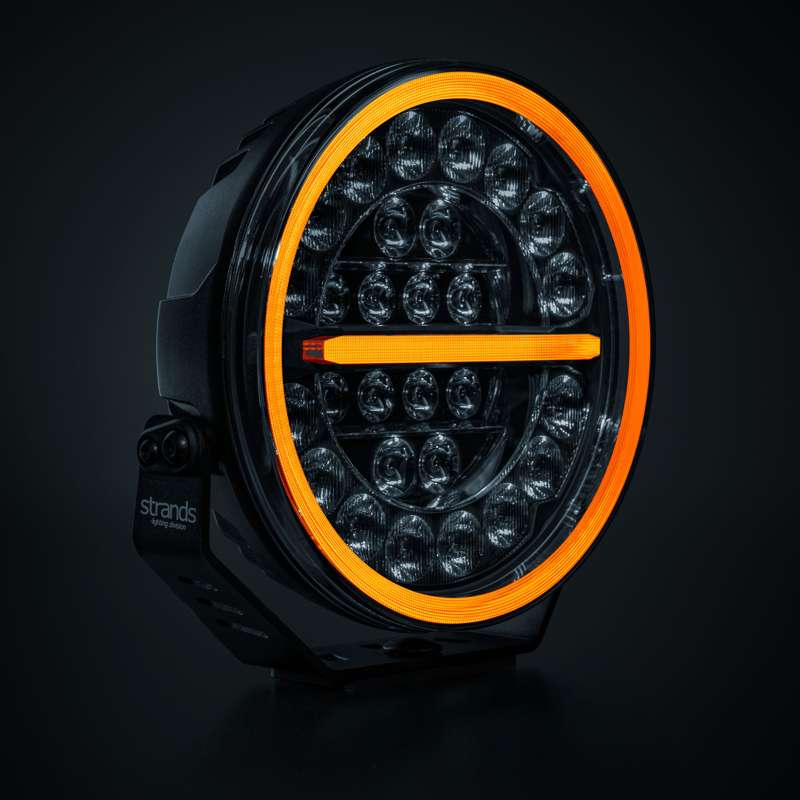

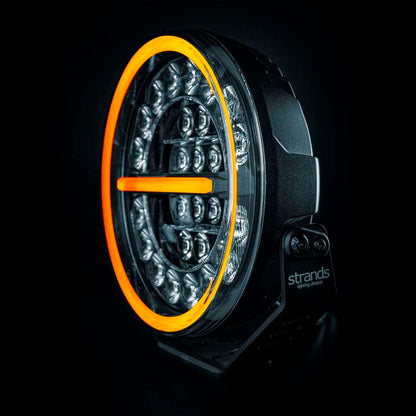

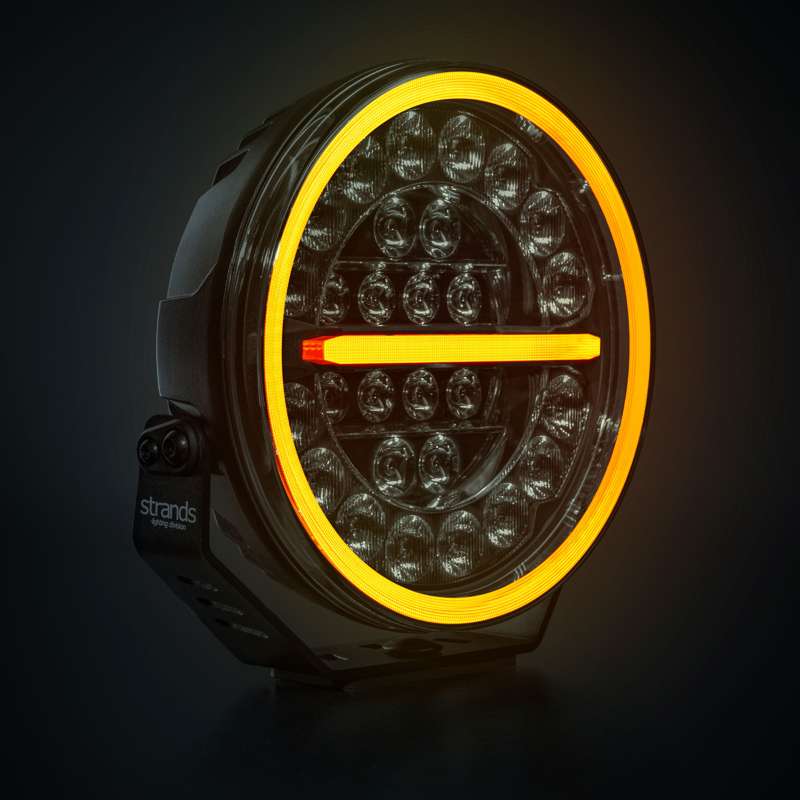

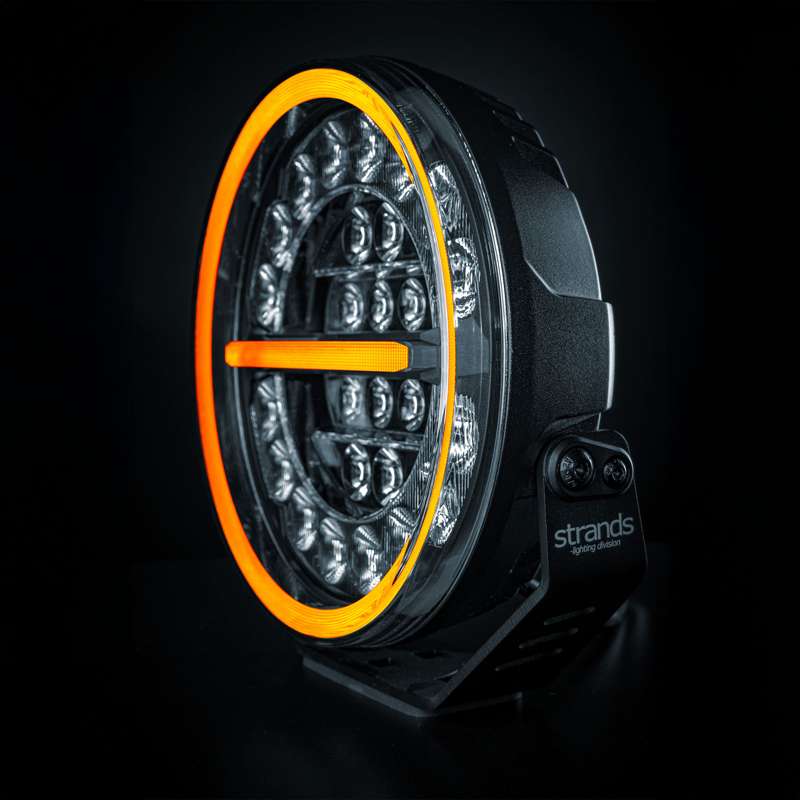

Firefly Professional Black stands out from the crowd by not only being a powerful driving light with maximum performance but also including a warning light function that is E-approved according to ECE R65 class 1 and class 2. Ensuring visibility and safety in any situation. The warning light is seamlessly integrated into the driving light’s design, remaining invisible when not in use and capturing the attention of all observers when activated.

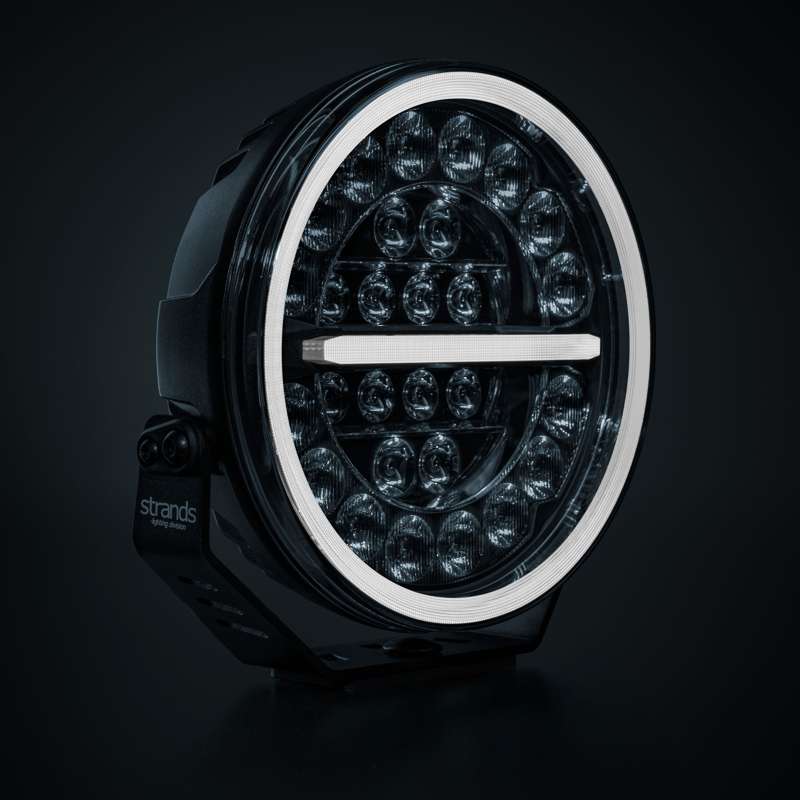

This driving light is sure to impress anyone who sees it. The crisp, extremely wide beam pattern delivers 12076 actual lumens of pure, white light at over 500 meters, guiding you forward with clarity and precision. It also has a unique floating dual-position light perfectly positioned around the LEDs. Creating a halo of light and giving the impression of a weightless, intense glow in the air. Just like a sunset on a late summer evening. Ready to guide you forward like a Firefly.

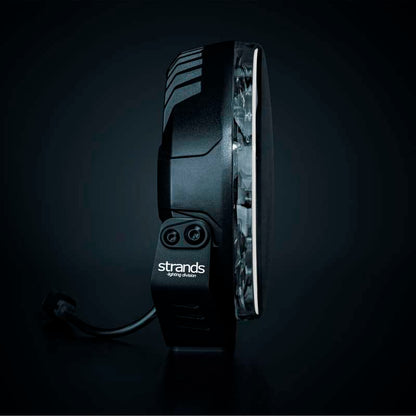

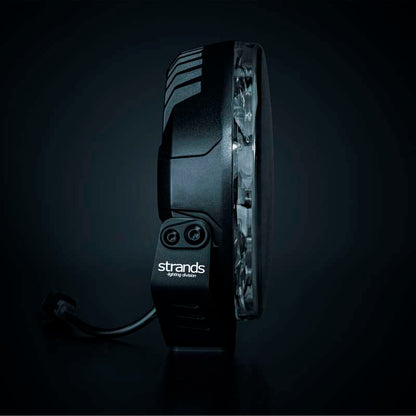

Firefly introduces a new, invisible design that seamlessly integrates with your vehicle. It is a result of cutting-edge engineering and our attention to detail. The invisible design makes your vehicle´s exterior uncompromised and embraces functionality and style. The design will enhance the future of driving, where visibility and beauty coexist harmoniously on the roads.

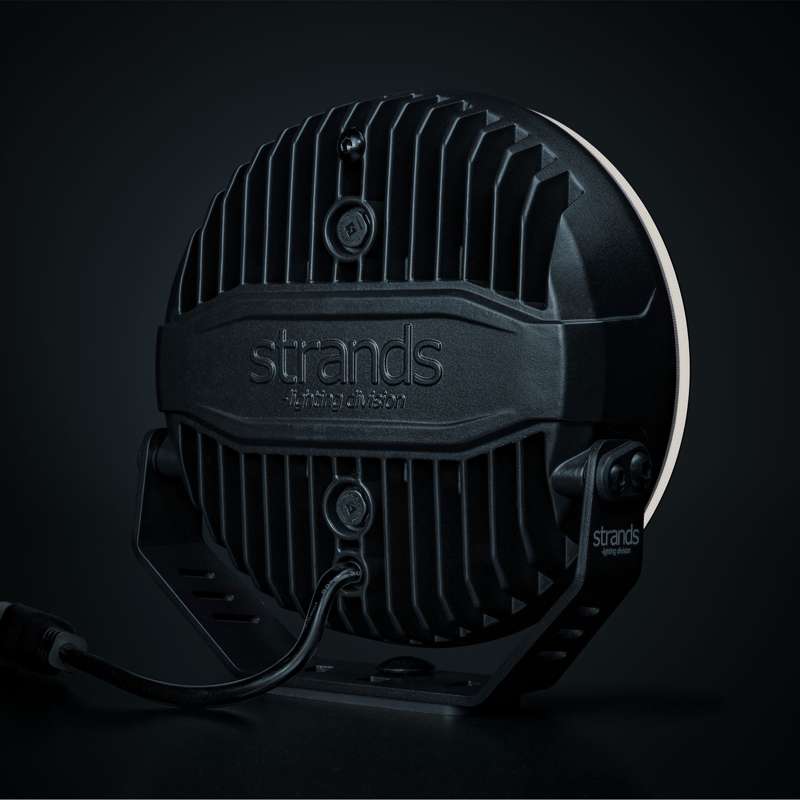

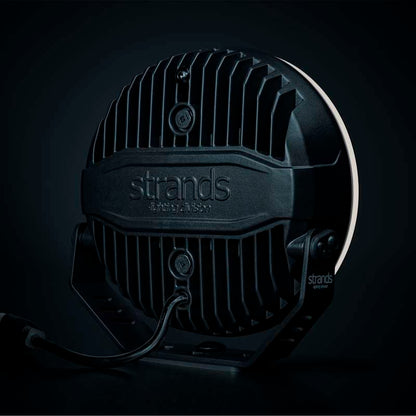

The all-in-one solution simplifies the installation and eliminates the need to mount several different lights. Mount with the included mounting bracket, screws, and the 1-meter cable. Connect it easily with the DT-6 contact included in the package. Perfect for light commercial vehicles and trucks needing the warning light function. With its mounting options and invisible design, this driving light will stand out by blending in with your vehicle. Ready to guide you forward toward your next mission.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-48V DC
Theoretical effect = 145W
Consumption = 145,0W
Functions = Driving light, position light, warning light
Consumption specific function = Warning light: 21W (By night), 36W (By day), White position light: 1W, Amber position light: 1,5W
Patterns = 2
Theoretical lumen = 16800lm
Actual lumen = 12076lm

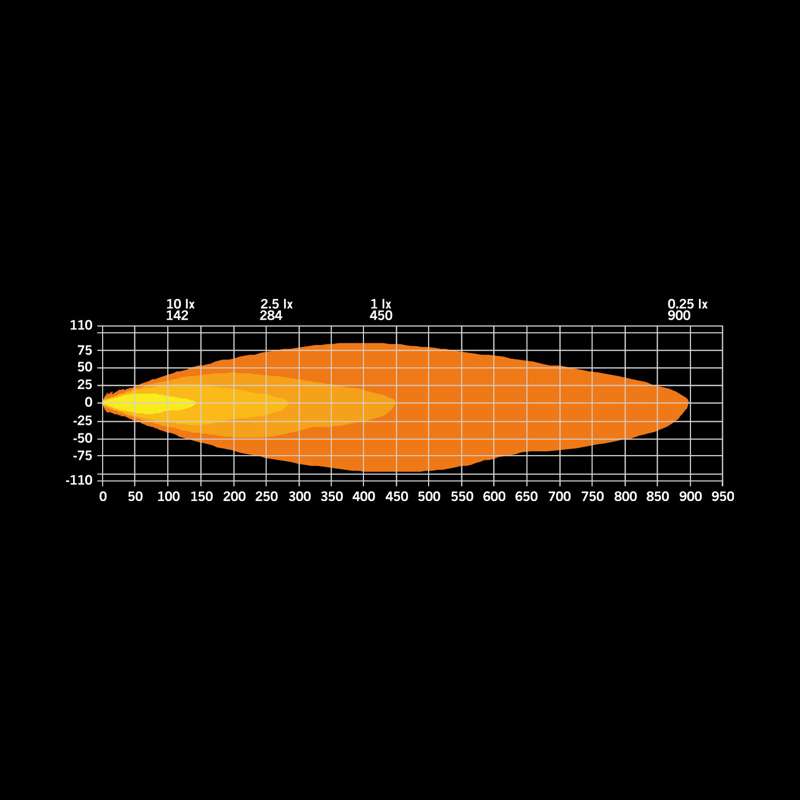

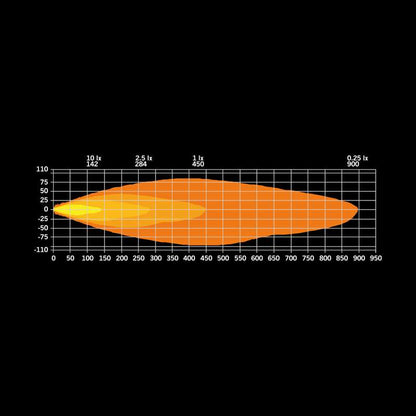

1 lux @ = 450m
Color temperature = 5700K
Beam pattern = Optimized beam
Beam angle = 32,2°
Connection = DT-6PIN
Cable length = 150mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

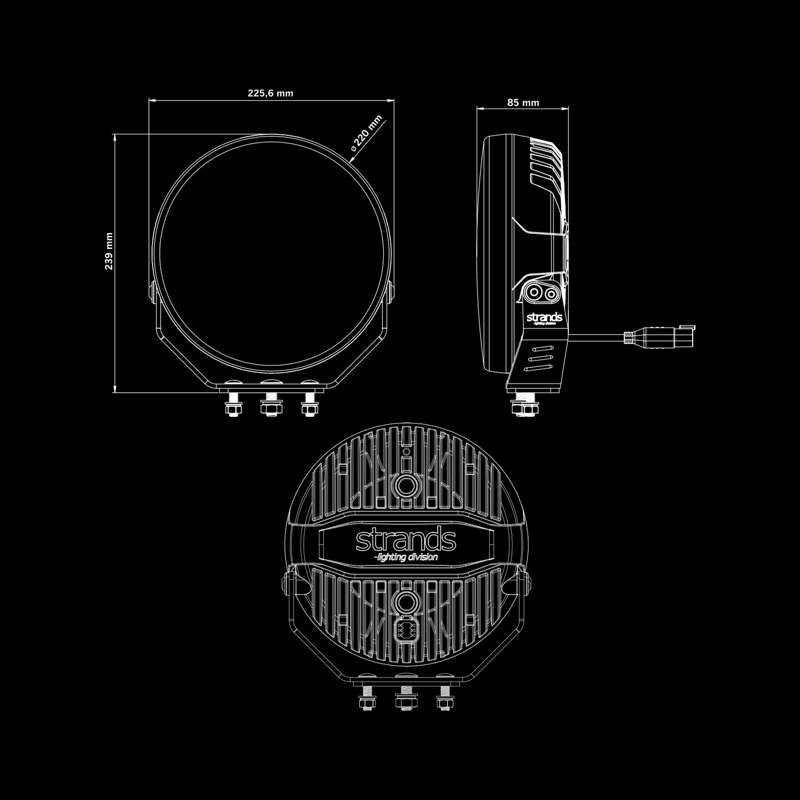

Depth = 85mm
Height including bracket = 239mm
Diameter = 220mm
Weight = 3,24kg
IP-class = IP67
Operating temperature = -40 - +65°C
E-approved = Yes
According to regulation = ECE R65 Class 2, R148(R7), R149(R112)
Reference number = 50
EMC = ECE Yes
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Blue cable = Warning light-By night mode (Connect to the green wire)
Yellow cable = + Amber Position light(Positive)
Green cable = + Warning light-By day mode
Included in package = Bracket, Screws, washers, bolts
