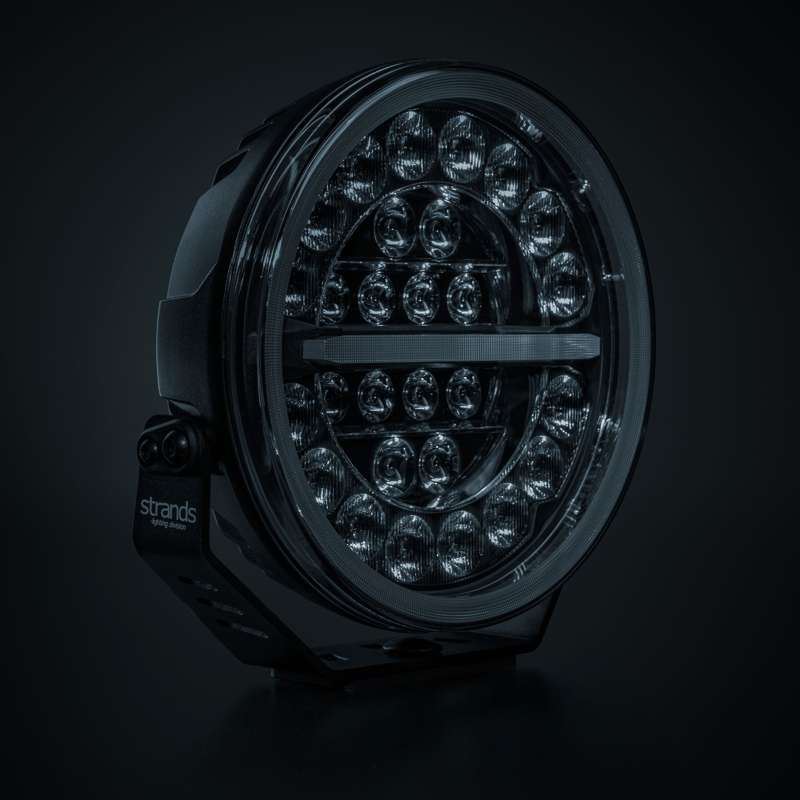

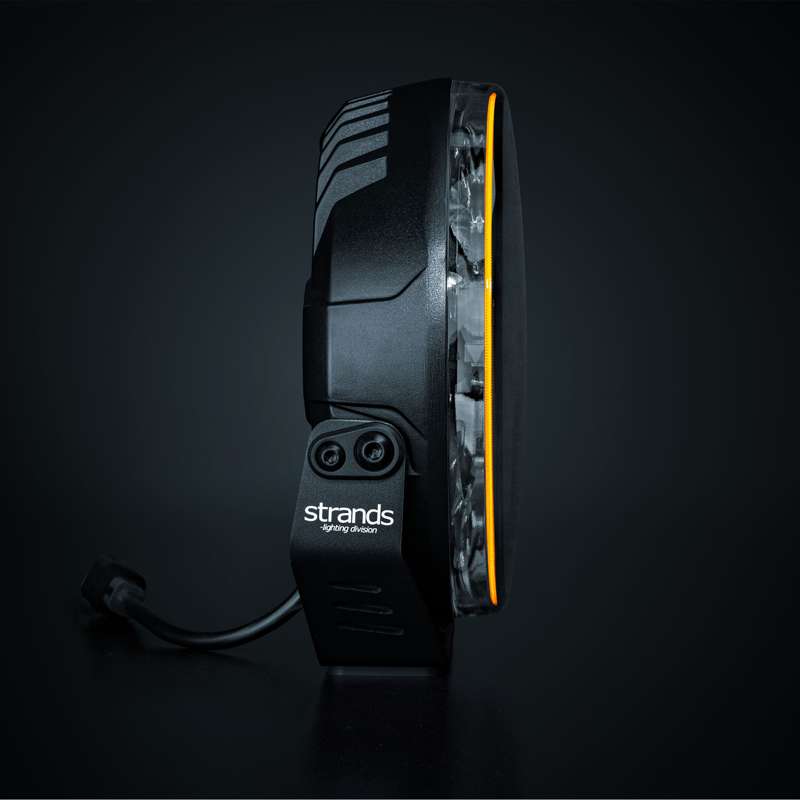

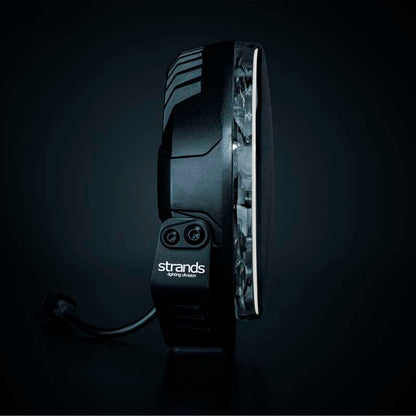

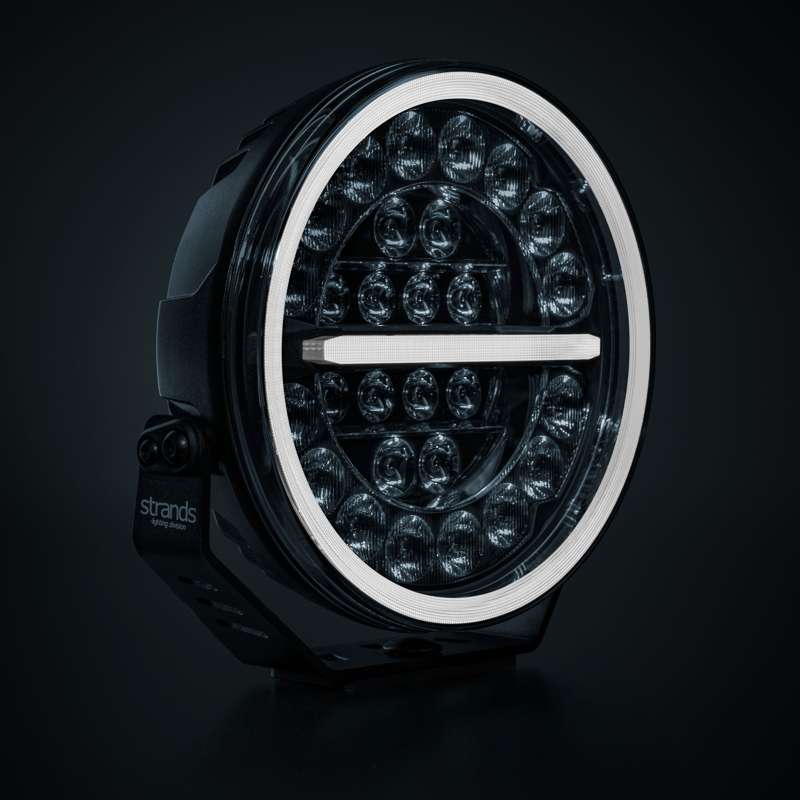

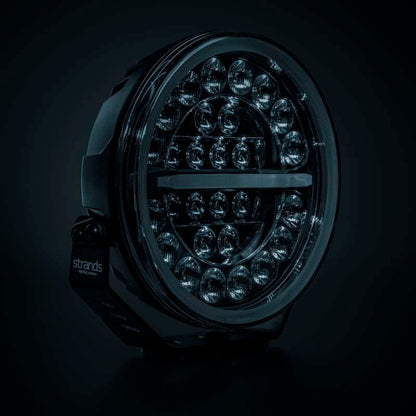

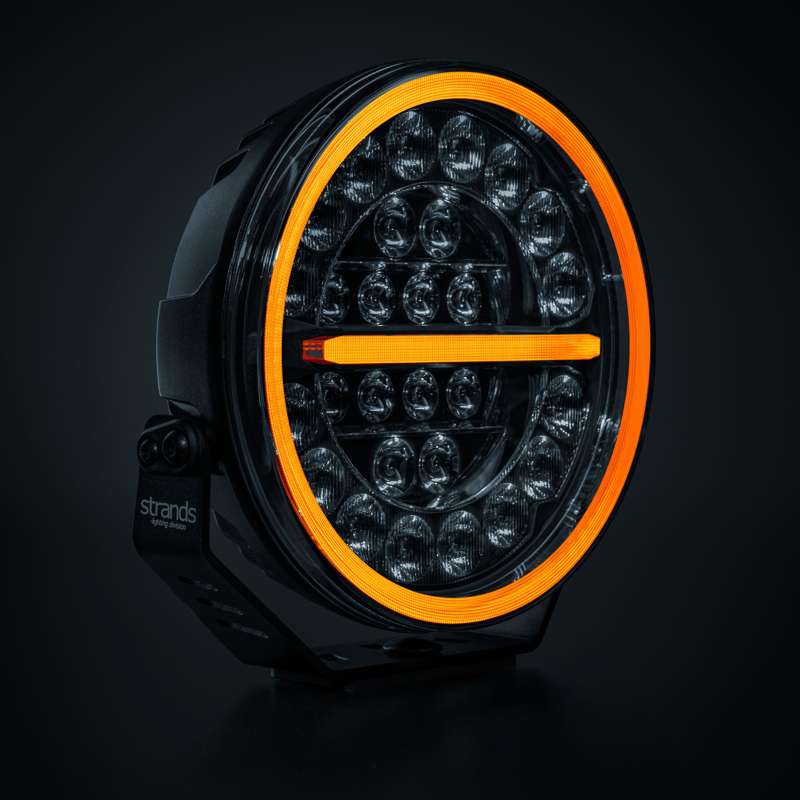

FIREFLY DRIVING LIGHT 9″

PRODUCT DESCRIPTION

Be prepared for Firefly. A revolutionary driving light that stands out by blending in with your vehicle. A result of cutting-edge engineering and our attention to detail. With its maximum performance, Firefly will guide you forward.

Firefly is designed to push the boundaries of illumination, technology, and design. The crisp, extremely wide beam pattern delivers maximum performance with no compromises. You get 12076 actual lumens of pure, white light that guides you forward with clarity and precision at over 500 meters. A testament to the power of light and technology working in perfect harmony.

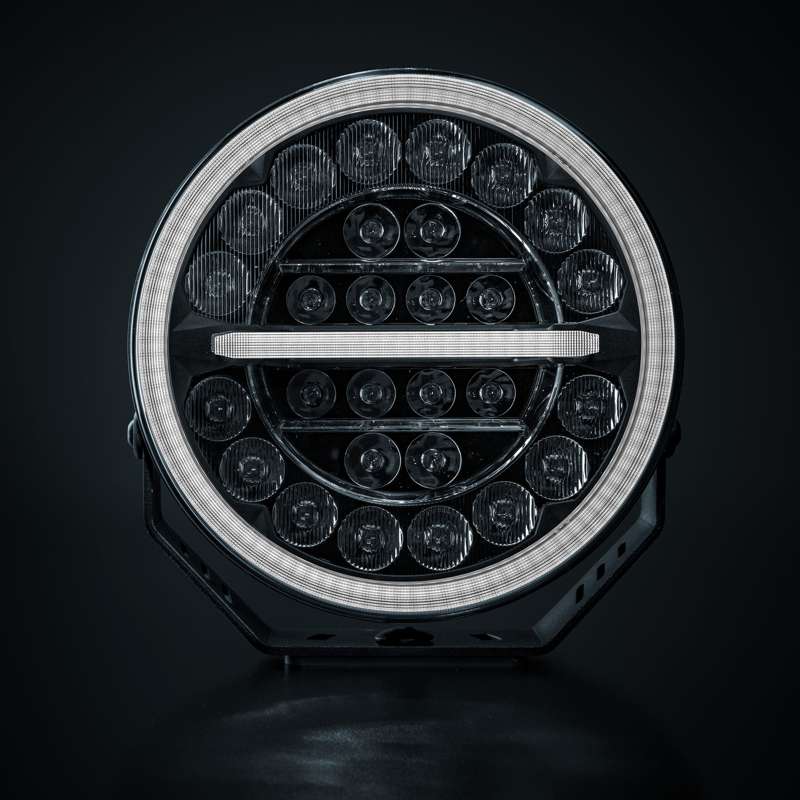

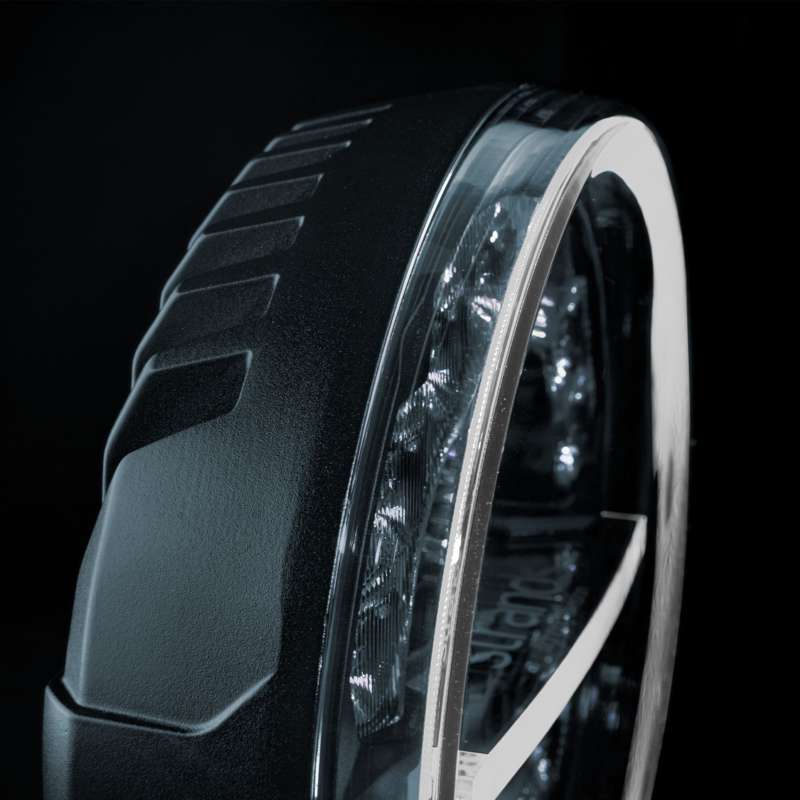

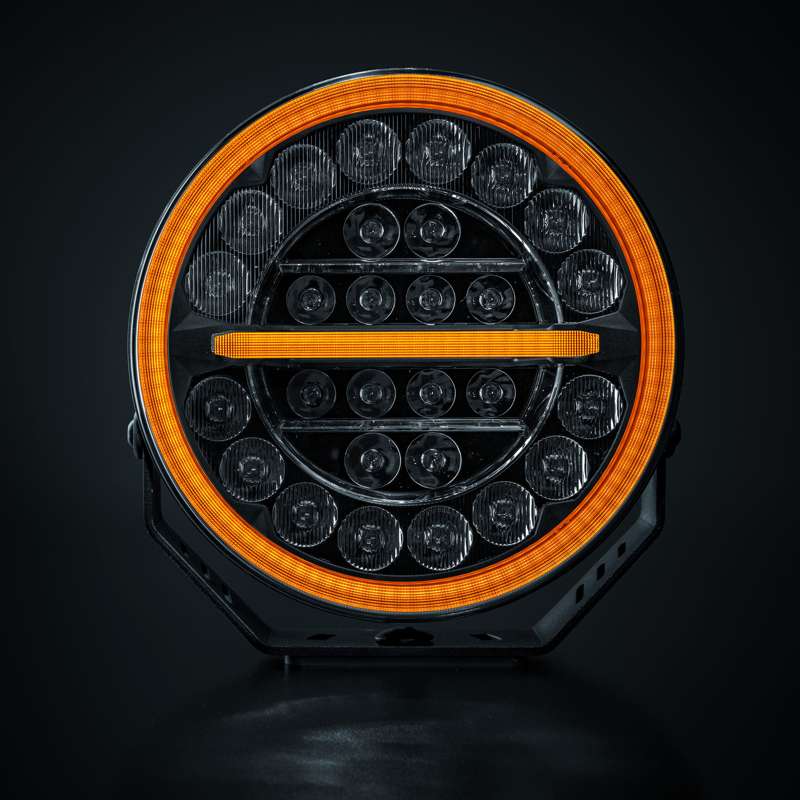

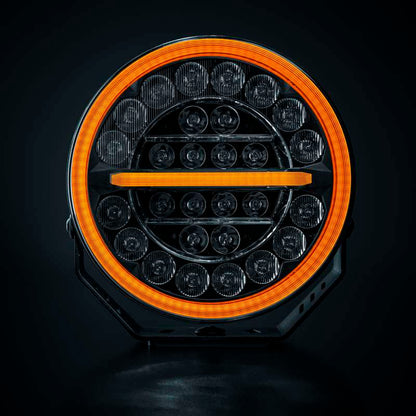

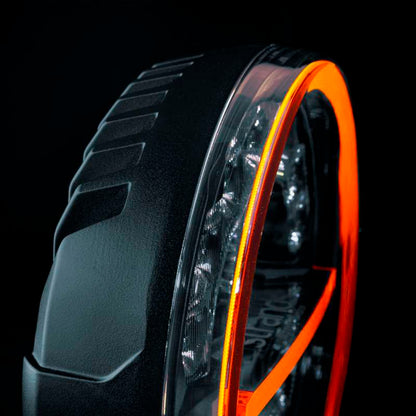

The Firefly driving light is sure to impress anyone who sees it. It comes with a unique floating dual-position light perfectly positioned around the LEDs. Creating a halo of light and giving the impression of a weightless, intense glow in the air. Just like a sunset on a late summer evening. Ready to guide you forward like a firefly.

Firefly introduces a new design that seamlessly integrates with your vehicle. It is a result of cutting-edge engineering and our attention to detail. The invisible design makes your vehicle´s exterior uncompromised and embraces functionality and style. The design will enhance the future of driving, where visibility and beauty coexist harmoniously on the roads.

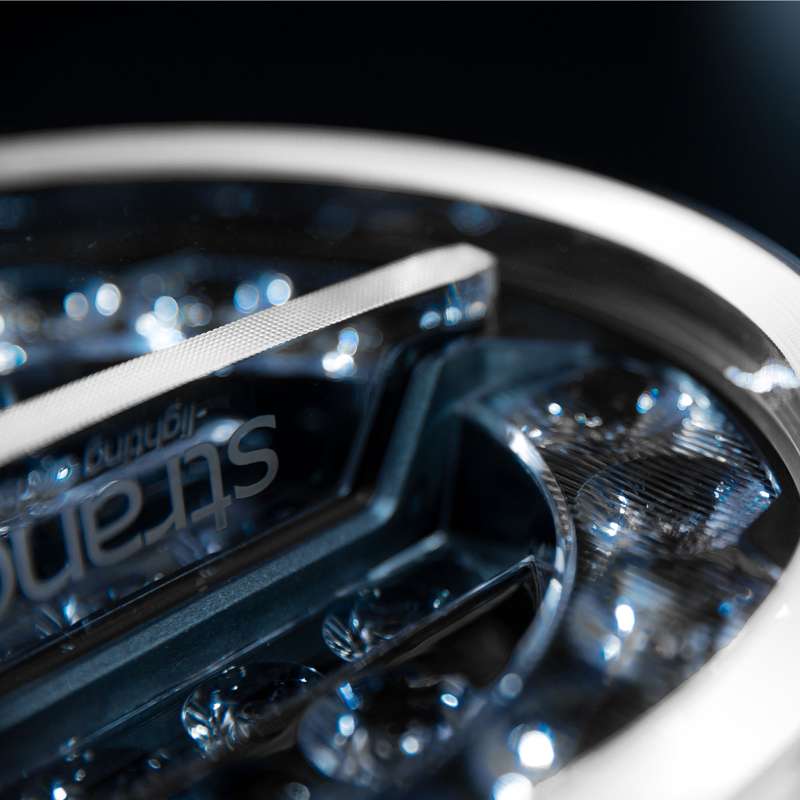

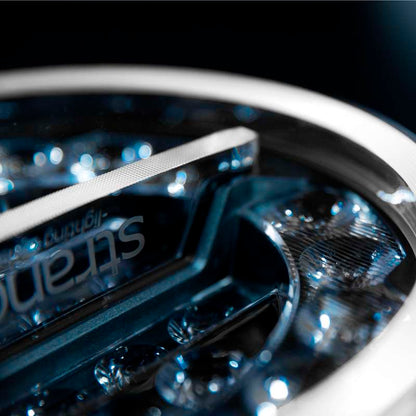

All parts are important for the result, and we have chosen to develop the perfect light based on our experience to protect you from our tough environment. The lens is made of unbreakable polycarbonate, and the light is E-approved and waterproof according to the highest IP standards, representing one of the highest levels of protection.

The installation of Firefly is effortless. Mount easily with the included mounting bracket, screws, and the 1-meter cable. Connect it easily with the DT-4 contact included in the package. Perfect for all types of vehicles. With its mounting options and invisible design, this driving light will stand out by blending in with your vehicle. Ready to guide you forward toward your next mission.

PRODUCT SPECIFICATIONS

• Unit = pcs
• Voltage = 10-48V DC
• Theoretical effect = 145W
• Consumption = 145,0W

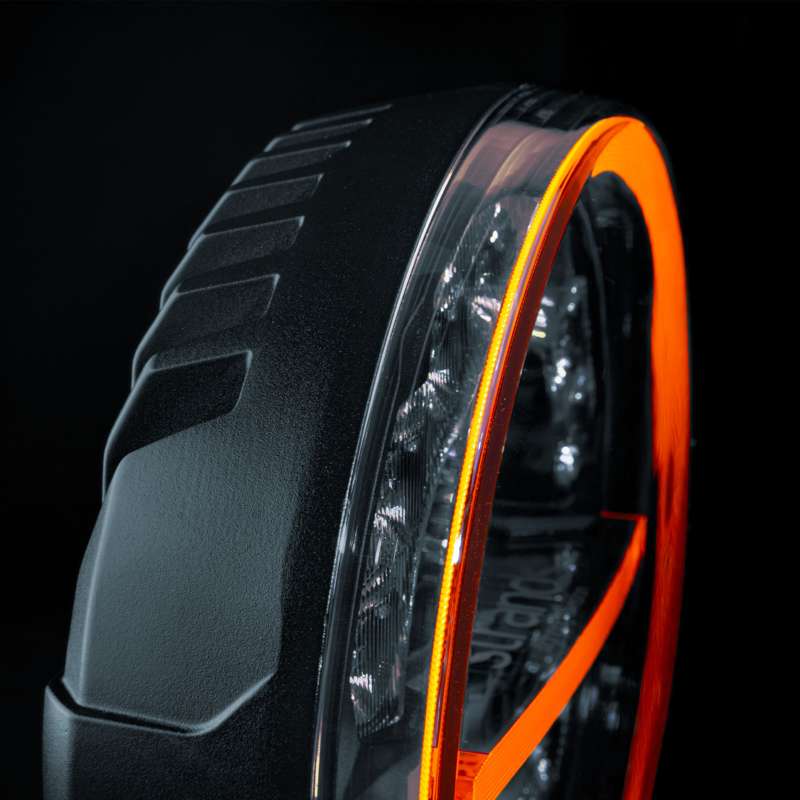

• Consumption specific function = White position light: 1W, Amber position light: 1,5W
• Theoretical lumen = 16800lm
• Actual lumen = 12076lm

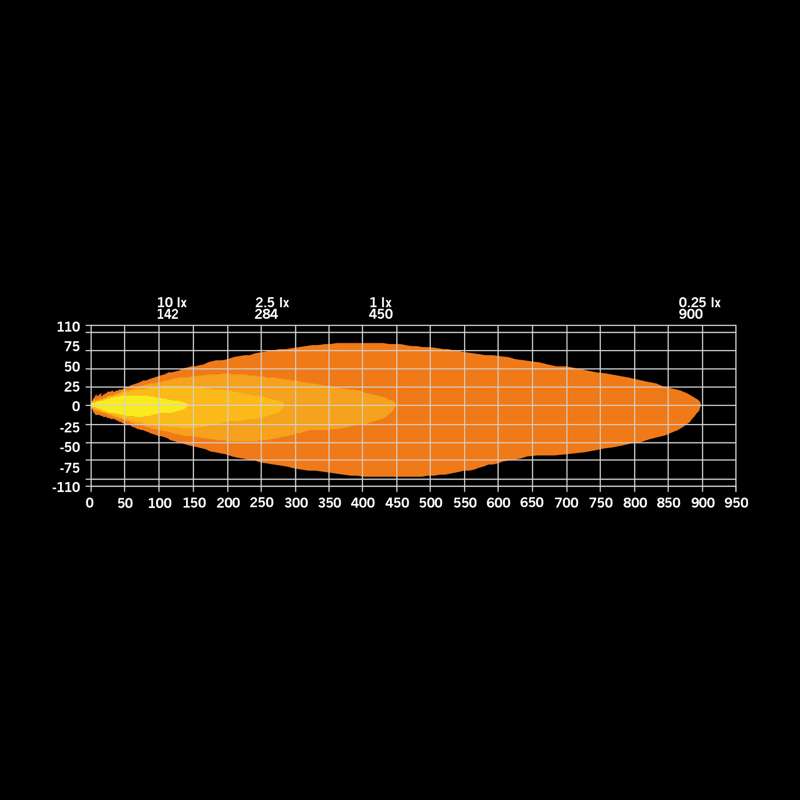

• 1 lux @ = 450m
• Color temperature = 5700K
• Beam pattern = Optimized beam
• Beam angle = 32,2°
• Connection = DT-4PIN
• Cable length = 150mm
• Color housing = Black
• Color lens = Clear
• Color LED´s = White/amber

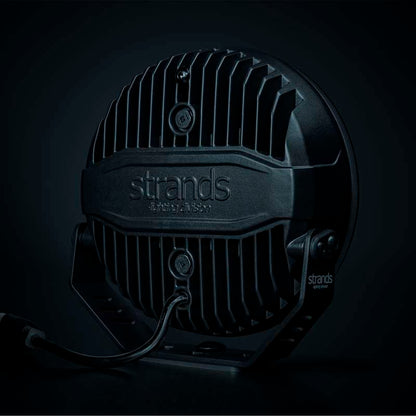

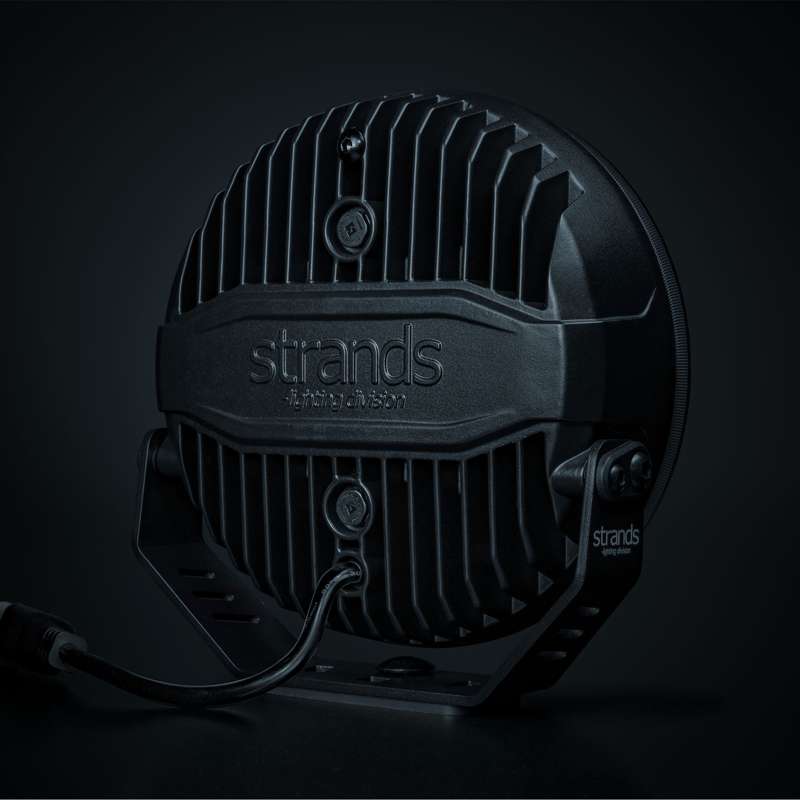

• Material bracket = Stainless steel
• Material housing/chassi = Aluminium
• Material lens = Polycarbonate

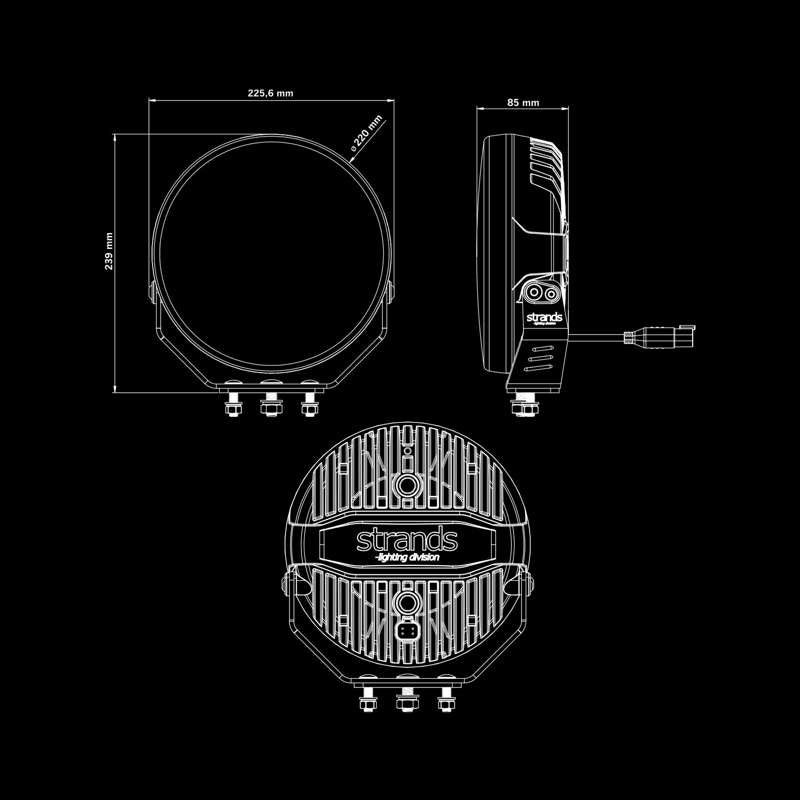

• Depth = 85mm
• Height including bracket = 239mm
• Diameter = 220mm
• Weight = 3,24kg
• IP-class = IP67
• Operating temperature = -40 - +65°C
• E-approved = Yes
• According to regulation = ECE R148(R7),R149(R112)
• Reference number = 50
• EMC = ECE R10

INSTALLATION SPECIFICATIONS

• Black cable = - (Negative)
• Red cable = + (High-beam)
• White cable = + White Position light(Positive)
• Yellow cable = + Amber Position light(Positive)
• Included in package = Bracket, Screws, washers, bolts
