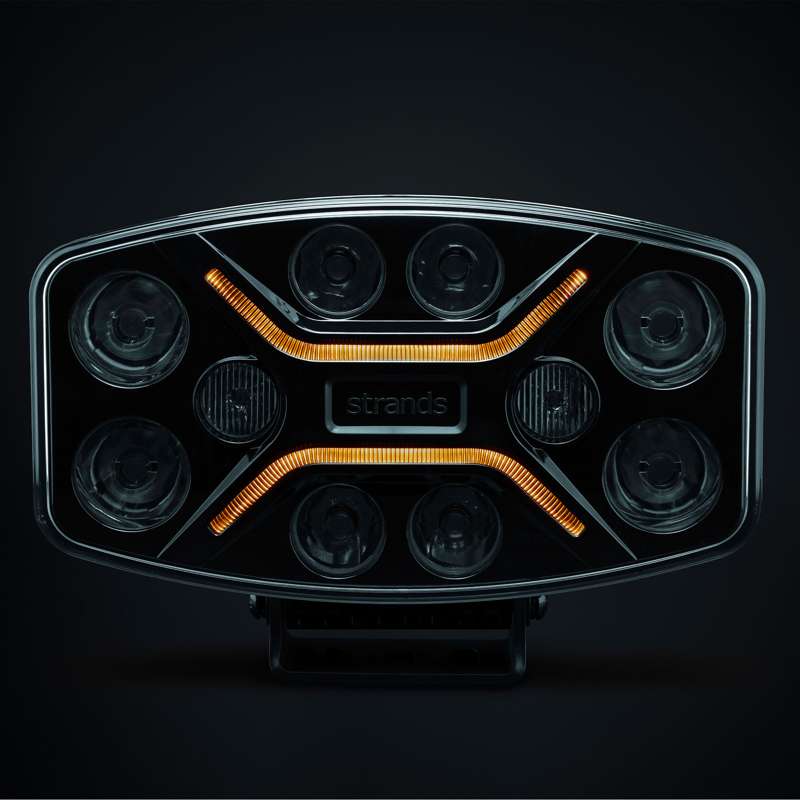

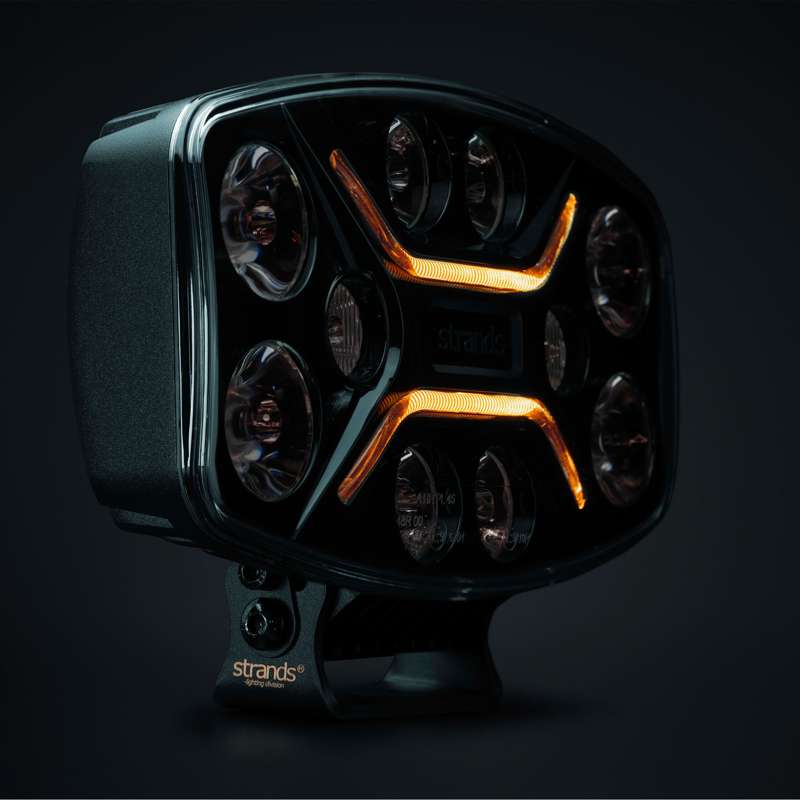

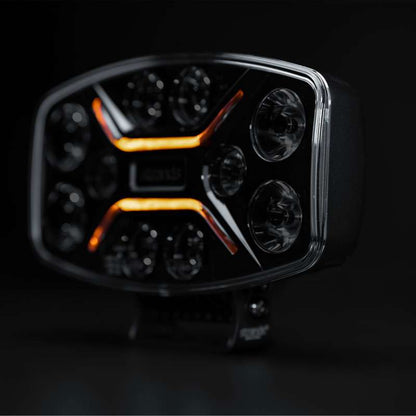

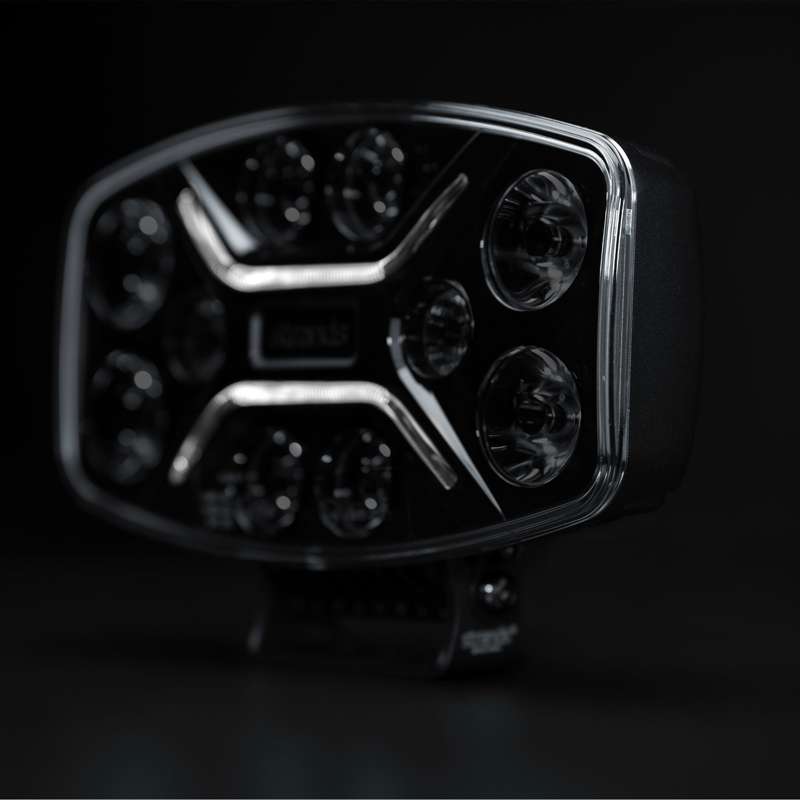

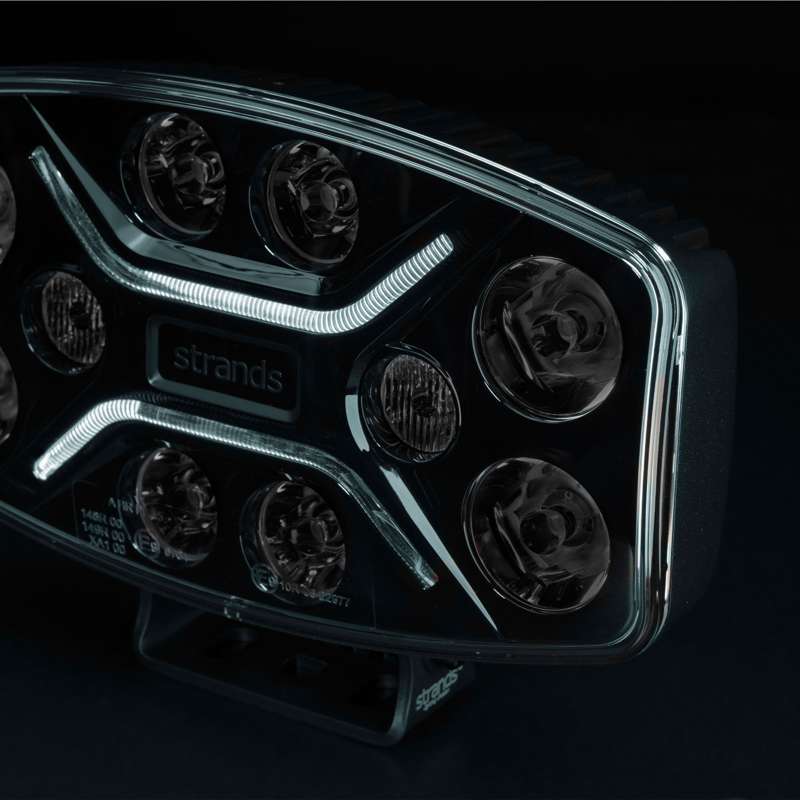

Get ready to go Insane. To go from 0 to 100. Dark Knight Insane is here, the newest member of the Dark Knight series. With all your lighting needs into one single lamp: A driving light with duo position light and warning light. Created with passion and loaded with all the features you want. Dark Knight Insane is a confident, futuristic Dark Knight charged with power and brightness in full intensity. Ready for a powerful driving experience beyond the ordinary.

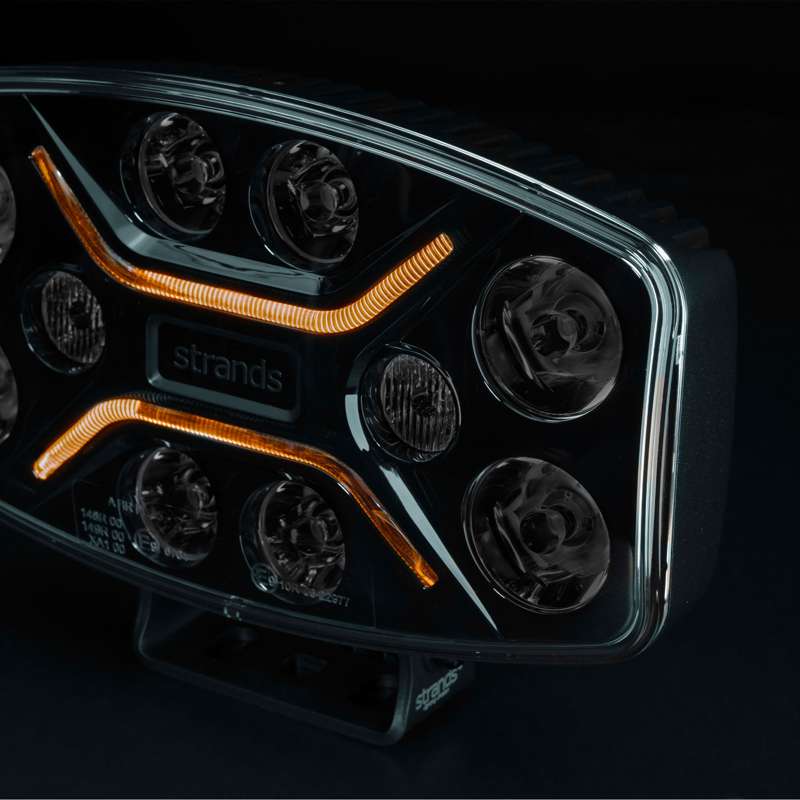

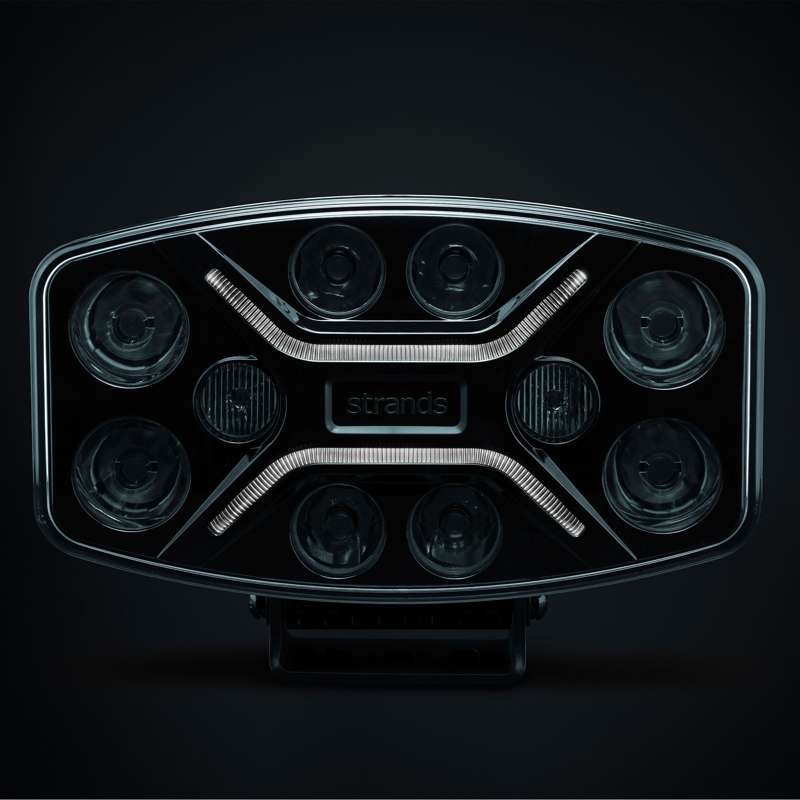

An oval driving light with warning light and position light with duo function, choose between amber and white light Insane creates your chance to live out your passion and become an unstoppable Dark Knight. With a beam pattern created for the hard-working driver, in need of a perfect balance between length and width. The total efficiency collects and directs the light, exactly where you need it Insane radiates self-confidence both day and night. Intended to be seen from all angles on the road and as to drive in daylight even during the dark hours of the night. Meet the fearless Knight’s eyes from the unique position light. See and enjoy the soft starting effect, where the light slowly increases in intensity before it finally reaches its full capacity.

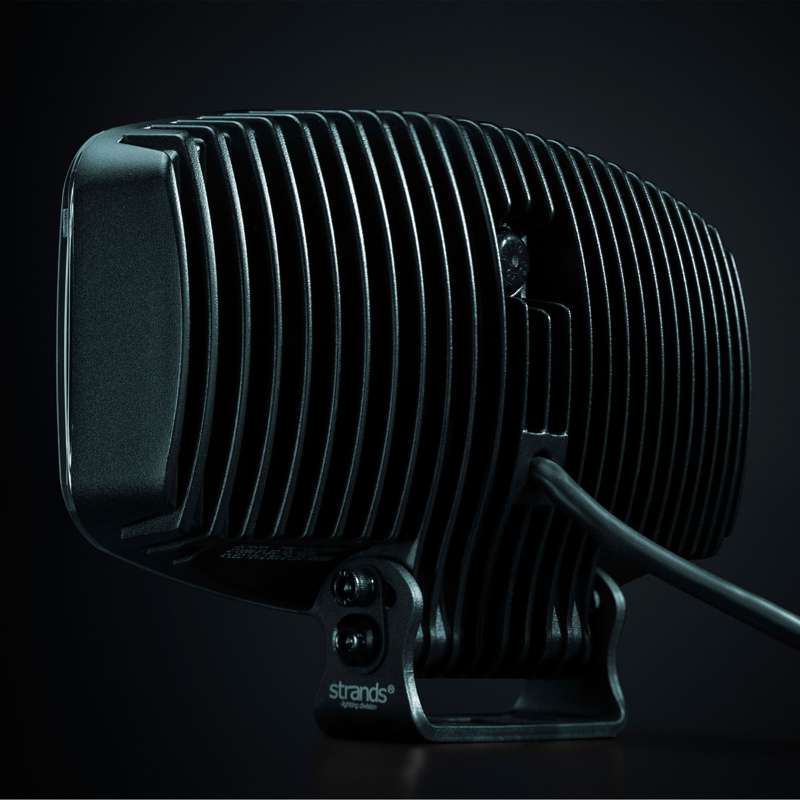

With dark details and slim design, it is easy to mount many in a row and quickly become one with your vehicle. Combined with advantage together with the other members of the Dark Knight series to create a harmonious unit.
Product Specifications:
Unit - pcs
Voltage - 10-36V DC
Theoretical effect - 160W
Consumption - 98,0W
Functions - Driving light, position light, warning light

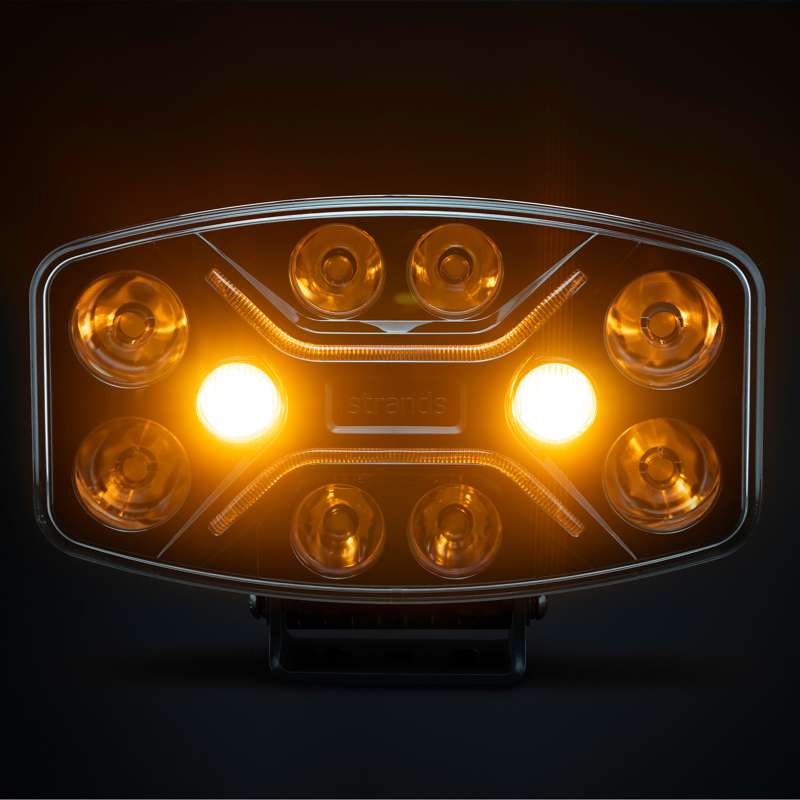

Consumption specific function - White position light: 1,5W, Amber position light: 1,5W, Warning Light: 6W
Patterns - 5
Theoretical lumen - 12000lm
Actual lumen - 10500lm

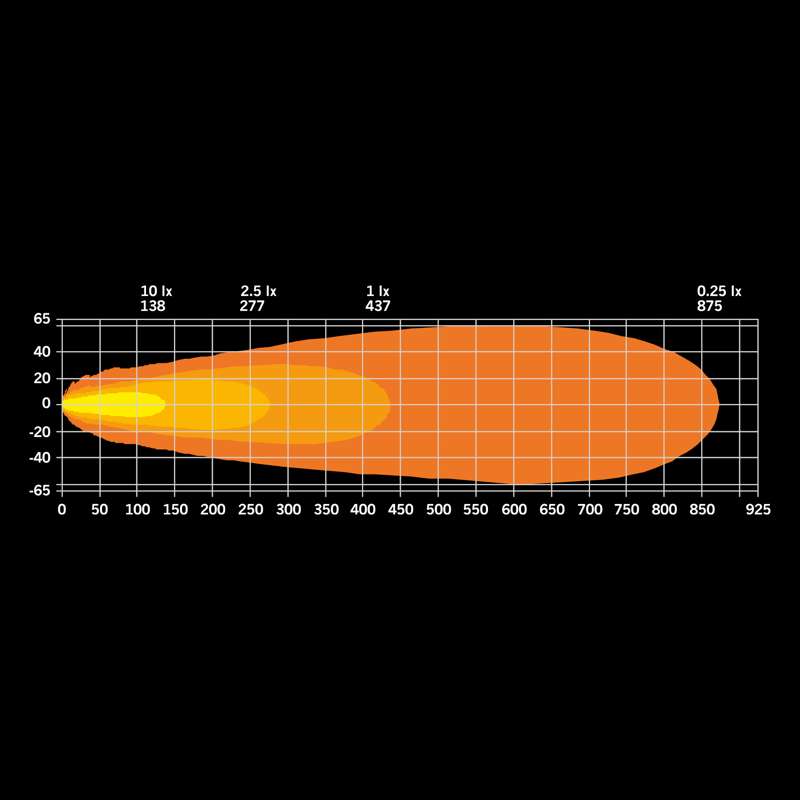

1 lux @ - 437m
Color temperature - 5700K
Beam pattern - Optimized beam
Beam angle - 18,6°
Connection - Cable
Cable length - 2500mm
Color housing - Black
Color lens - Clear
Color LED´s - White/amber
Material bracket - Stainless steel
Material housing/chassi - Aluminium
Material lens - Polycarbonate

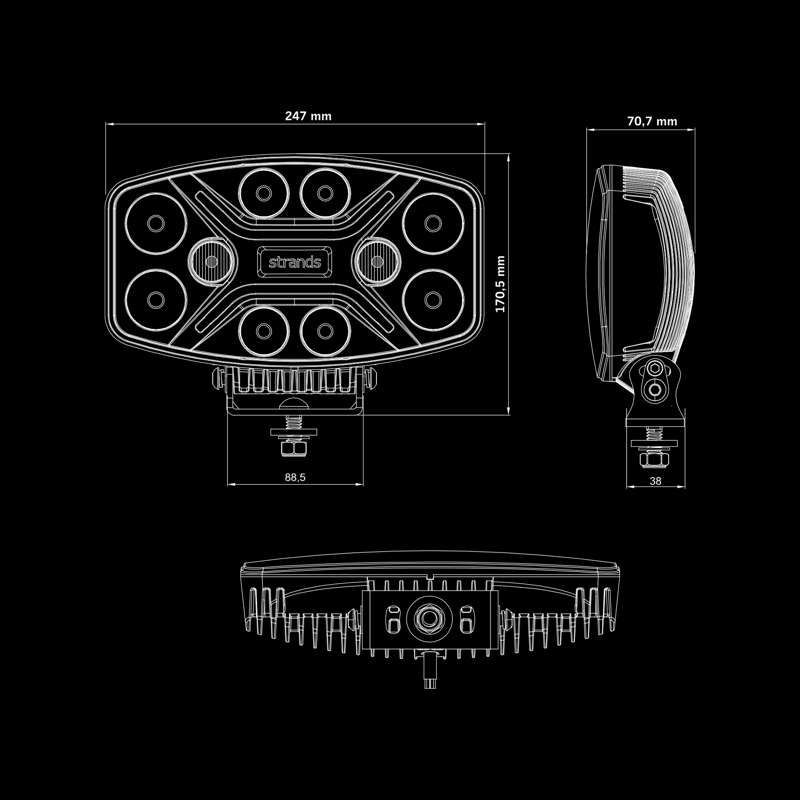

Length - 247mm
Depth - 70,7mm
Height - 141mm
Height including bracket - 170,5mm
Weight - 1,84kg
IP-class - IP68/69K
Operating temperature - 40 - +60°C
E-approved - Yes
According to regulation - ECE R7, R65, R112
Reference number - 45
EMC - ECE R10
Installation Specifications:
Black cable = - (Negative)
Red cable = + (High-beam)
Blue cable Pattern = selection and warning light syncronization
Yellow cable =+ Amber Position light(Positive)
Green cable = Warning light
Grey cable = + White position light(Positive)
Included in package = Bracket, Screws, washers, bolts
