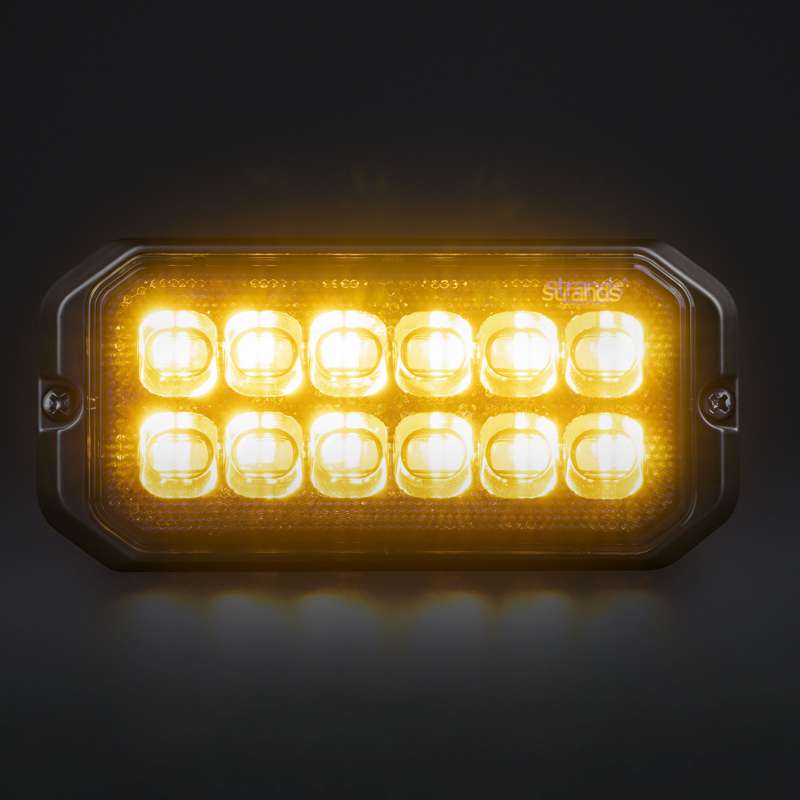

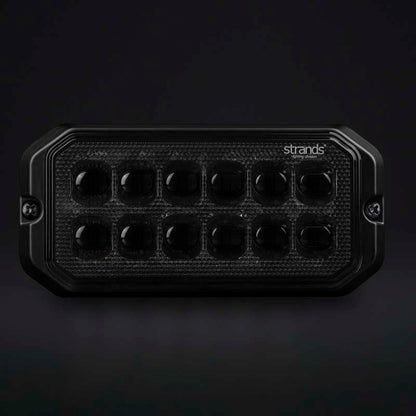

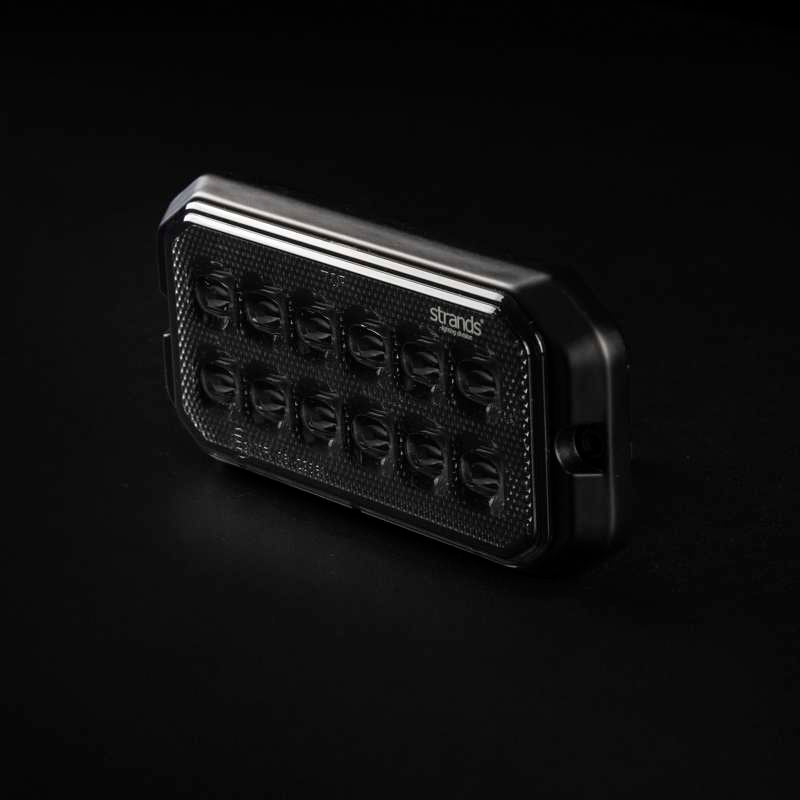

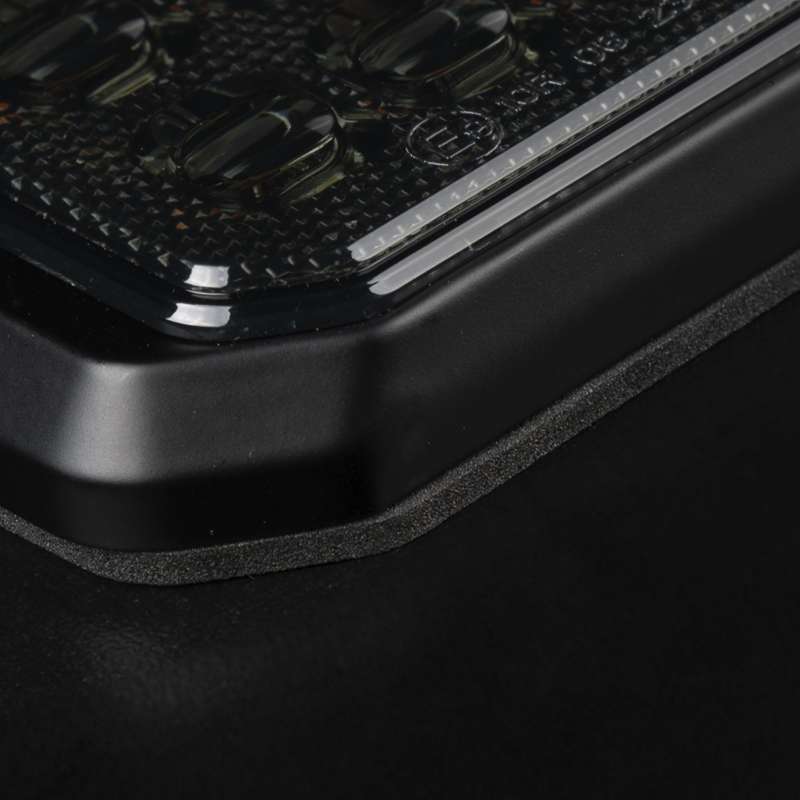

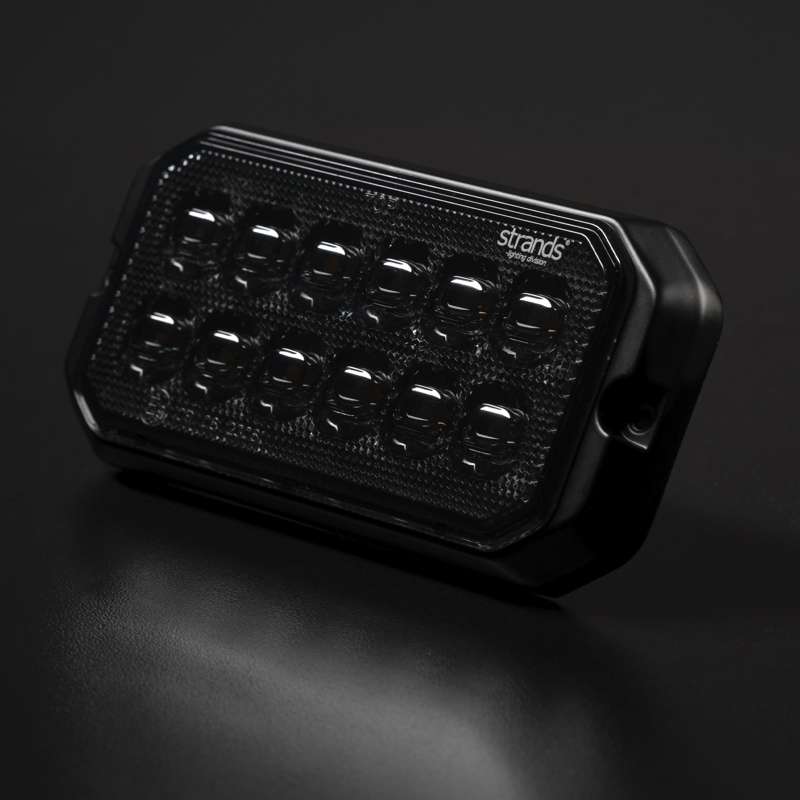

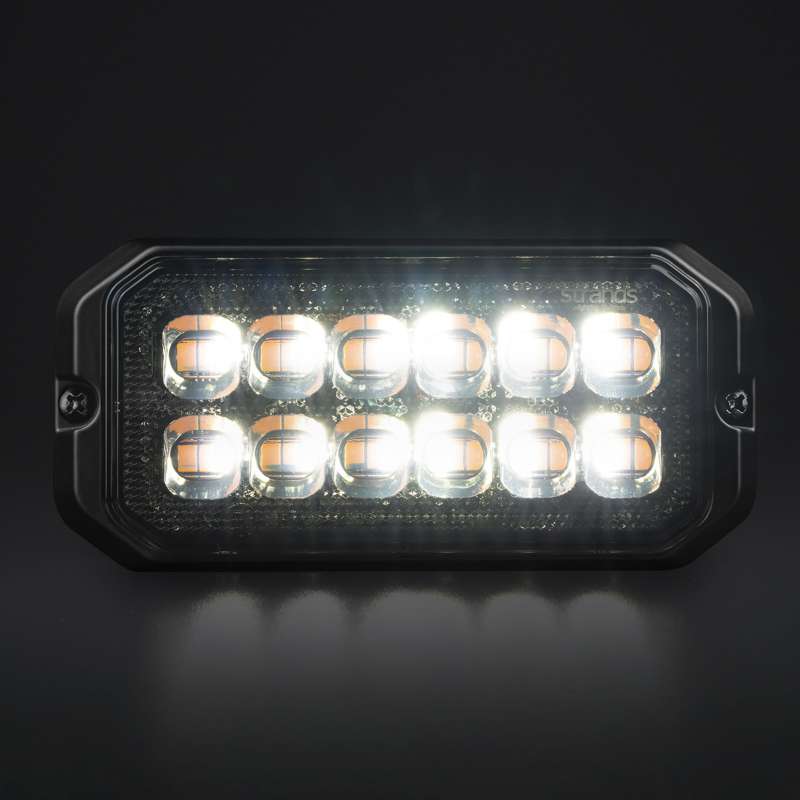

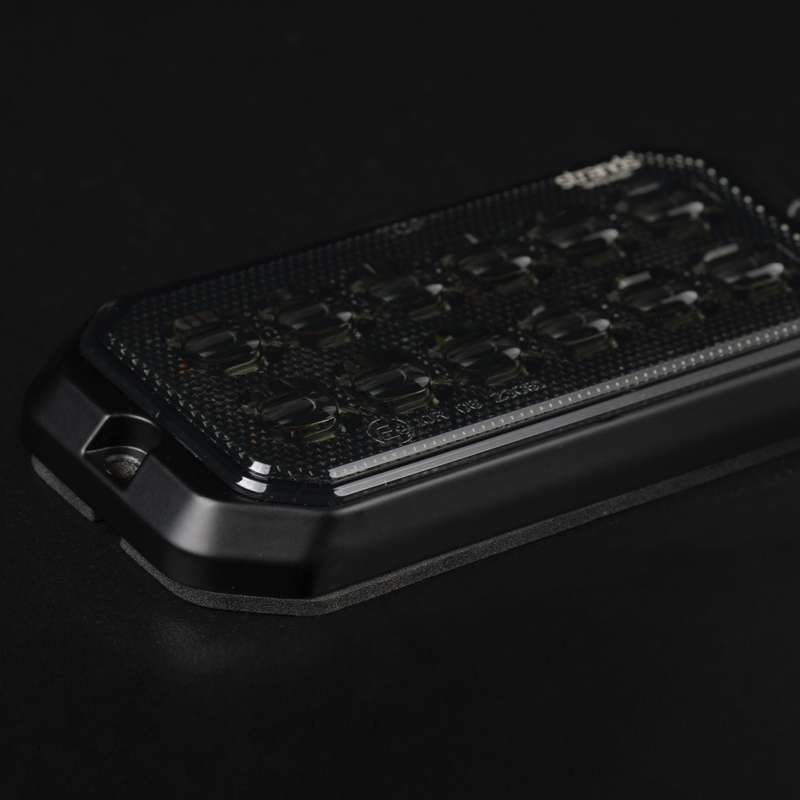

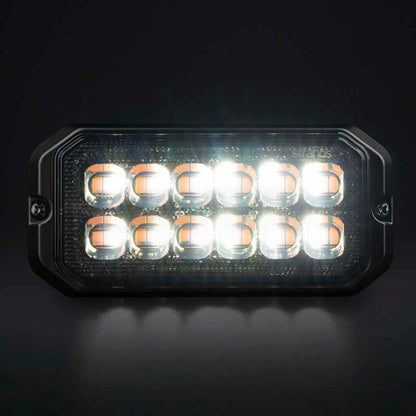

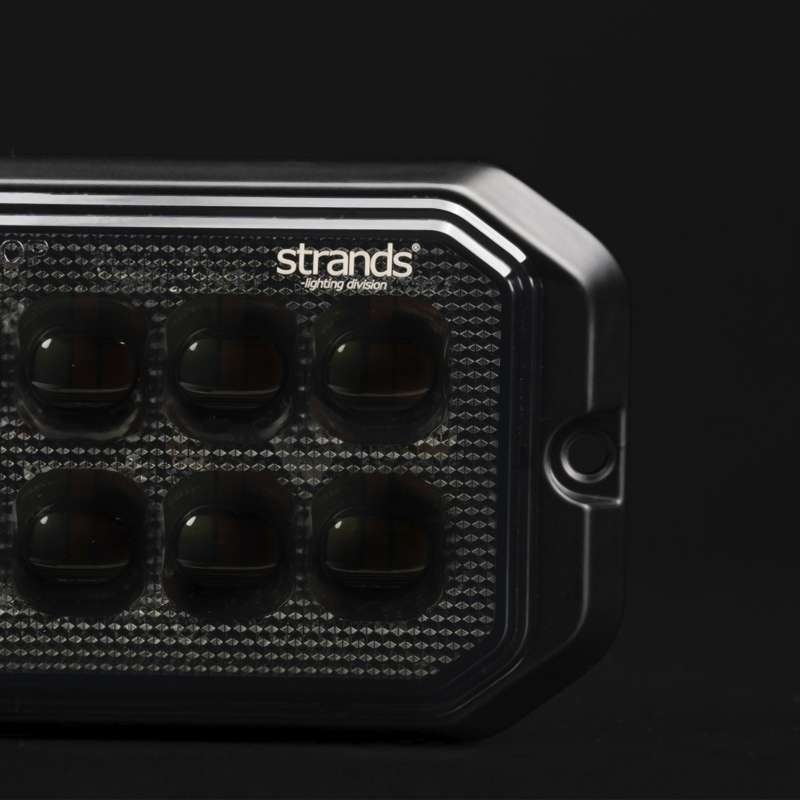

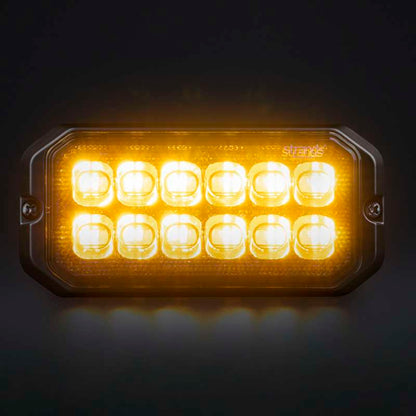

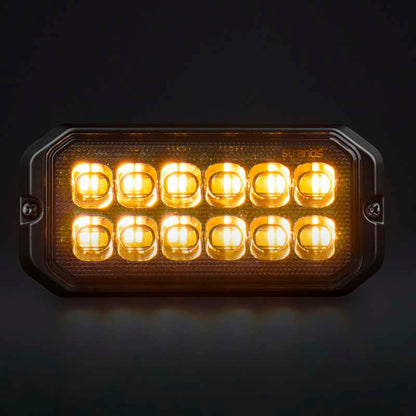

Heavy-duty quality in a super dark package. The Dark Knight Duo 12 LED is a powerful strobe light with top-notch optics, built to resist harsh weather and rough use. Choose between white or E-approved amber light (ECE R65 class 2). The low power consumption of 25 W, 10-32 V DC usage, and 20 warning light patterns to choose from make it a must-have for any driver. It’s sturdy without being clumsy and perfect for trucks and other heavy vehicles. The IP rating of IP67/IP69K, 3-year warranty, and durable materials ensure a long-lived product, even when installed in exposed positions. Installation is easy with a 1 m cable, and the size (125,5x15x59,5 mm and 117,2 mm CC) makes it a good fit wherever needed. An included EVA-padding will protect the product and the vehicle’s surface.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 54W
Consumption = 25,0W
Functions = Warning light
Consumption specific function = White warning light: 24W, Amber warning light: 25W
Patterns = 20

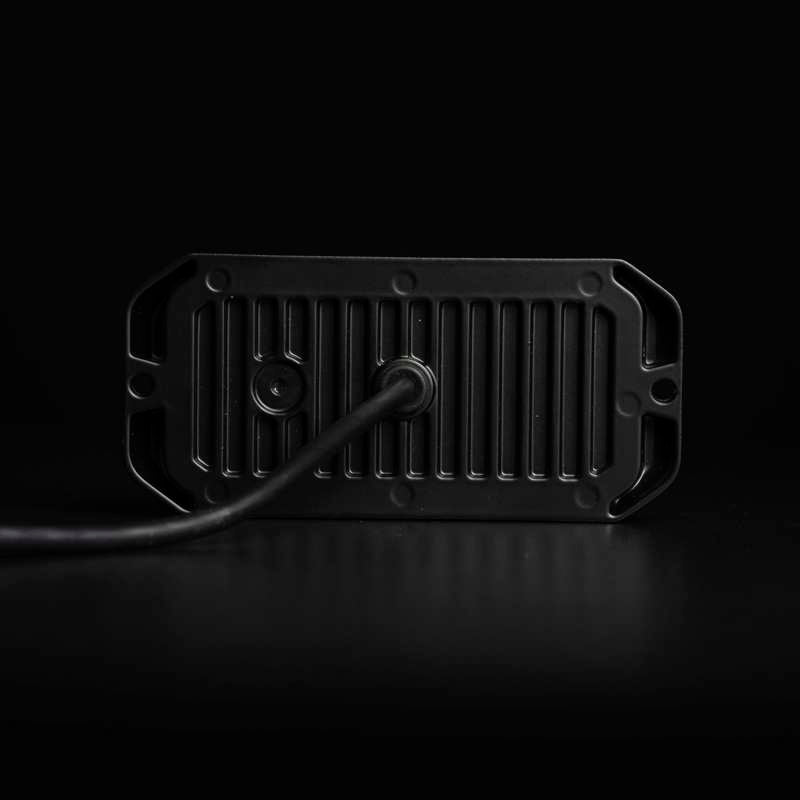

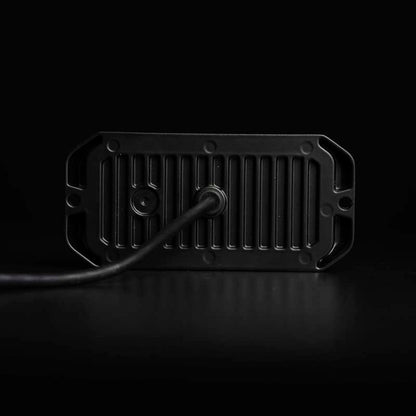

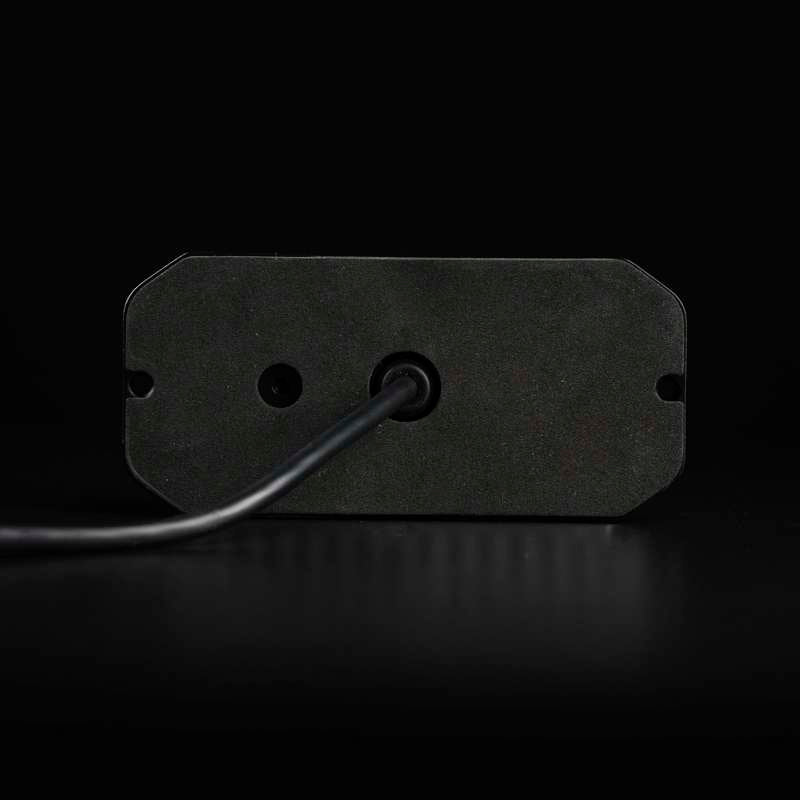

Connection = Cable
Cable length = 1000mm
Color housing = Black
Color lens = Dark tinted
Color LED´s =White/amber
Material housing/chassi = Aluminium
Material lens = Polycarbonate

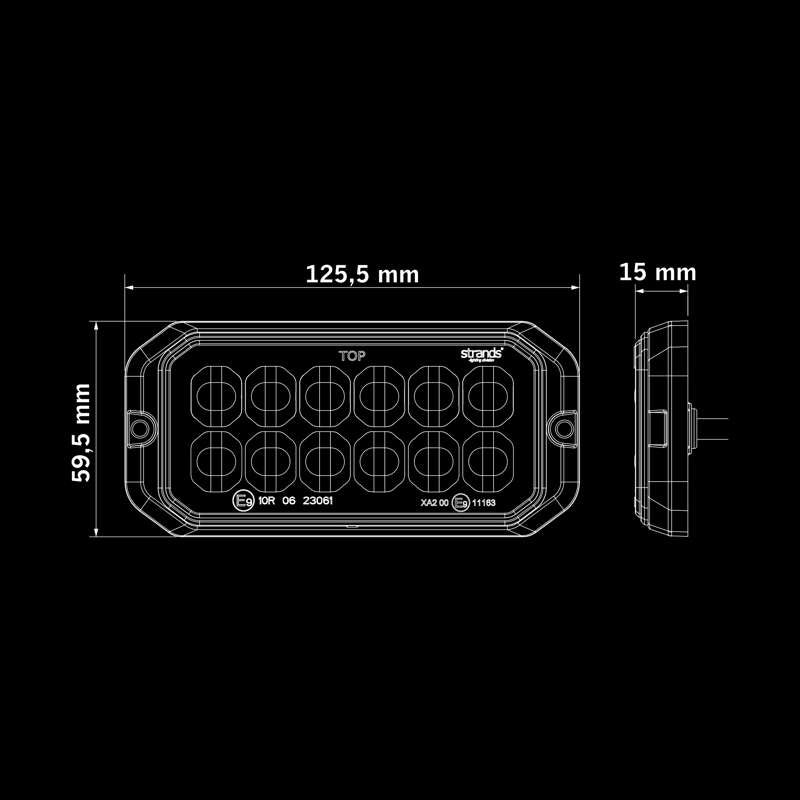

Length = 125,5mm
Depth = 15mm
Height = 59,5mm
CC = 117,2mm
Weight = 0,162kg
IP-class = IP67/69K
Operating temperature = -40 - +60°C
E-approved = Yes
ADR-approved = No
According to regulation = ECE R65 Class 2
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + Warning light
White cable = Asynchronization (connect to red wire)
Yellow cable = Pattern selection/synchronization (Connect to red wire)
Green cable = Connect to red wire for by night mode
Included in package = Screws, washers, bolts, eva pad
