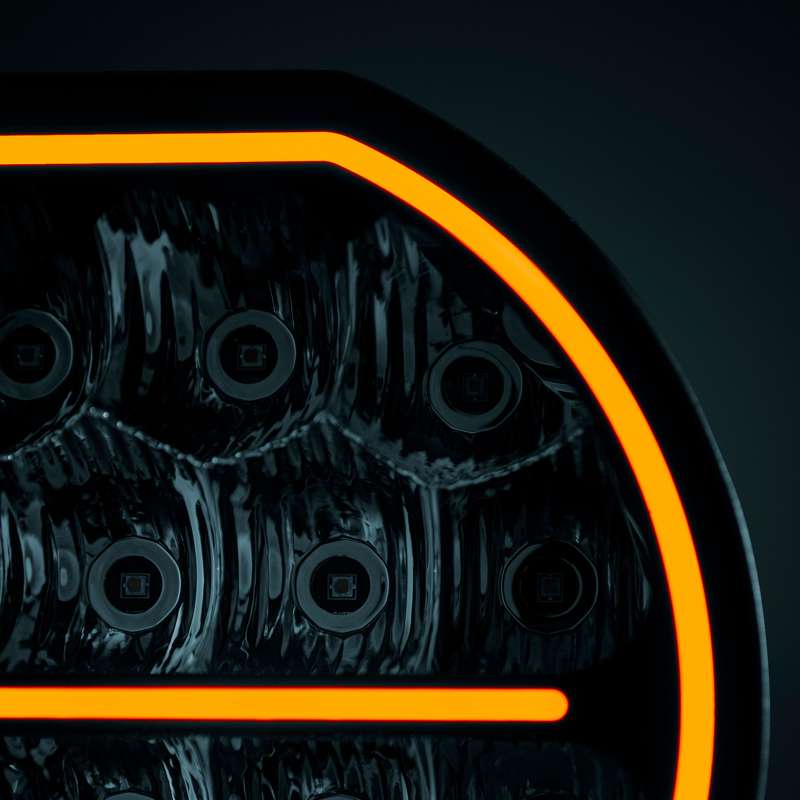

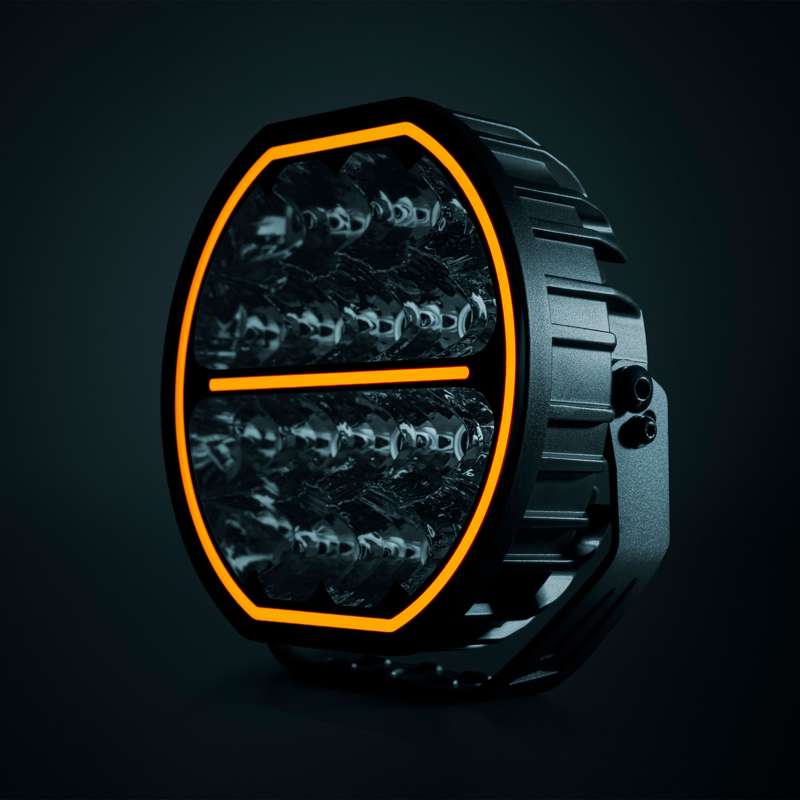

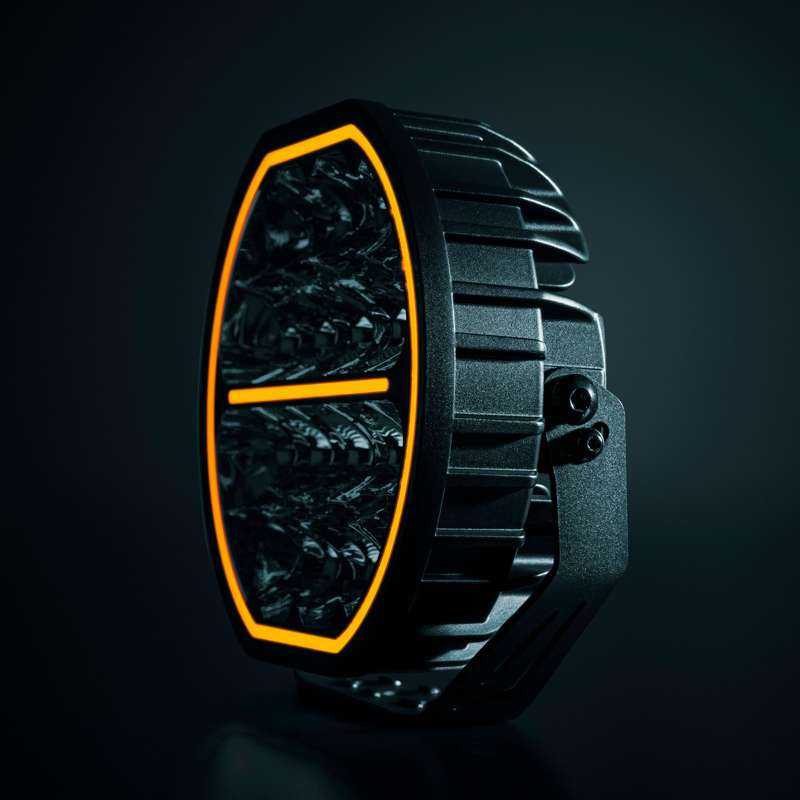

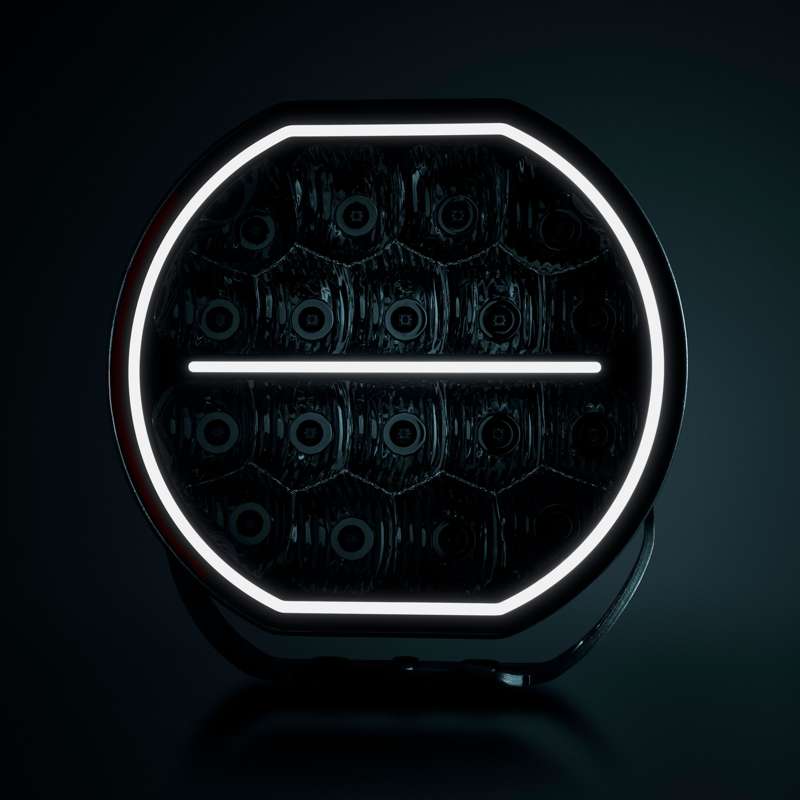

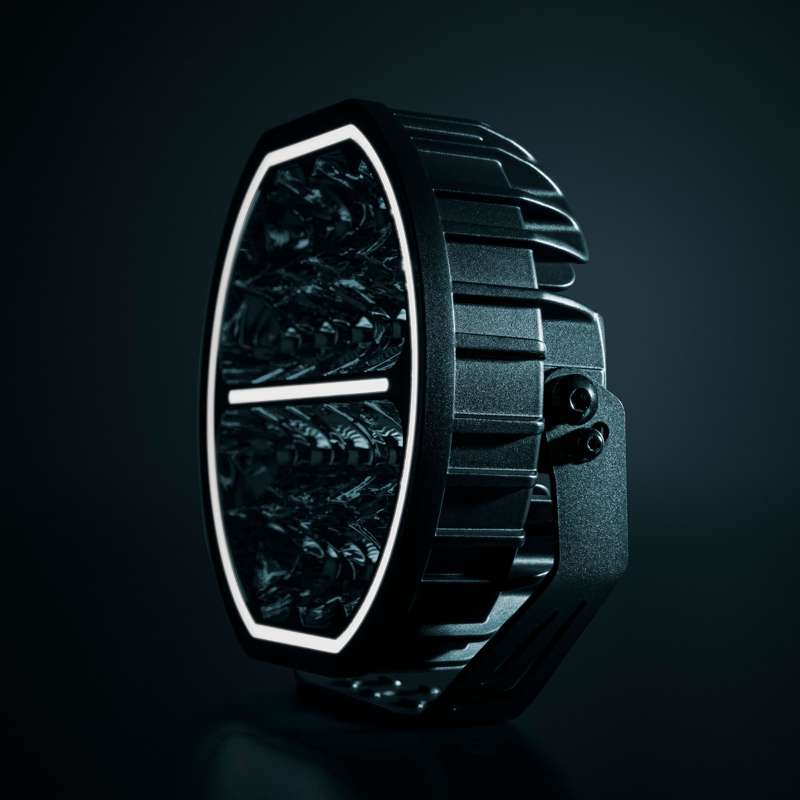

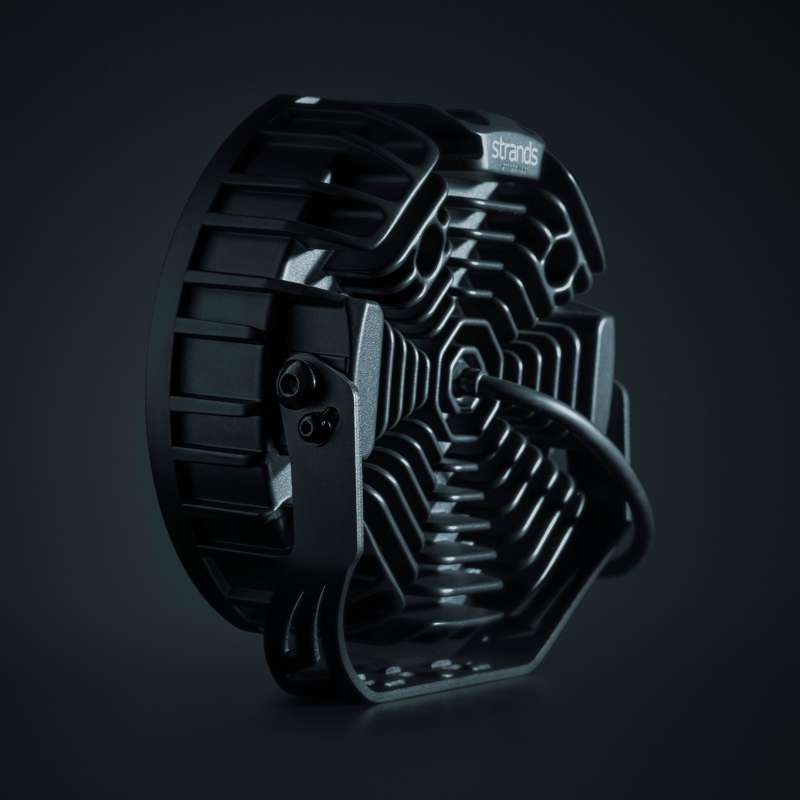

Get ready to be blown away by this supernova of brightness. The Big Energy driving light packs a ton of energy and is here to guide you on the darkest roads. With more than 11900 lumens and 6500 kelvins, it’s a massive boost to your high beam. The wide optimized beam is 80 meters wide and reaches more than 440 meters @ 1 Lux. It has a 1000 mm cable with a DT-4 connector for easy installation, and the slim design and low weight make it a good fit for cars or LCVs. Made from aluminum and polycarbonate and IP-rated IP67/IP69K, it will be a durable addition to your vehicle. It’s also E-approved R148/R149. Choose between the white and amber position lights to achieve your desired look. It will withstand rough weather and rugged use, and Strands Lighting Divisions’ 3-year function warranty guarantees a long-lived product that won’t disappoint you.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 126W
Consumption = 105,0W

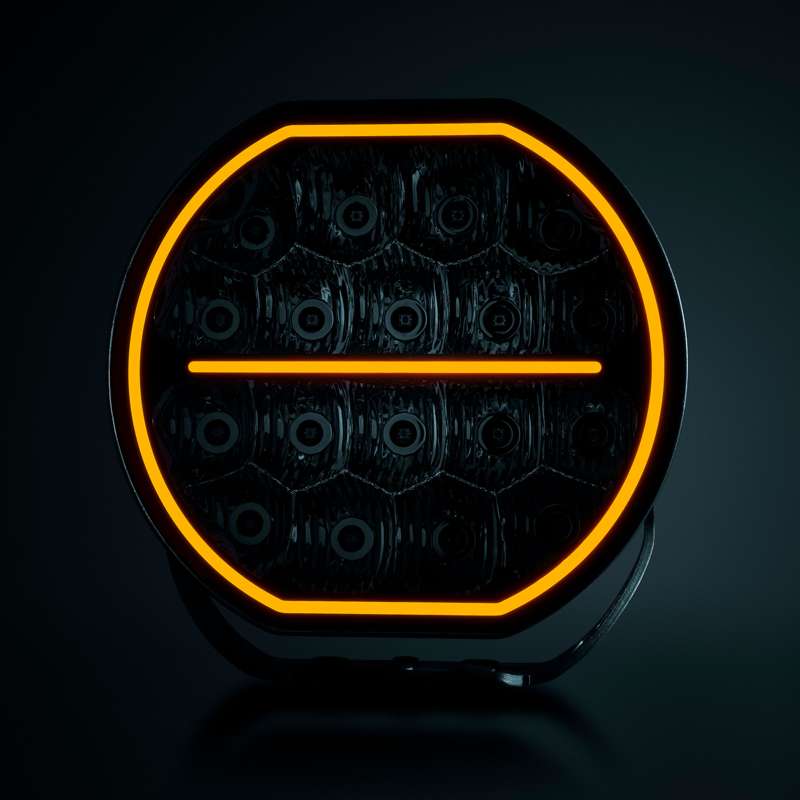

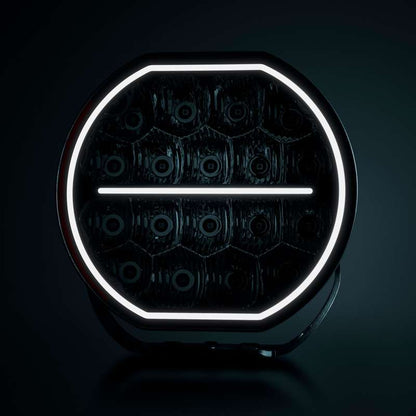

Consumption specific function = White position light: 8W, Amber position light: 8W
Theoretical lumen = 13500lm
Actual lumen = 11950lm

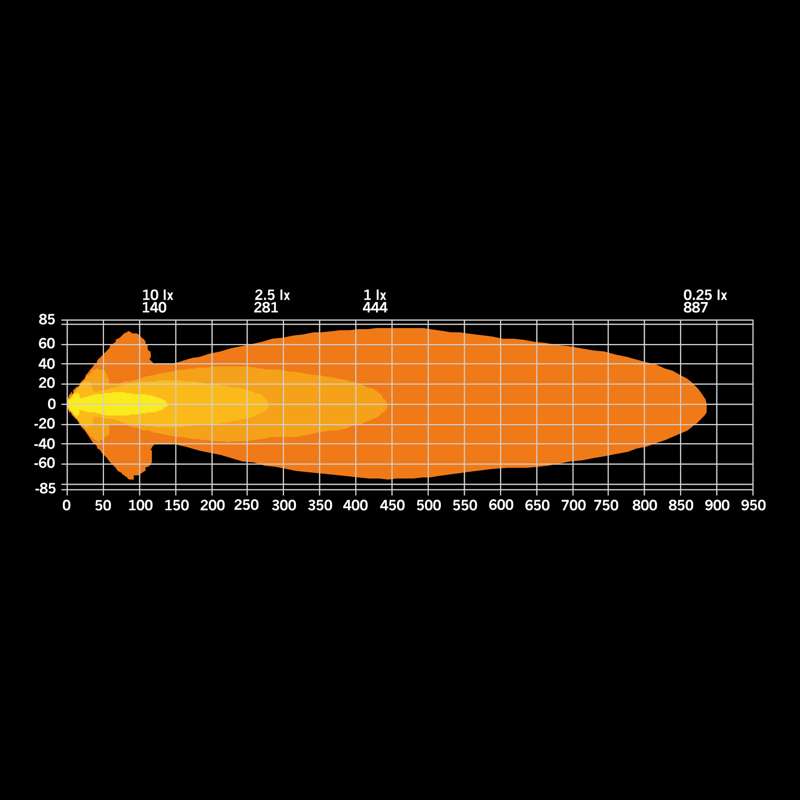

1 lux @ = 444m
Color temperature = 6500K
Beam pattern = Optimized beam
Beam angle = 25,6°

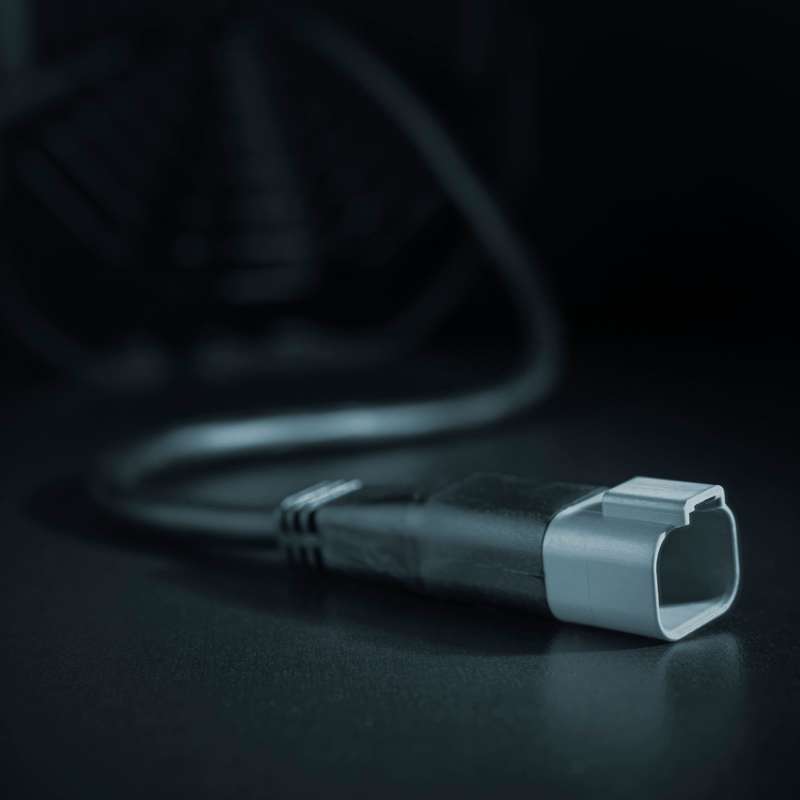

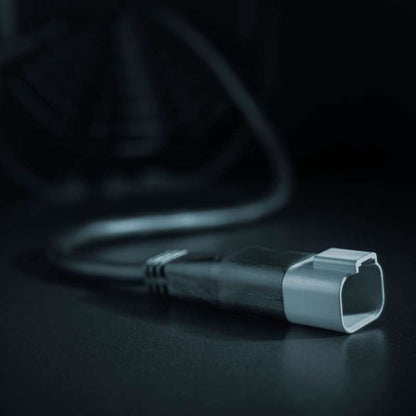

Connection = DT-4PIN
Cable length = 1000mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber
Material housing/chassi = Aluminium
Material lens = Polycarbonate

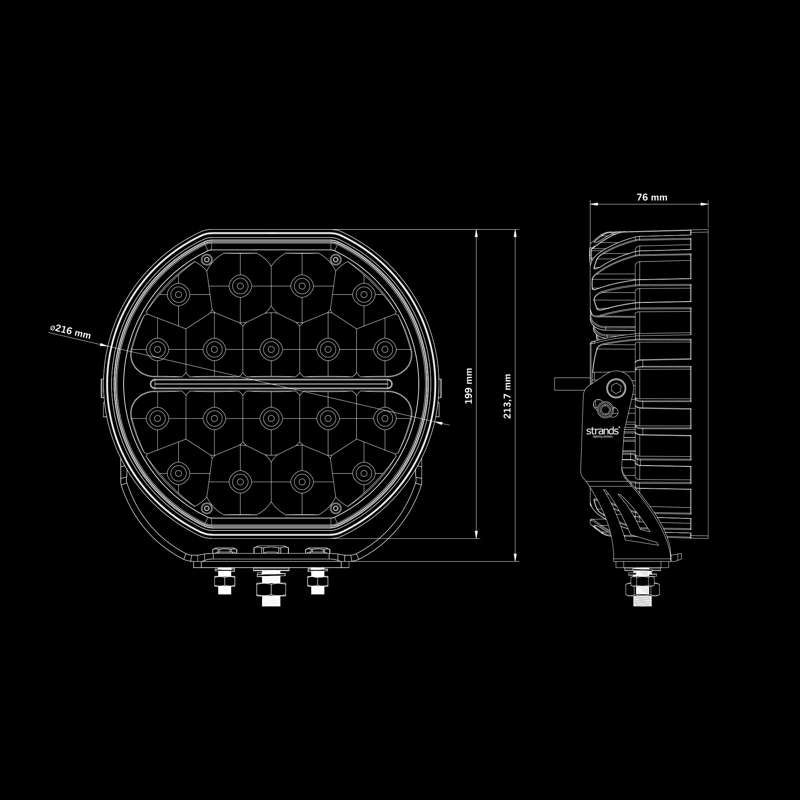

Length = 216mm
Depth = 76mm
Height = 199mm
Height including bracket = 213,7mm
Weight = 2,39kg
IP-class = IP67/69K
Operating temperature = -35 - +60°C
E-approved = Yes
According to regulation = ECE R148(R7),R149(R112)
Reference number = 50
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Bracket, Screws, washers, bolts
