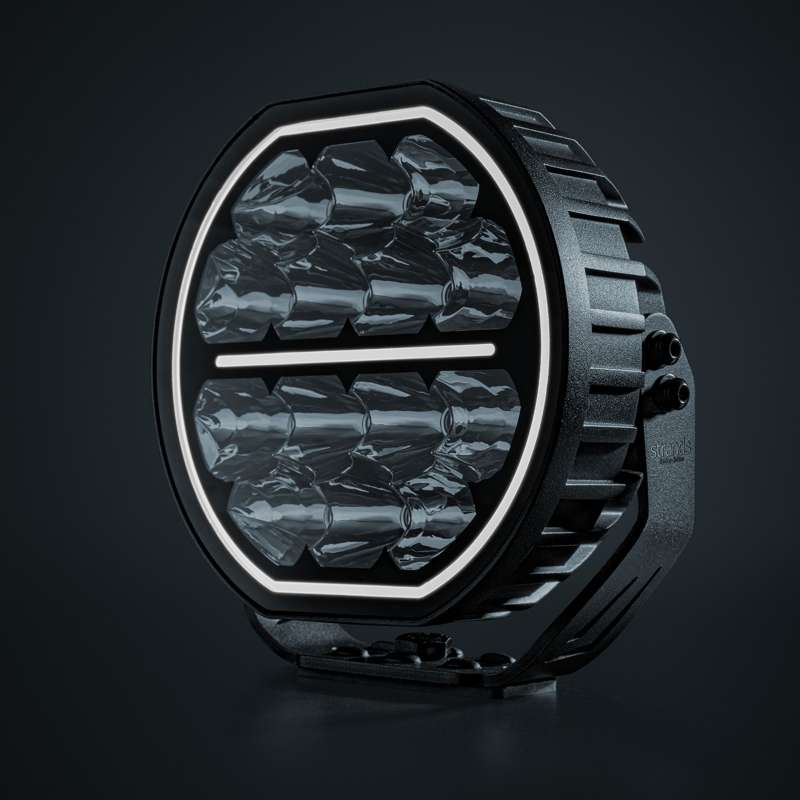

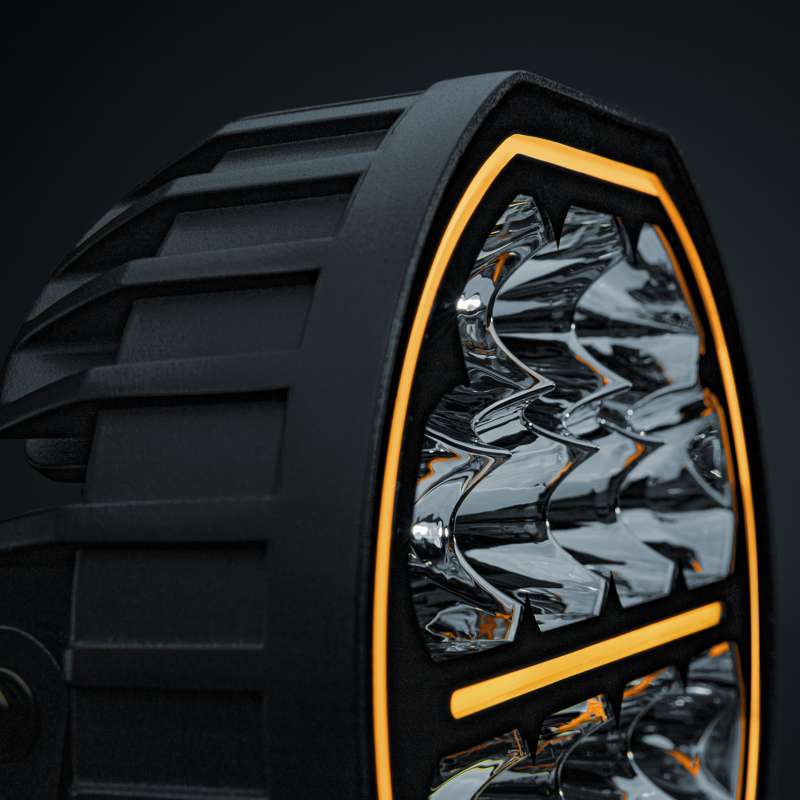

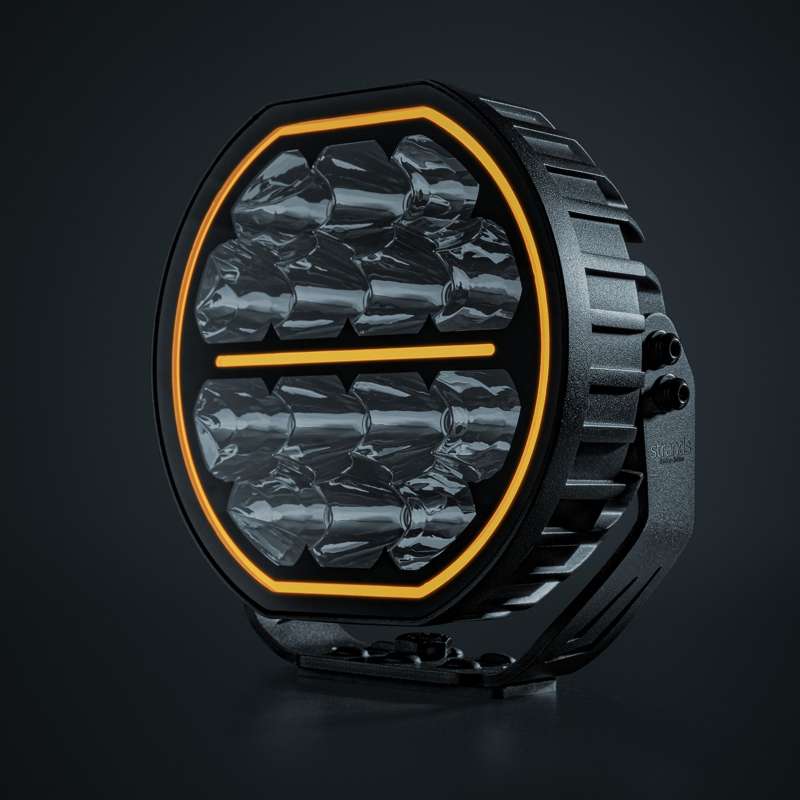

If you’re curious about how a driving light can improve your driving experience or prefer a 7” driving light, Big Energy is it. With more than 5600 lumens and 5700 kelvins, it’s a big boost to your high beam. The optimized beam is 40 meters wide and reaches more than 465 meters @ 1 Lux. It has a 1000 mm cable with a DT-4 connector for easy installation, and the slim design and low weight make it a good fit for cars or LCVs. Made from aluminum and polycarbonate and IP-rated IP67/IP69K, it will be a durable addition to your vehicle. It’s E-approved R148/R149 with reference number 50. Choose between the white and amber position lights to achieve your desired look. You’ll be blown away by the design and output without breaking the bank.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 70W
Consumption = 60,0W

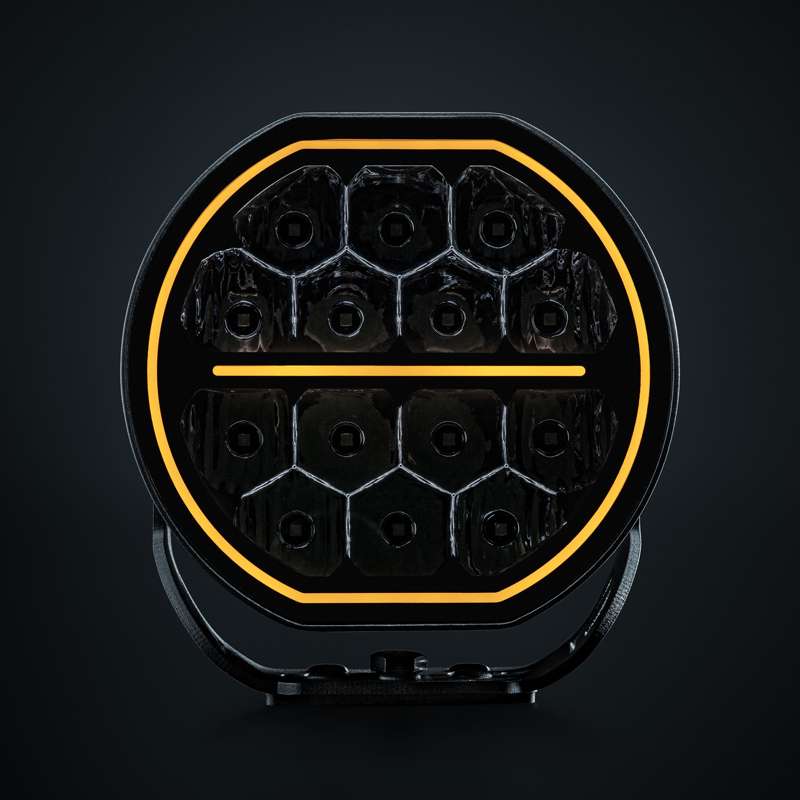

Functions = High beam, White position light, Amber position light
Consumption specific function = White pos. light: 5W, Amber pos. light: 5W
Theoretical lumen = 6000lm
Actual lumen = 5600lm

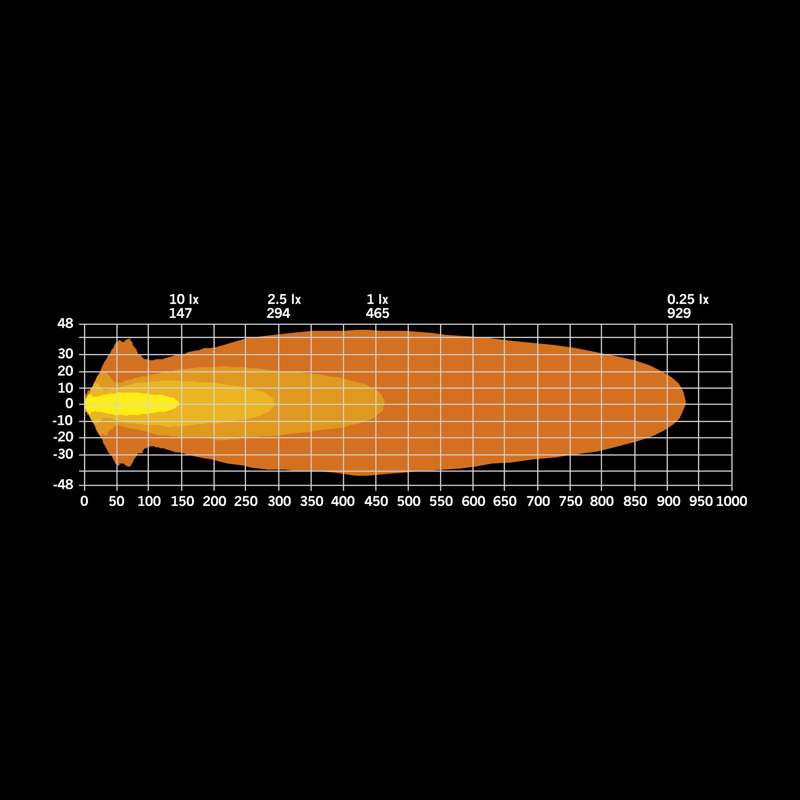

1 lux @ = 465m
Color temperature = 5700K
Beam pattern = Optimized beam
Beam angle = 15,7°

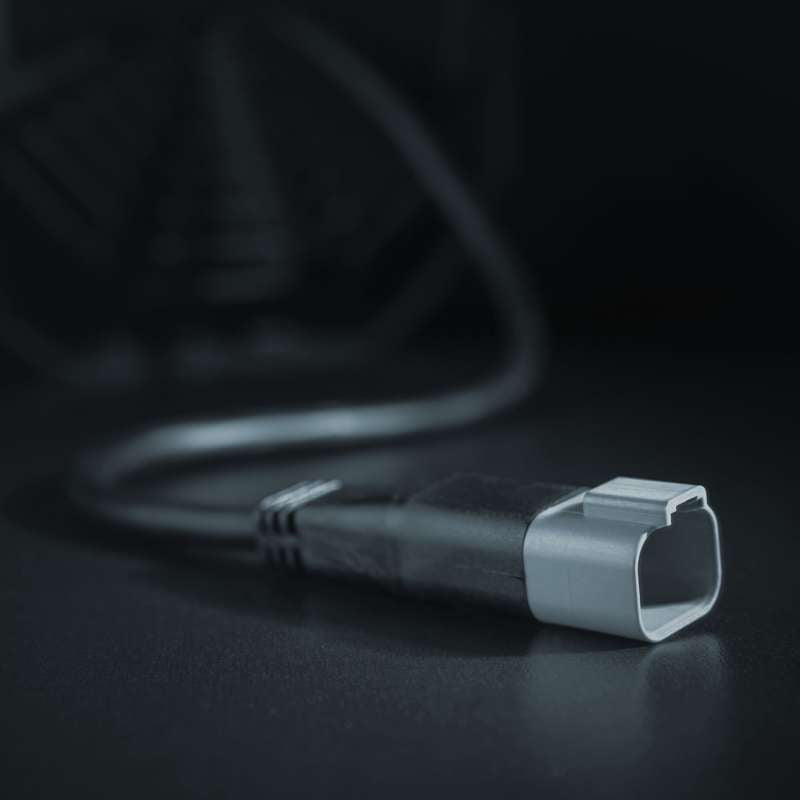

Connection = DT-4PIN

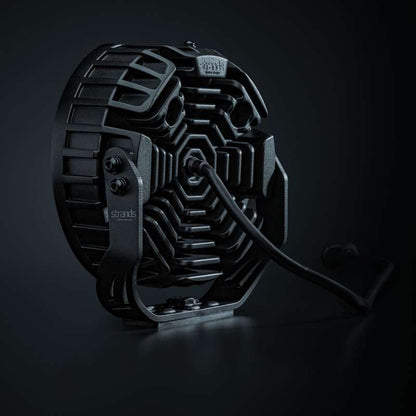

Cable length = 1000mm
Color housing = Black
Color lens = Clear

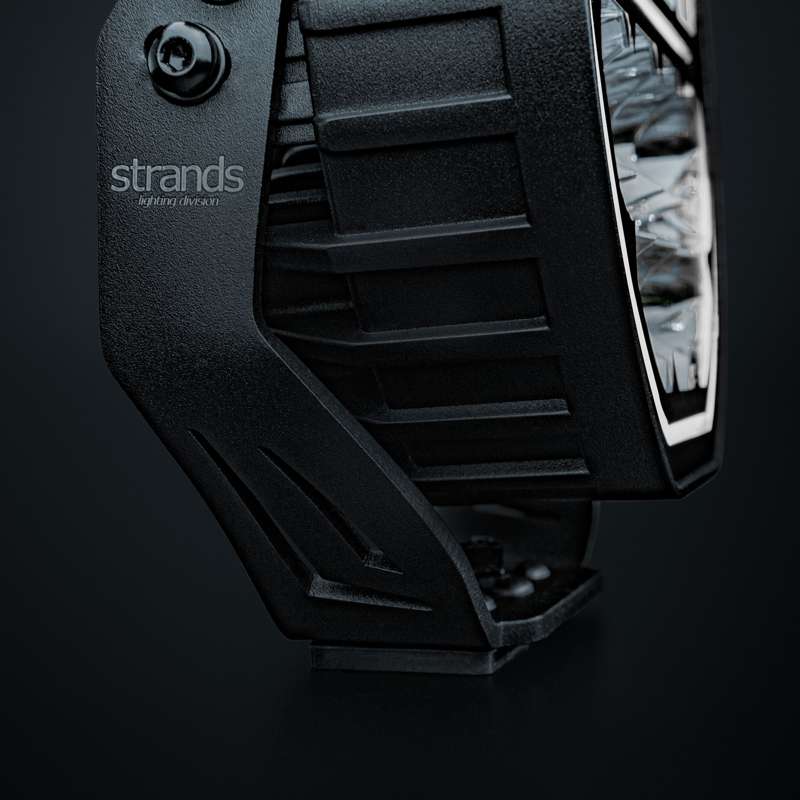

Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

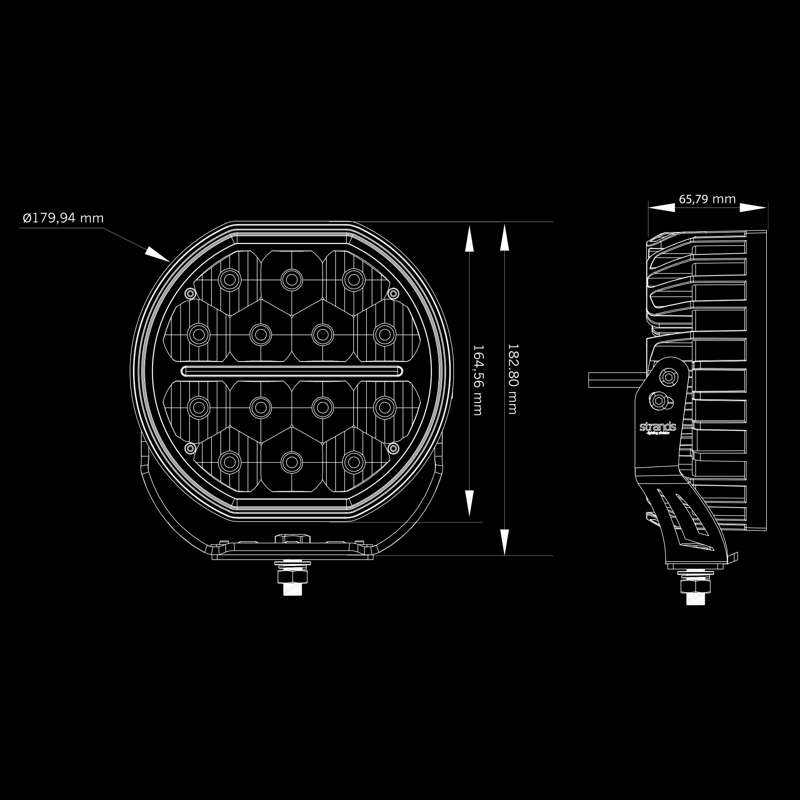

Length = 179,94mm
Depth = 65,79mm
Height = 164,56mm
Height including bracket = 182,8mm
Diameter = 179,94mm
Weight = 1,35kg
IP-class = IP67/69K
Operating temperature = -35 - +60°C
E-approved = Yes
According to regulation = ECE ECE R148, R149
Reference number = 50
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = - (Negative)
Red cable = + (High-beam)
White cable = + White Position light(Positive)
Yellow cable = + Amber Position light(Positive)
Included in package = Brackets,Screws, washers, bolts, rubber pads
