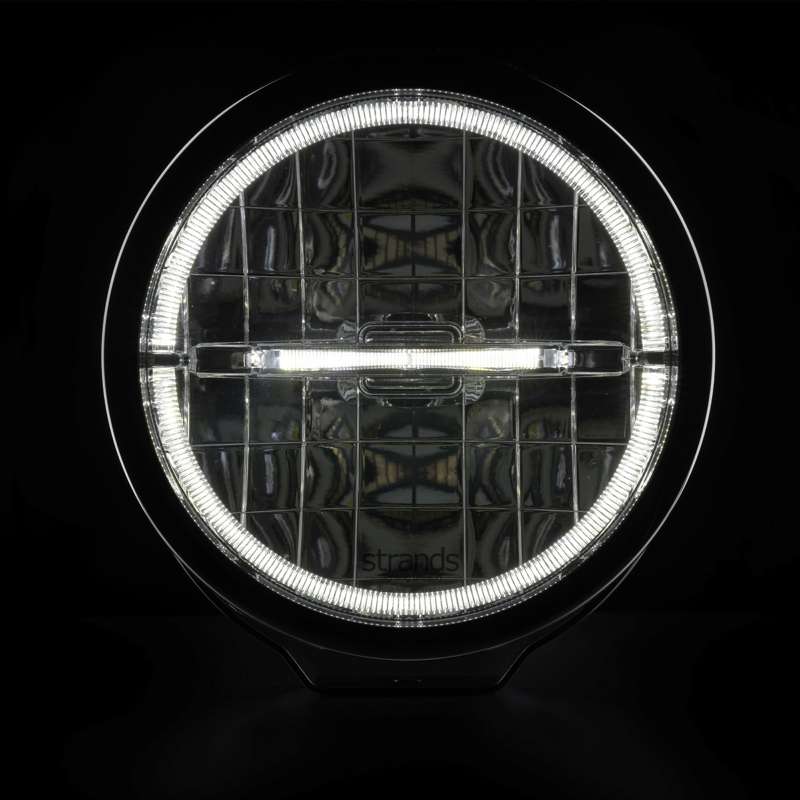

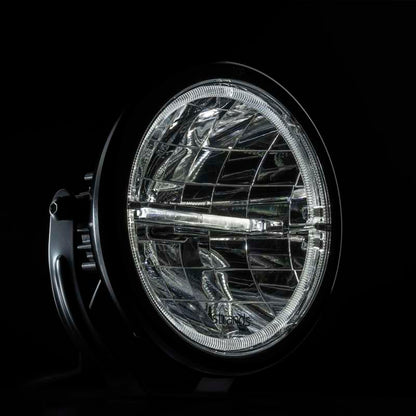

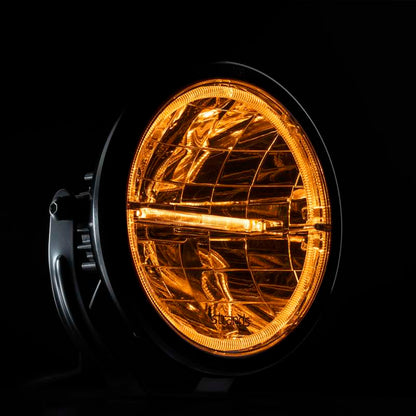

The top choice for the driver in search of the perfect balance of form and function. The Ambassador driving light has a clean, refined design and massive output. With a range of more than 1000 meters, it will tackle the darkest nights with ease while only consuming 70 W. A big reflector focuses the light with high efficiency and is beautifully contrasted with the deep amber and white position lights. Thanks to the IP-rating IP68 and premium quality materials, the Ambassador is a long-lived product that will light the way for years to come
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Consumption = 70,0W
Consumption specific function = White position light: 1,2W, Amber position light: 1,5W
Theoretical lumen = 5535lm
Actual lumen = 4040lm

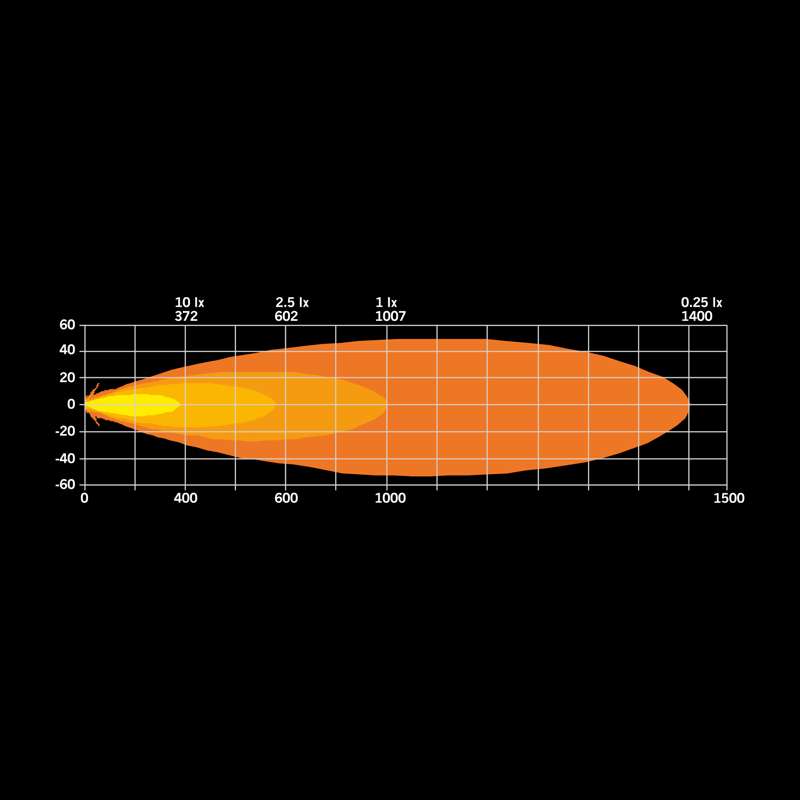

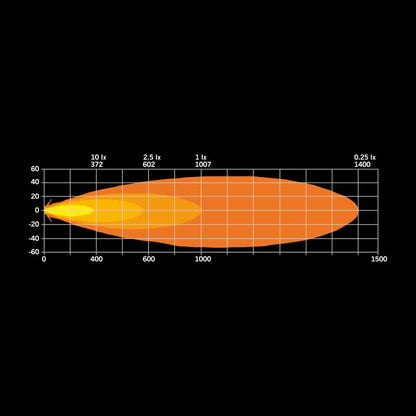

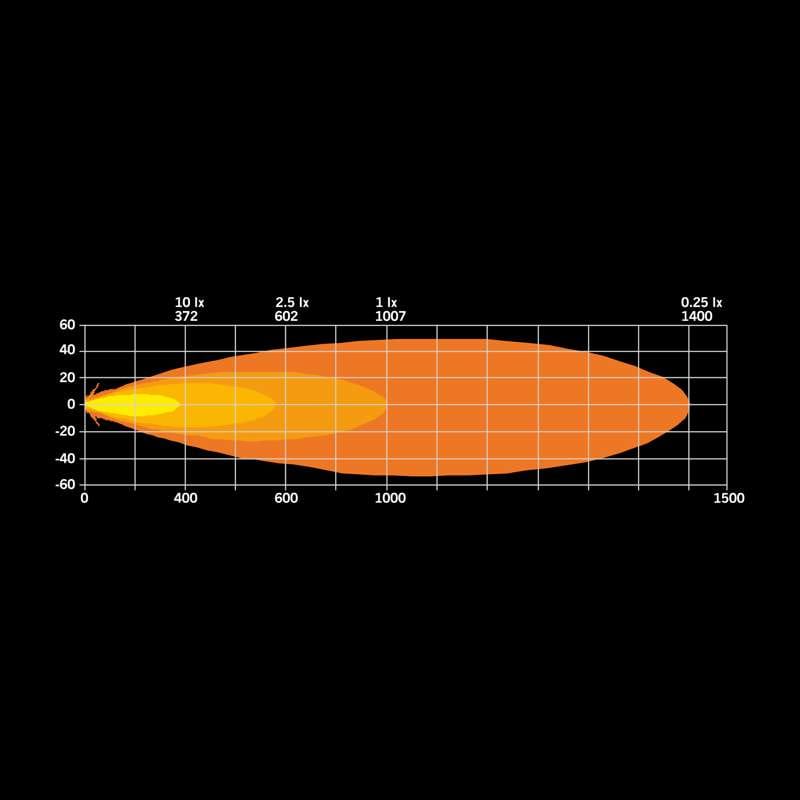

1 lux @ = 1007m
Color temperature = 5700K
Beam pattern = Extended beam
Beam angle = 12,9°
Connection = Cable
Cable length = 3000mm
Color housing = Black
Color lens = Clear
Color LED´s = White/amber

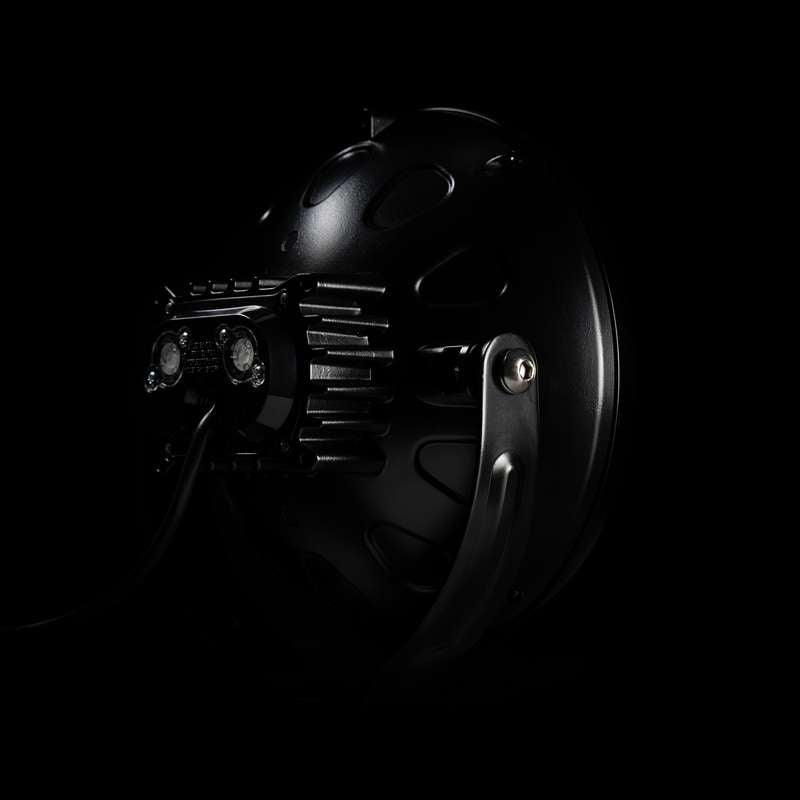

Material bracket = Steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

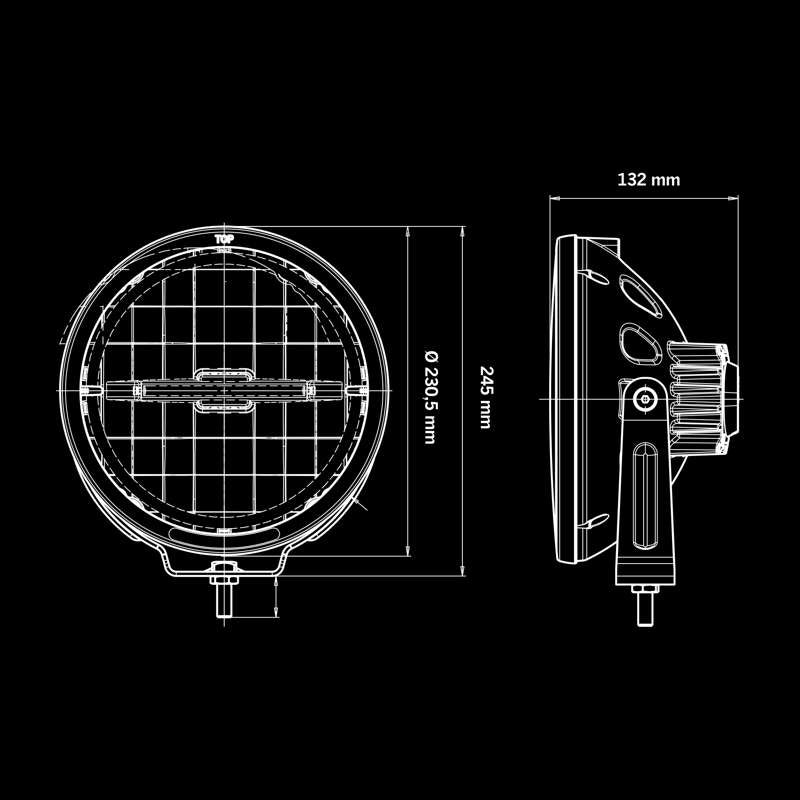

Depth = 132mm
Height including bracket = 245mm
Diameter = 230,5mm
Weight = 2,16kg
IP-class = IP68
Operating temperature = -40 - +45°C
E-approved = No
EMC = ECE R10
INSTALLATION SPECIFICATION

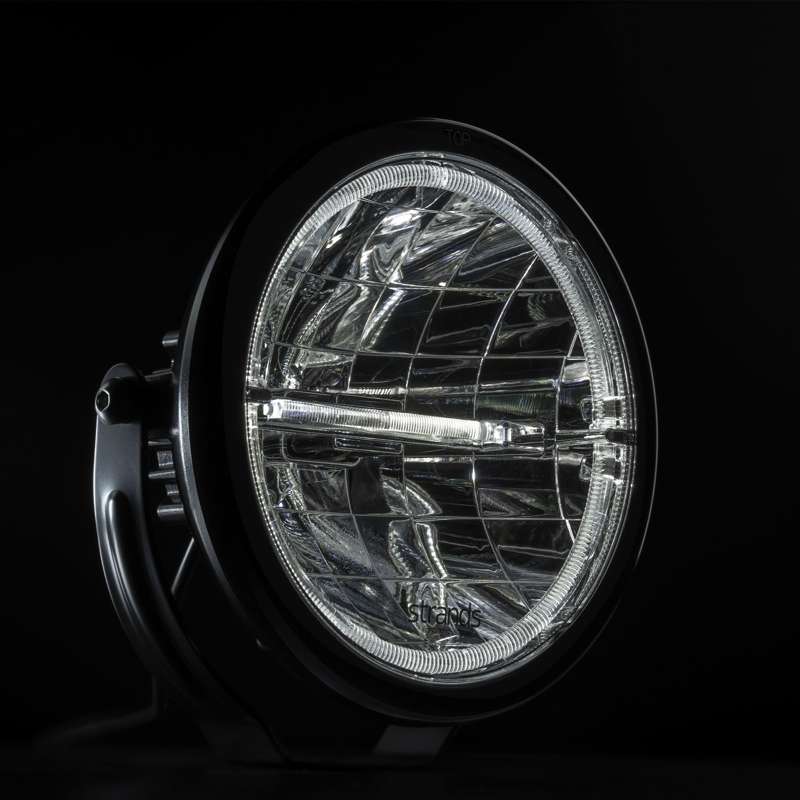

Black cable = + White position light(Positive)
Red cable = + (High-beam)
White cable = - (Negative)

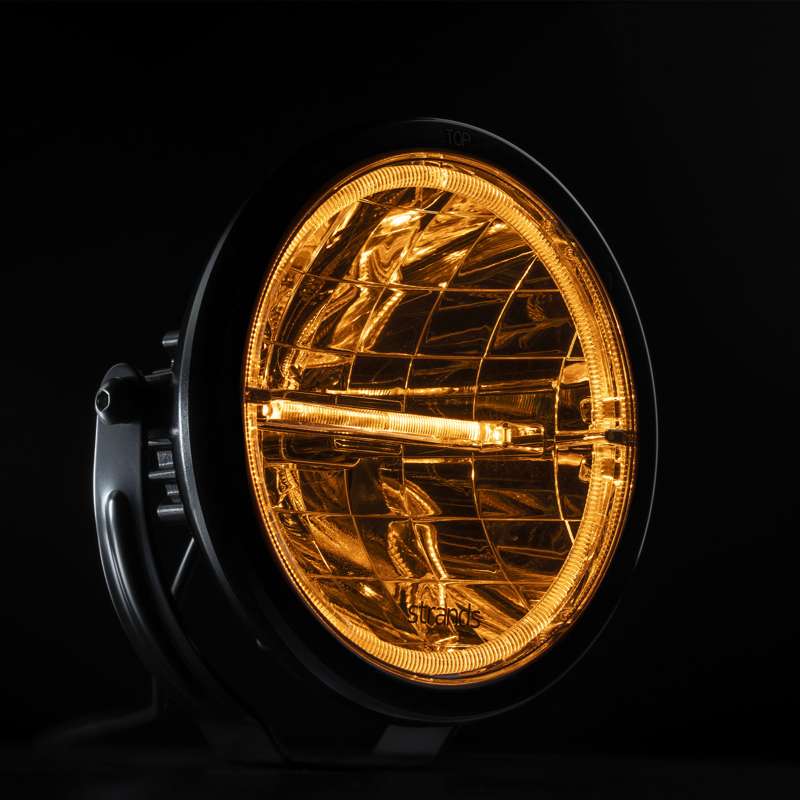

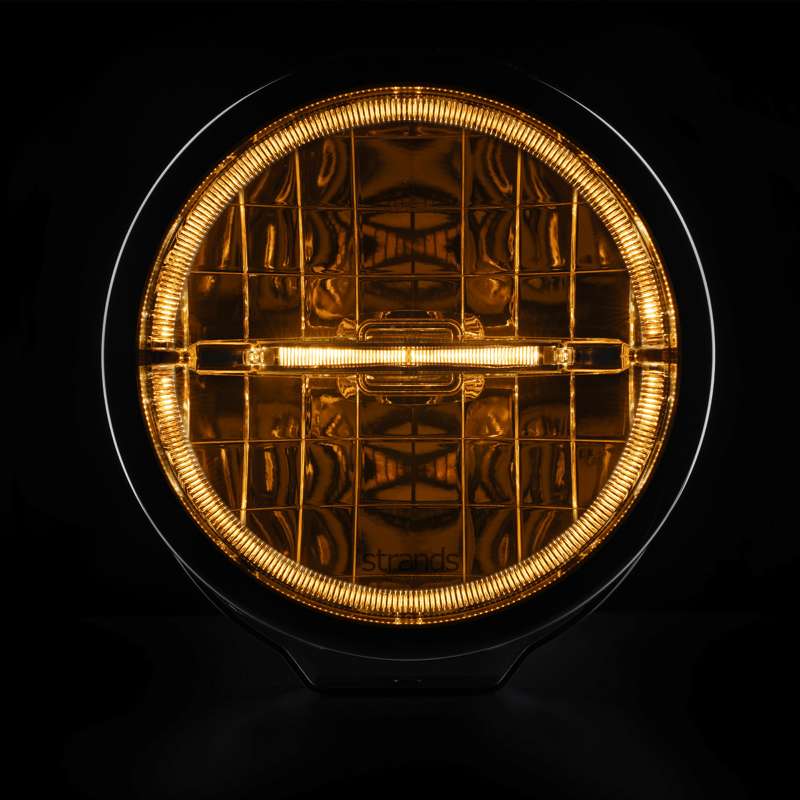

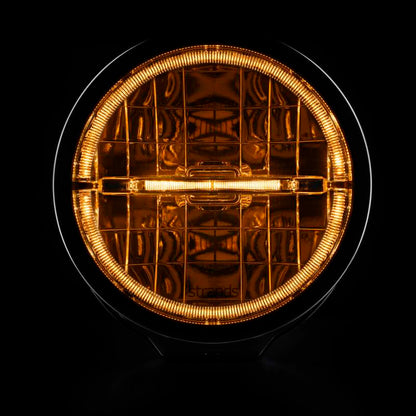

Yellow cable = + Amber Position light(Positive)
Included in package = Top stabilizer (stainless steel), screws, washers
