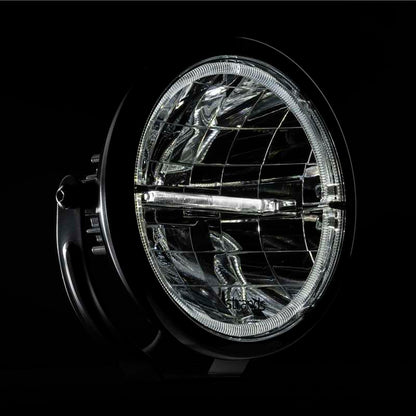

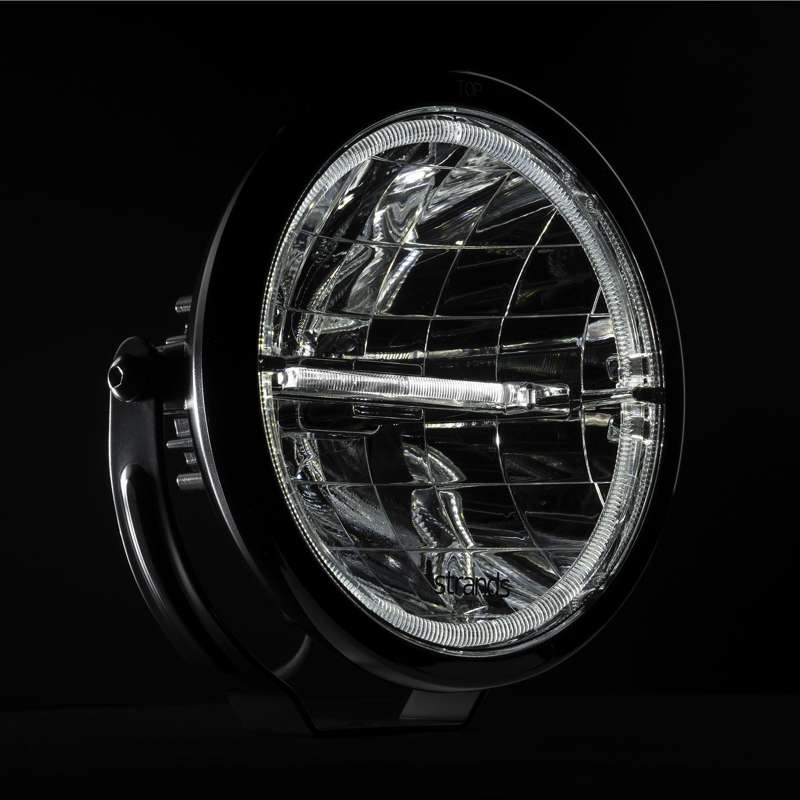

The top choice for the driver in search of the perfect balance of form and function. The Ambassador driving light has a clean, refined design and an impressive output. With a range of more than 380 meters, it will tackle the darkest nights with ease while only consuming 67 W. The big, dark-tinted reflector focuses the light with high efficiency and is beautifully contrasted with the deep amber and white position lights. Its dark housing adds a stylish look to any vehicle. Thanks to the IP-rating IP66/IP68 and premium quality materials, the Ambassador Dark Edition is a long-lived product that will light the way for years to come.
PRODUCT SPECIFICATIONS
Unit = pcs
Voltage = 10-32V DC
Theoretical effect = 70W
Consumption = 67,0W

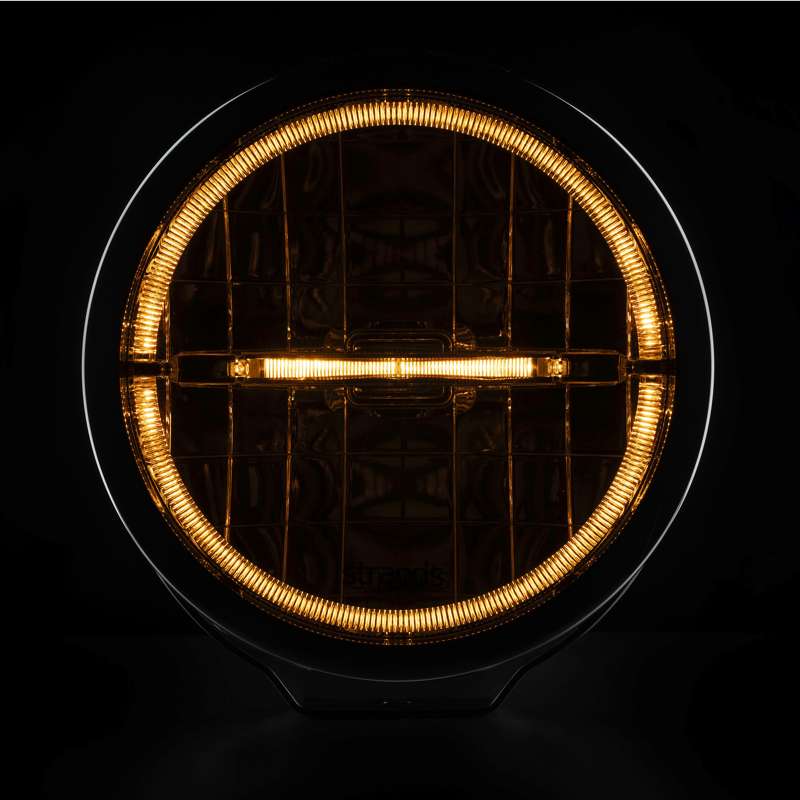

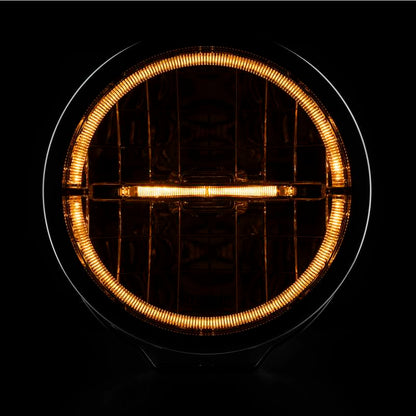

Consumption specific function = White position light: 2W, Amber position light 2,5W
Theoretical lumen = 5535lm
Actual lumen = 1948lm

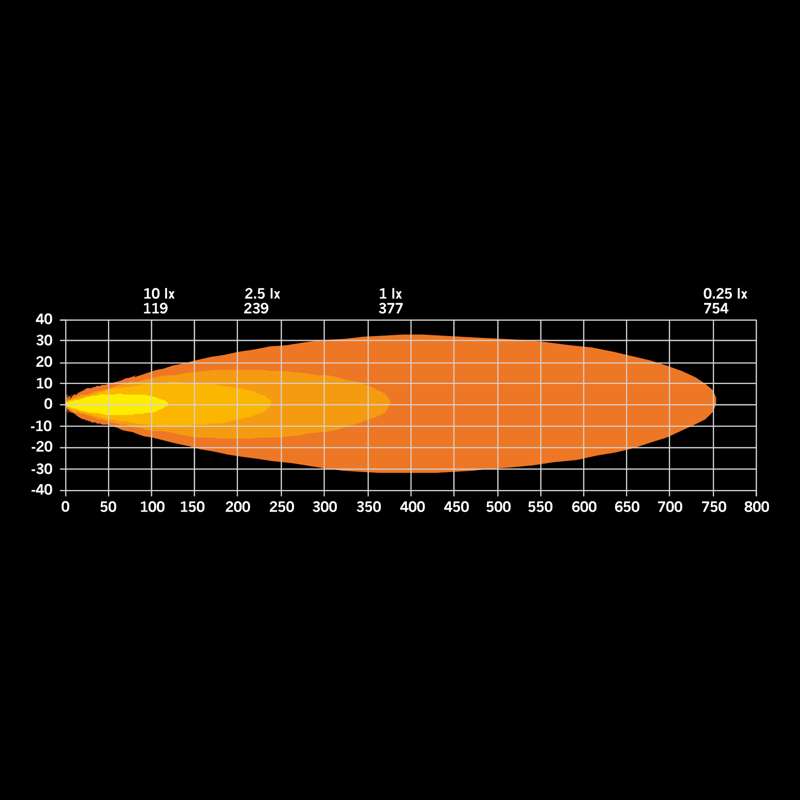

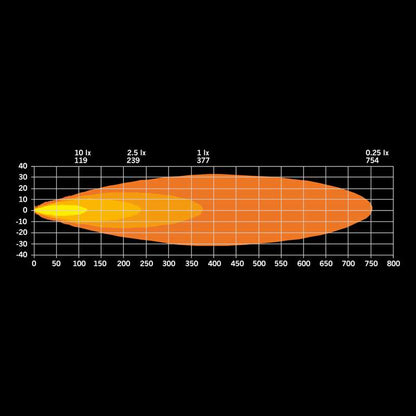

1 lux @ = 377m
Color temperature = 5700K
Beam pattern = Optimized beam
Beam angle = 12,8°
Connection = Cable
Cable length = 3000mm
Color housing = Black
Color lens = Clear, Tinted reflectors
Color LED´s = White/amber
Material bracket = Stainless steel
Material housing/chassi = Aluminium
Material lens = Polycarbonate

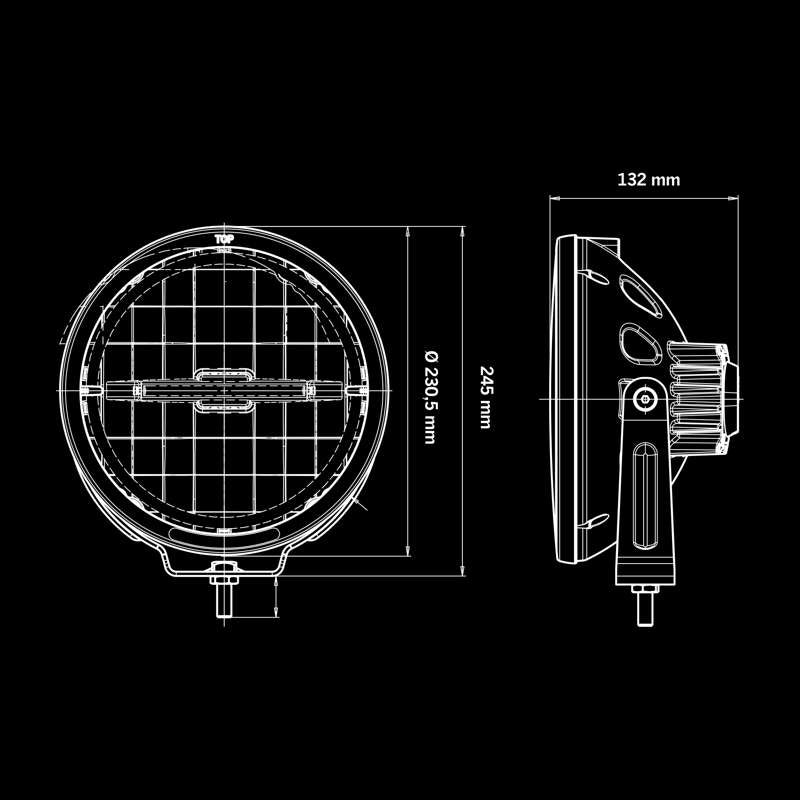

Depth = 132mm
Height including bracket = 245mm
Diameter = 230,5mm
Weight = 2,27kg
IP-class = IP66/68
Operating temperature = -40 - +40°C
E-approved = No
EMC = ECE R10
INSTALLATION SPECIFICATIONS
Black cable = + White position light(Positive)
Red cable = + (High-beam)
White cable = - (Negative)
Yellow cable = + Amber Position light(Positive)
Included in package = Top stabilizer (stainless steel), screws, washers
